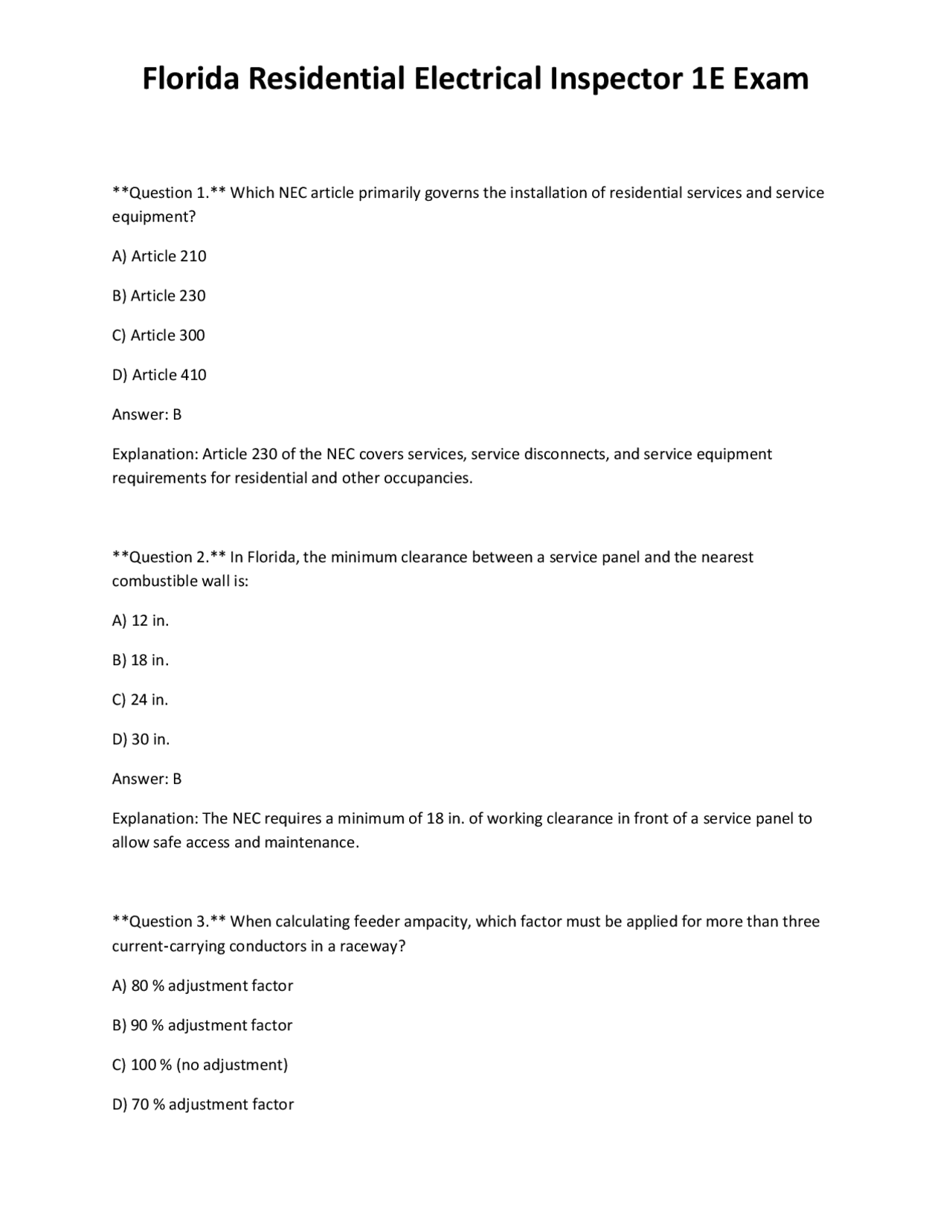

Question 1. Which NEC article primarily governs the installation of residential services and service equipment? A) Article 210 B) Article 230 C) Article 300 D) Article 410 Answer: B Explanation: Article 230 of the NEC covers services, service disconnects, and service equipment requirements for residential and other occupancies. Question 2. In Florida, the minimum clearance between a service panel and the nearest combustible wall is: A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: B Explanation: The NEC requires a minimum of 18 in. of working clearance in front of a service panel to allow safe access and maintenance. Question 3. When calculating feeder ampacity, which factor must be applied for more than three current‑carrying conductors in a raceway? A) 80 % adjustment factor B) 90 % adjustment factor C) 100 % (no adjustment) D) 70 % adjustment factor
Answer: A Explanation: NEC Table 310.15(B)(3)(a) requires an 80 % adjustment factor when there are more than three current‑carrying conductors in a raceway. Question 4. The purpose of a grounding electrode conductor (GEC) is to: A) Carry fault current back to the utility transformer B) Provide a low‑impedance path to earth for stray currents C) Protect the neutral from overload D) Supply power to the service panel Answer: B Explanation: The GEC connects the grounding electrode system to the service neutral, providing a low‑impedance path for fault currents and stabilizing voltage to earth. Question 5. Which of the following is NOT a permitted location for a GFCI receptacle in a dwelling? A) Bathroom vanity outlet B) Kitchen countertop outlet C) Unfinished basement laundry area D) Bedroom ceiling‑mounted light fixture Answer: D Explanation: GFCI protection is required for receptacles in wet or damp locations, not for lighting fixtures in bedrooms. Question 6. A 12 AWG copper conductor with THHN insulation in a 75 °C column of NEC Table 310.15(B)(16) is rated for: A) 20 A
Question 9. Which type of conduit is permitted for underground direct burial without additional protection? A) EMT B) RMC C) PVC Schedule 40 D) Flexible metal conduit (FMC) Answer: C Explanation: PVC Schedule 40 conduit is approved for direct burial without a protective covering per NEC 352.10. Question 10. A receptacle installed in a garage must be GFCI‑protected and have a minimum height of: A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor D) 30 in. above the floor Answer: B Explanation: NEC 210.52(G) requires receptacles in garages to be installed not more than 5 ft above the floor; the typical mounting height is 18 in. for accessibility. Question 11. The maximum number of receptacles allowed on a single 15 A branch circuit in a dwelling unit is: A) 8 B) 10 C) 12 D) No specific limit, as long as load calculations are met
Answer: D Explanation: NEC does not set a numeric limit for receptacles; the circuit must be sized according to calculated load, generally 180 VA per receptacle. Question 12. When using a listed multi‑wire branch circuit (MWBC) that shares a neutral, the two ungrounded conductors must be: A) On separate breakers that are not tied B) On a double‑pole breaker or handle‑tied single‑pole breakers C) Connected to a single‑pole breaker with a fuse D) Protected by a GFCI device only Answer: B Explanation: NEC 210.4(B) requires that ungrounded conductors of an MWBC be simultaneously disconnected, typically by a double‑pole breaker or handle‑tied breakers. Question 13. The required size of a grounding electrode conductor for a 200 A residential service using copper is: A) 8 AWG B) 6 AWG C) 4 AWG D) 2 AWG Answer: C Explanation: NEC Table 250.66 specifies a minimum of 4 AWG copper for a 200 A service grounding electrode conductor. Question 14. Which of the following devices provides both arc‑fault and ground‑fault protection in a single receptacle?
Explanation: NEC 210.52(C)(1) mandates at least two 20 A small‑appliance circuits for kitchen countertop receptacles. Question 17. When installing a non‑metallic sheathed cable (NM‑B) through a wooden stud, the cable must be secured within how many inches of the panel board? A) 4 in. B) 6 in. C) 8 in. D) 12 in. Answer: B Explanation: NEC 334.30 requires NM cable to be secured within 6 in. of a panelboard, cabinet, or similar enclosure. Question 18. The minimum size of a disconnecting means for a 30 A electric water heater is: A) 15 A B) 20 A C) 30 A D) 40 A Answer: C Explanation: The disconnect must be rated at least equal to the load; a 30 A water heater requires a 30 A disconnect per NEC 422.31. Question 19. Which of the following is considered a “listed” device for use in a wet location? A) A standard duplex receptacle without a cover plate B) A metal box with a non‑listed cover
C) A UL‑listed GFCI receptacle with a weatherproof cover D) An unmarked plastic outlet box Answer: C Explanation: Devices installed in wet locations must be listed for such use; a UL‑listed GFCI with a weatherproof cover meets this requirement. Question 20. The maximum length of a flexible cord used as a permanent wiring method for a lamp is: A) 6 ft B) 12 ft C) 18 ft D) No specific limit if rated for the load Answer: D Explanation: Flexible cords may be used as a permanent wiring method only where permitted by the NEC (e.g., cord‑connected luminaires) and must be sized for the load; length is not limited by code. Question 21. For a residential 120/240 V single‑phase service, the neutral conductor must be: A) Identical in size to the ungrounded conductors B) At least one size larger than the ungrounded conductors C) No larger than the smallest ungrounded conductor D) Not required if a 4‑wire feeder is used Answer: A Explanation: NEC 230.42 requires the neutral to be the same size as the largest ungrounded conductor for single‑phase services.
Answer: B Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom receptacles; a 20 A GFCI breaker or receptacle satisfies this. Question 25. When installing a metal conduit system, the grounding conductor may be: A) The conduit itself, if it is continuous and properly bonded B) Omitted if the conduit is PVC C) Only copper, never aluminum D) Required to be larger than the circuit conductors Answer: A Explanation: Metal conduit is an effective grounding path when it is continuous and bonded at each end per NEC 250.118. Question 26. The minimum size of a copper equipment grounding conductor for a 60 A branch circuit using 10 AWG conductors is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: NEC Table 250.122 indicates a 12 AWG copper grounding conductor is required for a 60 A circuit. Question 27. In a residential dwelling, the required number of dedicated 20 A circuits for laundry areas is: A) 0
B) 1
C) 2
D) 3
Answer: B Explanation: NEC 210.11(C)(2) requires at least one 20 A circuit dedicated to the laundry area. Question 28. A receptacle installed in a walk‑in pantry must be: A) GFCI‑protected because it is a kitchen adjunct B) Within 6 ft of the floor C) No special requirements beyond standard dwelling receptacle rules D) Weather‑proof rated Answer: C Explanation: A pantry is not a wet location; standard receptacle requirements apply, with no GFCI mandate. Question 29. The maximum number of conductors permitted in a single‑family home’s main service raceway without derating is: A) 2 B) 3 C) 4 D) 6 Answer: B Explanation: NEC Table 310.15(B)(3)(a) allows up to three current‑carrying conductors without applying an adjustment factor.
Explanation: NEC 210.23(A)(2) requires a minimum 50 A branch circuit for ranges rated 8 kW or less; many residential ranges are rated for 50 A. Question 33. Which of the following is the correct method to identify a grounded (neutral) conductor in a conduit system? A) White or gray insulation B) Bare or green insulation C) Red insulation D) Black insulation with a white stripe Answer: A Explanation: NEC 200.6 specifies that neutral conductors be identified by white or gray insulation (or by marking). Question 34. A receptacle installed at a height of 48 in. in a bedroom is considered: A) A standard receptacle, acceptable B) A “high” receptacle requiring a special label C) Not permitted because it exceeds 48 in. limit D) Only allowed if it is a switched outlet Answer: A Explanation: NEC does not impose a maximum height for bedroom receptacles; 48 in. is acceptable. Question 35. The required size of a grounding electrode conductor for a 400 A service using aluminum conductors is: A) 2/0 AWG aluminum B) 4/0 AWG aluminum
C) 250 kcmil copper D) 1 AWG copper Answer: B Explanation: NEC Table 250.66 indicates a 4/0 AWG aluminum grounding electrode conductor for a 400 A service. Question 36. When installing a receptacle in a garage that also serves a dedicated EV charging station, the receptacle must be: A) A standard 15 A duplex only B) GFCI‑protected and rated for at least 20 A C) A 30 A locking type only D) Not required; the EV charger provides its own protection Answer: B Explanation: Garages require GFCI protection, and a dedicated EV charger typically draws 20 A or more, so a 20 A GFCI receptacle is appropriate. Question 37. The NEC permits the use of a single‑pole breaker to protect a multi‑wire branch circuit only if: A) The breakers are on adjacent phases B) The breakers are handle‑tied C) The circuit uses a 3‑wire cable with a shared neutral D) The circuit supplies only lighting loads Answer: B Explanation: NEC 210.4(B) requires simultaneous disconnect for MWBCs, achieved with a handle‑tie or a double‑pole breaker.
D) 24 in. Answer: C Explanation: NEC 210.8(A)(10) requires receptacles to be installed at least 18 in. from the top of a bathtub rim. Question 41. For a residential outdoor receptacle serving a pool pump, the receptacle must be: A) A standard 15 A duplex B) A GFCI‑protected 20 A receptacle in a weatherproof enclosure C) A 30 A lock‑type receptacle D) Not required if the pump has its own disconnect Answer: B Explanation: Outdoor receptacles serving pool equipment must be GFCI‑protected and installed in a weatherproof (in-use) enclosure per NEC 680.23. Question 42. The maximum number of conductors allowed in a single 1‑in. EMT conduit without derating is: A) 3 B) 4 C) 5 D) 6 Answer: D Explanation: According to NEC Chapter 9, Table 1, a 1‑in. EMT can accommodate up to 6 #12 AWG conductors without exceeding the 40 % fill limit. Question 43. When a feeder is installed in a residential garage, the conduit must be protected from physical damage by:
A) Rigid metal conduit only B) PVC conduit with a metal plate C) A conduit listed for “garage” use, or additional protection such as a protective plate D) No protection needed if the conduit is > 1‑in. diameter Answer: C Explanation: NEC 320.23 requires conduit in garages to be protected from physical damage, either by using a listed conduit type or by adding a protective plate. Question 44. The NEC requires that all receptacles installed in a kitchen island be: A) GFCI‑protected only if the island is within 6 ft of a sink B) AFCI‑protected only if the island serves countertop appliances C) Both GFCI‑ and AFCI‑protected D) Not required unless the island contains a sink Answer: C Explanation: NEC 210.8(A)(6) mandates GFCI for kitchen island receptacles; NEC 210.12(A) requires AFCI protection for all 120 V, 15‑ and 20‑A branch circuits supplying dwelling unit receptacles, including islands. Question 45. The minimum size of a copper grounding electrode conductor for a 100 A service is: A) 10 AWG B) 8 AWG C) 6 AWG D) 4 AWG Answer: B
D) No specific height requirement Answer: D Explanation: NEC does not prescribe a minimum height for switches on stair landings; local codes may, but the NEC has no specific requirement. Question 49. When a flexible metal conduit (FMC) is used to protect a branch‑circuit cable, the conduit must be supported within: A) 3 ft of each termination and every 4 ft thereafter B) 6 ft of each termination and every 8 ft thereafter C) 12 in. of each termination and every 6 ft thereafter D) 18 in. of each termination and every 10 ft thereafter Answer: A Explanation: NEC 376.30 requires FMC to be supported within 3 ft of each termination and at intervals not exceeding 4 ft. Question 50. The required minimum size of a copper conductor for a 120 V, 15 A bathroom lighting circuit is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: A Explanation: A 15 A circuit can be served by 14 AWG copper conductors per NEC Table 310.15(B)(16) at 60 °C.
Question 51. Which NEC article defines the requirements for grounding and bonding of swimming pool equipment? A) Article 250 B) Article 680 C) Article 300 D) Article 410 Answer: B Explanation: Article 680 specifically addresses swimming pools, spas, and related equipment, including grounding and bonding. Question 52. A receptacle installed in a garage must be GFCI‑protected. If a GFCI breaker is installed at the panel, the receptacle itself must be: A) Also GFCI‑type for redundancy B) A standard receptacle, as upstream GFCI protection suffices C) A GFCI receptacle with a test button disabled D) A weather‑proof receptacle only Answer: B Explanation: Upstream GFCI protection (breaker) satisfies the requirement; the receptacle can be a standard type. Question 53. The NEC allows the use of a 2‑wire cable (no equipment grounding conductor) for a receptacle in a detached garage if: A) The garage is supplied by a separate feeder with a grounding conductor B) The receptacle is GFCI‑protected and the circuit is 20 A or less C) The cable is installed in conduit that serves as the equipment ground D) None of the above; a grounding conductor is always required
