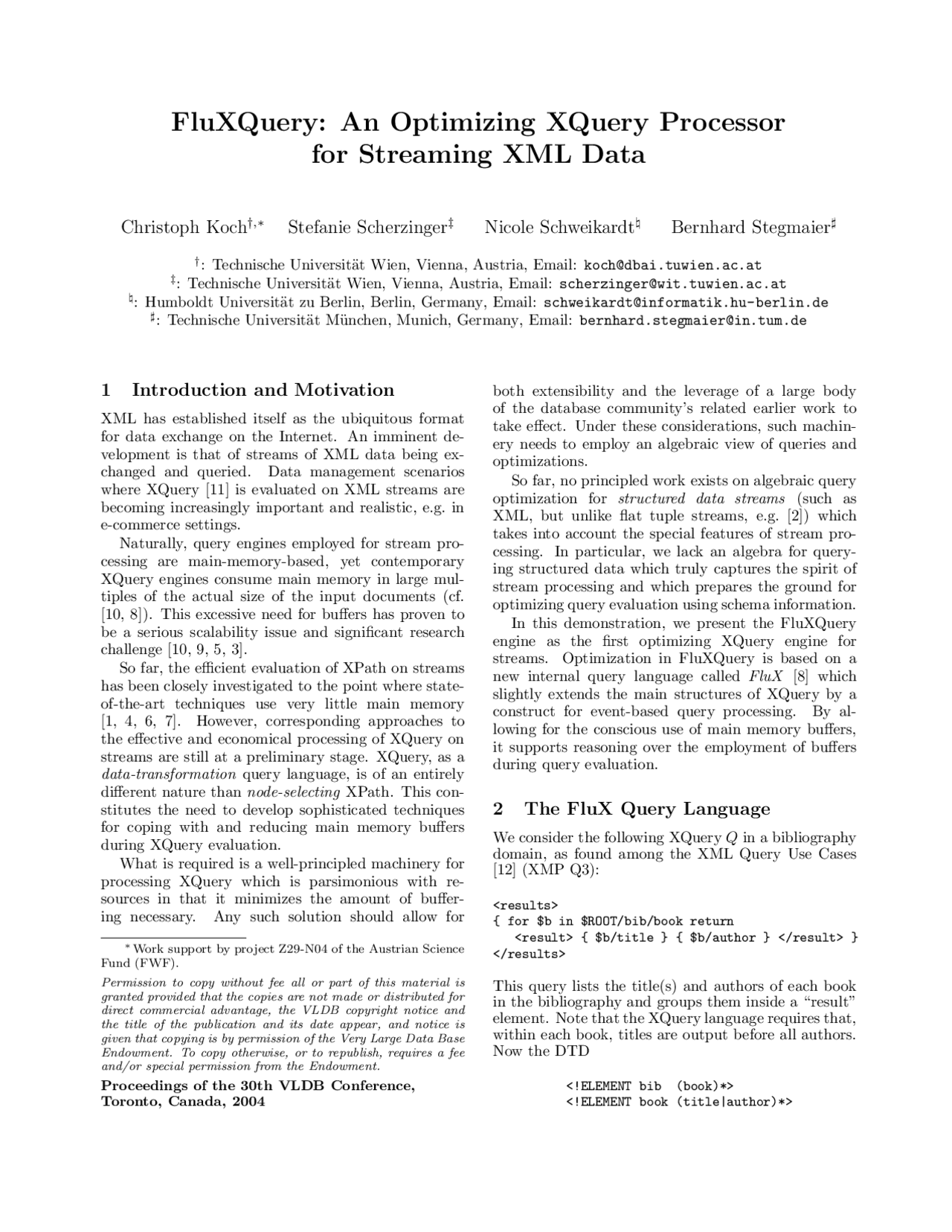

FluXQuery: An Optimizing XQuery Processor
for Streaming XML Data
Christoph Koch†,∗^ Stefanie Scherzinger‡^ Nicole Schweikardt^ Bernhard Stegmaier]
†: Technische Universit¨at Wien, Vienna, Austria, Email: [email protected] ‡: Technische Universit¨at Wien, Vienna, Austria, Email: [email protected] : Humboldt Universit¨at zu Berlin, Berlin, Germany, Email: [email protected] ]: Technische Universit¨at M¨unchen, Munich, Germany, Email: [email protected]
1 Introduction and Motivation
XML has established itself as the ubiquitous format for data exchange on the Internet. An imminent de- velopment is that of streams of XML data being ex- changed and queried. Data management scenarios where XQuery [11] is evaluated on XML streams are becoming increasingly important and realistic, e.g. in e-commerce settings. Naturally, query engines employed for stream pro- cessing are main-memory-based, yet contemporary XQuery engines consume main memory in large mul- tiples of the actual size of the input documents (cf. [10, 8]). This excessive need for buffers has proven to be a serious scalability issue and significant research challenge [10, 9, 5, 3]. So far, the efficient evaluation of XPath on streams has been closely investigated to the point where state- of-the-art techniques use very little main memory [1, 4, 6, 7]. However, corresponding approaches to the effective and economical processing of XQuery on streams are still at a preliminary stage. XQuery, as a data-transformation query language, is of an entirely different nature than node-selecting XPath. This con- stitutes the need to develop sophisticated techniques for coping with and reducing main memory buffers during XQuery evaluation. What is required is a well-principled machinery for processing XQuery which is parsimonious with re- sources in that it minimizes the amount of buffer- ing necessary. Any such solution should allow for
∗ (^) Work support by project Z29-N04 of the Austrian Science Fund (FWF).
Permission to copy without fee all or part of this material is granted provided that the copies are not made or distributed for direct commercial advantage, the VLDB copyright notice and the title of the publication and its date appear, and notice is given that copying is by permission of the Very Large Data Base Endowment. To copy otherwise, or to republish, requires a fee and/or special permission from the Endowment.
Proceedings of the 30th VLDB Conference, Toronto, Canada, 2004
both extensibility and the leverage of a large body of the database community’s related earlier work to take effect. Under these considerations, such machin- ery needs to employ an algebraic view of queries and optimizations. So far, no principled work exists on algebraic query optimization for structured data streams (such as XML, but unlike flat tuple streams, e.g. [2]) which takes into account the special features of stream pro- cessing. In particular, we lack an algebra for query- ing structured data which truly captures the spirit of stream processing and which prepares the ground for optimizing query evaluation using schema information. In this demonstration, we present the FluXQuery engine as the first optimizing XQuery engine for streams. Optimization in FluXQuery is based on a new internal query language called FluX [8] which slightly extends the main structures of XQuery by a construct for event-based query processing. By al- lowing for the conscious use of main memory buffers, it supports reasoning over the employment of buffers during query evaluation.
2 The FluX Query Language
We consider the following XQuery Q in a bibliography domain, as found among the XML Query Use Cases [12] (XMP Q3):
{ for $b in $ROOT/bib/book return { $b/title } { $b/author } }
This query lists the title(s) and authors of each book in the bibliography and groups them inside a “result” element. Note that the XQuery language requires that, within each book, titles are output before all authors. Now the DTD
allows each book node to have several title and sev- eral author children, while imposing no order among these items. In the course of evaluating this query, we may out- put the title children of a book node as soon as they arrive on the stream, while the output of the author children must be delayed (using a memory buffer) un- til we reach the closing tag of the book node. Only then we may be sure that no further title nodes will be encountered and we may write the contents of the buffer containing author nodes to the output and then empty it. Later on, we may refill it with the author nodes from the next book. Consequently, we only need to buffer the author children of one book node at a time, but not the titles. Current main memory query engines do not exploit this fact. Rather, they buffer either the entire book nodes or, as an optimization [10], all title and all author nodes of each book. Previous frameworks for evaluating or optimizing XQuery do not provide any means of making this seeming subtlety explicit and reasoning about it. We introduce the FluX query language together with its process-stream construct which allows us to express precisely the mode of query execution just de- scribed. Given the DTD from above, XQuery Q may be phrased as a FluX query as follows:
{ process-stream $ROOT: on bib as $bib return { process-stream $bib: on book as $book return { process-stream $book: on title as $t return {$t}; on-first past(title,author) return { for $a in $book/author return {$a} } } } }
A process-stream $x expression consists of a number of handlers which process the children of the XML tree node bound by variable $x from left to right. An “on a” handler fires on each child labeled “a” vis- ited during such a traversal, executing the associated query expression. In the process-stream $book ex- pression above, the on-first past(title,author) handler fires exactly once, namely as soon as the DTD implies for the first time that no further author or title node can be encountered among the children of $book. (As observed above, in the given, very weak DTD, this is the case only as soon as the last child of $book has been seen.) In the query associated with the on-first past(title,author) handler, we may safely use paths of the form $book/author or $book/title, because such paths cannot be encoun- tered anymore. Consequently, we may assume that the query engine has buffered all matches of that path for us. It is a feasible task for the query engine to buffer only those paths that the query actually employs (see also [10]).
Figure 1: A DTD.
We call a FluX query safe for a given DTD if, in- formally, it is guaranteed that XQuery subexpressions (such as the for-loop in the query above) do not refer to paths that may still be encountered in the stream. The above FluX query is safe: The for-expression em- ploys the $book/author path, but is part of an on-first handler that cannot fire before all author nodes rela- tive to $book have been seen. If the path $book/author in the previous FluX query was replaced by, say, $book/price and the DTD production for book were
then the FluX query such modified would not be safe: On the firing of on-first past(title,author), the buffer for $book/price items would still be empty and the query result would be incorrect. Let us now return to XQuery Q. This query can be processed more efficiently with the DTD shown in Figure 1: Here, no buffering is required to execute query Q because the DTD asserts that for each book, the title occurs strictly before the authors (we call this an order constraint). Thus, we may phrase our query in FluX so as to directly copy titles and authors to the output as they arrive on the input stream:
{ process-stream $ROOT: on bib as $bib return { process-stream $bib: on book as $book return { process-stream $book: on title as $t return {$t}; on author as $a return {$a} } } }
3 FluXQuery System Architecture
FluXQuery is, to our knowledge, the first XQuery engine that optimizes query evaluation using schema constraints derived from DTDs^1. Query optimization is carried out on an algebraic, query-language level (rather than, say, on some form of derived automata). Thus, a main strength of FluXQuery is its extensibility and the ability to benefit from a large body of previous database research on algebraic query optimization. The main focus of our efforts was to develop a sys- tem for automatically rewriting XQueries into FluX queries and thereby optimizing (reducing) the use of main memory buffers. We have developed an alge- bra for optimizing XQuery on streams using a DTD (^1) Note that the static information required for optimization could just as well be derived from XML Schema.
The query compiler transforms an optimized FluX query into a physical query plan. It first computes the buffer description forest data structure, BDF for short, which defines those paths of the input docu- ment which need to be buffered. Based on the BDF, it schedules query operators, such as the execution of process-stream expressions, the streamed execution of for-where-return-statements, and buffer population. Our approach improves on that of [10] in that it allows us to avoid the buffering of the data which can be pro- cessed on the fly. The resulting query can either be compiled into an internal representation, which is interpreted during ex- ecution, or directly into executable JAVA code. Finally, the physical query plan is executed by the streamed query evaluator. The latter uses our vali- dating SAX parser, XSAX , which is an extension of a standard SAX parser that in addition produces on- first events in addition to customary SAX-events (such as on-begin-element). Basically, the XSAX parser works as follows. We first register the DTD and all on-first event handlers of the input query with the XSAX parser. Based on this information, the XSAX parser builds a fi- nite state automaton and lookup-tables for validat- ing the input and generating on-first events. While reading the input XML stream, the state of this au- tomaton is checked and the on-first events are properly inserted among the generated stream of conventional SAX events. The streamed query evaluator processes these events and delivers its output in turn as an XML stream.
4 Conclusions
FluXQuery currently supports a fairly powerful XQuery fragment with arbitrarily nested for-loops and joins, but does not yet cover aggregation. The FluX query language, an algorithm for rewrit- ing XQuery into FluX and thereby scheduling event processors using the DTD, as well as buffer manage- ment, are described in detail in [8]. There, the ef- ficiency of our system is also benchmarked against two other XQuery engines. Our experiments show that FluXQuery consumes both far less memory and runtime than other XQuery systems. The difference is particularly clear for main memory consumption, which is of great importance in stream processing and vital to scalability. Our algebraic optimization techniques will be de- scribed in detail in a forthcoming paper.
References
[1] M. Altinel and M. Franklin. “Efficient Filtering of XML Documents for Selective Dissemination of Information”. In Proc. VLDB 2000, pages 53–64, Cairo, Egypt, 2000.
[2] A. Arasu, B. Babcock, S. Babu, M. Datar, K. Ito, I. Nishizawa, J. Rosenstein, and J. Widom. “STREAM: The Stanford Stream Data Man- ager”. In Proc. SIGMOD 2003, page 665, 2003.
[3] P. Buneman, M. Grohe, and C. Koch. “Path Queries on Compressed XML”. In Proc. VLDB 2003 , pages 141–152, 2003.
[4] C. Y. Chan, P. Felber, M. N. Garofalakis, and R. Rastogi. “Efficient Filtering of XML Docu- ments with XPath Expressions”. In Proc. ICDE 2002 , San Jose, California, USA, February 26– March 1 2002.
[5] L. Fegaras, D. Levine, S. Bose, and V. Chaluvadi. “Query Processing of Streamed XML Data”. In Proc. CIKM 2002, pages 126–133, 2002.
[6] T. J. Green, G. Miklau, M. Onizuka, and D. Su- ciu. “Processing XML Streams with Determinis- tic Automata”. In Proc. ICDT’03, 2003.
[7] A. K. Gupta and D. Suciu. “Stream Processing of XPath Queries with Predicates”. In SIGMOD Conference, pages 419–430, 2003.
[8] C. Koch, S. Scherzinger, N. Schweikardt, and B. Stegmaier. “Schema-based Scheduling of Event Processors and Buffer Minimization for Queries on Structured Data Streams”. In Proc. VLDB 2004 , 2004.
[9] B. Lud¨ascher, P. Mukhopadhyay, and Y. Pa- pakonstantinou. “A Transducer-Based XML Query Processor”. In Proc. VLDB 2002, pages 227–238, 2002.
[10] A. Marian and J. Sim´eon. “Projecting XML Doc- uments”. In Proc. VLDB 2003, pages 213–224,
[11] World Wide Web Consortium. “XQuery 1. and XPath 2.0 Formal Semantics. W3C Working Draft (Aug. 16th 2002), 2002. http://www.w3.org/TR/query-algebra/.
[12] “XML Query Use Cases. W3C Working Draft 02 May 2003”, 2003. http://www.w3.org/TR/xmlquery-use-cases/.
