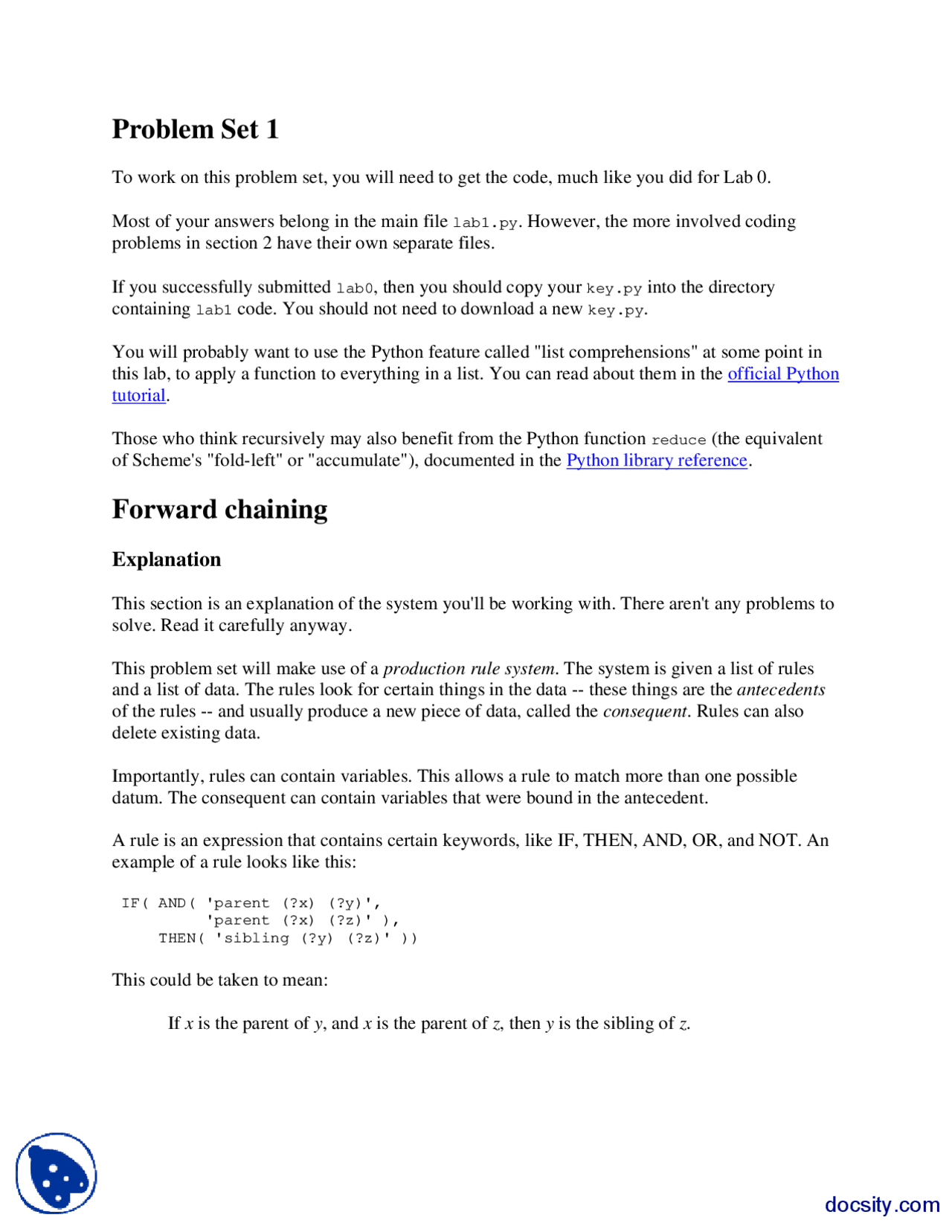

Problem Set 1
To work on this problem set, you will need to get the code, much like you did for Lab 0.
Most of your answers belong in the main file lab1.py. However, the more involved coding problems in section 2 have their own separate files.
If you successfully submitted lab0, then you should copy your key.py into the directory containing lab1 code. You should not need to download a new key.py.
You will probably want to use the Python feature called "list comprehensions" at some point in this lab, to apply a function to everything in a list. You can read about them in the official Python tutorial.
Those who think recursively may also benefit from the Python function reduce (the equivalent of Scheme's "fold-left" or "accumulate"), documented in the Python library reference.
Forward chaining
Explanation
This section is an explanation of the system you'll be working with. There aren't any problems to solve. Read it carefully anyway.
This problem set will make use of a production rule system. The system is given a list of rules and a list of data. The rules look for certain things in the data -- these things are the antecedents of the rules -- and usually produce a new piece of data, called the consequent. Rules can also delete existing data.
Importantly, rules can contain variables. This allows a rule to match more than one possible datum. The consequent can contain variables that were bound in the antecedent.
A rule is an expression that contains certain keywords, like IF, THEN, AND, OR, and NOT. An example of a rule looks like this:
IF( AND( 'parent (?x) (?y)', 'parent (?x) (?z)' ), THEN( 'sibling (?y) (?z)' ))
This could be taken to mean:
If x is the parent of y , and x is the parent of z , then y is the sibling of z.
Given data that look like 'parent marge bart' and 'parent marge lisa', then, it will produce further data like 'sibling bart lisa'. (It will also produce 'sibling bart bart', which is something that will need to be dealt with.)
Of course, the rule system doesn't know what these arbitrary words "parent" and "sibling" mean! It doesn't even care that they're at the beginning of the expression. The rule could also be written like this:
IF (AND( '(?x) is a parent of (?y)', '(?x) is a parent of (?z)' ), THEN( '(?y) is a sibling of (?z)' ))
Then it will expect its data to look like 'marge is a parent of lisa'. This gets wordy and involves some unnecessary matching of symbols like 'is' and 'a', and it doesn't help anything for this problem, but we'll write some later rule systems in this English-like way for clarity.
Just remember that the English is for you to understand, not the computer.
Rule expressions
Here's a more complete description of how the system works.
The rules are given in a specified order, and the system will check each rule in turn.
A rule is an expression that can have an IF antecedent and a THEN part. Both of these parts are required.
The IF antecedent can contain AND, OR, and NOT expressions. AND requires that multiple statements are matched in the dataset, OR requires that one of multiple statements are matched in the dataset, and NOT requires that a statement is not matched in the dataset. AND, OR, and NOT expressions can be nested within each other. When nested like this, these expressions form an AND/OR tree (or really an AND/OR/NOT tree). At the bottom of this tree are strings, possibly with variables in them.
The data are searched for items that match the requirements of the antecedent. Data items that appear earlier in the data take precedence. Each pattern in an AND clause will match the data in order, so that later ones have the variables of the earlier ones.
If there is a NOT clause in the antecedent, the data are searched to make sure that no items in the data match the pattern. A NOT clause should not introduce new variables - the matcher won't know what to do with them. Generally, NOT clauses will appear inside an AND clause, and earlier parts of the AND clause will introduce the variables. For example, this clause will match objects that are asserted to be birds, but are not asserted to be penguins:
AND( '(?x) is a bird', NOT( '(?x) is a penguin' ))
You can look at a much larger example in zookeeper.py, which classifies animals based on their characteristics.
Multiple choice
Bear the following in mind as you answer the multiple choice questions in lab1.py:
- that the computer doesn't know English, and anything that reads like English is for the user's benefit only
- the difference between a rule having an antecedent that matches, and a rule actually firing
Rule systems
Poker hands
We can use a production system to rank types of poker hands against each other. If we tell it the basic things like 'three-of-a-kind beats two-pair' and 'two-pair beats pair', it should be able to deduce by transitivity that 'three-of-a-kind beats pair'.
Write a one-rule system that ranks poker hands (or anything else, really) transitively, given some of the rankings already. The rankings will all be provided in the form '(?x) beats (?y)'.
Call the one rule you write transitive-rule, so that your list of rules is [ transitive-rule ].
Just for this problem, it is okay if your transitive rule adds 'X beats X', even though in real-life transitivity may not always imply reflexivity.
Family relations
You will be given data that includes three kinds of statements:
- 'male x': x is male
- 'female x': x is female
- 'parent x y': x is a parent of y
Every person in the data set will be defined to be either male or female.
Your task is to deduce, wherever you can, the following relations:
- 'brother x y': x is the brother of y (sharing at least one parent)
- 'sister x y': x is the sister of y (sharing at least one parent)
- 'mother x y': x is the mother of y
- 'father x y': x is the father of y
- 'son x y': x is the son of y
- 'daughter x y': x is the daughter of y
- 'cousin x y': x and y are cousins (a parent of x and a parent of y are siblings)
- 'grandparent x y': x is the grandparent of y
- 'grandchild x y': x is the grandchild of y
You will probably run into the problem that the system wants to conclude that everyone is his or her own sibling. To avoid this, you will probably want to generate a datum like 'same-identity (?x) (?x)' for every person, and make sure that potential siblings don't have same-identity. The order of the rules will matter, of course.
Some relationships are symmetrical, and you need to include them both ways. For example, if a is a cousin of b , then b is a cousin of a.
As the answer to this problem, you should provide a list called family-rules that contains the rules you wrote in order, so it can be plugged into the rule system. We've given you two sets of test data: one for the Simpsons family, and one for the Black family from Harry Potter.
lab1.py will automatically define black_family_cousins to include all the 'cousin x y' relationships you find in the Black family. There should be 14 of them.
NOTE: Make sure you implement all the relationships defined above. In this lab, the online tester will be stricter, and will test some relationships not tested offline.
Backward chaining and goal trees
Goal trees
For the next problem, we're going to need a representation of goal trees. Specifically, we want to make trees out of AND and OR nodes, much like the ones that can be in the antecedents of rules. (There won't be any NOT nodes.) They will be represented as AND() and OR() objects. Note that both 'AND' and 'OR' inherit from the built-in Python type 'list', so you can treat them just like lists.
Strings will be the leaves of the goal tree. For this problem, the leaf goals will simply be arbitrary symbols or numbers like g1 or 3.
An AND node represents a list of subgoals that are required to complete a particular goal. If all the branches of an AND node succeed, the AND node succeeds. AND(g1, g2, g3) describes a goal that is completed by completing g1, g2, and g3 in order.
An OR node is a list of options for how to complete a goal. If any one of the branches of an OR node succeeds, the OR node succeeds. OR(g1, g2, g3) is a goal that you complete by first trying g1, then g2, then g3.
like 'opus swims', meaning that at that point we would need to find out whether we know that Opus swims or not.
We'll run this backward chainer on the ZOOKEEPER system of rules, a simple set of production rules for classifying animals, which you will find in zookeeper.py. As an example, here is the goal tree generated for the hypothesis 'opus is a penguin':
OR( 'opus is a penguin', AND( OR('opus is a bird', 'opus has feathers', AND('opus flies', 'opus lays eggs')) 'opus does not fly', 'opus swims', 'opus has black and white color' ))
You will write a procedure, backchain_to_goal_tree(rules, hypothesis), which outputs the goal tree.
The rules you work with will be limited in scope, because general-purpose backward chainers are difficult to write. In particular:
- You will never have to test a hypothesis with unknown variables. All variables that appear in the antecedent will also appear in the consequent.
- All assertions are positive: no rules will have DELETE parts or NOT clauses.
- Antecedents are not nested. Something like (OR (AND x y) (AND z w)) will not appear in the antecedent parts of rules..
The backward chaining process
Here's the general idea of backward chaining:
- Given a hypothesis, you want to see what rules can produce it, by matching the consequents of those rules against your hypothesis. All the consequents that match are possible options, so you'll collect their results together in an OR node. If there are no matches, this statement is a leaf, so output it as a leaf of the goal tree.
- If a consequent matches, keep track of the variables that are bound. Look up the antecedent of that rule, and instantiate those same variables in the antecedent (that is, replace the variables with their values). This instantiated antecedent is a new hypothesis.
- The antecedent may have AND or OR expressions. This means that the goal tree for the antecedent is already partially formed. But you need to check the leaves of that AND-OR tree, and recursively backward chain on them.
Other requirements:
- The branches of the goal tree should be in order: the goal trees for earlier rules should appear before (to the left of) the goal trees for later rules. Intermediate nodes should appear before their expansions.
- The output should be simplified as in the previous problem (you can use the simplify function). This way, you can create the goal trees using an unnecessary number of OR nodes, and they will be conglomerated together nicely in the end.
- If two different rules tell you to check the same hypothesis, the goal tree for that hypothesis should be included both times, even though it seems a bit redundant.
Some hints from production.py
- match(pattern, datum) - This attempts to assign values to variables so that pattern and datum are the same. You can match(leaf_a, leaf_b), and that returns either None if leaf_a didn't match leaf_b, or a set of bindings if it did (even empty bindings: {}). o Examples: match("(?x) is a (?y)", "John is a student") => { x: "John", y: "student" } match("foo", "bar") => None match("foo", "foo") => {} Note: {} and None are both false expressions in python, so you should explicitly check if match's return value is None.
- populate(exp, bindings) - given an expression with variables in it, look up the values of those variables in bindings and replace the variables with their values. You can use the bindings from match(leaf_a, leaf_b) with populate(leaf, bindings), which will fill in any free variables using the bindings. o Example: populate("(?x) is a (?y)", { x: "John", y: "student" }) => "John is a student"
- IF.antecedent(): returns the IF part of a rule, which is either a leaf or a RuleExpression. RuleExpressions act like lists, so you'll need to iterate over them.
- IF.consequent(): returns the THEN part of a rule, which is either a leaf or a RuleExpression.
Survey
Please answer these questions at the bottom of your lab1.py file:
- How many hours did this problem set take?
- Which parts of this problem set, if any, did you find interesting?
- Which parts of this problem set, if any, did you find boring or tedious?
(We'd ask which parts you find confusing, but if you're confused you should really ask a TA.)
When you're done, run the online tester to submit your code.
