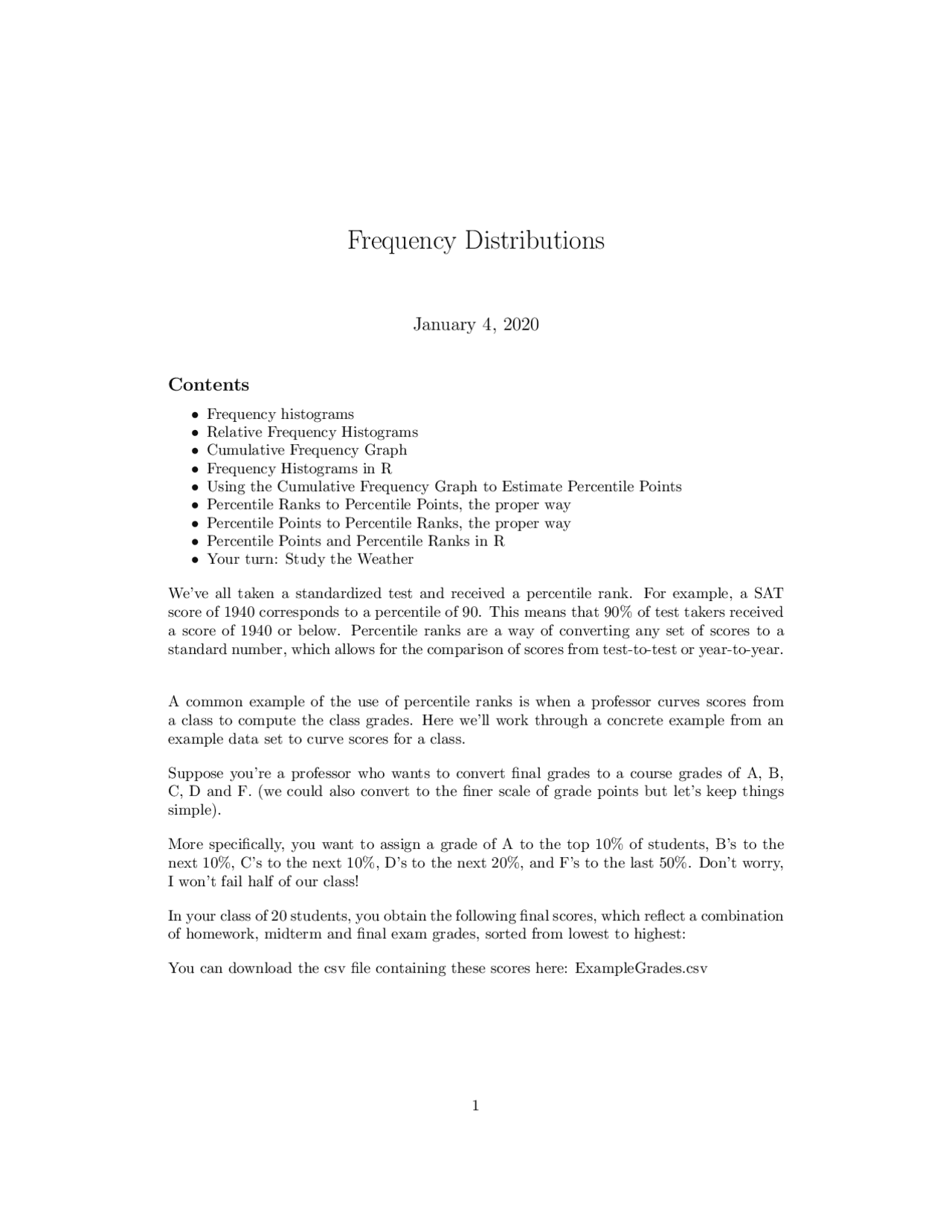

Frequency Distributions
January 4, 2020
Contents
- Frequency histograms
- Relative Frequency Histograms
- Cumulative Frequency Graph
- Frequency Histograms in R
- Using the Cumulative Frequency Graph to Estimate Percentile Points
- Percentile Ranks to Percentile Points, the proper way
- Percentile Points to Percentile Ranks, the proper way
- Percentile Points and Percentile Ranks in R
- Your turn: Study the Weather
We’ve all taken a standardized test and received a percentile rank. For example, a SAT score of 1940 corresponds to a percentile of 90. This means that 90% of test takers received a score of 1940 or below. Percentile ranks are a way of converting any set of scores to a standard number, which allows for the comparison of scores from test-to-test or year-to-year.
A common example of the use of percentile ranks is when a professor curves scores from a class to compute the class grades. Here we’ll work through a concrete example from an example data set to curve scores for a class.
Suppose you’re a professor who wants to convert final grades to a course grades of A, B, C, D and F. (we could also convert to the finer scale of grade points but let’s keep things simple).
More specifically, you want to assign a grade of A to the top 10% of students, B’s to the next 10%, C’s to the next 10%, D’s to the next 20%, and F’s to the last 50%. Don’t worry, I won’t fail half of our class!
In your class of 20 students, you obtain the following final scores, which reflect a combination of homework, midterm and final exam grades, sorted from lowest to highest:
You can download the csv file containing these scores here: ExampleGrades.csv
Score 55 56 56 57 60 60 61 61 62 64 72 72 76 76 76 77 77 77 79 79
Frequency histograms
First we’ll explore this data set by visualizing the distribution of scores as a histogram. A histogram shows the frequency of scores that fall within specific ranges, called class intervals.
The choice of your class intervals is somewhat arbitrary, but there are some general guide- lines.
First, choose a sensible number and width for the class intervals. It’s good to have something around 10 intervals. Our scores cover a range between 55 and 79, which is 24 points. This means that a width of 2 should be about right.
Second, choose a sensible lowest range of the lowest class interval. A good choice is a multiple of the interval width. Since our lowest score is 55, the lowest factor of 2 below this is 54. We’ll use the rule that if a score lies on the border between two class intervals, the score will be placed in the lower class interval. Our first class interval will therefore include the scores greater than or equal to 54 and less than 56.
This figure should help you see how the scores are assigned to each class interval:
Score
Frequency
I’ve labeled the x-axis for the class intervals at the borders. Alternatively you can label the centers of the intervals or the range for each interval. It’s up to you.
Take a look at the frequency histogram. What does it tell you about the distribution of scores? Can you see where you might choose the cutoffs for the different grades?
Relative Frequency Histograms
Another way to plot the distribution is to change the y-axis to represent the relative frequency in percent of the total number of scores. This is done by adding a third column to the table which is the percent of scores for each interval. This is simply calculated by dividing each frequency by the total number of scores and multiplying by 100. For example, the first class interval contains 3 scores, so the relative frequency is 100 20 3 = 15%.
This means that 15% of the scores fall below 56.
Class Interval
frequency Relative frequency 54-56 3 15 56-58 1 5 58-60 2 10 60-62 3 15 62-64 1 5 64-66 0 0 66-68 0 0 68-70 0 0 70-72 2 10 72-74 0 0 74-76 3 15 76-78 3 15 78-80 2 10
Here’s a graph of the relative frequency distribution. It looks just like the regular frequency distribution but with a different Y-axis:
Score
Relative Frequency (%)
We’re now getting somewhere toward assigning scores to grades. You can see now that for example 10% of the scores fall in the highest class interval. This means that 100-10 = 90% fall below a score of 78. More formally, the score of 78 is called the percentile point and
Score
Cumulative Frequency (%)
Frequency Histograms in R
Making histograms in R is pretty easy. As in most programming languages, there are many ways of doing the same thing. The simplest way is using R’s ’hist’ command.
The R commands shown below can be found here: HistogramExample.R
Clear the workspace:
rm(list = ls())
The .csv file containing the grades can be found at:
http://www.courses.washington.edu/psy315/datasets/ExampleGrades.csv
If you open up the .csv file you’ll see that it contains a
single column of numbers with the name ’Grades’ as a column
header.
Load in the grades from the .csv file on the course website
mydata <-read.csv("http://www.courses.washington.edu/psy315/datasets/ExampleGrades.csv")
The command ’mydata <- read.csv’ loads the data into variable
called ’mydata’.
The grades are in a field defined by the column header, ’Grades’.
We access fields of variable with the dollar sign.
We can use ’head’ to show just the first few scores:
head(mydata$Grades) [1] 55 56 56 57 60 60
Use ’hist’ to make a histogram.
The simplest way is like this:
hist(mydata$Grades)
By default, R chooses the class interval and axis labels.
Let’s chose our own class intervals or ’breaks’ using
R’s ’seq’ function. ’seq’ returns a sequence of numbers
beginning with the first value, ending with the second
value, and stepping with the third. To generate our
class interval boundaries, we can define a new variable
’class.interval’ like this:
class.interval <- seq(54,80,2)
Note, we could have called this variable whatever we want.
You can your histogram by defining parameters like:
’main’ for the title
’xlab’ for the xlabel
’col’ for the color
’xlim’ for the x axis limits and
’breaks’ for the class intervals:
hist(mydata$Grades, main="Histogram of Grades", xlab="Score", col="blue", xlim=c(54,80), breaks =class.interval )
I don’t like R’s choice for the X-axis and y-axis
ticks. For one thing, frequencies are whole
numbers, so there’s no reason to have 1/2 increments.
in the y-axis.
You can customize the x and y axes by first using
’xaxt’ = n and ’yaxt’ = n in ’hist’ to turn off the
x and y axis labels:
hist(mydata$Grades, main="Histogram of Grades", xlab="Score", col="blue", xlim=c(54,80), xaxt=’n’, yaxt = ’n’, breaks =class.interval )
the cumulative frequency curve and drop down to the X-axis. This X-axis value is the corresponding percentile point, which is about 78.
A grade of B goes to scores between the 80 and the 90 percentile ranks. Looking again at the graph, this corresponds to scores roughly between 76.7 and 78.
And so on... A grade of C goes to scores between the 70 and the 80 percentile ranks. This corresponds to scores roughly between 75.3 and 76.7.
We can connect the percentile ranks and percentile points for all grades with lines on the cumulative frequency graph:
Score
Cumulative Frequency (%)
F D C B A
Percentile Ranks to Percentile Points, the proper way
This method using the cumulative frequency graph should be considered only as a way of estimating a way for converting percentile ranks to points. That’s because the values you get depend on your choice of class intervals. The real way to do it is to use all of the scores in the distribution.
We’ll go through this now. Note, this is not covered in the book. Also, you should know that there is not a consensus for how to do this across different computer programs. MATLAB, Excel, R, and SPSS all give slightly different answers when it comes to repeated
values in the list. But the numbers are similar and for large samples they’re similar enough.
The procedure we’ll do here is what MATLAB uses which is the simplest, and some consider the most rational.
The first step is to make a table of raw scores, ranked from lowest to highest. We then add subsequent columns to the right. The next column counts from 1 to the total number of scores (20 for our example). We’ll call these values ’C’ for ’count’.
The next column is simply C-.5.
The final column is the conversion of C-.5 to percentile ranks, R, which is (C− n .5), or for
our example,
(C−.5)
Here’s the table for our scores:
Score (P) Rank (C) C-.5 R = 100 (C 20 −.5) 55 1 0.5 2. 56 2 1.5 7. 56 3 2.5 12. 57 4 3.5 17. 60 5 4.5 22. 60 6 5.5 27. 61 7 6.5 32. 61 8 7.5 37. 62 9 8.5 42. 64 10 9.5 47. 72 11 10.5 52. 72 12 11.5 57. 76 13 12.5 62. 76 14 13.5 67. 76 15 14.5 72. 77 16 15.5 77. 77 17 16.5 82. 77 18 17.5 87. 79 19 18.5 92. 79 20 19.5 97.
This table tells us the exact percentile rank (R) for every score (percentile point, P). For example, a score (or percentile point) of 64 has a percentile rank of 47.5 (or, P 47. 5 = 64).
Things are a just a little more complicated when we have repeated scores. For example, there are 2 scores of 79. To compute the percentile rank for 79 we take the mean of the ranks corresponding to the repeated scores:^92 .5+97 2.^5 = 95. So, therefore P 95 = 79.
What about percentile ranks that are not on the list? For example, the cutoff for a grade
Percentile Points to Percentile Ranks, the proper way
Linear interpolation is also used to go the other way - from percentile points to percentile ranks. Let’s find the percentile rank for a score of 78, which is not in our list of scores.
We’ll use the same logic and find the scores in our list that bracket our desired score. The formula looks a lot like the one we used to convert from percentile ranks to percentile points (in fact, you can derive it by solving that equation for R):
R = RL + (RH − RL)
(P −P L)
(P H−P L)
Our score of 78 falls between the existing scores of 77 and 79, which correspond to percentile ranks of 87.5 and 92.5 respectively. So:
P L = 77, P H = 79, RL = 87.5, and RH = 92. 5
With our percentile point of P = 78, plugging these values into the formula gives:
R = 87.5 + (92. 5 − 87 .5) (78−77)
So for a percentile point of 78, the percentile rank is 90, or P 90 = 78.
Percentile Points and Percentile Ranks in R
R has commands for computing percentile points and ranks.
The R commands shown below can be found here: PercentilePointExample.R
Clear the workspace:
rm(list = ls())
Load in the grades from the .csv file on the course website
mydata <-read.csv("http://www.courses.washington.edu/psy315/datasets/ExampleGrades.csv")
R’s function ’quantile’ give you percentile points from percentile ranks. For
Example, here’s how get P90, the percentile point for a rank of 90%
quantile(mydata$Grades,.9,type = 5) 90% 78
Note the option ’type=5’. R allows for 9 different ways for computing percentile
points! They’re all very similar. Type 5 is the method described in the
tutorial and is the simplest and most commonly used.
If you want to calculate more than one percentile rank at a time, you can
add a list of ranks using the ’c’ command. Remember, ’c’ allows you to
concatenate a list of numbers together.
Let’s generate the cutoff percentile points for the grades of A, B, C, D and F.
These correspond to ranks of 90, 80, 70 and 50%.
quantile(mydata$Grades,c(.9,.8,.7,.5),type = 1) 90% 80% 70% 50% 77 77 76 64
Going the other way, from percentile points to ranks isn’t as straightforward
in R. The most recommended way is with the ’ecdf’ function (’Emperical Cumulative
Distribution Function’). Here’s how to calculate the percentile rank for a point
of 68:
ecdf(mydata$Grades)(68) [1] 0.
You’ll notice that ’ecdf’ doesn’t give you the exact same answers as the method
in the tutorial. That’s because it’s using a different method for interpolation.
For large data sets, ’ecdf’ will give a number very similar to the method in the
tutorial.
Your turn: Study the Weather
Let’s look at the average temperatures for the month of March in Seattle over the years between 1950 and 2015.
You can download the csv file containing these temperatures here: SeattleMarchTemps.csv
What is the temperature corresponding to a percentile rank of 95?
To do:
Sort the temperatures from low to high
Create columns like those in the example for Grades above
Use the formula to calculate the percentile point.
Here’s the answer:
P 95 = 49.2 + (49. 3 − 49 .2)
P 95 = 49.245 degrees
By the way, the average temperature in March in 2015 was 50.5 degrees Farenheit. What can you say about the percentile rank for this temperature?
Or, if you have a computer, here’s how to calculate P 95 in R:
