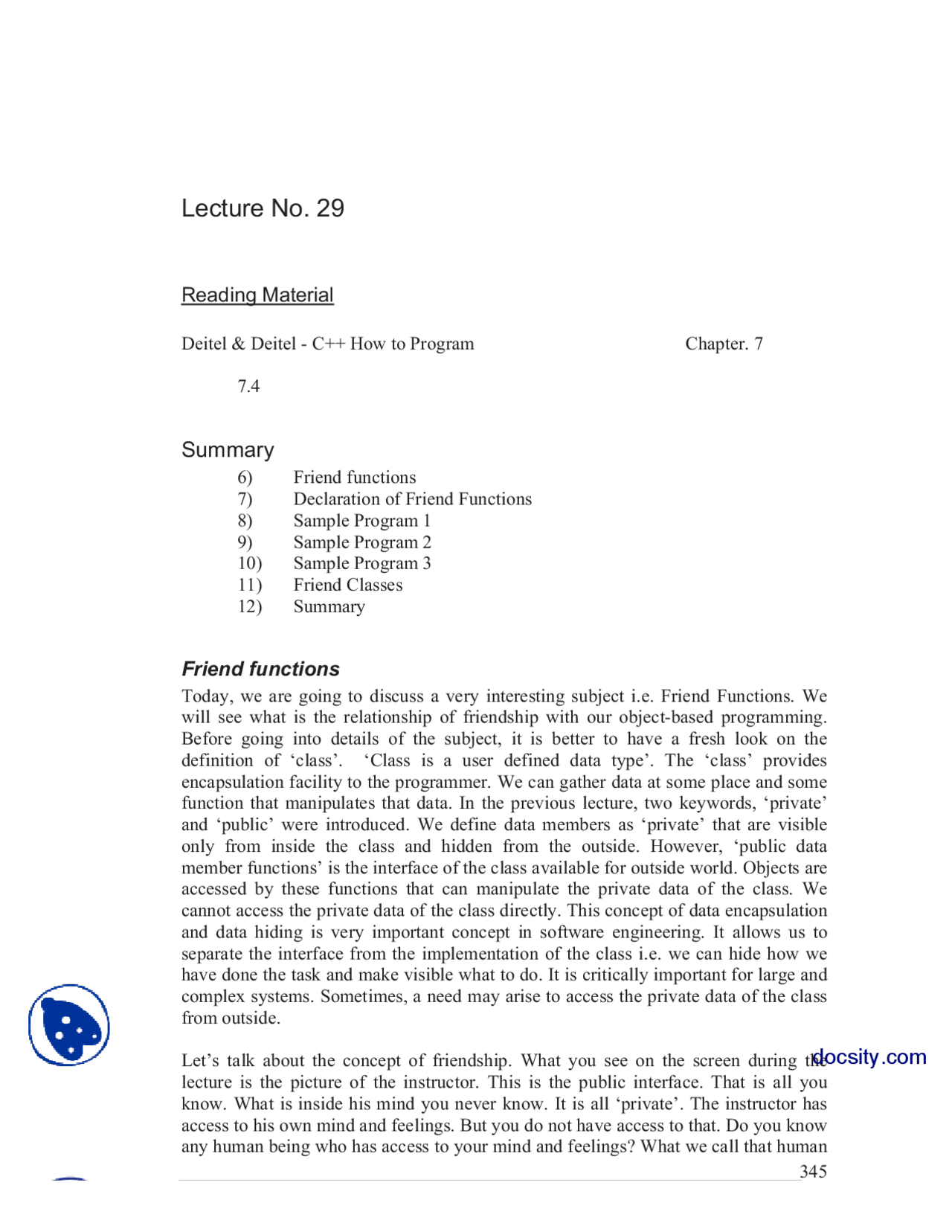

Lecture No. 29
Reading Material
Deitel & Deitel - C++ How to Program Chapter. 7
Summary
- Friend functions
- Declaration of Friend Functions
- Sample Program 1
- Sample Program 2
- Sample Program 3
- Friend Classes
- Summary
Friend functions
Today, we are going to discuss a very interesting subject i.e. Friend Functions. We will see what is the relationship of friendship with our object-based programming. Before going into details of the subject, it is better to have a fresh look on the definition of ‘class’. ‘Class is a user defined data type’. The ‘class’ provides encapsulation facility to the programmer. We can gather data at some place and some function that manipulates that data. In the previous lecture, two keywords, ‘private’ and ‘public’ were introduced. We define data members as ‘private’ that are visible only from inside the class and hidden from the outside. However, ‘public data member functions’ is the interface of the class available for outside world. Objects are accessed by these functions that can manipulate the private data of the class. We cannot access the private data of the class directly. This concept of data encapsulation and data hiding is very important concept in software engineering. It allows us to separate the interface from the implementation of the class i.e. we can hide how we have done the task and make visible what to do. It is critically important for large and complex systems. Sometimes, a need may arise to access the private data of the class from outside.
Let’s talk about the concept of friendship. What you see on the screen during the lecture is the picture of the instructor. This is the public interface. That is all you know. What is inside his mind you never know. It is all ‘private’. The instructor has access to his own mind and feelings. But you do not have access to that. Do you know any human being who has access to your mind and feelings? What we call that human
docsity.com
being. He is known as friend. Normally other people don’t know about our thoughts. Only friends know about it. Friends have access to the inner thoughts and have inner knowledge of a friend. Can we apply this definition to objects?
The friend functions of a class have access to the private data members of class. Despite being a good thing, there is possibility of vulnerability. We are opening our thoughts, inside view for somebody else. Without having 100% trust, it will be risky to make our thoughts and feelings public. We want that our private data is accessible to someone outside, not public for everybody. Otherwise, the data encapsulation and data-hiding concept will be violated. We keep the data members private and declare some specific functions that are not member of the class but friend of the class. As friends, they have access to the inside data structure of the class despite not being members.
Declaration of Friend functions To declare a friend function, we can put it anywhere in the class. According to the definition of the friend functions, they have access to the private data members of the class. These can also access the private utility functions of the class. The question arises where we should put the friend function whether in the private or public part of the class. Be sure that friend is a very strong statement. It is too strong to be affected by public or private. We can put it anywhere in the class. But remember that friend functions are not member of the class. So their definition will be always outside the class. However, the prototype of the function will be written in the class. We use the keyword ‘friend’ before the prototype of the function.
friend return_type friend_function_name(int, char);
If we have a class, suppose ‘Date’ and want to declare a friend function of this class. In the definition of the class, we will write the friend function’s prototype with the keyword ‘friend’. To access the private data, friend function will need the object. Therefore, usually in the parameter list of friend function, we provide the object of that class. Normally, the programmers work this way. As the friend function is not affected by the private or public keyword, so we can declare it anywhere inside the class definition. Programmers generally declare the friend functions at the top of the class definition. So, the friend functions are declared at the start of the class definition, followed by the private data and public data. This is a guideline. You can develop your own style. We normally make a header file of the class definition and implementation in the other file. The member functions are defined in the implementation file and compiled to get an object file. We declare the friend function in the class definition that is in the header file.
Let’s go back to the definition of the friendship. I can declare you my friend and tell you about my inner thoughts and feelings. But it does not work both ways. In other words, friendship is granted, never taken. So, a class can declare a friend function and someone from outside the class cannot declare itself friend of a class. This is also an important concept. If someone from outside the class can declare itself friend of the class, then by definition that external function would have access to the private data member of the class. But this will negate the concept of the encapsulation and data hiding. It does not work this way. A function cannot declare itself friend of a class. Rather, a class has to declare itself that a function is friend of the class or not. So the
docsity.com
A sample program showing the use of friend function, which access the private data member of the class. */
#include <iostream.h>
class myClass { friend void increment(myClass *, int);
private: int topSecret;
public: void display() { cout << "\n The value of the topSecret is " << topSecret; } myClass(); }; // constructor of the class myClass::myClass() { topSecret = 100; }
// Friend function definition void increment(myClass *a, int i) { a->topSecret += i; // Modify private data }
// showing the use of the friend function main() { myClass x; x.display(); increment(&x, 10); x.display(); }
The output of the program is: The value of the topSecret is 100 The value of the topSecret is 110
Sample Program 2 Let’s consider some complex example. We have two classes- myClass1 and myClass. Both classes have one private data member of type int i.e. int topSecret; Now we want to add the values of private data members of both the classes and display it on the screen. topSecret is a private data member of both the classes. One class can not see inside the other class. myClass1 and myClass2 are both separate classes. We need a
docsity.com
function sitting outside the classes but can access the private data members of both the classes. Let’s call the function as addBoth. This function will add the value of topSecret of myClass1 to topSecret of myClass2 and display the result on the screen. We need a function that can look inside both classes i.e. friend of both classes. We know that classes have to declare a function as friend.
The arguments of addBoth function will contain myClass1 and myClass2. In the definition of the myClass1, we will write the prototype of addBoth function as:
friend void addBoth(myClass1, myClass2);
Can we write this line in the definition of the myClass1? We know that if we refer some function as f(x) and the function f() is not defined or declared before this, the compiler will give an error that function f() is not defined. So we at least declare the function before main() so that compiler successfully compile the program. So there was declaration of the function before its being called. Now same problem is in our friend function prototype. We are referring both classes in it and our program does not know anything about myClass2. We can tackle this problem by writing a line before the definition of the class myClass1 as:
class myClass2;
It will declare that myClass2 is a class having its definition somewhere else. It is the same as we declare functions before main. After writing that statement, we can refer myClass2 in our code. The definition of the class myClass1 will be as:
class myClass { private: int topSecret;
public: void display() { cout << "\nThe value of the topSecret is " << topSecret; } myClass1();
friend void addBoth(myClass1, myClass2); };
myClass1::myClass1() { topSecret = 100; }
The definition of myClass2 is also similar to myClass.
class myClass { private: int topSecret;
docsity.com
#include <iostream.h>
class myClass2; // declaring the class for the friend function in myClass
// definition of the myClass class myClass { // private data members. Hidden private: int topSecret;
// interface of the class public: void display() { cout << "\nThe value of the topSecret is " << topSecret; } myClass1();
// friend function friend void addBoth(myClass1, myClass2); }; // definition of the constructor. myClass1::myClass1() { topSecret = 100; }
// Definition of the myClass class myClass { // private data members. Hidden private: int topSecret;
// interface of the class public: void display() { cout << "\nThe value of the topSecret is " << topSecret; } myClass2();
// friend function friend void addBoth(myClass1, myClass2); };
// definition of the constructor. myClass2::myClass2() { topSecret = 200; }
// The definition of the friend function which is adding the topSecret data member of both
docsity.com
the classes.
void addBoth(myClass1 a, myClass2 b) { cout << "\nThe value of topSecret in the myClass1 object is " << a.topSecret; cout << "\nThe value of topSecret in the myClass2 object is " << b.topSecret; cout << "\nThe sum of values of topSecret in myClass1 and myClass2 is " << a.topSecret + b.topSecret; }
// main program main() { // declaring the objects and displaying the values myClass1 a; myClass2 b; a.display(); b.display(); // calling friend function and passing the objects of both the classes addBoth(a, b); }
The output of the program is;
The value of the topSecret is 100 The value of the topSecret is 200 The value of topSecret in the myClass1 object is 100 The value of topSecret in the myClass2 object is 200 The sum of values of topSecret in myClass1 and myClass2 is 300
The classes have defined and declared this function addBoth to be a friend. In each class, we have declared it as a friend function. This function cannot declare itself a friend function for these classes from outside. So be careful about this as a class declares its friend functions. A function out side the class cannot declare itself a friend of the class. The friend functions are not used very often.
Sample Program 3 Now we can expand our previous example. We can define functions subBoth, mulBoth and divBoth as friend functions of the class, in addition of addBoth function. These friend functions can manipulate the data members of the class.
Following is the code of the example that shows the usage of friend functions. /* The following program demonstrate the declaration and uses of friend functions of a class We set values in the constructors of the classes. The program prompts the user to enter a choice of addition, subtraction, multiplication or division. And then performs the appropriate
docsity.com
endl; cin >> choice;
if ( choice == '+' ) { cout << "The sum is : " << addBoth(myClass1Obj , myClass2Obj) << endl; } else if ( choice == '-' ) { cout << "The difference is : " << subBoth(myClass1Obj , myClass2Obj) << endl; } else if ( choice == '*' ) { cout << "The multiplication is : " << mulBoth(myClass1Obj , myClass2Obj) << endl; } else if ( choice == '/' ) { cout << "The division is : " << divBoth(myClass1Obj , myClass2Obj) << endl; } else { cout << "Enter a valid choice next time. The program is terminating" << endl; }
system ( "PAUSE" ) ; }
float addBoth ( myClass1 object1 , myClass2 object2 ) { return ( object1.value + object2.value ) ; }
float subBoth ( myClass1 object1 , myClass2 object2 ) { return ( object1.value - object2.value ) ; }
float mulBoth ( myClass1 object1 , myClass2 object2 ) { return ( object1.value * object2.value ) ; }
float divBoth ( myClass1 object1 , myClass2 object2 ) { return ( object1.value / object2.value ) ; }
Following is the output of the program.
docsity.com
Please enter one of the operator +, -, /, * followed by Enter
The multiplication is : 20000
Friend Classes We have seen that a class can define friend functions for itself. Similarly a class can be declared as a friend class of the other class. In that case, the function of a class gets complete access to the data members and functions of the other class. So it is an interesting expansion of the definition that not only the functions but also a class can be a friend of the other class. The syntax of declaring a friend class is that within the class definition, we write the keyword friend with the name of the class. It is going to be a friend class. i.e. friend class-name ; We can also write the word class after the keyword friend and before the class name as friend class class-name ;
Now let’s take another example of a class. Suppose, we have classes ClassOne and OtherClass. We want to make OtherClass a friend class of the ClassOne. So we declare OtherClass a friend class in the definition of the ClassOne as following.
class ClassOne { friend OtherClass ; private: //here we write the data members of ClassOne };
The line friend OtherClass ; can also be written as friend class OtherClass ;
The line friend OtherCalss; explains that OtherClass is a friend of ClassOne. If OtherClass is the friend of ClassOne , all the functions of OtherClass will have access to all the inside part of ClassOne. The following code segment shows the declaration of friend class. It shows that OtherClass is a friend of ClassOne so it has access to the private data of ClassOne.
class ClassOne { friend class OtherClass; private: int topSecret; };
class OtherClass { public: void change( ClassOne co ) };
docsity.com
Now we can also have another class quadratic that also belongs to mathematics. Suppose, we have a parabola, the equation of which is y= ax^2 + bx + c. Where a, b and c, for the time being, are real constants. To define this quadratic equation as class, we have to define the three coefficients a, b and c. The statement will be as under:
class Quadratic { //some methods private: double a, b, c ; };
Now we have two classes i.e. StraightLine and Quadratic. In a mathematical problem, when we have given a parabola (a quadratic equation) and a straight line (straight line equation) and are asked to find the point at which the straight line intersects the parabola. To solve it, we setup equations and solve them simultaneously and find out the result, which may be in three forms. Firstly, there is the line that does not intersect the parabola. The second is that it intersects the parabola at one point (i.e. it is a tangential line) and third may be that the line intersects the parabola at two points.
When we setup these equations, we come to know that here the constants m, c (of straight line), a, b and c of quadratic equation are being used. So from a programming perspective if we had an object l1 of type StraighLine and an object q1 of type quadratic. And wanted to find the intersection of l1 with q1. Now here is a situation where we need either a friend function of both classes, so that it can manipulate the data of both classes, or need to declare both classes as friend classes of each other and then write their methods to find the intersection. Similarly we can have many other examples in which a class may need to look into the other class. But it is not some thing to be done all the time. It should be done only when necessary. Use of friend functions is normally a better idea. Using friend classes means that both the classes are linked with each other. If the code in any one of the class is modified i.e. its implementation is changed, we have to recompile both the classes. Due to change in one class, the other class also needs to be changed, necessitating the compilation of both the classes.
So we have lost the principle of separating the interface from the implementation. Now let’s talk about the limitations of this friendship business. Firstly, there is no transitive dependency in friend declarations. Suppose I say student A is my friend and being a friend he knows my thoughts and ideas. Now the student A says ” student B is my friend” i.e. student B knows thoughts and ideas of student A. Does it mean that student B is also my friend? Does student B knows my thoughts and ideas? The answer is no. As I have not declared student B a friend of mine, so he ( student B ) does not know about my thoughts and ideas. The same applies to the friend definition for classes. The friendship is not transitive. It is not like ‘A is a friend of B and B is a friend of C, therefore A is a friend of C‘. It does not work. A has to specifically declare ‘B is my friend and C is my friend’ to make B and C friends of him. There is no transitive dependency in friend declarations.
docsity.com
Secondly, I can declare you to be my friend. This means I have unveiled my thoughts and ideas to you. But I cannot get your thoughts and ideas unless you declare me a friend of yours. So there is no association, which means A saying B is my friend does not imply in any way that A is a friend of B. Here B is a friend of A. But B has to declare ‘A’ its friend. Thus the friend keyword produces one-way relationship.
Summary
The concept of classes allows us to separate implementation from interface. A class is a user defined data type. In a class, we declare private data members and utility functions so that they cannot be access from outside. Similarly, we declare some parts of the class public that become the interface for the class and can be accessed from the outside. These interface methods or public methods can manipulate the data of the class. This is the encapsulation and data hiding.
We have the concept of friend functions. By declaring an external function as a friend function, that function gets the complete access to the inner structure of the class including all private data. When classes need to be interactive, these must be declared friends of each other. Thus we have the concept of friend classes. The use of friend function and class is a useful feature that sometimes we need to use. But we should use it very sparingly and carefully as it basically negates the concepts of encapsulation and data hiding.
The principles of friendship of functions and classes are that the friendship is granted, not taken. So a class declares its friend functions and friend classes. If a class declares another class as a friend, it is not always reciprocal. So declaration and granting of a right is one way. The owner of the right grants it. So the class itself grants the privilege of access to outsider functions or to other classes. It is not transitive. It does not go ‘A is a friend of B and B is a friend of C therefore A is a friend of C’. It does not work that way. It is restricted to a one-step relationship. If A is a friend of B, and B is a friend of C. If A wants C to be a friend, it has to declare, “C is my friend”.
