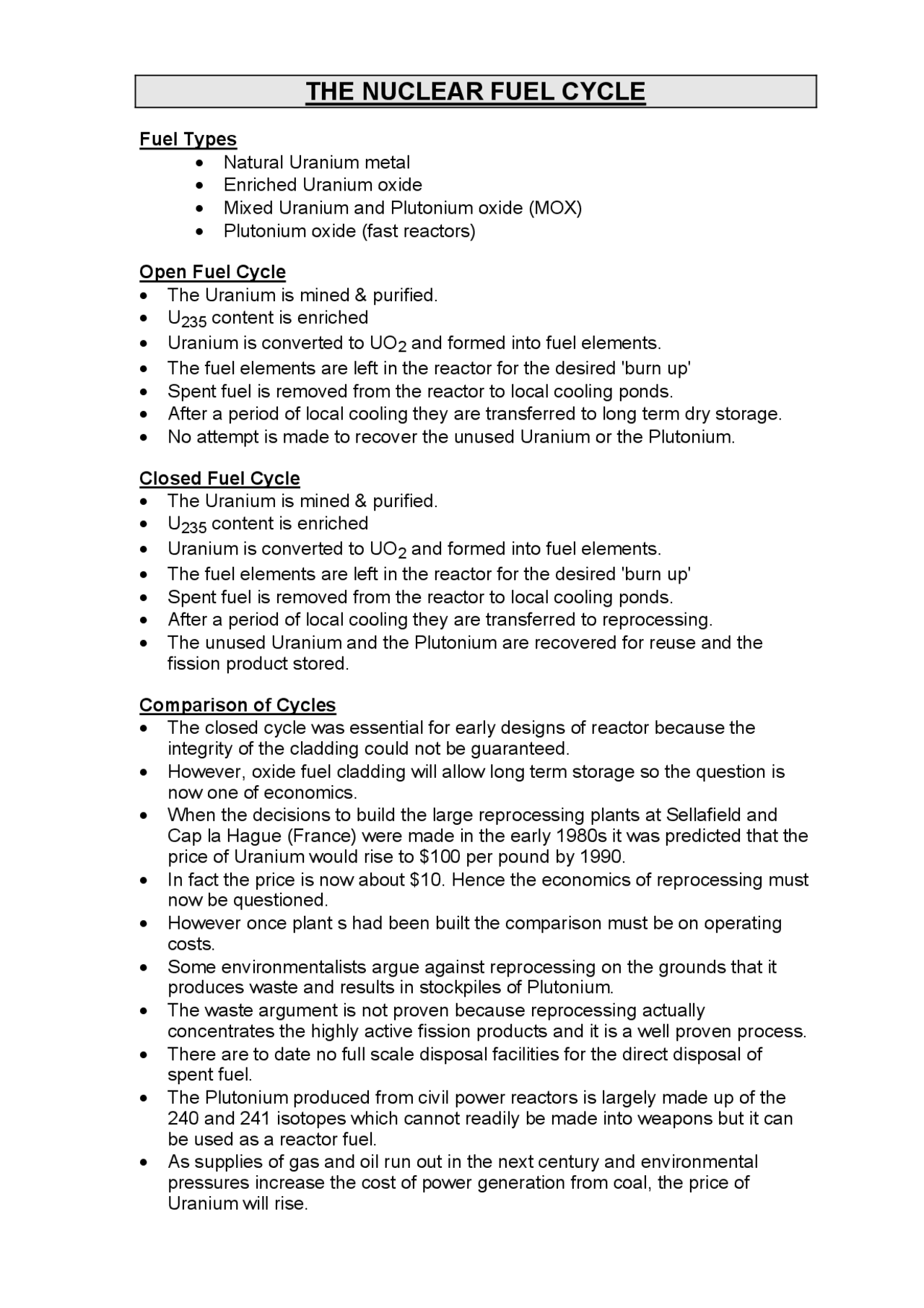

THE NUCLEAR FUEL CYCLE
Fuel Types
• Natural Uranium metal
• Enriched Uranium oxide
• Mixed Uranium and Plutonium oxide (MOX)
• Plutonium oxide (fast reactors)
Open Fuel Cycle
• The Uranium is mined & purified.
• U235 content is enriched
• Uranium is converted to UO2 and formed into fuel elements.
• The fuel elements are left in the reactor for the desired 'burn up'
• Spent fuel is removed from the reactor to local cooling ponds.
• After a period of local cooling they are transferred to long term dry storage.
• No attempt is made to recover the unused Uranium or the Plutonium.
Closed Fuel Cycle
• The Uranium is mined & purified.
• U235 content is enriched
• Uranium is converted to UO2 and formed into fuel elements.
• The fuel elements are left in the reactor for the desired 'burn up'
• Spent fuel is removed from the reactor to local cooling ponds.
• After a period of local cooling they are transferred to reprocessing.
• The unused Uranium and the Plutonium are recovered for reuse and the
fission product stored.
Comparison of Cycles
• The closed cycle was essential for early designs of reactor because the
integrity of the cladding could not be guaranteed.
• However, oxide fuel cladding will allow long term storage so the question is
now one of economics.
• When the decisions to build the large reprocessing plants at Sellafield and
Cap la Hague (France) were made in the early 1980s it was predicted that the
price of Uranium would rise to $100 per pound by 1990.
• In fact the price is now about $10. Hence the economics of reprocessing must
now be questioned.
• However once plant s had been built the comparison must be on operating
costs.
• Some environmentalists argue against reprocessing on the grounds that it
produces waste and results in stockpiles of Plutonium.
• The waste argument is not proven because reprocessing actually
concentrates the highly active fission products and it is a well proven process.
• There are to date no full scale disposal facilities for the direct disposal of
spent fuel.
• The Plutonium produced from civil power reactors is largely made up of the
240 and 241 isotopes which cannot readily be made into weapons but it can
be used as a reactor fuel.
• As supplies of gas and oil run out in the next century and environmental
pressures increase the cost of power generation from coal, the price of
Uranium will rise.
