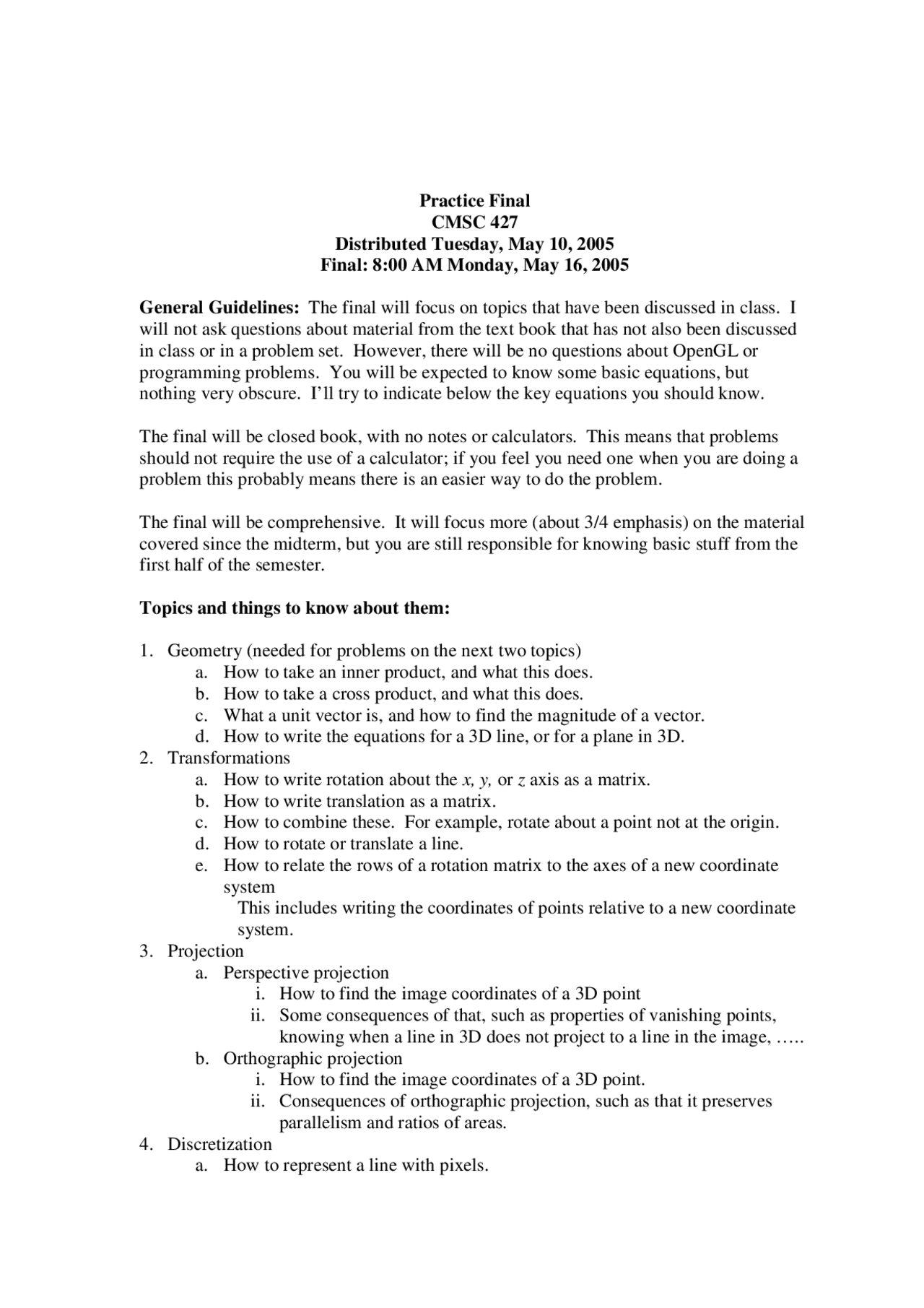

Practice Final
CMSC 427
Distributed Tuesday, May 10, 2005
Final: 8:00 AM Monday, May 16, 2005
General Guidelines: The final will focus on topics that have been discussed in class. I
will not ask questions about material from the text book that has not also been discussed
in class or in a problem set. However, there will be no questions about OpenGL or
programming problems. You will be expected to know some basic equations, but
nothing very obscure. I’ll try to indicate below the key equations you should know.
The final will be closed book, with no notes or calculators. This means that problems
should not require the use of a calculator; if you feel you need one when you are doing a
problem this probably means there is an easier way to do the problem.
The final will be comprehensive. It will focus more (about 3/4 emphasis) on the material
covered since the midterm, but you are still responsible for knowing basic stuff from the
first half of the semester.
Topics and things to know about them:
1. Geometry (needed for problems on the next two topics)
a. How to take an inner product, and what this does.
b. How to take a cross product, and what this does.
c. What a unit vector is, and how to find the magnitude of a vector.
d. How to write the equations for a 3D line, or for a plane in 3D.
2. Transformations
a. How to write rotation about the x, y, or z axis as a matrix.
b. How to write translation as a matrix.
c. How to combine these. For example, rotate about a point not at the origin.
d. How to rotate or translate a line.
e. How to relate the rows of a rotation matrix to the axes of a new coordinate
system
This includes writing the coordinates of points relative to a new coordinate
system.
3. Projection
a. Perspective projection
i. How to find the image coordinates of a 3D point
ii. Some consequences of that, such as properties of vanishing points,
knowing when a line in 3D does not project to a line in the image, …..
b. Orthographic projection
i. How to find the image coordinates of a 3D point.
ii. Consequences of orthographic projection, such as that it preserves
parallelism and ratios of areas.
4. Discretization
a. How to represent a line with pixels.
