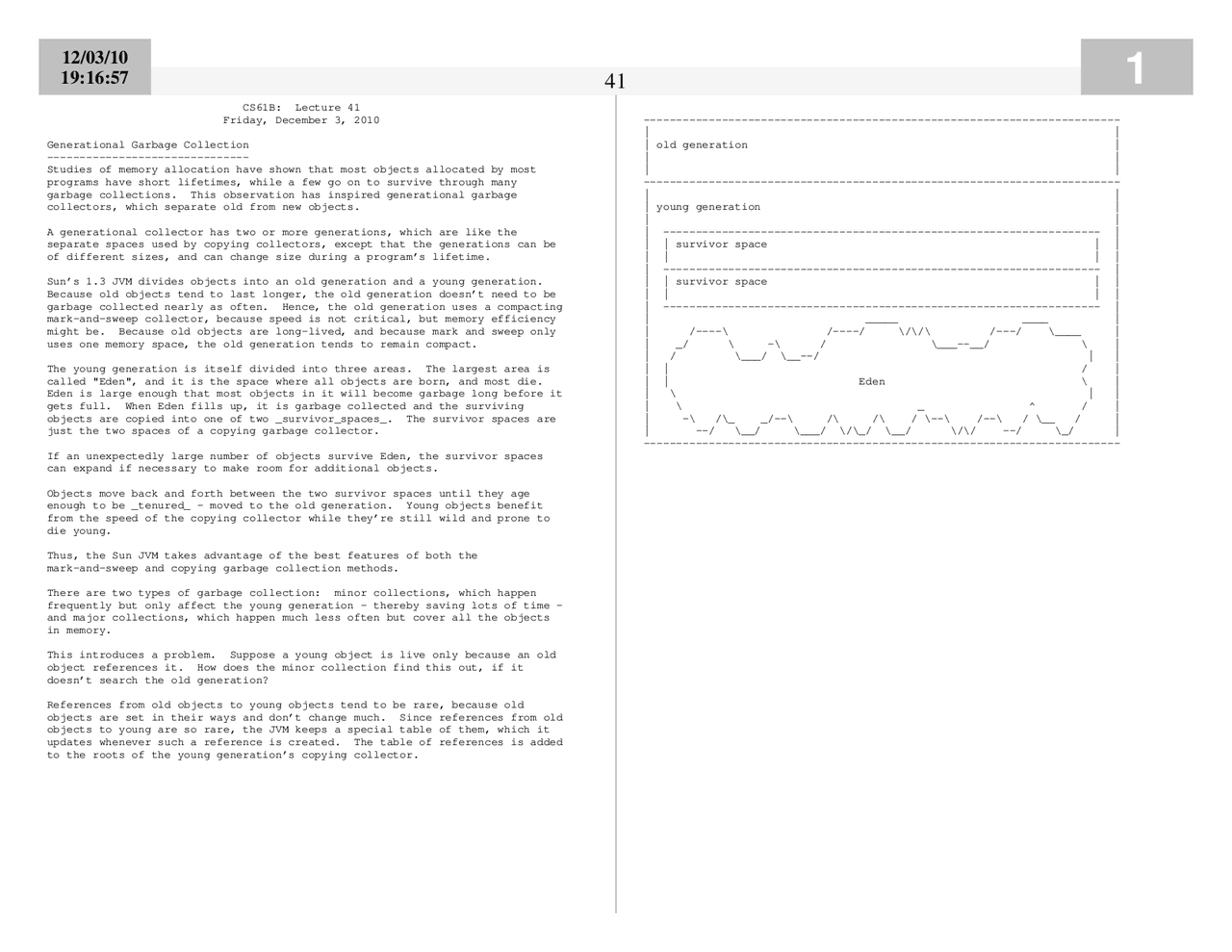

CS61B: Lecture 41
Friday, December 3, 2010
Generational Garbage Collection
-------------------------------
Studies of memory allocation have shown that most objects allocated by most
programs have short lifetimes, while a few go on to survive through many
garbage collections. This observation has inspired generational garbage
collectors, which separate old from new objects.
A generational collector has two or more generations, which are like the
separate spaces used by copying collectors, except that the generations can be
of different sizes, and can change size during a program’s lifetime.
Sun’s 1.3 JVM divides objects into an old generation and a young generation.
Because old objects tend to last longer, the old generation doesn’t need to be
garbage collected nearly as often. Hence, the old generation uses a compacting
mark-and-sweep collector, because speed is not critical, but memory efficiency
might be. Because old objects are long-lived, and because mark and sweep only
uses one memory space, the old generation tends to remain compact.
The young generation is itself divided into three areas. The largest area is
called "Eden", and it is the space where all objects are born, and most die.
Eden is large enough that most objects in it will become garbage long before it
gets full. When Eden fills up, it is garbage collected and the surviving
objects are copied into one of two _survivor_spaces_. The survivor spaces are
just the two spaces of a copying garbage collector.
If an unexpectedly large number of objects survive Eden, the survivor spaces
can expand if necessary to make room for additional objects.
Objects move back and forth between the two survivor spaces until they age
enough to be _tenured_ - moved to the old generation. Young objects benefit
from the speed of the copying collector while they’re still wild and prone to
die young.
Thus, the Sun JVM takes advantage of the best features of both the
mark-and-sweep and copying garbage collection methods.
There are two types of garbage collection: minor collections, which happen
frequently but only affect the young generation - thereby saving lots of time -
and major collections, which happen much less often but cover all the objects
in memory.
This introduces a problem. Suppose a young object is live only because an old
object references it. How does the minor collection find this out, if it
doesn’t search the old generation?
References from old objects to young objects tend to be rare, because old
objects are set in their ways and don’t change much. Since references from old
objects to young are so rare, the JVM keeps a special table of them, which it
updates whenever such a reference is created. The table of references is added
to the roots of the young generation’s copying collector.
-------------------------------------------------------------------------
| |
| old generation |
| |
| |
-------------------------------------------------------------------------
| |
| young generation |
| |
| ------------------------------------------------------------------- |
| | survivor space | |
| | | |
| ------------------------------------------------------------------- |
| | survivor space | |
| | | |
| ------------------------------------------------------------------- |
| _____ ____ |
| /----\ /----/ \/\/\ /---/ \____ |
| _/ \ -\ / \___--__/ \ |
| / \___/ \__--/ | |
| | / |
| | Eden \ |
| \ | |
| \ _ ^ / |
| -\ /\_ _/--\ /\ /\ / \--\ /--\ / \__ / |
| --/ \__/ \___/ \/\_/ \__/ \/\/ --/ \_/ |
-------------------------------------------------------------------------
