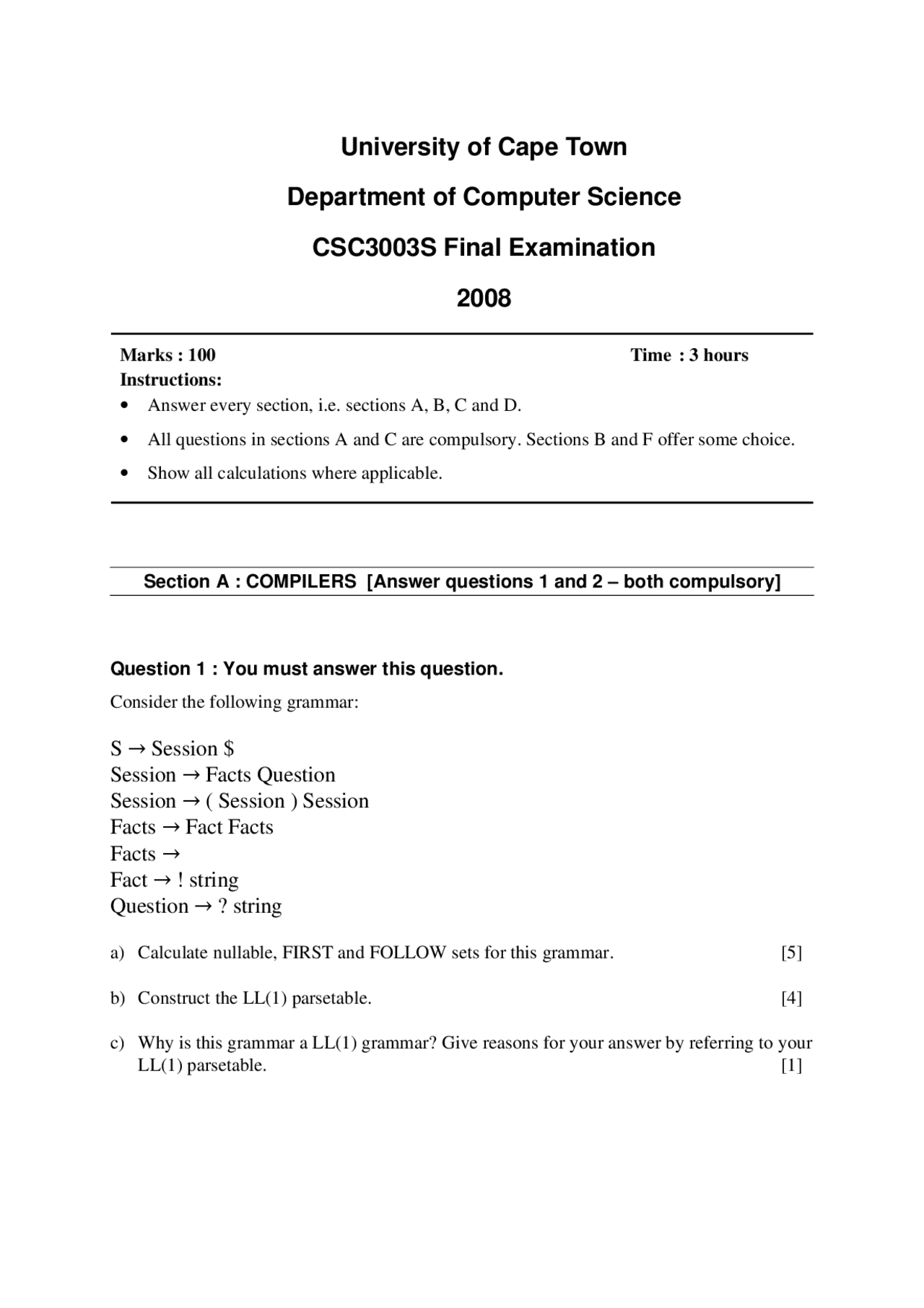

University of Cape Town
Department of Computer Science
CSC3003S Final Examination
Marks : 100 Time : 3 hours Instructions:
- Answer every section, i.e. sections A, B, C and D.
- All questions in sections A and C are compulsory. Sections B and F offer some choice.
- Show all calculations where applicable. Section A : COMPILERS [Answer questions 1 and 2 – both compulsory] Question 1 : You must answer this question. Consider the following grammar:
S →Session $
Session →Facts Question
Session →( Session ) Session
Facts →Fact Facts
Facts →
Fact →! string
Question →? string
a) Calculate nullable, FIRST and FOLLOW sets for this grammar. [5] b) Construct the LL(1) parsetable. [4] c) Why is this grammar a LL(1) grammar? Give reasons for your answer by referring to your LL(1) parsetable. [1]
Question 2 : You must answer this question. Multicore CPUs can influence the design of modern optimising compilers. Firstly, the compiler could automatically convert traditional serial code into a parallel form, where 2 or more pieces of code run at the same time on different CPUs/cores. Secondly, the compiler itself could perform its processing in parallel. Answer the following questions with this in mind. a) Describe one advantage and one disadvantage of separating the compiler frontend from the compiler backend. [2] b) Describe one advantage in having multiple distinct layers (frame generation, code generation, instruction selection, liveness analysis, etc.) within the compiler backend. [1] c) Static semantics should be checked before any code is generated. Discuss 2 examples of errors that can be checked for. [2] d) Describe 3 typical optimisations that a compiler can perform on generated IR code, assuming the code being optimised runs on a single CPU/core. [3] e) At which point/layer in the compilation process could the code being compiled be converted into segments that may run in parallel (assuming this is done independently of source language)? [1] f) Briefly describe one technique to exploit multiple cores in the compilation process itself. [1] Section B COMPILERS [ Answer any 3 questions ONLY ] Question 3 a) What is the difference between a Concrete Parse Tree and an Abstract Parse Tree? [2] b) Consider the grammar below describing the abstract syntax of expressions: Describe the Visitor Pattern. Supply the java code for the grammar above to illustrate this design pattern. [8]
b) For the following program, first separate the code into basic blocks, then rearrange the blocks into traces and finally optimise the code by removing redundant jumps. Show each step separately. [5] Start: Statement Jump X Z: Statement Jump A X: Statement Jump Y A: Statement Y: Statement Jump Z Question 6 [ Register Allocation] a) Use the iterative liveness analysis algorithm to calculate the livein and liveout sets for each of the following statements in a program, with the initial and final live sets indicated assume livein (succ ( d=a+b+c )) = {d}. Use the statement numbers provided. Show the succ, use, def and pairs of in/out sets. The last calculated in/out pair must be identical to the previous pair to indicate convergence. [6] [livein: a, b] 1: if (a<b) 2: then c = a; 3: else c = b; 4: d = a + b + c; [liveout: d] Hint: The relevant formula can be stated as follows: out[n] = union of in[s] for all successors s of n in[n] = union of use[n] and (out[n] def[n]) b) Consider the following graph with nodes indicating temporaries and arcs indicating interference. Apply a register colouring algorithm to 2colour the graph. Assume that R is a precoloured node and use George’s criterion for conservative coalescing. At each step, draw the updated graph and briefly explain what rule has been applied. Indicate the final register allocation (R1, R2) to temporaries. [4]
Section C Theory of Algorithms [Answer questions 7 and 8 – both compulsory] Question 7 : You must answer this question. a) Explain the difference between intractable and undecidable problems. Give an example of each type. [4] b) After weeks of secretive work, your friend, Bob, reveals to you a watertight algorithm for the decision version of the Traveling Saleman’s problem. His algorithm has a time efficiency of O(n^4 ). Should you be impressed with Bob’s work? Explain the significance of his result, in the context of problem complexity. Define and use the complexity classes P, NP and NPcomplete in your answer. [6] Question 8 : You must answer this question. Consider the 4 possible algorithms given below for computing f(a,n) = a n : A. f(a,n) = a * a * a * * a (multiply a by itself n times) B. f(a,n) = a |n/2|
- a |n/2| (e.g. f(a,25) = a 12
- a 13 ) C. f(a,n) = a n
- a D. f(a,n) = { (a n/ ) 2 ) if n is even and positive { (a (n1)/2)
- a if n is odd and n > 1 { a if n = 1 a) What is the time efficiency of each of the following (expressed in terms of n): i) algorithm C ii) algorithm D [2] b) Each algorithm above uses a different problemsolving technique. For each technique below, give the letter (A, B, C or D) of the corresponding algorithm: i) brute force ii) decrease by a constant iii) decrease by a constant factor iv) divide and conquer [2] c) Name 4 other problemsolving techniques studied in this course, i.e. besides those 4 given above. [2] d) Which of the 4 other techniques in (c) above would be the most efficient way of finding a n ? Why? [2] e) For the problem below: i) Name the problemsolving strategy you would use to solve this problem.
d
a b
e
c f
Question 10 Pseudocode for the classic bubble sort algorithm is: Bubblesort( A[0..n1 ] ) //Input: An array A[0..n 1] of n orderable elements //Output: Array A[0...n1 ] sorted in ascending order. for i ← 0 to n2 do for j ← 0 to n2i do if A[j+1] < A[j] swap A[j] and A[j+1] a) Do a mathematical analysis of this algorithm to find a closed form formula for the worst case time efficiency of bubble sort. [3] b) Now use a decision tree analysis to find the number of key comparisons in the worst and average cases for the three element enhanced bubblesort (that stops if no swaps have been made on its last pass). [4] c) Give an adversary argument proof that the time efficiency of any algorithm that checks the connectivity of a graph with n vertices is in Ω(n^2 ) , provided the only operation allowed for an algorithm is to inquire about the presence of an edge between two vertices of the graph. [3] Question 11 a) Consider the problem of maximizing the value of the following 4 items that can fit into a knapsack if that knapsack can accommodate at most 5 kgs. Item Number Weight of that item in kgs Value of that item in Rands 1 2 12 2 1 10 3 3 20 4 2 15 i) Apply Dynamic Programming without a memory function to the given problem, but show only the first 7 nonzero values that would be computed. [4] ii) Now suppose a memory function was used. One element of the solution array that would be calculated is A[4,5]. Give any 2 other elements of that array that would be calculated using this approach (just give the array elements e.g. A[1,1], not their values). [2]
g
b) Name, or briefly describe, an algorithm for finding a value in a sorted array using any two of the following techniques: i) Brute force ii) Divideandconquer iii) Decreaseandconquer [1] c) If the values to search among are not sorted, they could be sorted first and then the above algorithms could be used for searching afterwards. i) Would this be a good strategy if we want to find a value in a huge array? ii) When, if ever, would it be a good strategy (to sort first and then search)? [1]
iii) Insertion sort (we sort A[1..1], then A[1..2], then A[1..3], etc. until all keys are sorted – each time the new element is simply inserted in the right place among its alreadysorted predecessors) iv) Quicksort (we take the first key K and partition the array into two: keys <= K and keys > K; we then repeat the process on each of the 2 partitions) [2]
c) For the problem below: i) Name the problemsolving strategy you would use to solve this problem. ii) Name a problem studied in lectures which can most easily be adapted to solve the given problem. A large data set of friendships has been created from email logs, blogs like Facebook, etc. A program is needed that takes 2 input files (one is a list of friends; the other is a list of queries) and create an output file giving a Yes or No answer to each of these queries in turn. Each friendship is given as a pair of integers (the usernumbers of the 2 people who are friends) and each query comprises two integers X and Y, asking whether or not there is a friendship chain linking X and Y. A small example: Friends file: 1 2 4 2 4 5 6 3 Query file: 1 5 2 3 Output file: Yes No (i.e. Yes, there is a chain linking 1 and 5 (as 1 knows 2, 2 knows 4 and 4 knows 5); No, there is no chain linking 2 and 3 (as 2 only knows 1 and 4, and 4 only knows 5)). [2] END OF EXAMINATION PAPER
