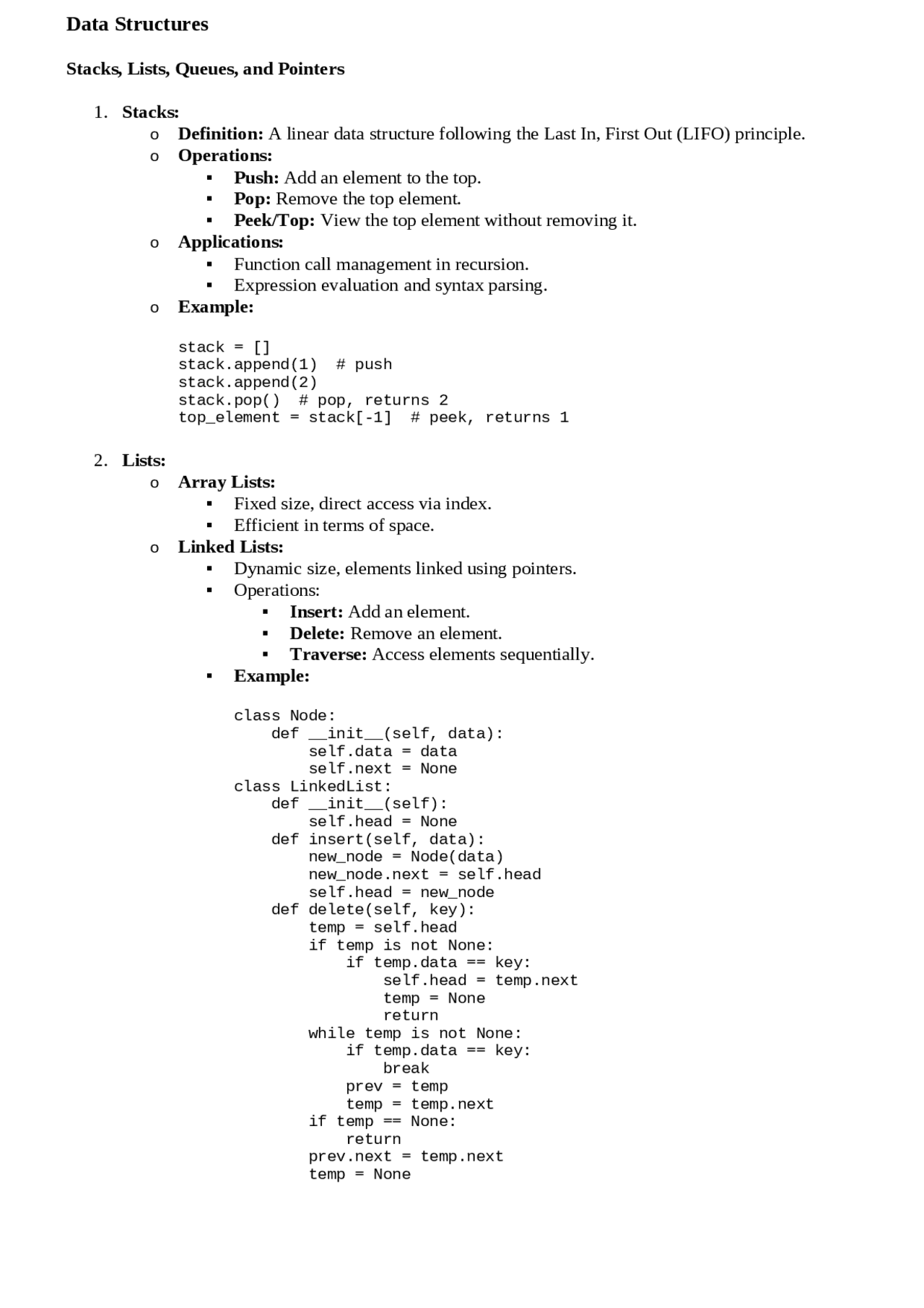

Data Structures
Stacks, Lists, Queues, and Pointers
1. Stacks:
o Definition: A linear data structure following the Last In, First Out (LIFO) principle.
o Operations:
Push: Add an element to the top.
Pop: Remove the top element.
Peek/Top: View the top element without removing it.
o Applications:
Function call management in recursion.
Expression evaluation and syntax parsing.
o Example:
stack = [] stack.append(1) # push stack.append(2) stack.pop() # pop, returns 2 top_element = stack[-1] # peek, returns 1
2. Lists:
o Array Lists:
Fixed size, direct access via index.
Efficient in terms of space.
o Linked Lists:
Dynamic size, elements linked using pointers.
Operations:
Insert: Add an element.
Delete: Remove an element.
Traverse: Access elements sequentially.
Example:
class Node: def init(self, data): self.data = data self.next = None class LinkedList: def init(self): self.head = None def insert(self, data): new_node = Node(data) new_node.next = self.head self.head = new_node def delete(self, key): temp = self.head if temp is not None: if temp.data == key: self.head = temp.next temp = None return while temp is not None: if temp.data == key: break prev = temp temp = temp.next if temp == None: return prev.next = temp.next temp = None
3. Queues:
o Definition: A linear data structure following the First In, First Out (FIFO) principle.
o Operations:
Enqueue: Add an element to the rear.
Dequeue: Remove an element from the front.
o Applications:
Printer queue management.
Breadth-First Search (BFS) in graphs.
o Example:
from collections import deque queue = deque() queue.append(1) # enqueue queue.append(2) queue.popleft() # dequeue, returns 1
4. Pointers:
o Definition: Variables storing the memory address of another variable.
o Applications: Crucial in implementing dynamic data structures like linked lists, trees, etc.
Hashing
Definition: A technique to convert a range of key values into a range of indexes of an array.
Hash Function: Maps keys to array indices.
Collision Resolution Techniques:
o Separate Chaining: Each array element points to a linked list of entries.
o Open Addressing: All elements are stored in the array itself (e.g., linear probing, quadratic
probing, double hashing).
Example:
def hash_function(key, size): return key % size class HashTable: def init(self, size): self.size = size self.table = [[] for _ in range(size)] def insert(self, key, value): index = hash_function(key, self.size) self.table[index].append((key, value)) def search(self, key): index = hash_function(key, self.size) for k, v in self.table[index]: if k == key: return v return None
Binary Search Trees (BST)
Definition: A tree structure where each node has at most two children. The left child is less than the
parent, and the right child is greater.
Operations:
o Search, Insert, Delete.
Example:
class BSTNode: def init(self, key): self.left = None self.right = None self.value = key def insert(root, key): if root is None: return BSTNode(key) if key < root.value:
o Linear Search:
Worst Case: O(n)O(n)O(n)
Best Case: O(1)O(1)O(1)
Average Case: O(n)O(n)O(n)
Dynamic Programming
Definition: A method for solving complex problems by breaking them down into simpler
subproblems. It stores the results of subproblems to avoid redundant computations.
Example:
o Fibonacci Sequence:
def fibonacci(n): dp = [0, 1] for i in range(2, n+1): dp.append(dp[i-1] + dp[i-2]) return dp[n]
Greedy Algorithms
Definition: Algorithms that make the locally optimal choice at each stage with the hope of finding a
global optimum.
Example:
o Fractional Knapsack Problem:
def fractional_knapsack(items, capacity): items.sort(key=lambda x: x.value/x.weight, reverse=True) total_value = 0 for item in items: if capacity >= item.weight: capacity -= item.weight total_value += item.value else: total_value += item.value * (capacity / item.weight) break return total_value
Amortized Analysis
Definition: Analyzes the average time per operation over a sequence of operations, ensuring that the
worst-case time is spread out over multiple operations.
Example:
o Dynamic Array Resizing:
class DynamicArray: def init(self): self.array = [] self.capacity = 1 self.size = 0 def append(self, item): if self.size == self.capacity: self.capacity *= 2 new_array = [None] * self.capacity for i in range(self.size): new_array[i] = self.array[i] self.array = new_array self.array[self.size] = item self.size += 1
Graph Algorithms
Basic Graph Algorithms
1. Breadth-First Search (BFS):
o Definition: Explores neighbors level by level.
o Example:
from collections import deque def bfs(graph, start): visited = set() queue = deque([start]) while queue: vertex = queue.popleft() if vertex not in visited: visited.add(vertex) queue.extend(graph[vertex] - visited) return visited
2. Depth-First Search (DFS):
o Definition: Explores as far as possible along each branch.
o Example:
def dfs(graph, start, visited=None): if visited is None: visited = set() visited.add(start) for next in graph[start] - visited: dfs(graph, next, visited) return visited
Graph Analysis
Definition: Analyzing properties such as connectivity, cycles, and components within graphs.
Spanning Trees
1. Minimum Spanning Tree (MST):
o Definition: A subset of the edges which connects all the vertices together, without any cycles
and with the minimum possible total edge weight.
o Algorithms:
Kruskal's Algorithm: Uses union-find to avoid cycles.
Prim's Algorithm: Uses a priority queue to select the minimum edge.
o Example Diagram:
Shortest Path Algorithms
1. Dijkstra's Algorithm:
o Definition: Finds the shortest paths from a single source to all other vertices in a graph with
non-negative edge weights.
o Example:
import heapq def dijkstra(graph, start): queue = [(0, start)] distances = {vertex: float('infinity') for vertex in graph} distances[start] = 0 while queue: current_distance, current_vertex = heapq.heappop(queue) if current_distance > distances[current_vertex]: continue for neighbor, weight in graph[current_vertex]: distance = current_distance + weight if distance < distances[neighbor]: distances[neighbor] = distance heapq.heappush(queue, (distance, neighbor)) return distances
length = lps[length-1] else: lps[i] = 0 i += 1 return lps lps = compute_lps_array(pattern) i = j = 0 while i < len(text): if pattern[j] == text[i]: i += 1 j += 1 if j == len(pattern): print(f"Found pattern at index {i-j}") j = lps[j-1] elif i < len(text) and pattern[j] != text[i]: if j != 0: j = lps[j-1] else: i += 1
2. Rabin-Karp Algorithm:
o Definition: Uses hashing to find any one of a set of pattern strings in a text.
o Example:
def rabin_karp(pattern, text, q): d = 256 M = len(pattern) N = len(text) p = 0 t = 0 h = 1 for i in range(M-1): h = (h * d) % q for i in range(M): p = (d * p + ord(pattern[i])) % q t = (d * t + ord(text[i])) % q for i in range(N - M + 1): if p == t: match = True for j in range(M): if text[i + j] != pattern[j]: match = False break if match: print(f"Pattern found at index {i}") if i < N - M: t = (d * (t - ord(text[i]) * h) + ord(text[i + M])) % q if t < 0: t += q
Algebraic Algorithms
Fast Fourier Transform (FFT):
o Definition: A fast algorithm to compute the Discrete Fourier Transform (DFT) and its
inverse.
o Example Diagram:
NP-Completeness
Definition: Class of problems for which no polynomial-time solutions are known, but a solution can
be verified in polynomial time.
Example:
o Traveling Salesman Problem (TSP):
Definition: Given a list of cities and the distances between each pair, what is the
shortest possible route that visits each city once and returns to the origin city?
Example Diagram:
Approximation Algorithms
Definition: Algorithms that find near-optimal solutions to NP-hard problems within a guaranteed
bound.
Example:
o Approximation for TSP:
Definition: An algorithm that provides a route not much longer than the optimal
route.
Example Diagram:
Probabilistic and Parallel Algorithms
1. Probabilistic Algorithms:
o Definition: Algorithms that use randomness to achieve good expected performance.
o Example:
Randomized Quick Sort:
import random def randomized_partition(arr, low, high): pivot_idx = random.randint(low, high) arr[pivot_idx], arr[high] = arr[high], arr[pivot_idx] return partition(arr, low, high) def partition(arr, low, high): pivot = arr[high] i = low - 1 for j in range(low, high): if arr[j] <= pivot: i += 1 arr[i], arr[j] = arr[j], arr[i] arr[i+1], arr[high] = arr[high], arr[i+1] return i + 1 def randomized_quicksort(arr, low, high): if low < high: pi = randomized_partition(arr, low, high) randomized_quicksort(arr, low, pi-1) randomized_quicksort(arr, pi+1, high)
2. Parallel Algorithms:
o Definition: Algorithms that execute multiple operations simultaneously.
o Example:
Parallel Merge Sort:
from multiprocessing import Pool def merge(left, right): if not left: return right if not right: return left if left[0] < right[0]: return [left[0]] + merge(left[1:], right) return [right[0]] + merge(left, right[1:]) def parallel_merge_sort(arr): if len(arr) <= 1: return arr mid = len(arr) // 2 with Pool(2) as pool: left, right = pool.map(parallel_merge_sort, [arr[:mid], arr[mid:]]) return merge(left, right)
Intractable Problems
Definition: Problems that are computationally infeasible to solve exactly.
Example:
o Boolean Satisfiability Problem (SAT):
