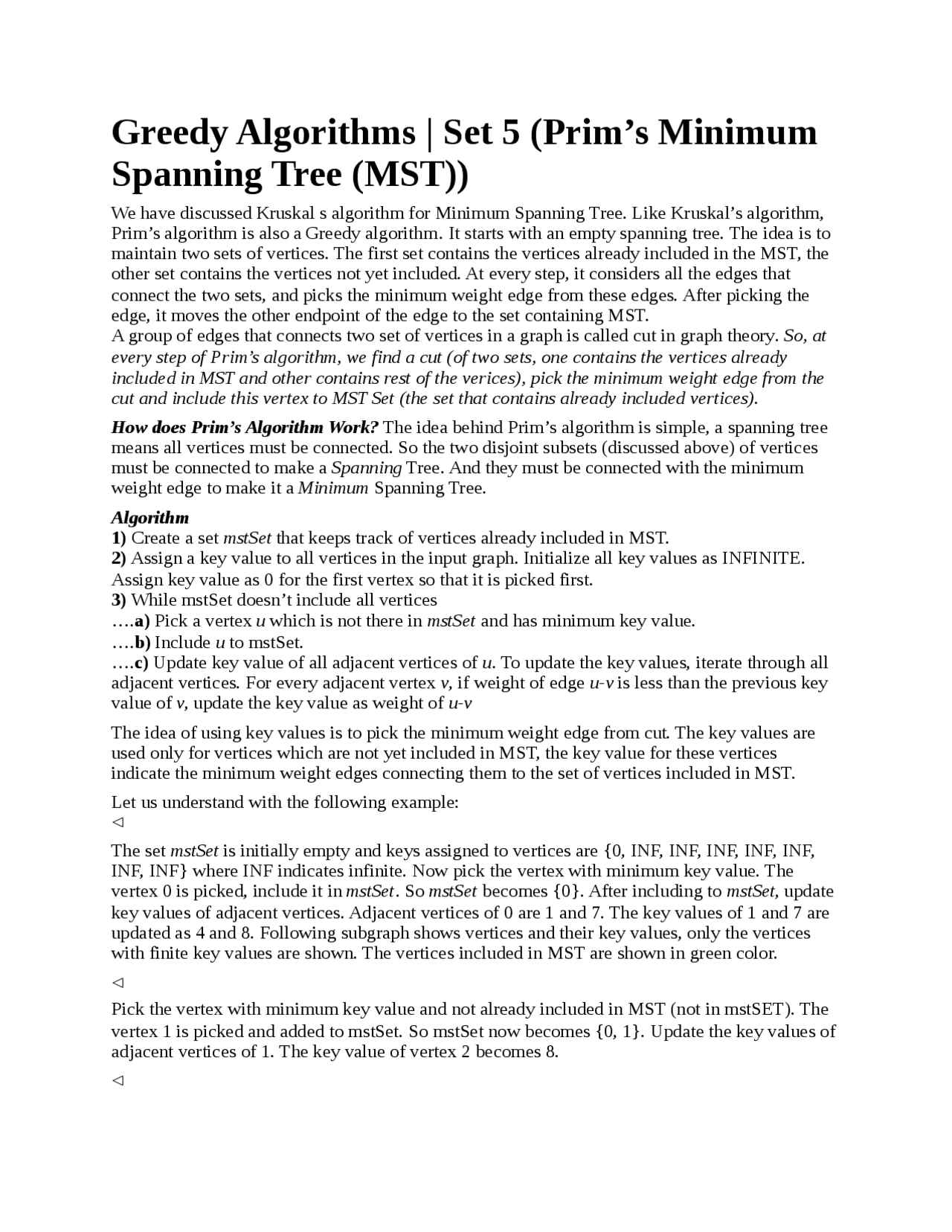

Greedy Algorithms | Set 5 (Prim’s Minimum

Spanning Tree (MST))

We have discussed Kruskal s algorithm for Minimum Spanning Tree. Like Kruskal’s algorithm,

Prim’s algorithm is also a Greedy algorithm . It starts with an empty spanning tree. The idea is to

maintain two sets of vertices. The first set contains the vertices already included in the MST, the

other set contains the vertices not yet included. At every step, it considers all the edges that

connect the two sets, and picks the minimum weight edge from these edges. After picking the

edge, it moves the other endpoint of the edge to the set containing MST.

A group of edges that connects two set of vertices in a graph is called cut in graph theory. So, at

every step of Prim’s algorithm, we find a cut (of two sets, one contains the vertices already

included in MST and other contains rest of the verices), pick the minimum weight edge from the

cut and include this vertex to MST Set (the set that contains already included vertices).

How does Prim’s Algorithm Work? The idea behind Prim’s algorithm is simple, a spanning tree

means all vertices must be connected. So the two disjoint subsets (discussed above) of vertices

must be connected to make a Spanning Tree. And they must be connected with the minimum

weight edge to make it a Minimum Spanning Tree.

Algorithm

1) Create a set mstSet that keeps track of vertices already included in MST.

2) Assign a key value to all vertices in the input graph. Initialize all key values as INFINITE.

Assign key value as 0 for the first vertex so that it is picked first.

3) While mstSet doesn’t include all vertices

….a) Pick a vertex u which is not there in mstSet and has minimum key value.

….b) Include u to mstSet.

….c) Update key value of all adjacent vertices of u. To update the key values, iterate through all

adjacent vertices. For every adjacent vertex v, if weight of edge u-v is less than the previous key

value of v, update the key value as weight of u-v

The idea of using key values is to pick the minimum weight edge from cut. The key values are

used only for vertices which are not yet included in MST, the key value for these vertices

indicate the minimum weight edges connecting them to the set of vertices included in MST.

Let us understand with the following example:



The set mstSet is initially empty and keys assigned to vertices are {0, INF, INF, INF, INF, INF,

INF, INF} where INF indicates infinite. Now pick the vertex with minimum key value. The

vertex 0 is picked, include it in mstSet. So mstSet becomes {0}. After including to mstSet, update

key values of adjacent vertices. Adjacent vertices of 0 are 1 and 7. The key values of 1 and 7 are

updated as 4 and 8. Following subgraph shows vertices and their key values, only the vertices

with finite key values are shown. The vertices included in MST are shown in green color.



Pick the vertex with minimum key value and not already included in MST (not in mstSET). The

vertex 1 is picked and added to mstSet. So mstSet now becomes {0, 1}. Update the key values of

adjacent vertices of 1. The key value of vertex 2 becomes 8.



Partial preview of the text

Download Prim's MST Algorithm: A Comprehensive Guide with C++ Implementation and more Study notes Computer Engineering and Programming in PDF only on Docsity!

Greedy Algorithms | Set 5 (Prim’s Minimum

Spanning Tree (MST))

We have discussed Kruskal s algorithm for Minimum Spanning Tree. Like Kruskal’s algorithm,

Prim’s algorithm is also a Greedy algorithm. It starts with an empty spanning tree. The idea is to

maintain two sets of vertices. The first set contains the vertices already included in the MST, the

other set contains the vertices not yet included. At every step, it considers all the edges that

connect the two sets, and picks the minimum weight edge from these edges. After picking the

edge, it moves the other endpoint of the edge to the set containing MST.

A group of edges that connects two set of vertices in a graph is called cut in graph theory. So, at

every step of Prim’s algorithm, we find a cut (of two sets, one contains the vertices already

included in MST and other contains rest of the verices), pick the minimum weight edge from the

cut and include this vertex to MST Set (the set that contains already included vertices).

How does Prim’s Algorithm Work? The idea behind Prim’s algorithm is simple, a spanning tree

means all vertices must be connected. So the two disjoint subsets (discussed above) of vertices

must be connected to make a Spanning Tree. And they must be connected with the minimum

weight edge to make it a Minimum Spanning Tree.

Algorithm

1) Create a set mstSet that keeps track of vertices already included in MST.

2) Assign a key value to all vertices in the input graph. Initialize all key values as INFINITE.

Assign key value as 0 for the first vertex so that it is picked first.

3) While mstSet doesn’t include all vertices

…. a) Pick a vertex u which is not there in mstSet and has minimum key value.

…. b) Include u to mstSet.

…. c) Update key value of all adjacent vertices of u. To update the key values, iterate through all

adjacent vertices. For every adjacent vertex v , if weight of edge u-v is less than the previous key

value of v , update the key value as weight of u-v

The idea of using key values is to pick the minimum weight edge from cut. The key values are

used only for vertices which are not yet included in MST, the key value for these vertices

indicate the minimum weight edges connecting them to the set of vertices included in MST.

Let us understand with the following example:

The set mstSet is initially empty and keys assigned to vertices are {0, INF, INF, INF, INF, INF,

INF, INF} where INF indicates infinite. Now pick the vertex with minimum key value. The

vertex 0 is picked, include it in mstSet. So mstSet becomes {0}. After including to mstSet , update

key values of adjacent vertices. Adjacent vertices of 0 are 1 and 7. The key values of 1 and 7 are

updated as 4 and 8. Following subgraph shows vertices and their key values, only the vertices

with finite key values are shown. The vertices included in MST are shown in green color.

Pick the vertex with minimum key value and not already included in MST (not in mstSET). The

vertex 1 is picked and added to mstSet. So mstSet now becomes {0, 1}. Update the key values of

adjacent vertices of 1. The key value of vertex 2 becomes 8.

Pick the vertex with minimum key value and not already included in MST (not in mstSET). We

can either pick vertex 7 or vertex 2, let vertex 7 is picked. So mstSet now becomes {0, 1, 7}.

Update the key values of adjacent vertices of 7. The key value of vertex 6 and 8 becomes finite

(7 and 1 respectively).

Pick the vertex with minimum key value and not already included in MST (not in mstSET).

Vertex 6 is picked. So mstSet now becomes {0, 1, 7, 6}. Update the key values of adjacent

vertices of 6. The key value of vertex 5 and 8 are updated.

We repeat the above steps until mstSet includes all vertices of given graph. Finally, we get the

following graph.

How to implement the above algorithm?

We use a boolean array mstSet[] to represent the set of vertices included in MST. If a value

mstSet[v] is true, then vertex v is included in MST, otherwise not. Array key[] is used to store

key values of all vertices. Another array parent[] to store indexes of parent nodes in MST. The

parent array is the output array which is used to show the constructed MST.

// A C / C++ program for Prim's Minimum Spanning Tree (MST) algorithm. // The program is for adjacency matrix representation of the graph

#include <stdio.h> #include <limits.h>

// Number of vertices in the graph #define V 5

// A utility function to find the vertex with minimum key value, from // the set of vertices not yet included in MST int minKey(int key[], bool mstSet[]) { // Initialize min value int min = INT_MAX, min_index;

for (int v = 0; v < V; v++) if (mstSet[v] == false && key[v] < min)

// The MST will have V vertices for (int count = 0; count < V-1; count++) { // Pick thd minimum key vertex from the set of vertices // not yet included in MST int u = minKey(key, mstSet);

// Add the picked vertex to the MST Set mstSet[u] = true;

// Update key value and parent index of the adjacent vertices of // the picked vertex. Consider only those vertices which are not yet // included in MST for (int v = 0; v < V; v++)

// graph[u][v] is non zero only for adjacent vertices of m // mstSet[v] is false for vertices not yet included in MST // Update the key only if graph[u][v] is smaller than key[v] if (graph[u][v] && mstSet[v] == false && graph[u][v] < key[v]) parent[v] = u, key[v] = graph[u][v]; }

// print the constructed MST printMST(parent, V, graph); }

// driver program to test above function int main() {

/* Let us create the following graph 2 3 (0)--(1)--(2) | / \ | 6| 8/ \5 | | / \ | (3)-------(4) 9 */ int graph[V][V] = {{0, 2, 0, 6, 0}, {2, 0, 3, 8, 5}, {0, 3, 0, 0, 7}, {6, 8, 0, 0, 9}, {0, 5, 7, 9, 0}, };

// Print the solution primMST(graph);

return 0; }

Output:

Edge Weight 0 - 1 2 1 - 2 3 0 - 3 6 1 - 4 5
