Cork Institute of Technology
Bachelor of Engineering (Honours) in Mechanical Engineering – Stage 1
(NFQ Level 8)
Autumn 2007
Engineering Graphics
(Time: 3 Hours)
Answer THREE questions. Examiners: Dr. Lorraine Howard
2 Questions from Section A Mr. Bernard O’ Callaghan
and 1 Question from Section B Mr. Manfred Uhlemann
Mr. Sean Williams
Prof. Michael Gilchrist
Mr. Peter Clarke
Candidates are to create a folder in their account on the server, eg “jbloggs-autumn”.
Save all your work to this folder. On completion of the exam copy this folder to a floppy
disk to be taken by the invigilator Copy a back-up copy into the assessment folder in
the DME06 folder.
Please ensure you save your work at regular intervals.
Use appropriate layers for all questions.
Section A
Q1. Draw the following views of the item shown in Fig Q1.
1. Sectional Elevation on A-A
2. Side View
3. Plan View
Use Third Angle Projection
Fully dimension the drawing and use appropriate layers. [33 Marks]

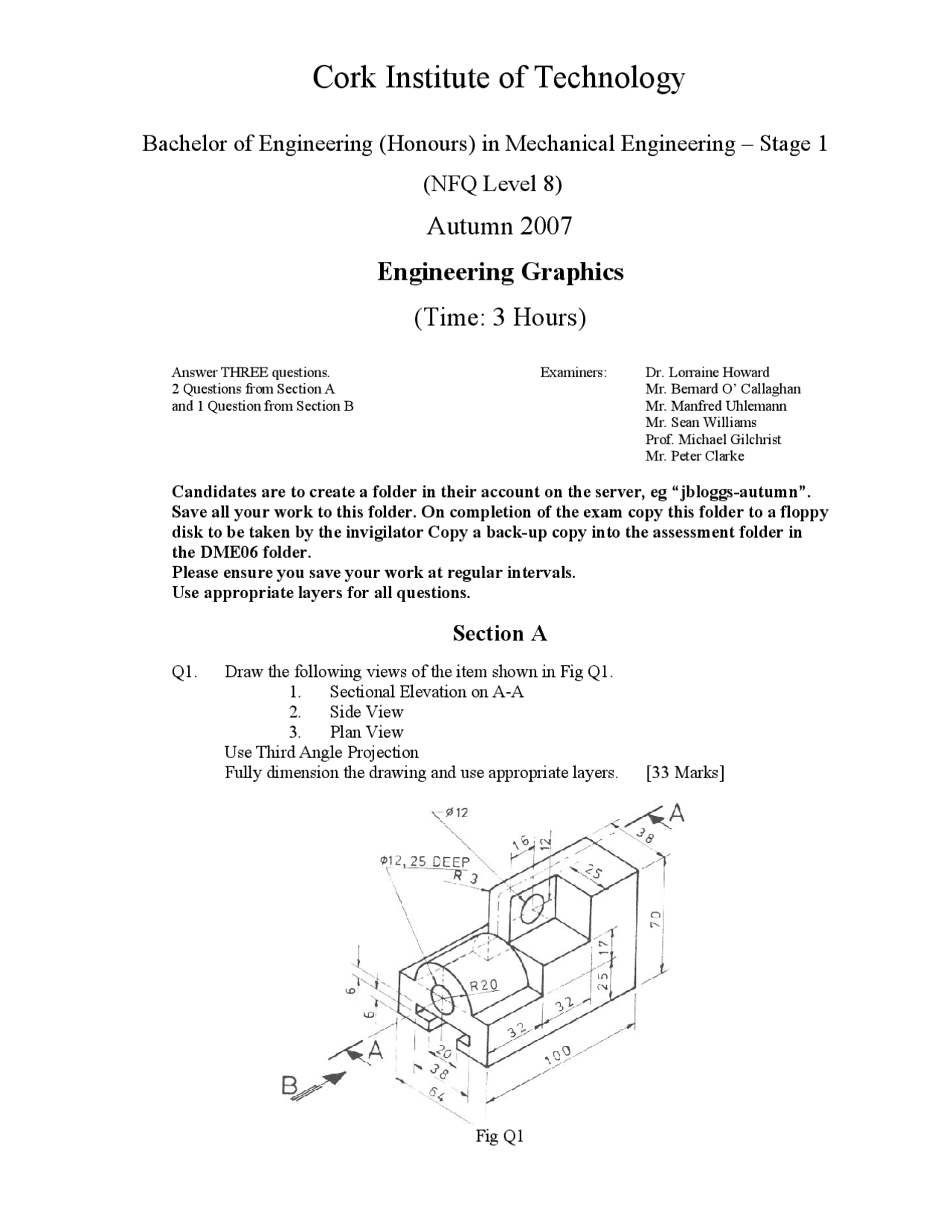

Fig Q1
