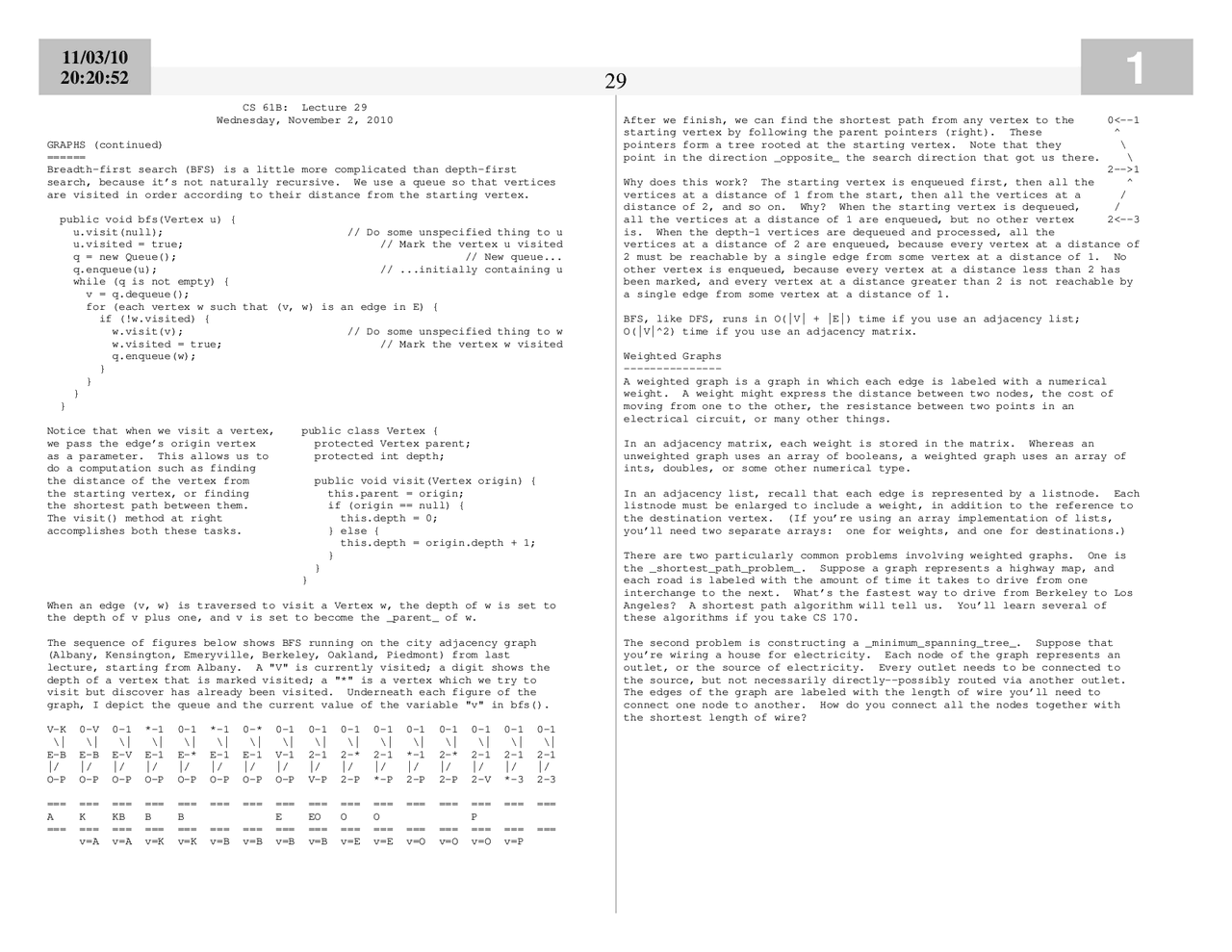

CS 61B: Lecture 29
Wednesday, November 2, 2010
GRAPHS (continued)
======
Breadth-first search (BFS) is a little more complicated than depth-first
search, because it’s not naturally recursive. We use a queue so that vertices
are visited in order according to their distance from the starting vertex.
public void bfs(Vertex u) {
u.visit(null); // Do some unspecified thing to u
u.visited = true; // Mark the vertex u visited
q = new Queue(); // New queue...
q.enqueue(u); // ...initially containing u
while (q is not empty) {
v = q.dequeue();
for (each vertex w such that (v, w) is an edge in E) {
if (!w.visited) {
w.visit(v); // Do some unspecified thing to w
w.visited = true; // Mark the vertex w visited
q.enqueue(w);
}
}
}
}
Notice that when we visit a vertex, public class Vertex {
we pass the edge’s origin vertex protected Vertex parent;
as a parameter. This allows us to protected int depth;
do a computation such as finding
the distance of the vertex from public void visit(Vertex origin) {
the starting vertex, or finding this.parent = origin;
the shortest path between them. if (origin == null) {
The visit() method at right this.depth = 0;
accomplishes both these tasks. } else {
this.depth = origin.depth + 1;
}
}
}
When an edge (v, w) is traversed to visit a Vertex w, the depth of w is set to
the depth of v plus one, and v is set to become the _parent_ of w.
The sequence of figures below shows BFS running on the city adjacency graph
(Albany, Kensington, Emeryville, Berkeley, Oakland, Piedmont) from last
lecture, starting from Albany. A "V" is currently visited; a digit shows the
depth of a vertex that is marked visited; a "*" is a vertex which we try to
visit but discover has already been visited. Underneath each figure of the
graph, I depict the queue and the current value of the variable "v" in bfs().
V-K 0-V 0-1 *-1 0-1 *-1 0-* 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1
\| \| \| \| \| \| \| \| \| \| \| \| \| \| \| \|
E-B E-B E-V E-1 E-* E-1 E-1 V-1 2-1 2-* 2-1 *-1 2-* 2-1 2-1 2-1
|/ |/ |/ |/ |/ |/ |/ |/ |/ |/ |/ |/ |/ |/ |/ |/
O-P O-P O-P O-P O-P O-P O-P O-P V-P 2-P *-P 2-P 2-P 2-V *-3 2-3
=== === === === === === === === === === === === === === === ===
A K KB B B E EO O O P
=== === === === === === === === === === === === === === === ===
v=A v=A v=K v=K v=B v=B v=B v=B v=E v=E v=O v=O v=O v=P
After we finish, we can find the shortest path from any vertex to the 0<--1
starting vertex by following the parent pointers (right). These ^
pointers form a tree rooted at the starting vertex. Note that they \
point in the direction _opposite_ the search direction that got us there. \
2-->1
Why does this work? The starting vertex is enqueued first, then all the ^
vertices at a distance of 1 from the start, then all the vertices at a /
distance of 2, and so on. Why? When the starting vertex is dequeued, /
all the vertices at a distance of 1 are enqueued, but no other vertex 2<--3
is. When the depth-1 vertices are dequeued and processed, all the
vertices at a distance of 2 are enqueued, because every vertex at a distance of
2 must be reachable by a single edge from some vertex at a distance of 1. No
other vertex is enqueued, because every vertex at a distance less than 2 has
been marked, and every vertex at a distance greater than 2 is not reachable by
a single edge from some vertex at a distance of 1.
BFS, like DFS, runs in O(|V| + |E|) time if you use an adjacency list;
O(|V|^2) time if you use an adjacency matrix.
Weighted Graphs
---------------
A weighted graph is a graph in which each edge is labeled with a numerical
weight. A weight might express the distance between two nodes, the cost of
moving from one to the other, the resistance between two points in an
electrical circuit, or many other things.
In an adjacency matrix, each weight is stored in the matrix. Whereas an
unweighted graph uses an array of booleans, a weighted graph uses an array of
ints, doubles, or some other numerical type.
In an adjacency list, recall that each edge is represented by a listnode. Each
listnode must be enlarged to include a weight, in addition to the reference to
the destination vertex. (If you’re using an array implementation of lists,
you’ll need two separate arrays: one for weights, and one for destinations.)
There are two particularly common problems involving weighted graphs. One is
the _shortest_path_problem_. Suppose a graph represents a highway map, and
each road is labeled with the amount of time it takes to drive from one
interchange to the next. What’s the fastest way to drive from Berkeley to Los
Angeles? A shortest path algorithm will tell us. You’ll learn several of
these algorithms if you take CS 170.
The second problem is constructing a _minimum_spanning_tree_. Suppose that
you’re wiring a house for electricity. Each node of the graph represents an
outlet, or the source of electricity. Every outlet needs to be connected to
the source, but not necessarily directly--possibly routed via another outlet.
The edges of the graph are labeled with the length of wire you’ll need to
connect one node to another. How do you connect all the nodes together with
the shortest length of wire?
