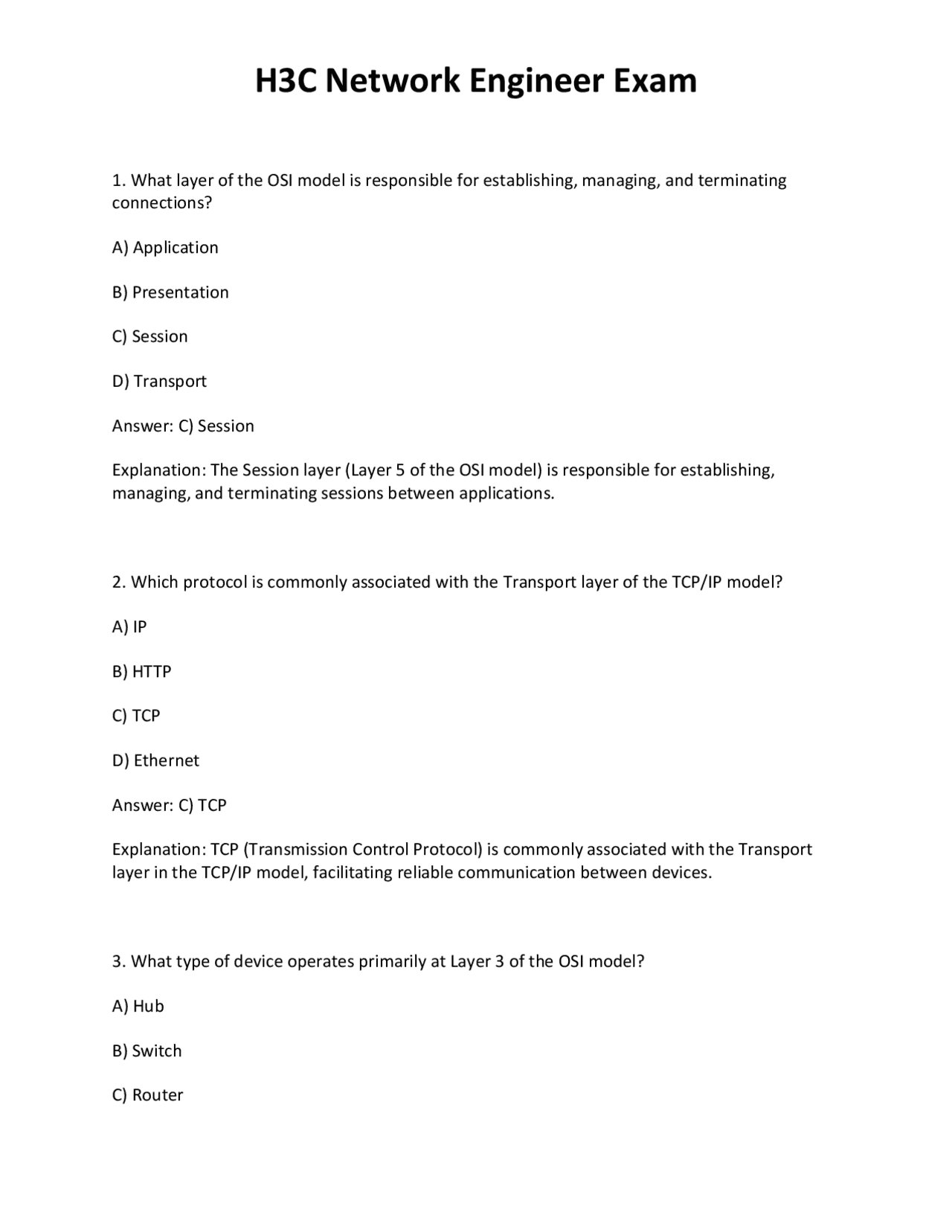

- What layer of the OSI model is responsible for establishing, managing, and terminating connections? A) Application B) Presentation C) Session D) Transport Answer: C) Session Explanation: The Session layer (Layer 5 of the OSI model) is responsible for establishing, managing, and terminating sessions between applications.
- Which protocol is commonly associated with the Transport layer of the TCP/IP model? A) IP B) HTTP C) TCP D) Ethernet Answer: C) TCP Explanation: TCP (Transmission Control Protocol) is commonly associated with the Transport layer in the TCP/IP model, facilitating reliable communication between devices.
- What type of device operates primarily at Layer 3 of the OSI model? A) Hub B) Switch C) Router
D) Repeater Answer: C) Router Explanation: Routers operate at Layer 3 (Network layer) of the OSI model, where they route packets between different networks.
- Which of the following best describes the broadcast address in a default subnet? A) The first address in the subnet B) The last address in the subnet C) The network identifier D) An address reserved for private use Answer: B) The last address in the subnet Explanation: The broadcast address is the last address in a subnet, used to send a packet to all devices in that subnet.
- What is the primary purpose of Network Address Translation (NAT)? A) To reduce network traffic B) To assign IP addresses dynamically C) To hide internal IP addresses from external networks D) To enhance data encryption Answer: C) To hide internal IP addresses from external networks Explanation: NAT allows multiple devices on a private network to share a single public IP address, thereby hiding their internal IP addresses from external networks.
D) To ensure error-free transmissions Answer: B) To separate broadcast domains Explanation: VLAN tagging, such as using the 802.1Q standard, is used to identify frames belonging to different VLANs, thus allowing for the separation of broadcast domains.
- Which of the following is an extended Access Control List (ACL)? A) Allows only certain IP addresses B) Filters based on IP addresses, protocol types, and port numbers C) Blocks all traffic D) Based only on the source IP address Answer: B) Filters based on IP addresses, protocol types, and port numbers Explanation: Extended ACLs can filter traffic based on multiple criteria including IP addresses, protocols, and port numbers, making them flexible for more extensive traffic control.
- What is the primary purpose of Spanning Tree Protocol (STP)? A) To allow VLANs to communicate B) To prevent loops in networking environments C) To improve network speed D) To isolate network segments Answer: B) To prevent loops in networking environments Explanation: STP is designed to prevent loops in a network by identifying and blocking redundant paths.
- In which layer does the IP protocol operate? A) Application B) Transport C) Network D) Link Answer: C) Network Explanation: The IP protocol operates at the Network layer (Layer 3) of the OSI model, responsible for addressing and routing packets.
- What is CIDR notation? A) A method for representing IP addresses and their associated network masks B) A way to measure bandwidth C) A protocol used for secure communication D) A standard for wireless communication Answer: A) A method for representing IP addresses and their associated network masks Explanation: CIDR (Classless Inter-Domain Routing) notation succinctly expresses an IP address alongside its subnet mask, such as 192.168.1.0/24.
- In EIGRP, what is the default metric used to determine the best route? A) Delay B) Bandwidth C) Reliability
- Which of the following is a characteristic of dynamic routing protocols? A) They require manual configuration for each route. B) They can adapt to changes in the network. C) They guarantee the shortest path. D) They operate only on Layer 3. Answer: B) They can adapt to changes in the network. Explanation: Dynamic routing protocols can automatically adjust to network changes, improving reliability and performance.
- What is VLSM (Variable Length Subnet Mask)? A) A method for assigning static IP addresses B) A technique for subnetting that allows for multiple subnet masks within the same network C) A protocol for securing IP addresses D) A type of routing protocol Answer: B) A technique for subnetting that allows for multiple subnet masks within the same network Explanation: VLSM allows different subnets within the same larger network to have different subnet masks, optimizing IP address usage.
- Which of the following is a valid IPv6 address? A) 192.168.1. B) 2001:0db8:85a3:0000:0000:8a2e:0370: C) 10.0.0.
D) 172.16.0.0/
Answer: B) 2001:0db8:85a3:0000:0000:8a2e:0370: Explanation: Option B is formatted correctly as an IPv6 address, which contains colons and hexadecimal digits.
- What is the purpose of Inter-VLAN Routing? A) To prevent broadcast storms B) To allow communication between different VLANs C) To segment network traffic D) To increase bandwidth Answer: B) To allow communication between different VLANs Explanation: Inter-VLAN Routing enables different VLANs to communicate with each other, typically accomplished through a Layer 3 device.
- In a typical ACL setup, what is the effect of applying a permit rule after a deny rule? A) All traffic is allowed B) Traffic allowed by the permit rule is filtered out C) Traffic is dropped based on the deny rule D) The ACL is ignored Answer: A) All traffic is allowed Explanation: A permit rule after a deny rule allows traffic that matches the permit conditions to traverse the network, despite the preceding deny conditions.
D) To update the OSPF configuration Answer: A) To establish neighbor relationships Explanation: Hello packets are used in OSPF to discover and maintain neighbor relationships between OSPF routers.
- Which security protocol is commonly used for securing VPN connections? A) SSL B) HTTP C) SNMP D) FTP Answer: A) SSL Explanation: SSL (Secure Sockets Layer) is commonly used for encrypting VPN connections, providing security over the internet.
- What does the port security feature on a switch do? A) Limits the number of devices that can connect to a switch port B) Encrypts data being transmitted C) Isolates specific traffic types D) Enhances VLAN performance Answer: A) Limits the number of devices that can connect to a switch port Explanation: Port security is a feature that restricts the number of MAC addresses that can dynamically learn on a port, enhancing security.
- Which command would you use to configure a static route on an H3C router? A) ip route B) static route C) route add D) add static route Answer: A) ip route Explanation: The command "ip route" is used in H3C devices to configure a static route by specifying the destination network and the next-hop address.
- In Layer 2 switching, where does the MAC address table reside? A) In the CPU B) On each switch C) In the firewall D) Across routers Answer: B) On each switch Explanation: Each switch maintains its own MAC address table to keep track of the devices connected to its ports.
- What is the purpose of the Native VLAN? A) To separate data traffic B) To manage VLAN trunking C) To provide untagged traffic handling
- When configuring a DHCP server, which address space is typically used for dynamic allocation? A) Reserved addresses B) Public addresses C) Private addresses D) Loopback addresses Answer: C) Private addresses Explanation: DHCP servers commonly allocate private IP addresses from defined ranges to prevent conflicts with public IP addresses and preserve address space.
- Which command lists all VLANs configured on an H3C switch? A) display vlan B) show vlan C) list vlan D) show ip vlan Answer: A) display vlan Explanation: The "display vlan" command is used on H3C switches to list all the VLANs configured on the device.
- Which layer of the OSI model does Ethernet operate on? A) Application Layer B) Network Layer C) Data Link Layer
D) Transport Layer Answer: C) Data Link Layer Explanation: Ethernet operates at the Data Link Layer (Layer 2) of the OSI model, providing frame formatting and MAC addressing.
- In IPv6, what is the purpose of the link-local address? A) To communicate over the internet B) To communicate with the local network segment C) To route traffic between different networks D) To establish connections with remote servers Answer: B) To communicate with the local network segment Explanation: Link-local addresses are used for communication within a single local network segment and are not routable.
- Which protocol does a VPN typically use for secure communication? A) HTTP B) FTP C) IPsec D) SMTP Answer: C) IPsec Explanation: IPsec (Internet Protocol Security) is commonly used to secure VPN connections by encrypting the data and authenticating the sender.
D) Stub area Answer: C) Backbone area Explanation: In OSPF, all areas must connect to the Backbone area (Area 0), which acts as the central point for routing information exchange.
- What is the main advantage of a Layer 3 switch over a Layer 2 switch? A) Lower cost B) Faster switching C) Routing capabilities D) More ports Answer: C) Routing capabilities Explanation: Layer 3 switches have routing capabilities, allowing them to perform inter-VLAN routing and handle traffic between different IP networks.
- What is an advantage of using wireless networking technology? A) Limited range B) Reduced security C) Increased mobility D) Higher installation costs Answer: C) Increased mobility Explanation: Wireless networking technology provides increased mobility, allowing devices to connect to the network without being tethered by cables.
- What is the primary function of the DHCP protocol? A) To provide network address translation B) To allocate IP addresses to devices automatically C) To manage firewall settings D) To secure wireless communications Answer: B) To allocate IP addresses to devices automatically Explanation: DHCP (Dynamic Host Configuration Protocol) automatically assigns IP addresses to devices on a network.
- Which of the following VLAN protocols is commonly used for tagging on Ethernet networks? A) 802.1X B) 802.1D C) 802.1Q D) 802. Answer: C) 802.1Q Explanation: 802.1Q is the standard used for VLAN tagging in Ethernet frames to identify the VLAN associated with each frame.
- What do you call the process of gathering and analyzing data about network performance? A) Network Administration B) Network Monitoring C) Network Design
- In a VLAN configuration, what is the function of a trunk port? A) It connects only to end-user devices. B) It carries traffic for a single VLAN. C) It carries traffic for multiple VLANs. D) It provides a backup connection. Answer: C) It carries traffic for multiple VLANs. Explanation: A trunk port carries traffic from multiple VLANs, allowing data from different VLANs to traverse the same physical link.
- Which command would you use to configure a specific IP address on an interface of an H3C router? A) interface ip set B) ip address C) set ip D) assign ip address Answer: B) ip address Explanation: The "ip address" command is used to assign a specific IP address to an interface on H3C routers.
- Which protocol is designed to prevent loops in a Layer 2 network? A) CDP B) STP C) RIP
D) BGP
Answer: B) STP Explanation: The Spanning Tree Protocol (STP) is specifically designed to prevent loops by blocking redundant paths in a Layer 2 network.
- What is the purpose of the "loopback" interface in a router? A) To connect different networks B) To troubleshoot network connectivity C) To provide a virtual interface for testing D) To manage ports Answer: C) To provide a virtual interface for testing Explanation: The loopback interface is a virtual interface used for testing and troubleshooting without needing to connect to physical hardware.
- In wireless networking, which standard is used for security protocols like WPA2? A) 802.11g B) 802.11i C) 802.11ac D) 802.11n Answer: B) 802.11i Explanation: 802.11i is the standard that describes enhancements to improve security, including the WPA2 protocol.
