1

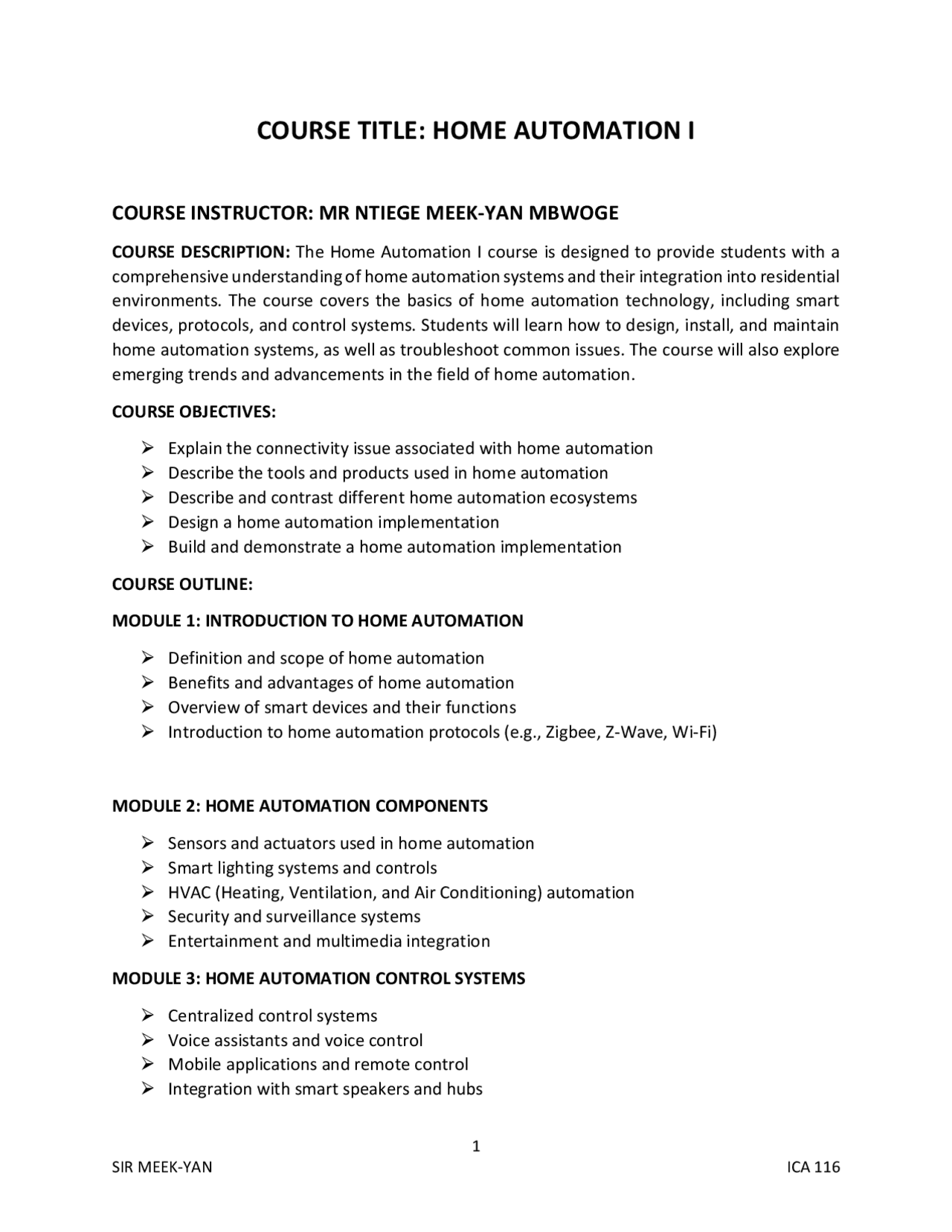

COURSE TITLE: HOME AUTOMATION I
COURSE INSTRUCTOR: MR NTIEGE MEEK-YAN MBWOGE
COURSE DESCRIPTION: The Home Automation I course is designed to provide students with a comprehensive understanding of home automation systems and their integration into residential environments. The course covers the basics of home automation technology, including smart devices, protocols, and control systems. Students will learn how to design, install, and maintain home automation systems, as well as troubleshoot common issues. The course will also explore emerging trends and advancements in the field of home automation. COURSE OBJECTIVES: ➢ Explain the connectivity issue associated with home automation ➢ Describe the tools and products used in home automation ➢ Describe and contrast different home automation ecosystems ➢ Design a home automation implementation ➢ Build and demonstrate a home automation implementation COURSE OUTLINE: MODULE 1: INTRODUCTION TO HOME AUTOMATION ➢ Definition and scope of home automation ➢ Benefits and advantages of home automation ➢ Overview of smart devices and their functions ➢ Introduction to home automation protocols (e.g., Zigbee, Z-Wave, Wi-Fi) MODULE 2: HOME AUTOMATION COMPONENTS ➢ Sensors and actuators used in home automation ➢ Smart lighting systems and controls ➢ HVAC (Heating, Ventilation, and Air Conditioning) automation ➢ Security and surveillance systems ➢ Entertainment and multimedia integration MODULE 3: HOME AUTOMATION CONTROL SYSTEMS ➢ Centralized control systems ➢ Voice assistants and voice control ➢ Mobile applications and remote control ➢ Integration with smart speakers and hubs
2 ➢ User interface design principles ➢ Arduino UNO IDE MODULE 4: DESIGN AND INSTALLATION OF HOME AUTOMATION SYSTEMS ➢ Assessing client needs and requirements ➢ Planning and designing a home automation system ➢ Wiring and cabling considerations ➢ Installation and configuration of smart devices ➢ Testing and verification procedures MODULE 5: TROUBLESHOOTING AND MAINTENANCE ➢ Common issues and challenges in home automation ➢ Troubleshooting techniques and tools ➢ Firmware updates and software maintenance ➢ System optimization and performance monitoring ➢ Customer support and service agreements MODULE 6: EMERGING TRENDS IN HOME AUTOMATION ➢ Artificial Intelligence (AI) and machine learning in home automation ➢ Integration with Internet of Things (IoT) platforms ➢ Energy management and sustainability ➢ Advanced security and privacy considerations ➢ Future developments and industry outlook
4
4. Banking and Finance: - Automated teller machines (ATMs), electronic funds transfer systems, and algorithmic trading platforms that execute financial transactions without direct human involvement. 5. Healthcare Automation: - Automated medical diagnostic equipment, robotic surgery systems, and medication dispensing systems used in healthcare facilities. 6. Logistics and Supply Chain Management: - Automated warehouse systems, inventory management systems, and autonomous drones for package delivery. IMPORTANCE AND IMPACT: Automated systems play a vital role in various industries and domains by contributing to increased productivity, operational efficiency, enhanced safety, and cost savings. They are instrumental in advancing technological capabilities, streamlining processes, and enabling sophisticated functionality that surpasses traditional manual operations. As technological advancements continue to unfold, we can expect to see further integration of automated systems across diverse sectors, contributing to ongoing improvements in operational performance and the evolution of smarter, more efficient processes. HOME AUTOMATION refers to the use of smart, interconnected devices and systems to automate and control various aspects of a home, enhancing convenience, comfort, energy efficiency, and security. It's like giving your home a technological upgrade, allowing you to manage and monitor different functions with ease. It can also be defined as the use of technology to control and automate various household appliances and systems. This can include lighting, heating, ventilation, air conditioning, security systems, and home entertainment systems, among others. The goal of home automation is to make life easier and more convenient by allowing you to control your home with a single device or app. Home Assistant is an open-source home automation system that allows you to control all of your smart home devices in one place.
5
KEY COMPONENTS OF HOME AUTOMATION:
1. Smart Devices: These encompass a range of gadgets such as smart thermostats, smart lighting, smart locks, smart cameras, smart appliances and Arduinos. They can be controlled remotely and integrated into a unified system. 2. Central Control Hub: Often, a central control hub or a smart home platform acts as the brain of the home automation system, allowing you to coordinate and manage the various connected devices from a single interface, often via a smartphone app or a dedicated control panel. 3. Sensors and Actuators: These are crucial components that detect changes in the home environment and trigger corresponding actions. For instance, motion sensors can activate lighting, while temperature sensors can adjust heating or cooling systems. Examples of Home Automation Systems: ➢ Smart Lighting: With smart bulbs or lighting systems, you can control the brightness, color, and schedule of your lights, optimizing energy usage and setting the right ambiance for different activities. ➢ Thermostat Control: Smart thermostats allow you to remotely adjust the temperature in your home, learning your preferences and optimizing energy consumption. ➢ Security and Surveillance: Smart security cameras, doorbell cameras, and smart locks provide enhanced security, allowing you to monitor and control access to your home remotely. ➢ Entertainment Systems: Home automation can extend to entertainment, with smart TVs, sound systems, and voice-controlled assistants creating a more immersive experience. ➢ Appliance Automation: Smart appliances, such as refrigerators, washing machines, and robot vacuums, can be integrated into home automation systems, providing greater control and efficiency. ➢ Voice and Gesture Control: Implementation of voice recognition and gesture control interfaces for hands-free operation and interaction with home automation systems. ➢ Energy Management: Integration of energy monitoring and management systems to optimize electricity consumption, track usage patterns, and promote energy-saving practices. The scope of home automated systems encompasses a broad range of functionalities and technologies that can be integrated to create a connected and efficient living environment. This scope includes various components and applications designed to enhance convenience, comfort, security, and energy efficiency within a home.
7
LESSON 2: BENEFITS AND ADVANTAGES OF HOME AUTOMATION
Home automation systems offer a host of benefits that cater to convenience, energy efficiency, security, and overall lifestyle enhancement. Let's delve into some of the key advantages of integrating home automation systems into modern living: Convenience and Comfort: Remote Control: Allows users to monitor and adjust home systems from anywhere, providing convenience and peace of mind. Automated Tasks: Streamlines everyday activities such as adjusting lighting, climate control, and multimedia systems, adding ease and comfort to daily routines. Energy Efficiency and Cost Savings: Smart Energy Management: Optimization of heating, cooling, and lighting systems to conserve energy, leading to reduced utility expenses. Automated Lighting and Appliance Control: Effortlessly manages lighting and appliance usage, reducing unnecessary energy consumption. Enhanced Security and Safety: Smart Security Systems: Integration of security cameras, motion sensors, and smart locks for comprehensive home protection and remote monitoring capabilities. Customized Alerts: Sends notifications for events such as unauthorized access, fire, or water leaks, enhancing safety and security. Personalized Automation and Ambiance: Customized Scenes: Allows users to create personalized automation scenarios for different activities, moods, or times of day, enhancing ambiance and comfort. Voice Control Integration: Incorporates voice-activated control for effortless interaction with home systems, adding a layer of personalization and convenience. Remote Monitoring and Management: Access Anytime, Anywhere: Provides remote access to home systems via smartphone apps or web interfaces, allowing monitoring and control from any location. Integration with IoT and Smart Devices: Interoperability: Seamlessly integrates with a variety of smart devices and platforms, creating a unified home automation ecosystem with expanded functionalities.
8 Value Addition and Resale Potential: Enhanced Property Appeal: Increases the desirability and market value of homes through advanced automation and modern amenities. Attractiveness to Buyers: Provides added appeal to potential buyers who seek tech-savvy, efficient, and secure living spaces. Adaptable and Expandable Solutions: Flexibility: Allows for integration of additional smart devices and modules, enabling expansion and customization of home automation capabilities over time. Eco-Friendly Living: Sustainable Practices: Encourages sustainable living through energy-efficient practices, reducing carbon footprint and environmental impact. Independent Living Support: Assistance for Elderly and Disabled: Provides support for independent living through features such as automated lighting, emergency alerts, and remote monitoring. By embracing home automation systems, homeowners can enjoy an elevated living experience characterized by convenience, energy savings, personalized control, and enhanced security, creating a harmonious blend of technology and modern lifestyle. While home automation systems offer a multitude of benefits, it's important to consider potential drawbacks and challenges associated with their implementation. Here are some potential disadvantages to home automation systems: Initial Costs: High Upfront Investment. The initial setup cost for purchasing smart devices, control hubs, and installation may pose a significant financial burden for homeowners. Technical Complexity and Learning Curve: Complexity: Setting up and configuring a home automation system can be intricate, requiring technical know-how and familiarity with various devices and protocols. User Learning Curve: Users may face challenges in initially understanding the operation and management of multiple interconnected devices and software interfaces.
10
LESSON 3: OVERVIEW OF SMART DEVICES AND THEIR FUNCTIONS
Smart devices have become an integral part of our modern lives, offering a broad array of functionalities and conveniences across various aspects of daily living. Here's an overview of different types of smart devices and their primary functions: Smart Speakers and Voice Assistants: Functions:
- Voice-controlled assistants for answering questions and providing information.
- Integration with home automation systems to control smart home devices.
- Playing music, setting reminders, managing calendars, and providing weather updates. Smart TVs and Entertainment Devices: Functions:
- Streaming content from various online platforms like Netflix, Amazon Prime, and Hulu.
- Integration with voice assistants for hands-free control and content search.
- Interactive features such as gaming, web browsing, and screen mirroring. Smart Thermostats and Climate Control Systems: Functions:
- Monitoring and adjusting home temperature remotely for energy efficiency and comfort.
- Learning user preferences and optimizing heating and cooling schedules.
- Integration with other smart home devices for coordinated automation. Smart Lighting and Switches: Functions:
- Control of lighting levels, colors, and scheduling for ambiance and energy conservation.
- Integration with motion detectors and smart home systems for automation and security.
- Remote control and energy monitoring for enhanced efficiency.
11 Smart Security Cameras and Surveillance Systems: Functions:
- Remote monitoring of indoor and outdoor spaces for security and surveillance.
- Motion detection, two-way audio communication, and mobile alerts for real-time notifications.
- Integration with smart locks and alarms for a comprehensive security ecosystem. Smart Locks and Home Access Control: Functions:
- Keyless entry with personalized access codes and mobile app control.
- Remote lock/unlock capabilities and activity tracking for security monitoring.
- Integration with voice assistants and smart home systems for streamlined access control. Smart Appliances (Refrigerators, Washing Machines, etc.): Functions:
- Energy-efficient operation and remote monitoring of appliance usage.
- Smart diagnostics and maintenance alerts for proactive servicing.
- Integration with home automation systems for synchronized operation and efficiency. Personal Health and Fitness Trackers: Functions:
- Monitoring of physical activity, heart rate, sleep patterns, and other health metrics.
- Goal tracking, workout guidance, and personalized feedback for wellness management.
- Integration with mobile apps and other smart devices for comprehensive health tracking. Smart Home Hubs and Controllers: Functions:
- Unified control of various smart home devices and systems from a single interface.
- Automation of routines, scenes, and custom settings for different contexts.
- Integration with voice assistants and mobile apps for comprehensive management. Smart Kitchen and Cooking Devices: Functions:
13
LESSON 4: INTRODUCTION TO HOME AUTOMATION PROTOCOLS (E.G., ZIGBEE,
Z-WAVE, WI-FI)
In the realm of home automation, there are various communication protocols that smart devices use to interact with each other and with centralized control systems. These protocols are pivotal in ensuring that different devices from various manufacturers can seamlessly work together within a smart home ecosystem. Here are several common types of home automation protocols: Wi-Fi (802.11): Advantages:
- Ubiquitous and widely supported, allowing easy integration with existing home networks.
- High data transfer rates, suitable for video streaming and high-bandwidth applications. Considerations:
- Relatively higher power consumption compared to other protocols, which can impact battery- operated devices.
- Vulnerable to network congestion and interference in densely populated Wi-Fi environments. Zigbee: Advantages:
- Low power consumption, making it suitable for battery-operated devices and sensors.
- Mesh networking capabilities, allowing devices to relay signals, extend range, and enhance reliability. Considerations:
- Requires a Zigbee hub or coordinator for communication between devices from different manufacturers.
- Operates in the 2.4 GHz frequency band, potentially susceptible to interference from Wi-Fi and Bluetooth devices. Z-Wave: Advantages:
- Low power consumption, creating opportunities for battery-operated devices and energy- efficient operation.
- Interoperability across a wide range of certified devices due to strict standardization. Considerations:
14
- Operates on a different frequency than Wi-Fi and Zigbee, which reduces interference risk.
- Requires a Z-Wave hub or controller for device integration and network management. Bluetooth: Advantages:
- Widely adopted in consumer electronics, making it a familiar and accessible protocol for smart devices.
- Suitable for short-range, point-to-point connections and personal area networks. Considerations:
- Limited range compared to other protocols, which may necessitate more devices to act as relays.
- Higher power consumption in some implementations, affecting battery life in devices. Thread: Advantages:
- Designed for low-power, wireless, IP-based connectivity in smart home and commercial applications.
- Built on open standards and designed to seamlessly interoperate with existing Wi-Fi networks. Considerations:
- Leveraging a mesh architecture for extended range and robustness, especially for larger smart home environments.
- Enables direct cloud connectivity, ensuring secure and scalable end-to-end solutions. Insteon: Advantages:
- Dual-mesh networking using both powerline and wireless communication for enhanced reliability.
- Retrofittable for existing homes, offering backward compatibility with legacy automation installations. Considerations:
- Proprietary protocol with fewer compatible devices compared to more widely adopted standards.
16
MODULE 2: HOME AUTOMATION COMPONENTS
Home automation encompasses a diverse set of components that work together to create an interconnected and smart living environment. These components are designed to automate and control various aspects of a home, including lighting, climate, security, entertainment, and more. Here's a rundown of common home automation components.
LESSON 1: SENSORS AND ACTUATORS USED IN HOME AUTOMATION
In home automation systems, sensors and actuators play a pivotal role in enabling automation, control, and environmental monitoring. These components detect changes in the surroundings, such as motion, temperature, light levels, and sound, and trigger corresponding actions to achieve desired outcomes. Let's explore a variety of sensors and actuators commonly used in home automation. SENSORS are devices that detect or measure physical properties and convert them into electronic signals. These signals can be read by other devices or systems. They serve as the “eyes and ears” of a system, monitoring the environment and providing valuable data. There are various types of sensors, including: Motion Sensors: Detect motion within a defined area and are integral to security and automated lighting systems. Temperature and Humidity Sensors : Monitor ambient temperature and humidity, enabling automated climate control and energy optimization. Light Sensors: Measure ambient light levels, used for automatic adjustment of lighting and window coverings. Door and Window Sensors : Detect the opening and closing of doors or windows, often used for security and energy efficiency purposes. Occupancy Sensors: Determine if a space is occupied, enabling automation of lighting, climate control, and energy conservation. Smoke and Gas Sensors: Detect hazardous smoke or gas levels, triggering alarms and emergency response systems. Water Leak Sensors: Identify water leaks and flooding, prompting immediate alerts and valve control in plumbing systems. Carbon Monoxide Sensors: Monitor carbon monoxide levels, providing crucial safety alerts in case of a threat.
17 Glass Break Sensors: Identify the sound of breaking glass, used for security and intrusion prevention. ACTUATORS are devices that convert energy, typically electrical, into mechanical motion or control other devices or systems based on the input received. They serve as the “muscles” of a system, enabling it to perform various actions or tasks. Some common types of actuators include: Smart Lighting Actuators: Control the activation, dimming, and color of light sources based on sensor inputs or user commands. Smart Thermostats and HVAC Actuators: Adjust heating, ventilation, and air conditioning systems based on temperature and occupancy data. Motorized Window Blinds and Curtains: Automatically adjust window coverings based on lighting conditions and user preferences. Smart Valves: Enable automated control of water flow, often used in irrigation and plumbing systems. Smart Door Locks and Latches: Provide remote locking and unlocking capabilities with features such as keypad entry or biometric access. Motorized Appliances: Include motorized devices like awnings, garage doors, and motorized TV lifts for automated operation. Smart Sprinkler Systems: Control the timing, intensity, and coverage of irrigation systems based on weather and soil moisture data. Audio and Video Actuators: Control the playback, volume, and streaming of audio and video components in entertainment systems. Motors: Electric motors are widely used in robotics, automotive systems, and industrial machinery to provide motion or force. Solenoids: These electromagnetic devices convert electrical energy into linear motion and are used in applications like door locks, valves, and relays. Servomotors: A special type of motor, servomotors provide precise control of position, speed, or torque, making them ideal for use in robotics and precision machinery. Sensors and actuators work in tandem (together) to create smart systems capable of responding to their environment. The sensor gathers data about a specific physical property, such as temperature or pressure, and transmits this information to a controller.
19
LESSON 2: SMART LIGHTING SYSTEMS AND CONTROLS
Smart lighting systems used in homes comprise a variety of components that work together to provide flexible and efficient control over the lighting infrastructure. These systems incorporate a range of devices, interfaces, and networking technologies to enhance convenience, energy efficiency, and ambience. Let's explore the key components commonly found in smart lighting systems. Smart Bulbs: Wireless LED Bulbs: These energy-efficient bulbs are equipped with wireless connectivity, enabling remote control of brightness, color, and scheduling via mobile apps or voice commands. Smart Switches and Dimmers : Smart Dimmer Switches replace traditional light switches and provide the ability to adjust light intensity remotely or on a predefined schedule. Lighting Control Interfaces : Smartphone Apps: Mobile applications for smart lighting systems, enabling control, scheduling, and customization of lighting scenes. Voice Assistants: Integration with voice-controlled devices such as Amazon Echo or Google Home, enabling hands-free control of lighting. Smart Lighting Controllers : Central Controllers: Devices that allow centralized management of smart lighting, often offering automation, grouping, and scene-setting capabilities. Motion Sensors: Occupancy Sensors: Detect motion and occupancy, automatically turning on lights when movement is detected and shutting them off when the area is unoccupied. Smart Home Hubs and Bridges: Integration Hubs: Centralized devices that act as control centers for managing various smart devices, often supporting interoperability among different brands and protocols. Connectivity Infrastructure: Wi-Fi Connectivity: Provides wireless connectivity for smart bulbs, switches, and controllers, allowing remote access and communication. Mesh Networking: Certain systems make use of mesh networking protocols to ensure reliable and robust communication across the smart lighting ecosystem. Customizable Automation and Scheduling: Predefined Lighting Scenes: Allows users to create predefined lighting scenarios for activities like movie nights, dinner parties, or relaxation. Scheduled Automation: Offers the ability to schedule lighting changes based on time of day, occupancy, or user preferences. Energy Monitoring and Efficiency Components: Usage Tracking: Some systems include features for monitoring energy usage by individual lights or groups of lights. Energy-Efficient Designs: Integration with energy-efficient lighting technologies for reduced power consumption.
20 Sensors Integration: Ambient Light Sensors: When integrated, these can adjust lighting automatically based on the level of natural light in a room. These components collectively form a dynamic and versatile smart lighting system that offers convenience, energy savings, and personalized ambience. By tailoring these components to their specific needs, homeowners can create lighting environments that adapt to their lifestyle and preferences while providing the benefits of energy efficiency and remote control.
