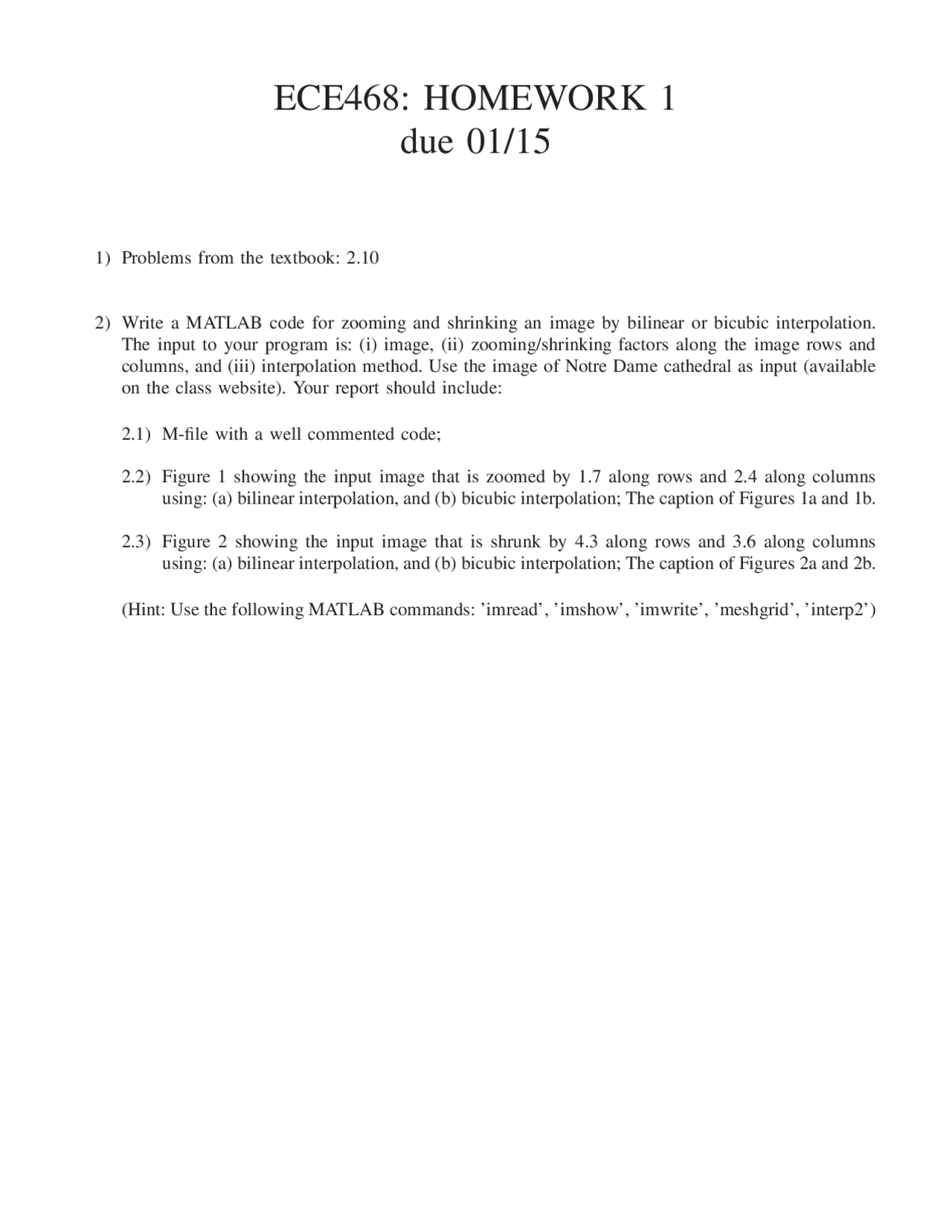

ECE468: HOMEWORK 1
due 01/15
1) Problems from the textbook: 2.10
2) Write a MATLAB code for zooming and shrinking an image by bilinear or bicubic interpolation.
The input to your program is: (i) image, (ii) zooming/shrinking factors along the image rows and
columns, and (iii) interpolation method. Use the image of Notre Dame cathedral as input (available
on the class website). Your report should include:
2.1) M-file with a well commented code;
2.2) Figure 1 showing the input image that is zoomed by 1.7 along rows and 2.4 along columns
using: (a) bilinear interpolation, and (b) bicubic interpolation; The caption of Figures 1a and 1b.
2.3) Figure 2 showing the input image that is shrunk by 4.3 along rows and 3.6 along columns
using: (a) bilinear interpolation, and (b) bicubic interpolation; The caption of Figures 2a and 2b.
(Hint: Use the following MATLAB commands: ’imread’, ’imshow’, ’imwrite’, ’meshgrid’, ’interp2’)
