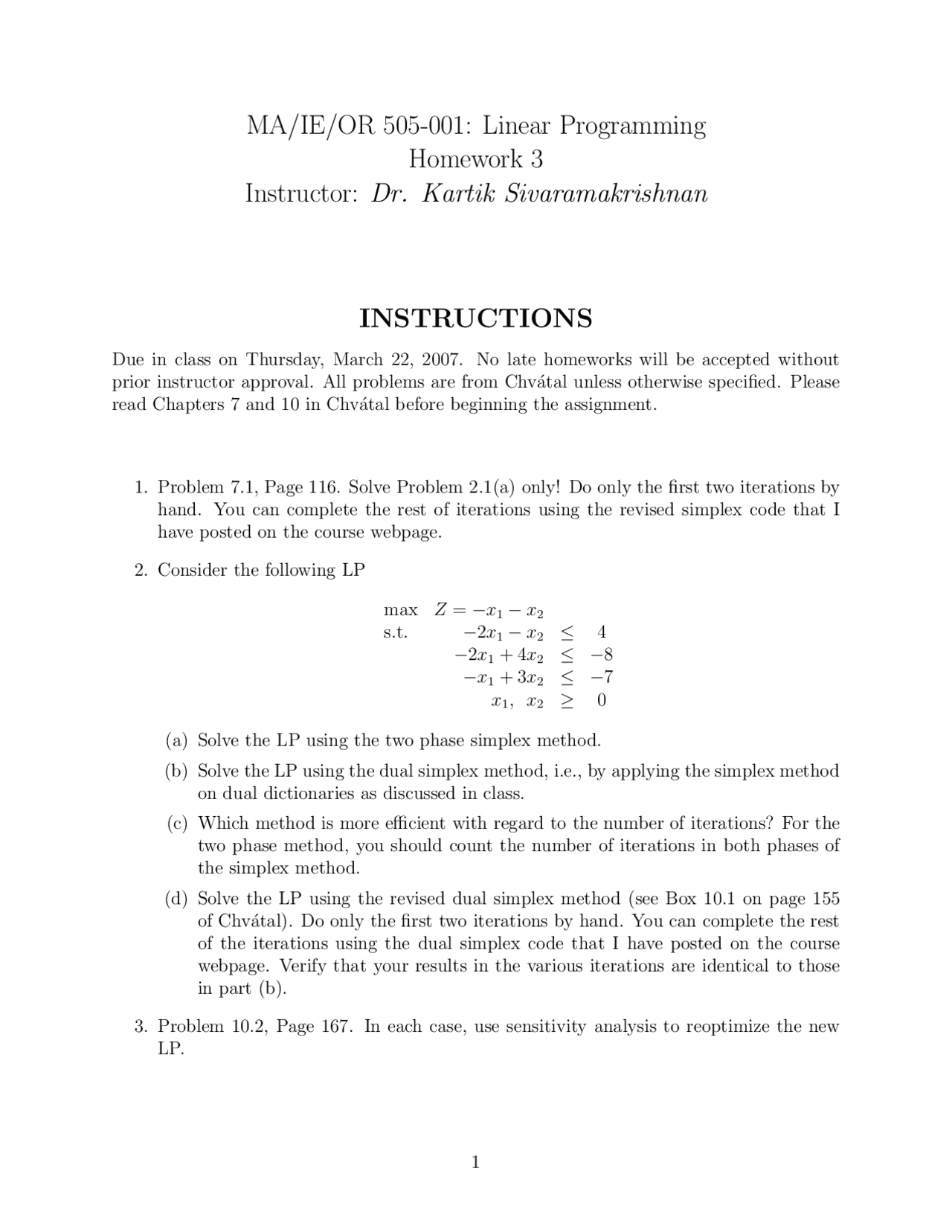

MA/IE/OR 505-001: Linear Programming
Homework 3
Instructor: Dr. Kartik Sivaramakrishnan
INSTRUCTIONS
Due in class on Thursday, March 22, 2007. No late homeworks will be accepted without
prior instructor approval. All problems are from Chatal unless otherwise specified. Please
read Chapters 7 and 10 in Chv´atal before beginning the assignment.
1. Problem 7.1, Page 116. Solve Problem 2.1(a) only! Do only the first two iterations by
hand. You can complete the rest of iterations using the revised simplex code that I
have posted on the course webpage.
2. Consider the following LP
max Z=x1x2
s.t. 2x1x24
2x1+ 4x2 8
x1+ 3x2 7
x1, x20
(a) Solve the LP using the two phase simplex method.
(b) Solve the LP using the dual simplex method, i.e., by applying the simplex method
on dual dictionaries as discussed in class.
(c) Which method is more efficient with regard to the number of iterations? For the
two phase method, you should count the number of iterations in both phases of
the simplex method.
(d) Solve the LP using the revised dual simplex method (see Box 10.1 on page 155
of Chv´atal). Do only the first two iterations by hand. You can complete the rest
of the iterations using the dual simplex code that I have posted on the course
webpage. Verify that your results in the various iterations are identical to those
in part (b).
3. Problem 10.2, Page 167. In each case, use sensitivity analysis to reoptimize the new
LP.
1
pf3
pf4

Partial preview of the text

Download Homework 3 Problems - Linear Programming | OR 505 and more Assignments Linux skills in PDF only on Docsity!

MA/IE/OR 505-001: Linear Programming

Homework 3

Instructor: Dr. Kartik Sivaramakrishnan

INSTRUCTIONS

Due in class on Thursday, March 22, 2007. No late homeworks will be accepted without prior instructor approval. All problems are from Chv´atal unless otherwise specified. Please read Chapters 7 and 10 in Chv´atal before beginning the assignment.

  1. Problem 7.1, Page 116. Solve Problem 2.1(a) only! Do only the first two iterations by hand. You can complete the rest of iterations using the revised simplex code that I have posted on the course webpage.
  2. Consider the following LP

max Z = −x 1 − x 2 s.t. − 2 x 1 − x 2 ≤ 4 − 2 x 1 + 4x 2 ≤ − 8 −x 1 + 3x 2 ≤ − 7 x 1 , x 2 ≥ 0

(a) Solve the LP using the two phase simplex method. (b) Solve the LP using the dual simplex method, i.e., by applying the simplex method on dual dictionaries as discussed in class. (c) Which method is more efficient with regard to the number of iterations? For the two phase method, you should count the number of iterations in both phases of the simplex method. (d) Solve the LP using the revised dual simplex method (see Box 10.1 on page 155 of Chv´atal). Do only the first two iterations by hand. You can complete the rest of the iterations using the dual simplex code that I have posted on the course webpage. Verify that your results in the various iterations are identical to those in part (b).

  1. Problem 10.2, Page 167. In each case, use sensitivity analysis to reoptimize the new LP.
  1. Consider the optimal dictionary

x 1 = 2 + x 4 − 12 x 6 − 15 x 7 + x 8 x 2 = 3 − 2 x 4 − x 5 + x 6 − 12 x 8 x 3 = 1 + x 4 + 2x 5 − 5 x 6 + 103 x 7 − 2 x 8 z = θ − x 4 − 2 x 6 − 101 x 7 − 2 x 8. of an LP (maximization problem and all ≤ constraints), where x 6 , x 7 , and x 8 are the slack variables in the problem. (a) Find the optimal objective value θ. (b) Would the solution be altered if a new activity x 9 with coefficients (6, 0 , −3)T^ in the constraints and a cost coefficient 7 were added to the problem? (c) How large can b 1 (rhs of the first constraint) be made without violating feasibility? (d) Suppose we add the constraint 2x 1 − x 2 + 2x 3 ≤ 2 to the problem. Is the earlier solution still optimal? If not, find a new optimal solution.

  1. The following example illustrates an important application of linear programming to- gether with the primal and dual simplex methods in solving integer programs. Inte- ger programs arise naturally in real life applications, but are nomally very difficult to solve! Consider the following integer program max Z = x 2 s.t. 3 x 1 + 2x 2 ≤ 6 − 3 x 1 + 2x 2 ≤ 0 x 1 ≥ 0 x 2 ≥ 0 x 1 , x 2 integer.

(a) Sketch the feasible region of (1). To do this, sketch the feasible region of the linear program (LP) obtained by dropping the integrality restrictions on x 1 and x 2 , and then label all the integer points (x 1 , x 2 integer) within the LP feasible region. How many integer points do you find? What is the optimal solution to (1)? (b) We will develop a step by step technique due to Ralph Gomory in the 1950s for solving (1) as follows: First solve an LP relaxation of (1). This LP is obtained simply by dropping the integrality restrictions on x 1 and x 2 in (1). Let x 3 and x 4 be the slack variables corresponding to the first two functional constraints in the LP. Use the primal simplex method with dictionaries to solve the LP relaxation to optimality. You will need two iterations and your optimal dictionary will be

x 1 = 1 −

x 3 +

x 4

x 2 =

x 3 −

x 4

Z =

x 3 −

x 4.

problem. This will give you the dictionary

x 1 = 1 − x 5 +

x 6

x 2 = 1 − x 5 + 0x 6

x 3 = 1 + 5x 5 −

x 6

x 4 = 1 − x 5 +

x 6

Z = 1 − x 5 + 0x 6 ,

which is optimal for (1) since x 1 and x 2 are finally integer! This gives the optimal solution x∗^ = (1, 1) for (1).

(e) Plot the two cutting planes x 2 ≤ 1 and x 1 ≥ x 2 on the plot from part (a). Also, trace the path taken by the algorithm to find the optimal solution to (1) here.
