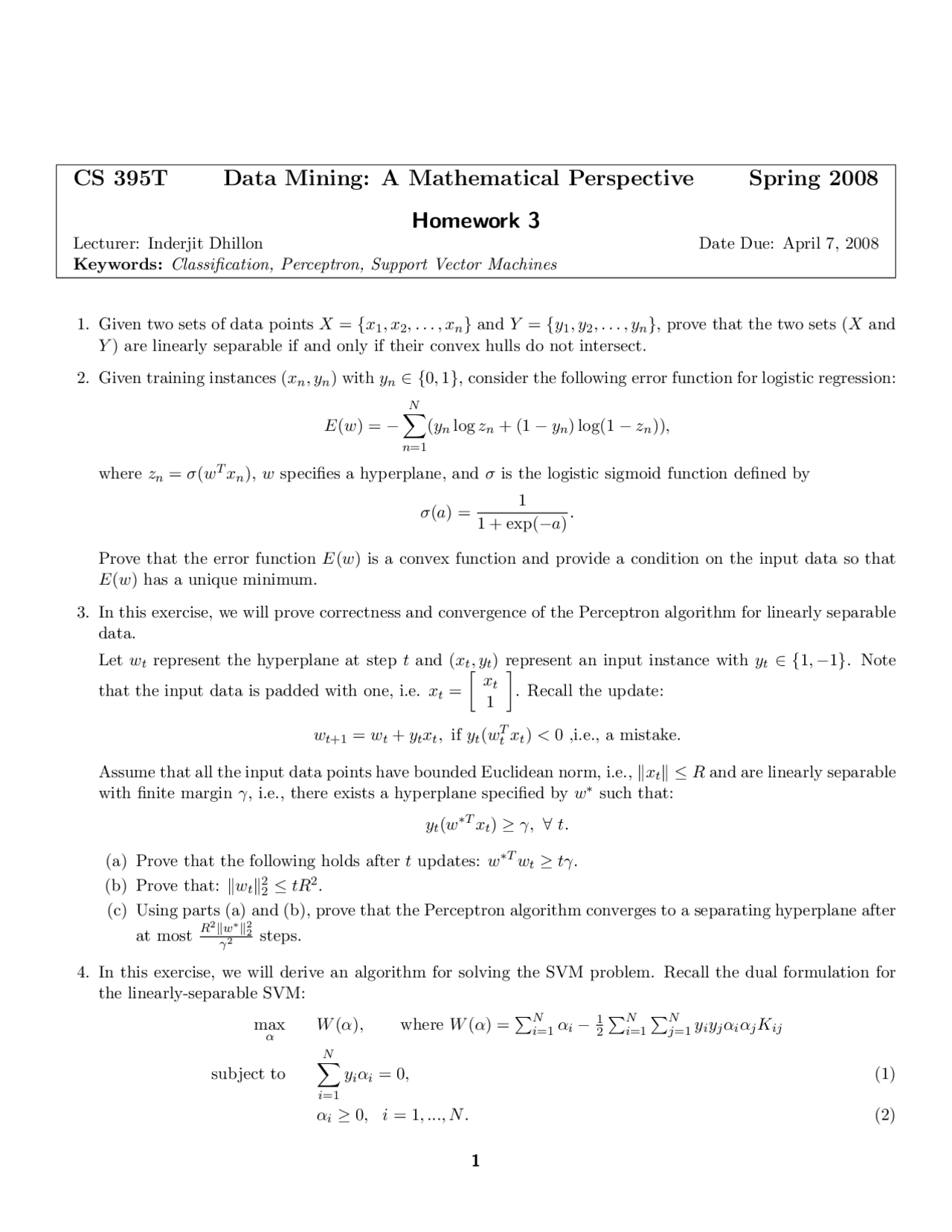

CS 395T Data Mining: A Mathematical Perspective Spring 2008
Homework 3
Lecturer: Inderjit Dhillon Date Due: April 7, 2008 Keywords: Classification, Perceptron, Support Vector Machines
- Given two sets of data points X = {x 1 , x 2 ,... , xn} and Y = {y 1 , y 2 ,... , yn}, prove that the two sets (X and Y ) are linearly separable if and only if their convex hulls do not intersect.
- Given training instances (xn, yn) with yn ∈ { 0 , 1 }, consider the following error function for logistic regression:
E(w) = −
∑^ N
n=
(yn log zn + (1 − yn) log(1 − zn)),
where zn = σ(wT^ xn), w specifies a hyperplane, and σ is the logistic sigmoid function defined by
σ(a) =
1 + exp(−a)
Prove that the error function E(w) is a convex function and provide a condition on the input data so that E(w) has a unique minimum.
- In this exercise, we will prove correctness and convergence of the Perceptron algorithm for linearly separable data. Let wt represent the hyperplane at step t and (xt, yt) represent an input instance with yt ∈ { 1 , − 1 }. Note
that the input data is padded with one, i.e. xt =
[
xt 1
]
. Recall the update:
wt+1 = wt + ytxt, if yt(wTt xt) < 0 ,i.e., a mistake.
Assume that all the input data points have bounded Euclidean norm, i.e., ‖xt‖ ≤ R and are linearly separable with finite margin γ, i.e., there exists a hyperplane specified by w∗^ such that:
yt(w∗T^ xt) ≥ γ, ∀ t.
(a) Prove that the following holds after t updates: w∗T^ wt ≥ tγ. (b) Prove that: ‖wt‖^22 ≤ tR^2. (c) Using parts (a) and (b), prove that the Perceptron algorithm converges to a separating hyperplane after at most R
(^2) ‖w∗‖ (^22) γ^2 steps.
- In this exercise, we will derive an algorithm for solving the SVM problem. Recall the dual formulation for the linearly-separable SVM:
max α W (α), where W (α) =
∑N
i=1 αi^ −^
1 2
∑N
i=
∑N
j=1 yiyj^ αiαj^ Kij
subject to
∑^ N
i=
yiαi = 0, (1)
αi ≥ 0 , i = 1, ..., N. (2)
2 CS 395T: Data Mining: A Mathematical Perspective
In the above problem, Kij could be xTi xj or Kij = κ(xi, xj ) = h(xi)T^ h(xj ). Note that the matrix K is positive semi-definite. The dual variables α 1 , ..., αN are said to be feasible if (1) and (2) are satisfied. We will consider the following strategy for optimizing this problem: at each iteration, we start with a feasible α and then update exactly 2 α’s at a time. The update must maintain feasibility. Assume without loss of generality that the variables to be updated are α 1 and α 2. In the following, you will derive an update to α 1 and α 2 that maximizes the dual problem given above when only α 1 and α 2 are allowed to change. a) α 1 and α 2 are to be updated to ¯α 1 and ¯α 2. Using the constraints on α from the dual problem, show that if y 1 = y 2 , then ¯α 2 ≤ α 1 + α 2 , and if y 1 6 = y 2 , then ¯α 2 ≥ α 2 − α 1. b) Given that y 1 α 1 + y 2 α 2 = constant = y 1 α¯ 1 + y 2 α¯ 2 , express this equivalently as α 1 + sα 2 = γ, where s = y 1 y 2. Furthermore, let
vi =
∑^ N
j=
yj αj Kij , i = 1, 2.
Write the dual objective as a function of α 1 and α 2 (fixing the other α variables as constants), then use the equation α 1 + sα 2 = γ to express the dual as a function of only α 2 , yielding
W (α 2 ) = γ − sα 2 + α 2 −
K 11 (γ − sα 2 )^2 −
K 22 α^22 −sK 12 (γ − sα 2 )α 2 − y 1 (γ − sα 2 )v 1 − y 2 α 2 v 2 + constant
c) Differentiate W (α 2 ) with respect to α 2 to calculate the maximizing ¯α 2. Let d 12 = K 11 − 2 K 12 + K 22 for notational convenience. Justify why this solution is a maximum (not a minimum). d) Let Ei = f (xi) − yi = (
∑N
j=1 αj^ yj^ Kij^ +^ w^0 )^ −^ yi, i.e., the difference between the predicted value and the true class label. Simplify your result in part c) to obtain the following:
α¯ 2 = α 2 +
y 2 (E 1 − E 2 ) d 12
and then, using part a), obtain the final solution for ¯α 2 as:
α¯ 2 :=
max(0, min(¯α 2 , α 1 + α 2 )) if y 1 = y 2 , max(¯α 2 , α 2 − α 1 , 0) if y 1 6 = y 2.
Furthermore, show that ¯α 1 = α 1 +y 1 y 2 (α 2 − α¯ 2 ). This update results in a non-decreasing dual, and repeating over pairs of α eventually leads to global convergence of the SVM problem.
