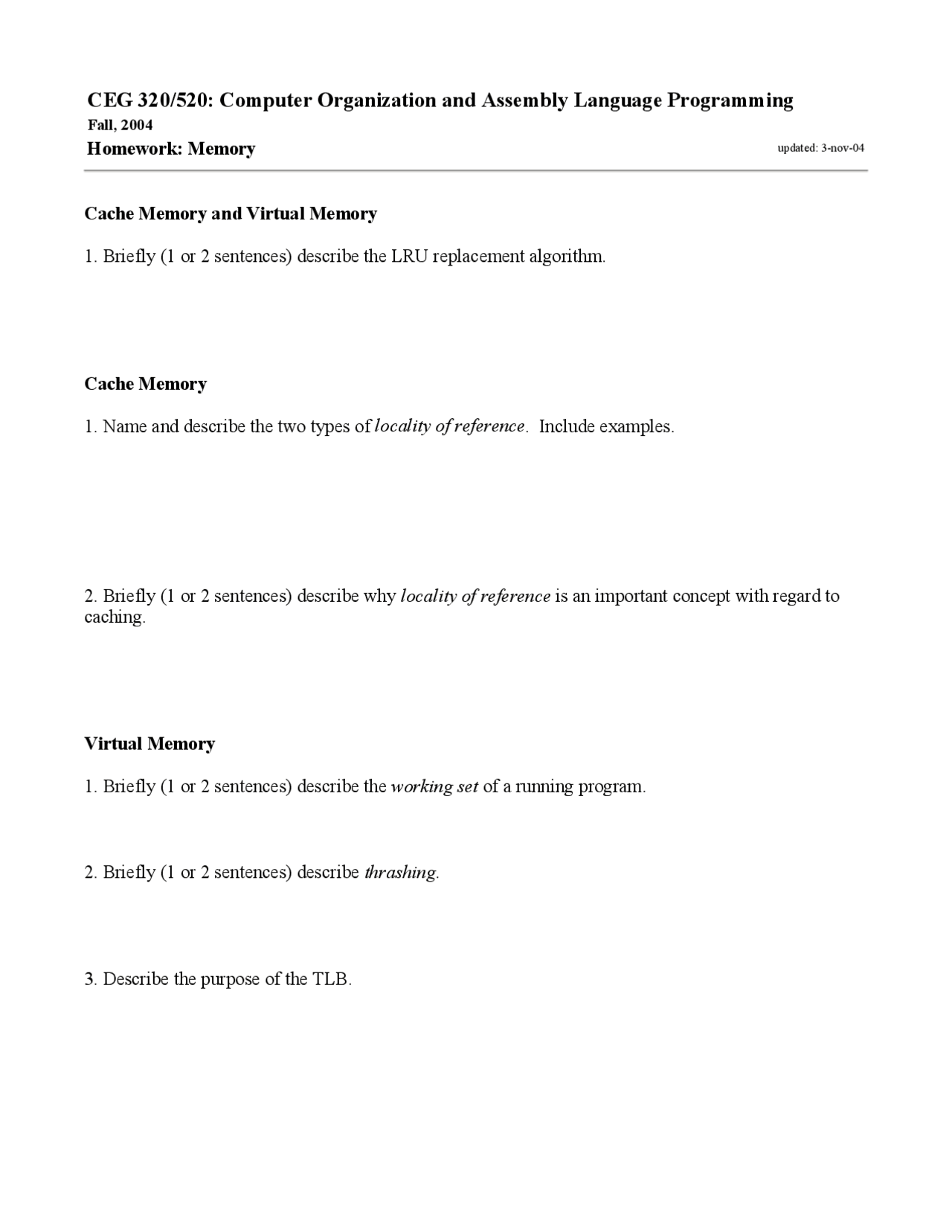

Cache Memory and Virtual Memory
- Briefly (1 or 2 sentences) describe the LRU replacement algorithm.
Cache Memory
- Name and describe the two types of locality of reference. Include examples.
- Briefly (1 or 2 sentences) describe why locality of reference is an important concept with regard to caching.
Virtual Memory
- Briefly (1 or 2 sentences) describe the working set of a running program.
- Briefly (1 or 2 sentences) describe thrashing.
- Describe the purpose of the TLB.
CEG 320/520: Computer Organization and Assembly Language Programming
Fall, 2004 Homework: Memory updated: 3-nov-
Cache Performance Calculation
z hn = hit rate in level n cache z Cn = time to fetch a word from level n cache z M = time to access a word from main memory.
- Single Cache
1a. Without looking at your notes, try to derive the formula for determining the average access time for a word in a system with a single cache. Think about it!
t = h 1 C 1 + (1 - h 1 )M
1b. Assume the following values for a theoretical system containing an L1 cache.
Determine the average access time for a memory word in the described system.
- Three Caches
2a. Without looking at your notes, try to derive the formula for determining the average access time for a word in a system with three caches. Think about it!
t = h 1 C 1 + (1 - h 1 )(h 2 C 2 + (1 - h 2 )(h 3 C 3 + (1 - h 3 )M))
2b. Assume the following values for a theoretical system containing an L1, L2, and L3 cache.
Determine the average access time for a memory word in the described system.
Location Latency Hit Rate
L1 (on-chip) C^1 = 5ns^ h 1 = 50%
Main Memory M = 100ns h 3 = 100%
Location Latency Hit Rate
L1 (on-chip) C^1 = 5ns^ h 1 = 50%
L2 (on-chip) C^2 = 10ns^ h 2 = 75%
L3 (off-chip) C^3 = 35ns^ h 3 = 90%
Main Memory M = 100ns hM = 100%
3a. Suppose the system has a 2-way set associative cache. Now how is the address broken up? How many main memory blocks maps to each cache set?
3b. Describe how the system will check if a given word is currently in the cache. How many compares between the address and the tag field will be necessary?
