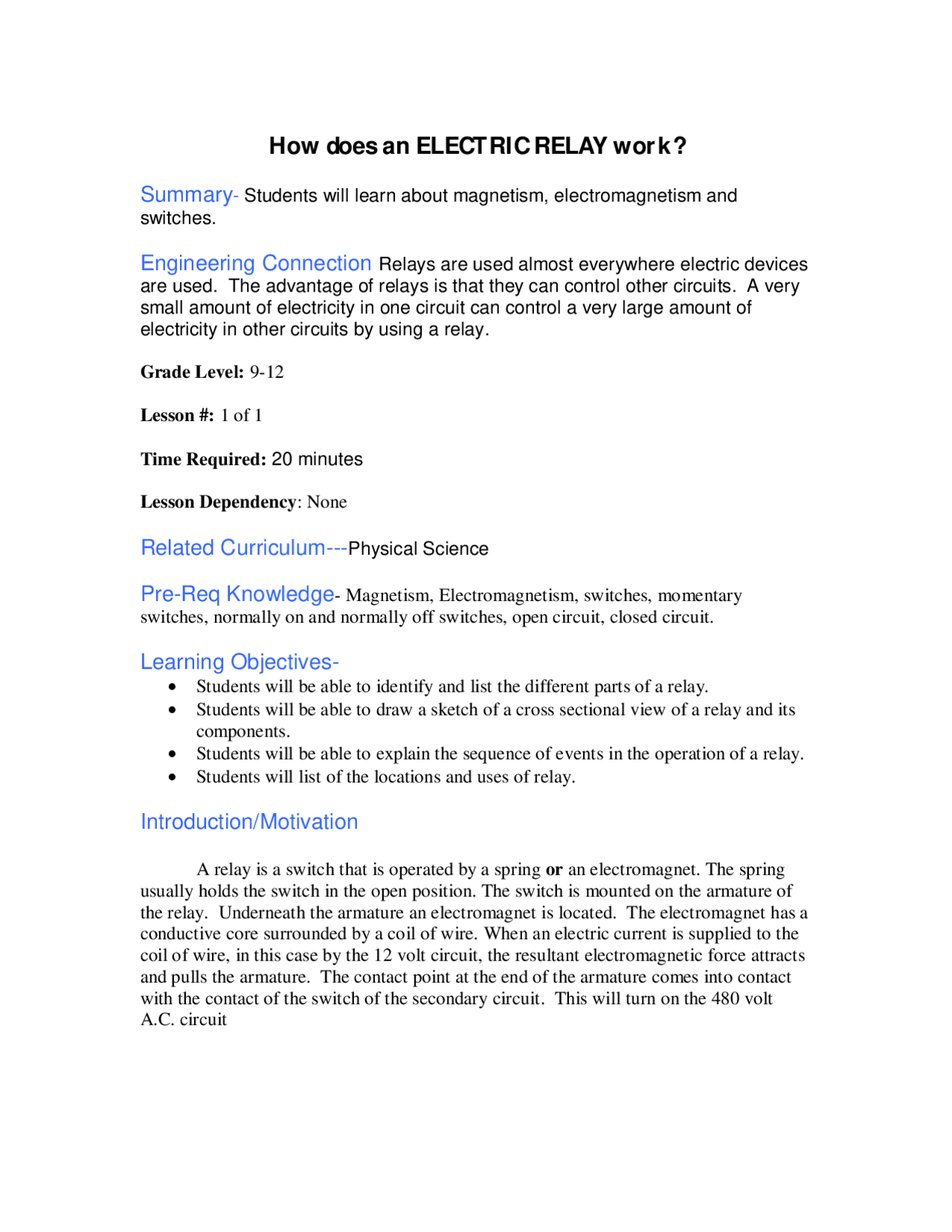

How does an ELECTRIC RELAY work?
Summary- Students will learn about magnetism, electromagnetism and
switches.
Engineering Connection Relays are used almost everywhere electric devices
are used. The advantage of relays is that they can control other circuits. A very
small amount of electricity in one circuit can control a very large amount of
electricity in other circuits by using a relay.
Grade Level: 9-12
Lesson #: 1 of 1
Time Required: 20 minutes
Lesson Dependency: None
Related Curriculum---Physical Science
Pre-Req Knowledge- Magnetism, Electromagnetism, switches, momentary
switches, normally on and normally off switches, open circuit, closed circuit.
Learning Objectives-
Students will be able to identify and list the different parts of a relay.
Students will be able to draw a sketch of a cross sectional view of a relay and its
components.
Students will be able to explain the sequence of events in the operation of a relay.
Students will list of the locations and uses of relay.
Introduction/Motivation
A relay is a switch that is operated by a spring or an electromagnet. The spring
usually holds the switch in the open position. The switch is mounted on the armature of
the relay. Underneath the armature an electromagnet is located. The electromagnet has a
conductive core surrounded by a coil of wire. When an electric current is supplied to the
coil of wire, in this case by the 12 volt circuit, the resultant electromagnetic force attracts
and pulls the armature. The contact point at the end of the armature comes into contact
with the contact of the switch of the secondary circuit. This will turn on the 480 volt
A.C. circuit
