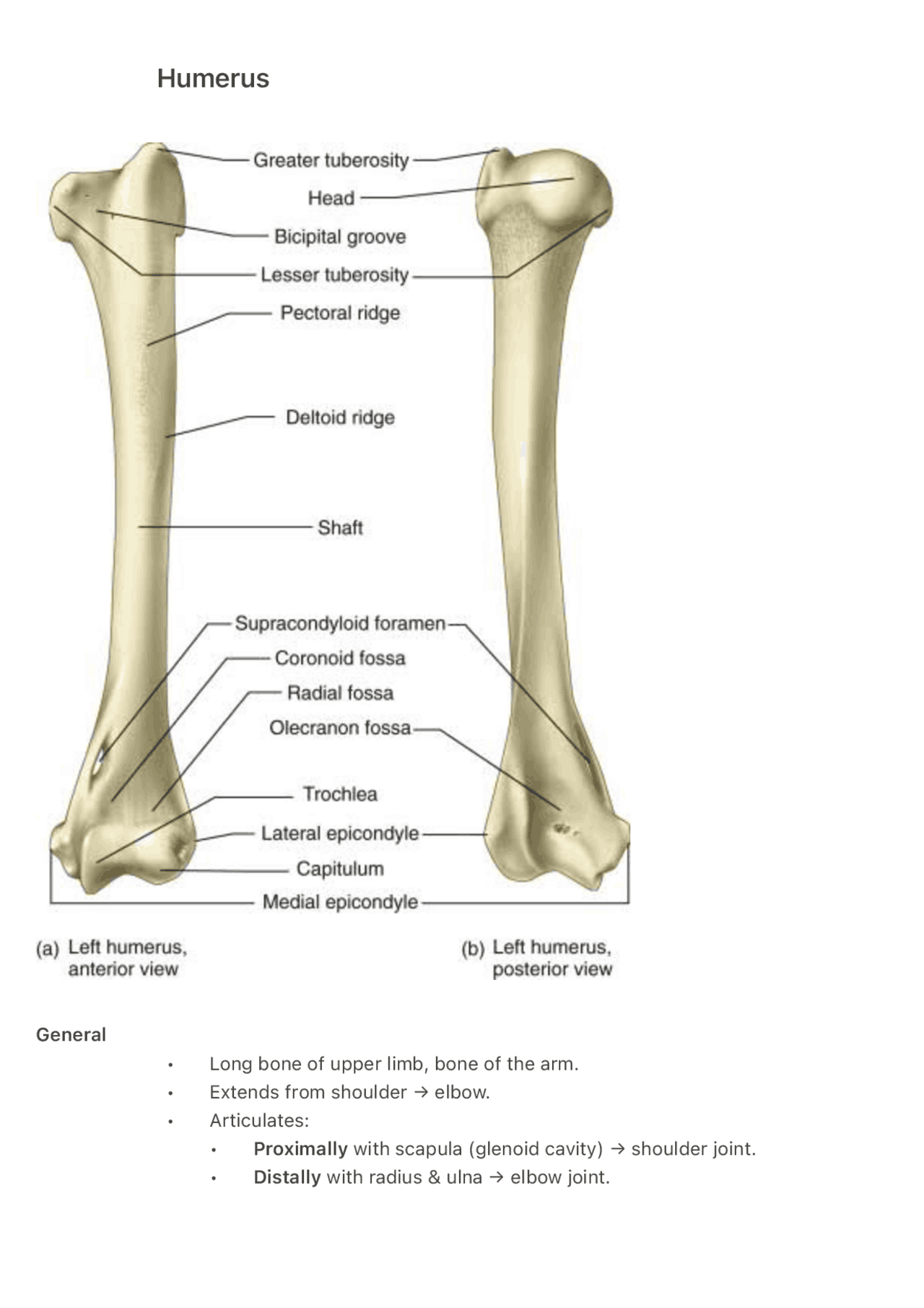

Humerus
General
• Long bone of upper limb, bone of the arm.
• Extends from shoulder → elbow.
•Articulates:
•Proximally with scapula (glenoid cavity) → shoulder joint.
•Distally with radius & ulna → elbow joint.
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Humerus radius ulna short notes, Schemes and Mind Maps of Medicine
Bones of upper limb Suject anatomy Topic humerus radius ulna
Typology: Schemes and Mind Maps
2024/2025
1 / 7
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Humerus radius ulna short notes and more Schemes and Mind Maps Medicine in PDF only on Docsity!
Humerus
General
- Long bone of upper limb, bone of the arm.
- Extends from shoulder → elbow.
- Articulates:
- Proximally with scapula (glenoid cavity) → shoulder joint.
- Distally with radius & ulna → elbow joint.
Parts
- Upper End
- Head → hemispherical, articulates with glenoid cavity.
- Anatomical neck → constriction around head.
- Greater tubercle → lateral, attachment for supraspinatus, infraspinatus, teres minor.
- Lesser tubercle → anterior, subscapularis insertion.
- Intertubercular sulcus (bicipital groove) → lodges tendon of long head of biceps; bounded by crests for pec major (lat. lip), teres major (med. lip), latissimus dorsi (floor).
- Surgical neck → common fracture site; axillary nerve & posterior circumflex humeral artery at risk.
- Shaft
- Deltoid tuberosity → insertion of deltoid.
- Radial (spiral) groove → contains radial nerve & profunda brachii artery.
- Shape: cylindrical (proximal), triangular (distal).
- Lower End
- Condyles:
- Capitulum → articulates with radius.
- Trochlea → articulates with ulna.
- Epicondyles: medial (ulnar nerve behind) & lateral.
- Fossae:
- Coronoid fossa (anterior, ulna).
- Radial fossa (anterior, radius).
- Olecranon fossa (posterior, ulna). ⸻ Ossification
- Primary center: shaft (8th week IU).
- Secondary centers: head, greater tubercle, lesser tubercle, capitulum, trochlea, medial & lateral epicondyles.
- Fusion complete by 20–21 years.
- Mnemonic: “The Lady Got Mad Crazy Tiny Little Head” (Trochlea, Lateral epicondyle, Greater tubercle, Medial epicondyle, Capitulum, Trochlea, Lesser tubercle, Head). ⸻
General
- Long bone of forearm, lateral bone (thumb side).
- Lies parallel to ulna.
- Participates in elbow joint (with humerus & ulna) and wrist joint (with carpal bones). ⸻ Parts
- Upper End
- Head → disc-shaped, articulates with:
- Capitulum of humerus (above).
- Radial notch of ulna (medially).
- Neck → narrow, below head.
- Radial tuberosity → insertion of biceps brachii (posterior rough part).
- Shaft
- Borders: anterior, posterior, interosseous (medial).
- Surfaces: anterior, posterior, lateral.
- Interosseous border → attachment of interosseous membrane.
- Lower End
- Expanded, quadrilateral.
- Radial styloid process → projects downward & laterally.
- Ulnar notch → medial side, articulates with head of ulna.
- Carpal articular surface → articulates with scaphoid & lunate.
- Dorsal tubercle (Lister’s tubercle) → pulley for tendon of extensor pollicis longus. ⸻ Ossification
- Primary center: shaft (8th week IU).
- Secondary centers:
- Lower end (appears 1 year, fuses ~20 years).
- Upper end (appears 4–5 years, fuses ~18 years). ⸻ Applied Anatomy
- Fractures:
- Colles’ fracture → fracture of lower end, distal fragment displaced dorsally (“dinner fork deformity”).
- Smith’s fracture → reverse of Colles, distal fragment displaced ventrally.
- Galeazzi fracture-dislocation → fracture of lower shaft + dislocation of distal radioulnar joint.
- Important in supination & pronation (radius rotates around ulna).
Parts
- Upper End
- Olecranon process → large projection behind; insertion of triceps brachii.
- Coronoid process → projects anteriorly; insertion of brachialis.
- Trochlear notch (semilunar notch) → between olecranon & coronoid; articulates with humeral trochlea.
- Radial notch → lateral side of coronoid; articulates with head of radius.
- Ulnar tuberosity → below coronoid; insertion of brachialis.
- Shaft
- Borders: anterior, posterior, interosseous (lateral).
- Surfaces: anterior, posterior, medial.
- Interosseous border → attachment for interosseous membrane.
- Lower End
- Small, forms head of ulna.
- Styloid process → medial projection.
- Articular surface → articulates with ulnar notch of radius (distal radioulnar joint).
- Does not directly articulate with carpal bones (separated by articular disc). ⸻ Ossification
- Primary center: shaft (8th week IU).
- Secondary centers:
- Lower end (appears 5–6 years, fuses ~18 years).
- Upper end (appears ~10 years, fuses ~20 years). ⸻ Applied Anatomy
- Fractures:
- Monteggia fracture-dislocation → fracture of upper ulna + anterior dislocation of radial head.
- Olecranon fracture → due to fall on flexed elbow, displacement by triceps.
- Important in stabilization of forearm during pronation–supination.
