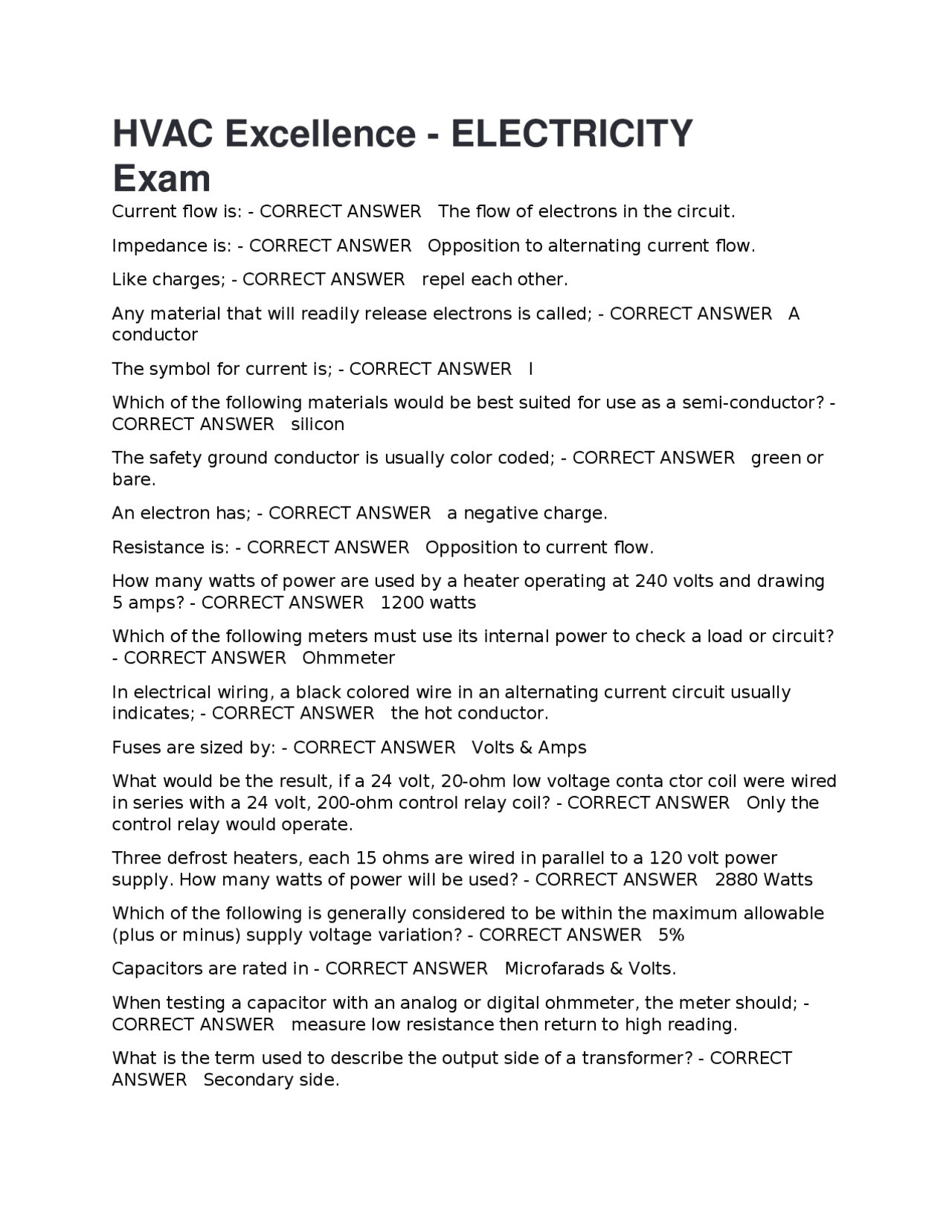

HVAC Excellence - ELECTRICITY
Exam
Current flow is: - CORRECT ANSWER The flow of electrons in the circuit.
Impedance is: - CORRECT ANSWER Opposition to alternating current flow.
Like charges; - CORRECT ANSWER repel each other.
Any material that will readily release electrons is called; - CORRECT ANSWER A
conductor
The symbol for current is; - CORRECT ANSWER I
Which of the following materials would be best suited for use as a semi-conductor? -
CORRECT ANSWER silicon
The safety ground conductor is usually color coded; - CORRECT ANSWER green or
bare.
An electron has; - CORRECT ANSWER a negative charge.
Resistance is: - CORRECT ANSWER Opposition to current flow.
How many watts of power are used by a heater operating at 240 volts and drawing
5 amps? - CORRECT ANSWER 1200 watts
Which of the following meters must use its internal power to check a load or circuit?
- CORRECT ANSWER Ohmmeter
In electrical wiring, a black colored wire in an alternating current circuit usually
indicates; - CORRECT ANSWER the hot conductor.
Fuses are sized by: - CORRECT ANSWER Volts & Amps
What would be the result, if a 24 volt, 20-ohm low voltage conta ctor coil were wired
in series with a 24 volt, 200-ohm control relay coil? - CORRECT ANSWER Only the
control relay would operate.
Three defrost heaters, each 15 ohms are wired in parallel to a 120 volt power
supply. How many watts of power will be used? - CORRECT ANSWER 2880 Watts
Which of the following is generally considered to be within the maximum allowable
(plus or minus) supply voltage variation? - CORRECT ANSWER 5%
Capacitors are rated in - CORRECT ANSWER Microfarads & Volts.
When testing a capacitor with an analog or digital ohmmeter, the meter should; -
CORRECT ANSWER measure low resistance then return to high reading.
What is the term used to describe the output side of a transformer? - CORRECT
ANSWER Secondary side.
pf3
pf4
pf5

Partial preview of the text

Download HVAC Excellence - ELECTRICITY Exam 2026 and more Exams Advanced Education in PDF only on Docsity!

HVAC Excellence - ELECTRICITY

Exam

Current flow is: - CORRECT ANSWER The flow of electrons in the circuit. Impedance is: - CORRECT ANSWER Opposition to alternating current flow. Like charges; - CORRECT ANSWER repel each other. Any material that will readily release electrons is called; - CORRECT ANSWER A conductor The symbol for current is; - CORRECT ANSWER I Which of the following materials would be best suited for use as a semi-conductor? - CORRECT ANSWER silicon The safety ground conductor is usually color coded; - CORRECT ANSWER green or bare. An electron has; - CORRECT ANSWER a negative charge. Resistance is: - CORRECT ANSWER Opposition to current flow. How many watts of power are used by a heater operating at 240 volts and drawing 5 amps? - CORRECT ANSWER 1200 watts Which of the following meters must use its internal power to check a load or circuit?

  • CORRECT ANSWER Ohmmeter In electrical wiring, a black colored wire in an alternating current circuit usually indicates; - CORRECT ANSWER the hot conductor. Fuses are sized by: - CORRECT ANSWER Volts & Amps What would be the result, if a 24 volt, 20-ohm low voltage conta ctor coil were wired in series with a 24 volt, 200-ohm control relay coil? - CORRECT ANSWER Only the control relay would operate. Three defrost heaters, each 15 ohms are wired in parallel to a 120 volt power supply. How many watts of power will be used? - CORRECT ANSWER 2880 Watts Which of the following is generally considered to be within the maximum allowable (plus or minus) supply voltage variation? - CORRECT ANSWER 5% Capacitors are rated in - CORRECT ANSWER Microfarads & Volts. When testing a capacitor with an analog or digital ohmmeter, the meter should; - CORRECT ANSWER measure low resistance then return to high reading. What is the term used to describe the output side of a transformer? - CORRECT ANSWER Secondary side.

One horsepower is equal to __________ watts. - CORRECT ANSWER 746 How much resistance must be placed in a 120 volt circuit in order to limit the current to 2 amps? - CORRECT ANSWER 60 Ohms A parallel circuit contains a 18 ohm and a 9 ohm resistor. The total resistance equals; - CORRECT ANSWER 6 ohms. In a series circuit, the voltage drop across each resistance (load) will. - CORRECT ANSWER add up to equal the source voltage. The total resistance of a parallel circuit will be; - CORRECT ANSWER less than the smallest resistance. Which of the following statements about current is true? - CORRECT ANSWER Current flow will increase when voltage increases. When resistors are wired in parallel; - CORRECT ANSWER the voltage drop across each resistor will be the same as the applied source Which of the following is equal to 2.1KW? - CORRECT ANSWER 2,100 Watts Which of the following is equal to 100 milliamps? - CORRECT ANSWER 0. amperes A capacitor analyzer is designed to read; - CORRECT ANSWER the capacitive resistance of a capacitor. On an electronic oil safety switch what changes the pressure singal to electrical signal? - CORRECT ANSWER Transducer. The electric meter on a house measures the ______________ passing th rough it. - CORRECT ANSWER wattage A three phase load requires a minimum of; - CORRECT ANSWER three supply lines. Which of the following is the correct formula for determining wattage in an electrical circuit? - CORRECT ANSWER W = E times I A parallel circuit consists of three resistors.R1 = 30 Ohms, R2 = 15 Ohms, R3 = 10 Ohms. If the current through R2 is 4 Amps (I = 4 Amps), what is the source Voltage?

  • CORRECT ANSWER 60 volts Three 300 ohm resistors are wired in parallel. The total resistance equals; - CORRECT ANSWER 100 ohms An electronically commutated motor (ECM) is designed to; - CORRECT ANSWER provide proper air flow under various conditions. Resistance can be calculated by: - CORRECT ANSWER E divided by I. Divided Voltage can be calculated by; - CORRECT ANSWER I times R An ohmmeter should never be connected to; - CORRECT ANSWER a live circuit or a charged capacitor until it has been discharged

When testing the windings of a single phase motor, - CORRECT ANSWER the common to run terminals show the lowest resistance. Direct Digital Control (DDC) is - CORRECT ANSWER electronic controls use for equipment operation and monitoring A step up transformer increases; - CORRECT ANSWER voltage. Transformers are rated according to; - CORRECT ANSWER VA at the secondary. Utility companies usually supply residential homes with ______________ service. - CORRECT ANSWER 240V, single phase, three wire What connects to the terminals T1, T2, & T3 on a contactor or motor starter? - CORRECT ANSWER Load connections Circuit breakers & fuses are primarily used to provide; - CORRECT ANSWER protection from an overload of current. Excessive current can be caused by; - CORRECT ANSWER short circuit. A device with overload protection used to control a motor is a; - CORRECT ANSWER line starter. Relays are generally used to control inductive loads up to __________ amps. - CORRECT ANSWER 10 Contactors are rated according to the maximum amperage through the; - CORRECT ANSWER contacts. What is the minimum number of wires required between two Start/Stop push button controls? - CORRECT ANSWER 3 If contacts become badly pitted, it is acceptable to. - CORRECT ANSWER replace the contacts or control The thermal overload contacts on a line starter are usually_______________ reset. - CORRECT ANSWER manual The ______________ drawing illustrates where the components are located in small appliances. - CORRECT ANSWER pictorial Which of the following motors is most energy efficient. - CORRECT ANSWER ЕСM On a good single-phase compressor motor, which winding terminals have the highest resistance? - CORRECT ANSWER run to start. When testing a motor with an ohmmeter, the following measurements are recorded, Common to run 4 ohms, Common to start 6.2 ohms, Run to start 10.2 ohms, and Common to ground 20.4; This indicates a/an; - CORRECT ANSWER grounded condition.

With a motor running at full load, voltmeter leads are placed on L1 and T1 terminals of the contactor. The voltmeter indicates no measurable voltage. This is an indication of. - CORRECT ANSWER good clean contacts. When the temperature of a negative temperature coefficient (NTC) thermistor increases, its resistance will. - CORRECT ANSWER decrease. When the temperature of a positive temperature coefficient (PTC) thermistor increases, its resistance wilI; - CORRECT ANSWER increase. A transducer can create a signal based on. - CORRECT ANSWER pressure. A typical thermocouple used on a gas furnace can. - CORRECT ANSWER generate a small DC electrical current. To discharge a capacitor prior to ohmmeter testing. - CORRECT ANSWER use a 20,000 ohm, 2 to 5 watt resistor across the terminals. Which of the following is an acceptable temporary replacement for a run capacitor rated at 35MFD @ 440VAC - CORRECT ANSWER 37.5MFD @ 440VAC. The synchronous speed of a four pole, 60 Hz single phase motor is; - CORRECT ANSWER 1800 rpm. The symbol for a heating thermostat is represented by diagram. - CORRECT ANSWER B The symbol for a pressure switch that closes on pressure rise represented by diagram - CORRECT ANSWER A The symbol for a pressure switch that opens on pressure rise is represented by diagram. - CORRECT ANSWER C In the schematic, what voltage would be found across L1 to L2? - CORRECT ANSWER 240 volts. In the schematic, what voltage would be found across the condenser fan motor? - CORRECT ANSWER O volts, In the schematic, what voltage would be found across the transformer primary? - CORRECT ANSWER 240 volts. In the schematic, what voltage would be found across the fuse in line #10 with the thermostat closed? - CORRECT ANSWER 0 volts. In the schematic, what voltage would be found from terminal G to the load side of the transformer? - CORRECT ANSWER 0 volts In the schematic, what voltage would be found across the contacts when energized in line #8 - CORRECT ANSWER 0 volts. In the schematic, what voltage would be found from terminal Y to the input side of the coil on line #11? - CORRECT ANSWER 0 volts.

When current flows, a _______________ is produced around the conductor. - CORRECT ANSWER magnetic field Technician #1 says that an open transformer coil is indicated by a reading of infinity on an analog ohmmeter. Technician #2 says that a shorted transformer coil is indicated by a reading of infinity on an analog ohmmeter. Which technician is correct, or are both technicians correct? - CORRECT ANSWER Technician #2 only The terminals T1, T2, & T3 are located at the _______ of a contactor. - CORRECT ANSWER top Circuit fuses and breakers are primarily used to protect - CORRECT ANSWER loads
