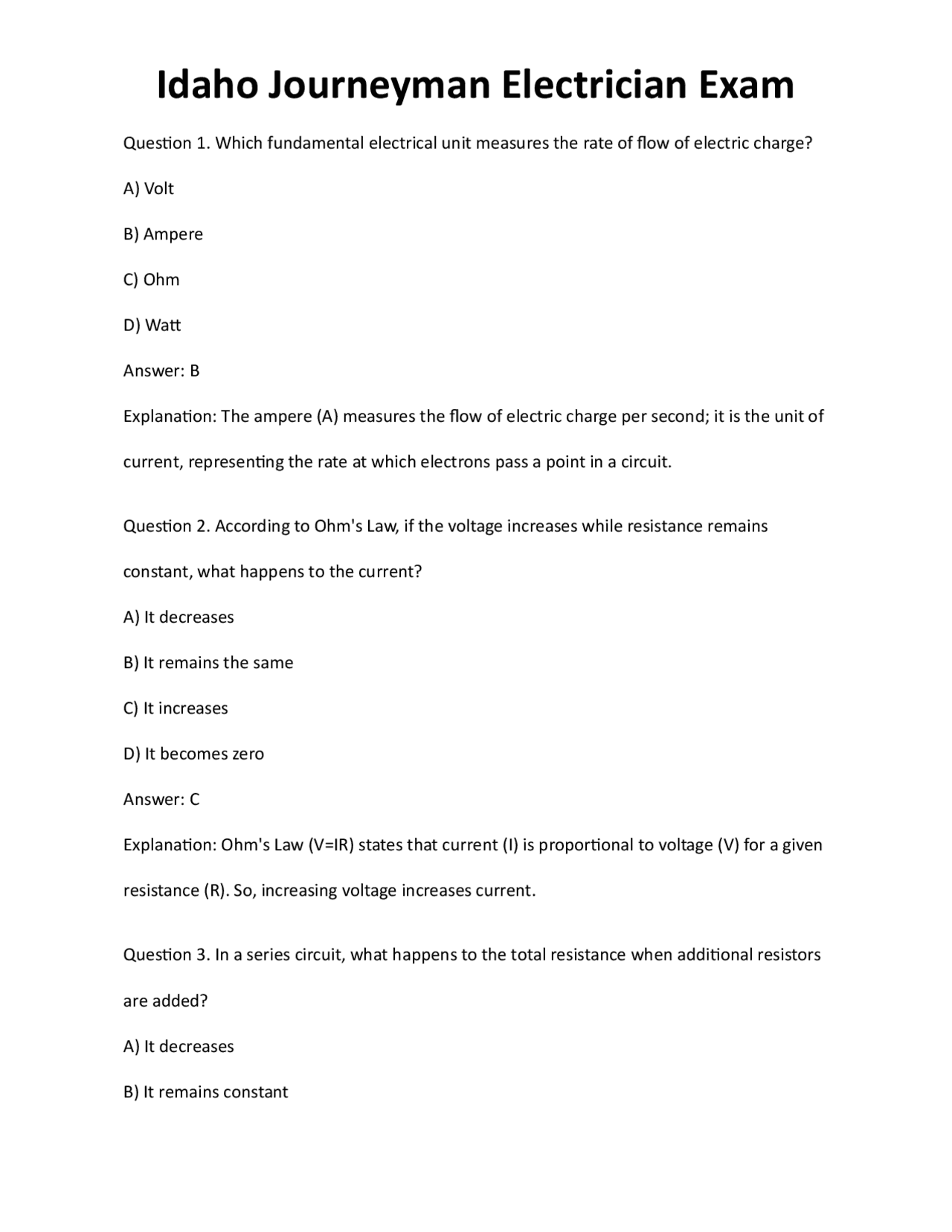

Question 1. Which fundamental electrical unit measures the rate of flow of electric charge? A) Volt B) Ampere C) Ohm D) Watt Answer: B Explanation: The ampere (A) measures the flow of electric charge per second; it is the unit of current, representing the rate at which electrons pass a point in a circuit. Question 2. According to Ohm's Law, if the voltage increases while resistance remains constant, what happens to the current? A) It decreases B) It remains the same C) It increases D) It becomes zero Answer: C Explanation: Ohm's Law (V=IR) states that current (I) is proportional to voltage (V) for a given resistance (R). So, increasing voltage increases current. Question 3. In a series circuit, what happens to the total resistance when additional resistors are added? A) It decreases B) It remains constant
C) It increases D) It fluctuates randomly Answer: C Explanation: In series circuits, resistances add up; thus, adding resistors increases the total resistance. Question 4. Which type of current alternates direction periodically? A) Direct Current (DC) B) Static Electricity C) Alternating Current (AC) D) Residual Current Answer: C Explanation: AC (Alternating Current) periodically reverses direction, unlike DC which flows in one direction. Question 5. Resistance in an electrical circuit is primarily associated with which property of a material? A) Capacitance B) Conductivity C) Inductance D) Resistance Answer: D
D) It reduces resistance Answer: A Explanation: Changing magnetic fields induce electric currents in conductors, which is the principle behind transformers and generators. Question 9. Which personal protective equipment (PPE) is essential when working on live electrical circuits? A) Safety glasses only B) Insulated gloves and face shields C) Steel-toed boots only D) Hearing protection only Answer: B Explanation: Insulated gloves and face shields protect against electrical shocks and arc flashes when working on energized systems. Question 10. Lockout/Tagout procedures are primarily used to:** A) Prevent unauthorized access to electrical tools B) Ensure circuits are de-energized and safe before maintenance C) Label electrical equipment for identification D) Increase the efficiency of electrical work Answer: B Explanation: Lockout/Tagout procedures prevent accidental energization of circuits, ensuring safe maintenance.
Question 11. Which hazard is most associated with arc-flash incidents? A) Chemical burns B) Electric shock C) Thermal burns and blast injuries D) Falling objects Answer: C Explanation: Arc-flash releases intense heat and pressure, causing thermal burns and potential blast injuries. Question 12. Proper grounding of electrical systems primarily provides:** A) A path for fault currents to the earth, reducing shock risk B) Increased resistance in the circuit C) Better insulation properties D) A way to increase voltage Answer: A Explanation: Grounding provides a low-resistance path for fault currents, which helps protect personnel and equipment from electrical shocks. Question 13. When using a multimeter to measure current, what must be done? A) Connect the meter in parallel with the circuit B) Connect the meter in series with the circuit C) Set the meter to resistance mode D) Use the clamp head only
B) The conductor's length C) The number of outlets D) The conductor's insulation type Answer: C Explanation: While the number of outlets impacts load calculations, conductor sizing primarily considers current capacity, length, temperature, and insulation. Question 17. In NEC terminology, what does the term "shall" typically indicate? A) Optional requirement B) Recommended practice C) Mandatory requirement D) Exemption clause Answer: C Explanation: "Shall" indicates a mandatory requirement that must be followed in the NEC. Question 18. Which article of the NEC covers the definitions and general rules? A) Article 100 B) Article 200 C) Article 300 D) Article 400 Answer: A Explanation: Article 100 provides definitions and general rules applicable throughout the NEC.
Question 19. What is the primary purpose of overcurrent protection devices like circuit breakers? A) Limit voltage levels B) Prevent excessive current that can cause overheating or fires C) Increase circuit capacity D) Reduce electrical noise Answer: B Explanation: Overcurrent protection devices disconnect circuits when current exceeds safe levels, preventing damage and fires. Question 20. Which type of conduit is rigid and often used in outdoor or exposed environments? A) EMT (Electrical Metallic Tubing) B) RMC (Rigid Metal Conduit) C) Flexible Metal Conduit D) PVC conduit Answer: B Explanation: Rigid Metal Conduit (RMC) is a heavy-duty, rigid conduit suitable for outdoor and exposed installations. Question 21. NM cable is commonly used in which type of installation? A) Underground B) Dry interior residential wiring
Question 24. Which of the following is a primary characteristic of a Type UF cable? A) Suitable for underground burial in moist locations B) Used only for overhead wiring C) Insulated with rubber D) Designed for high-temperature environments Answer: A Explanation: UF (Underground Feeder) cable is designed for direct burial in moist or underground environments, with durable insulation. Question 25. Which NEC chapter addresses special occupancies such as hazardous locations? A) Chapter 1 B) Chapter 4 C) Chapter 5 D) Chapter 6 Answer: C Explanation: Chapter 5 covers special occupancies, including hazardous locations, where specific wiring and equipment requirements apply. Question 26. Class I hazardous locations are characterized by the presence of which hazard? A) Combustible dust B) Flammable gases or vapors C) Explosive fibers D) Radioactive materials
Answer: B Explanation: Class I locations involve the presence of flammable gases or vapors, requiring special wiring methods. Question 27. Which division of hazardous locations indicates conditions where the hazardous atmosphere is present continuously or for long periods? A) Division 1 B) Division 2 C) Division 3 D) Division 4 Answer: A Explanation: Division 1 indicates the hazardous atmosphere is present during normal operations, while Division 2 is only under abnormal conditions. Question 28. Which of the following is NOT typically included in the scope of special equipment as per NEC Chapter 6? A) Electric signs B) Elevators C) Residential lighting fixtures D) X-ray equipment Answer: C Explanation: Residential lighting fixtures are standard equipment, not classified as special equipment covered under Chapter 6.
Answer: A Explanation: Grounding provides a low-resistance path for fault currents, protecting people and equipment from electrical shocks. Question 32. Which test instrument is most suitable for locating a circuit breaker or fuse in a circuit? A) Multimeter B) Circuit tracer C) Insulation resistance tester D) Clamp-on ammeter Answer: B Explanation: Circuit tracers are specifically designed to locate and identify circuit breakers, fuses, and wiring paths. Question 33. When troubleshooting a circuit with a suspected open conductor, which test should be performed first? A) Resistance measurement with a multimeter B) Voltage measurement across the circuit C) Insulation resistance test D) Visual inspection Answer: D Explanation: A visual inspection is the initial step to identify obvious damage or disconnections before using test instruments.
Question 34. In voltage drop calculations, which of the following factors directly affects the voltage drop? A) Length of conductor and current flow B) Number of conductors in the circuit C) Type of load connected D) Conductor color Answer: A Explanation: Longer conductors and higher current increase voltage drop; both must be considered in calculations. Question 35. When sizing a motor feeder, which factor is critical? A) Motor horsepower and full load current B) The type of conduit used C) The number of outlets in the circuit D) The ambient temperature only Answer: A Explanation: Motor feeder sizing depends on the motor's horsepower and full load current to ensure proper protection and operation. Question 36. Transformer calculations often involve determining:** A) Voltage ratio and kVA rating B) Resistance of the core C) The number of turns in the secondary only
Question 39. Which type of conductor insulation is typically rated for high-temperature environments? A) THHN B) NM C) THW D) XHHW Answer: D Explanation: XHHW (Cross-Linked High Heat Water) insulation is rated for high-temperature environments, often up to 90°C or higher. Question 40. When installing flexible cords, which of the following is true? A) They can be used as permanent wiring in conduit B) They are intended for temporary or movable equipment only C) They are suitable for outdoor underground use D) They do not require grounding Answer: B Explanation: Flexible cords are designed primarily for portable or movable equipment, not as permanent wiring. Question 41. Which NEC article specifically addresses the sizing and application of conductors? A) Article 310 B) Article 250
C) Article 400 D) Article 240 Answer: A Explanation: Article 310 covers conductors, including sizing, insulation, and applications. Question 42. Which of the following is an example of a Type MC cable? A) Metal-clad cable with a metallic armor B) Non-metallic sheathed cable C) Underground feeder cable D) Flexible extension cord Answer: A Explanation: Type MC (Metal Clad) cable features a metallic armor providing protection and durability. Question 43. In conduit fill calculations, what is the main concern? A) The total number of conductors exceeding conduit capacity B) The length of the conduit run C) The voltage drop across the conductors D) The type of wiring method used Answer: A Explanation: Conduit fill calculations determine if the number of conductors exceeds the conduit’s capacity based on size and space.
C) Flexible metal conduit (FMC) D) Non-metallic sheathed cable (UF) Answer: D Explanation: UF cable is designed for underground, wet locations, providing durability and moisture resistance. Question 47. Which of the following is a primary feature of a GFCI (Ground Fault Circuit Interrupter)? A) Trips during overloads B) Trips during ground faults to prevent shock C) Protects only from short circuits D) Is used only outdoors Answer: B Explanation: GFCIs detect ground faults and trip to prevent electrical shocks, especially in wet locations. Question 48. In the NEC, what is the purpose of a bonding jumper? A) To connect grounding conductors to provide a continuous grounding path B) To connect two conductors to increase capacity C) To insulate conductors D) To connect the neutral to the hot wire Answer: A
Explanation: Bonding jumpers connect grounding conductors to ensure a continuous and effective grounding path. Question 49. Which of the following best describes a branch circuit? A) A circuit that supplies power from the service equipment to outlets, lights, and appliances B) The main service entrance conductors C) A dedicated circuit for a single appliance only D) The conductors between the transformer and the service panel Answer: A Explanation: A branch circuit extends from the panel to supply outlets, lighting, and appliances in a specific area. Question 50. What is the main reason for derating conductors? A) To account for high ambient temperatures or grouping of conductors B) To increase current capacity C) To reduce voltage drop D) To match conductor color coding Answer: A Explanation: Derating reduces conductor capacity to compensate for increased heat from high temperatures or conductor bundling. Question 51. Which of the following is a common hazard associated with arc-flash? A) Chemical exposure B) Severe burns and arc blast injuries
