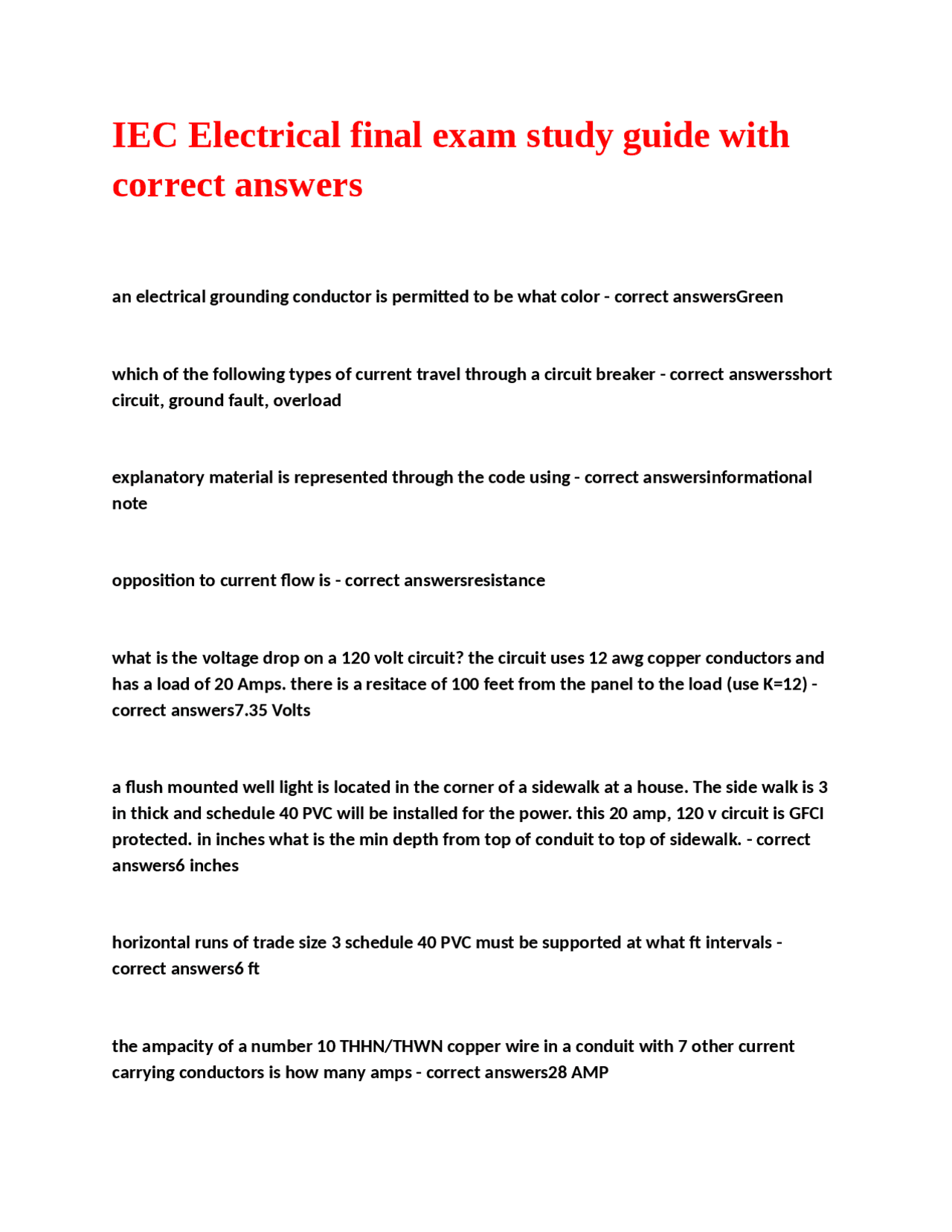

IEC Electrical final exam study guide with
correct answers
an electrical grounding conductor is permitted to be what color - correct answersGreen
which of the following types of current travel through a circuit breaker - correct answersshort
circuit, ground fault, overload
explanatory material is represented through the code using - correct answersinformational
note
opposition to current flow is - correct answersresistance
what is the voltage drop on a 120 volt circuit? the circuit uses 12 awg copper conductors and
has a load of 20 Amps. there is a resitace of 100 feet from the panel to the load (use K=12) -
correct answers7.35 Volts
a flush mounted well light is located in the corner of a sidewalk at a house. The side walk is 3
in thick and schedule 40 PVC will be installed for the power. this 20 amp, 120 v circuit is GFCI
protected. in inches what is the min depth from top of conduit to top of sidewalk. - correct
answers6 inches
horizontal runs of trade size 3 schedule 40 PVC must be supported at what ft intervals -
correct answers6 ft
the ampacity of a number 10 THHN/THWN copper wire in a conduit with 7 other current
carrying conductors is how many amps - correct answers28 AMP
