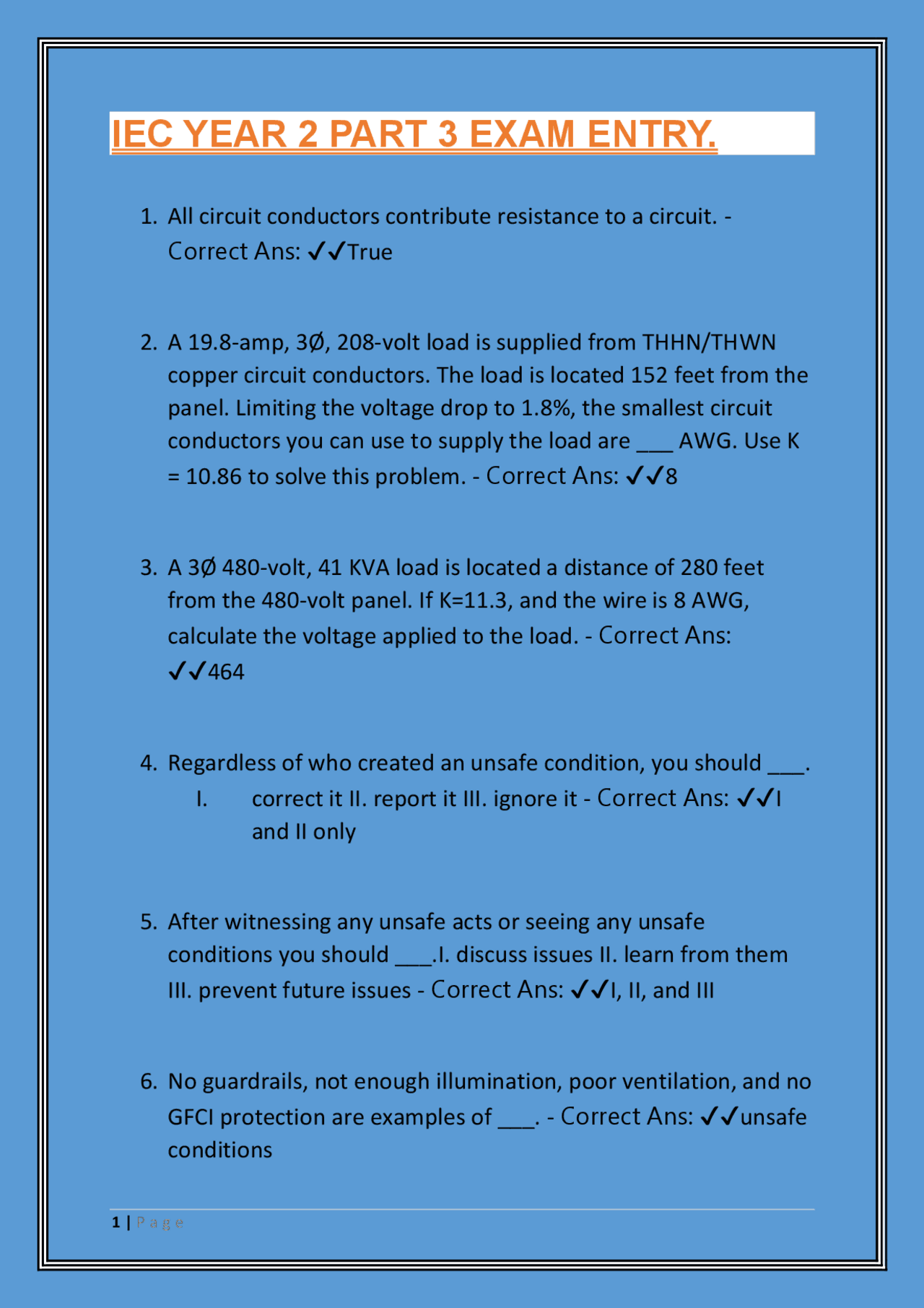

IEC YEAR 2 PART 3 EXAM ENTRY.
1. All circuit conductors contribute resistance to a circuit. -
Correct Ans: ✔✔True
2. A 19.8-amp, 3Ø, 208-volt load is supplied from THHN/THWN
copper circuit conductors. The load is located 152 feet from the
panel. Limiting the voltage drop to 1.8%, the smallest circuit
conductors you can use to supply the load are ___ AWG. Use K
= 10.86 to solve this problem. - Correct Ans: ✔✔8
3. A 3Ø 480-volt, 41 KVA load is located a distance of 280 feet
from the 480-volt panel. If K=11.3, and the wire is 8 AWG,
calculate the voltage applied to the load. - Correct Ans:
✔✔464
4. Regardless of who created an unsafe condition, you should ___.
I. correct it II. report it III. ignore it - Correct Ans: ✔✔I
and II only
5. After witnessing any unsafe acts or seeing any unsafe
conditions you should ___.I. discuss issues II. learn from them
III. prevent future issues - Correct Ans: ✔✔I, II, and III
6. No guardrails, not enough illumination, poor ventilation, and no
GFCI protection are examples of ___. - Correct Ans: ✔✔unsafe
conditions
