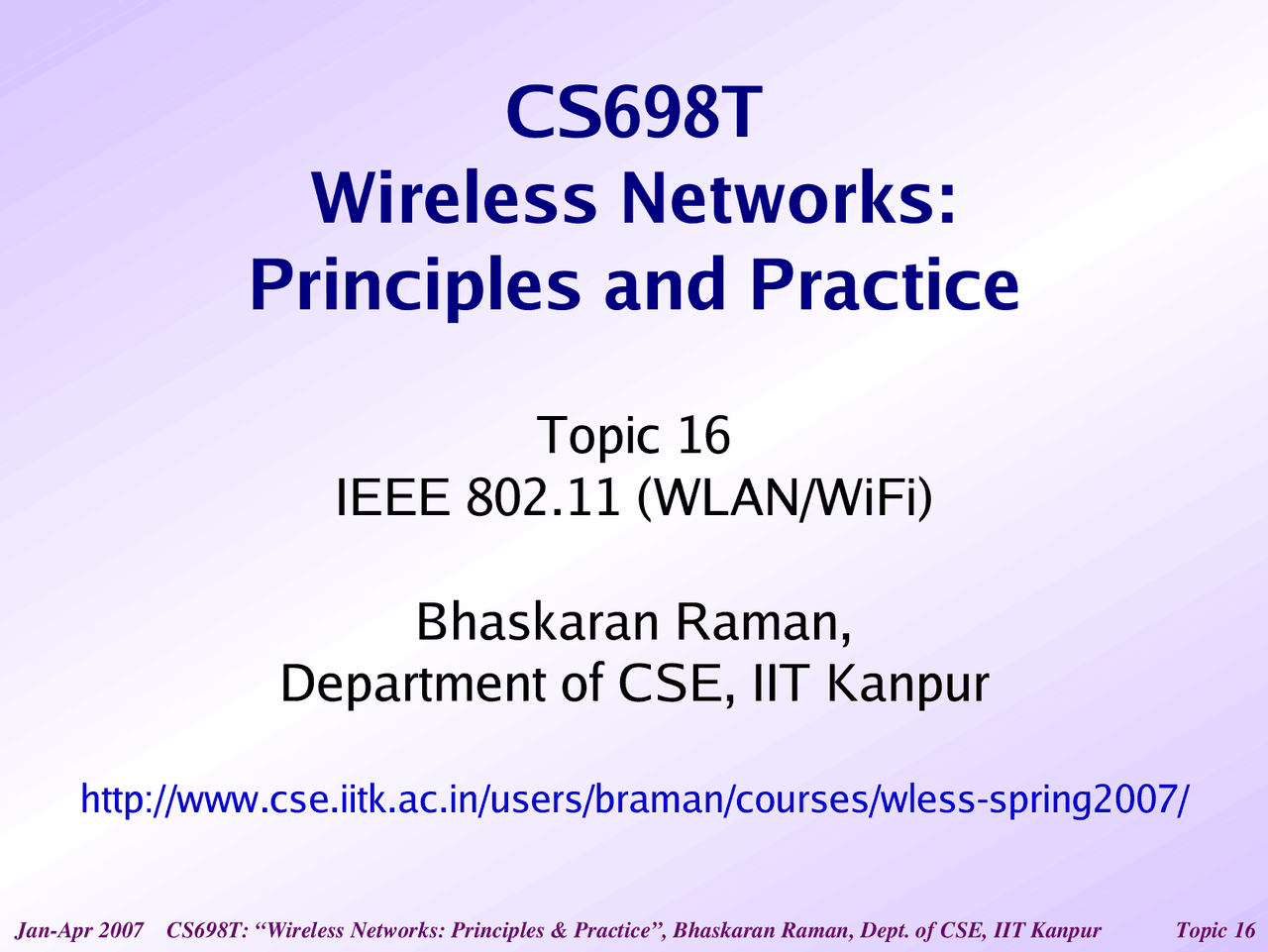

Jan-Apr 2007 CS698T: “Wireless Networks: Principles & Practice”, Bhaskaran Raman, Dept. of CSE, IIT Kanpur Topic 16

CS698T

Wireless Networks:

Principles and Practice

Topic 16

IEEE 802.11 (WLAN/WiFi)

Bhaskaran Raman,

Department of CSE, IIT Kanpur

http://www.cse.iitk.ac.in/users/braman/courses/wless-spring2007/

Discover Slides of Wireless Networking Indian Institute of Technology

Partial preview of the text

Download IEEE 802.11 (WiFi) in Wireless Networks: Principles & Practice by Bhaskaran Raman and more Slides Wireless Networking in PDF only on Docsity!

CS698T

Wireless Networks:

Principles and Practice

Topic 16

IEEE 802.11 (WLAN/WiFi)

Bhaskaran Raman,

Department of CSE, IIT Kanpur

http://www.cse.iitk.ac.in/users/braman/courses/wless-spring2007/

IEEE 802.11 (WiFi)

Part of 802.x series

– 802.3 is Ethernet

802.11a, 802.11b, 802.11g specify three

different PHY layers

– MAC is the same

802.11a: 5.2 to 5.7GHz

802.11b/g: 2.4 to 2.4835GHz

802.11: What does it Specify?

PHY sub-layer

– 802.11a, 802.11b, 802.11g

MAC sub-layer

– Independent of the PHY

– DCF (Distributed Coodrination Function)

●

CSMA/CA

– PCF (Point Coordination Function)

MAC management

802.11 PHY

802.11b data-rates (modulation schemes):

– 1Mbps (BPSK), 2Mbps (QPSK), 5.5Mbps (CCK),

11Mbps (CCK)

802.11a and 802.11g data-rates:

– 6, 9, 12, 18, 24, 36, 48, 54 Mbps

– OFDM + BPSK/QPSK/16QAM/64QAM

– 802.11g also supports 802.11b data-rates and

modulations (backwards compatible)

802.11a Channels

Each channel

is 20MHz wide

As of now,

band is not

free in India

for outdoor

use

Source: Cisco

presentation

802.11 Service Sets

IBSS: Independent

Basic Service Set

Infrastructure Basic

Service Set

Basic Service Set: set of

STAs in a region

MAC Classification

Based on what dimension is used for multiplexing:

– SDMA, TDMA, FDMA, CDMA

Based on how control is achieved:

– Central

●

(+) Easy to design/implement

●

(-) Single point of failure, bottleneck

– Distributed

●

(+) Natural when there is no central information

802.11 specifies DCF (Distributed Coordination

Function), PCF (Point Coordination Function)

– PCF uses central control

Ethernet CSMA/CD: Prelude to

802.11 CSMA/CA

CSMA/CD: Carrier-Sense Multiple Access with

Collision Detection

– Listen before transmit (CS)

– Tx when (as soon as) medium is free (1-persistent)

– Collision Detection (CD)

– Backoff (exponential) on collision

The Backoff Procedure

data

A

B

C

data

DIFS

Slot-time Contention window:

Num slots=Random[0, CW)

CW = 32, 64, 128, 256, 512, 1024

Double CW on collision

Question: Why DIFS?

CSMA/CA + ACK

data

A

B

C

data

DIFS Slot-time SIFS ACK DIFS
