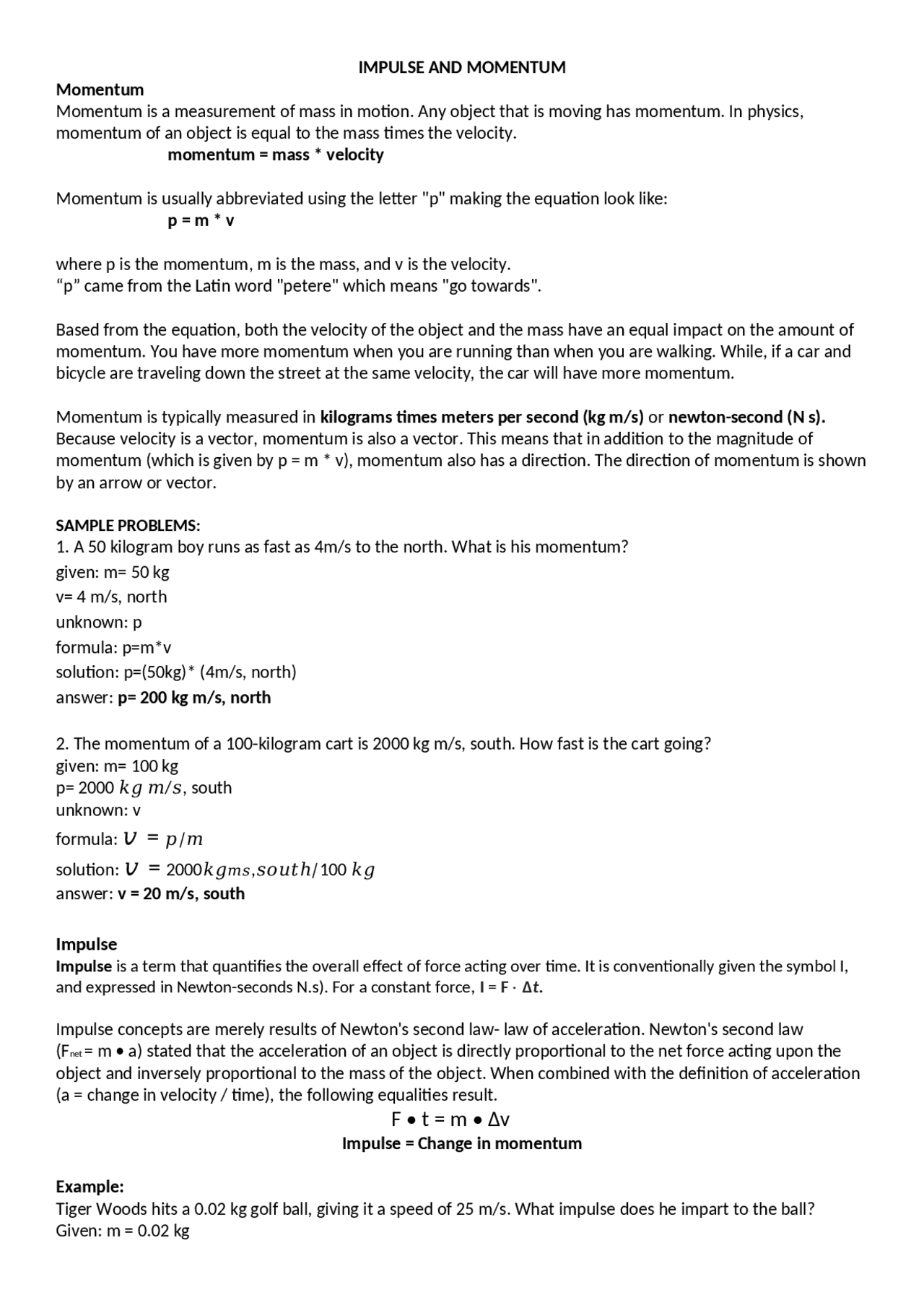

IMPULSE AND MOMENTUM
Momentum
Momentum is a measurement of mass in motion. Any object that is moving has momentum. In physics,
momentum of an object is equal to the mass times the velocity.
momentum = mass * velocity
Momentum is usually abbreviated using the letter "p" making the equation look like:
p = m * v
where p is the momentum, m is the mass, and v is the velocity.
โ€œpโ€ came from the Latin word "petere" which means "go towards".
Based from the equation, both the velocity of the object and the mass have an equal impact on the amount of
momentum. You have more momentum when you are running than when you are walking. While, if a car and
bicycle are traveling down the street at the same velocity, the car will have more momentum.
Momentum is typically measured in kilograms times meters per second (kg m/s) or newton-second (N s).
Because velocity is a vector, momentum is also a vector. This means that in addition to the magnitude of
momentum (which is given by p = m * v), momentum also has a direction. The direction of momentum is shown
by an arrow or vector.
SAMPLE PROBLEMS:
1. A 50 kilogram boy runs as fast as 4m/s to the north. What is his momentum?
given: m= 50 kg
v= 4 m/s, north
unknown: p
formula: p=m*v
solution: p=(50kg)* (4m/s, north)
answer: p= 200 kg m/s, north
2. The momentum of a 100-kilogram cart is 2000 kg m/s, south. How fast is the cart going?
given: m= 100 kg
p= 2000 ๐‘˜๐‘” ๐‘š/๐‘ , south
unknown: v
formula: ๐‘ฃ = ๐‘/๐‘š
solution: ๐‘ฃ = 2000๐‘˜๐‘”๐‘š๐‘ ,๐‘ ๐‘œ๐‘ข๐‘กโ„Ž/100 ๐‘˜๐‘”
answer: v = 20 m/s, south
Impulse
Impulse is a term that quantifies the overall effect of force acting over time. It is conventionally given the symbol I,
and expressed in Newton-seconds N.s). For a constant force, I = F โ‹… ฮ”t.
Impulse concepts are merely results of Newton's second law- law of acceleration. Newton's second law
(Fnet = m โ€ข a) stated that the acceleration of an object is directly proportional to the net force acting upon the
object and inversely proportional to the mass of the object. When combined with the definition of acceleration
(a = change in velocity / time), the following equalities result.
F โ€ข t = m โ€ข ฮ”v
Impulse = Change in momentum
Example:
Tiger Woods hits a 0.02 kg golf ball, giving it a speed of 25 m/s. What impulse does he impart to the ball?
Given: m = 0.02 kg
pf2

Partial preview of the text

Download Impulse and Momentum Notes and more Study notes Physics in PDF only on Docsity!

IMPULSE AND MOMENTUM

Momentum Momentum is a measurement of mass in motion. Any object that is moving has momentum. In physics, momentum of an object is equal to the mass times the velocity. momentum = mass * velocity Momentum is usually abbreviated using the letter "p" making the equation look like: p = m * v where p is the momentum, m is the mass, and v is the velocity. โ€œpโ€ came from the Latin word "petere" which means "go towards". Based from the equation, both the velocity of the object and the mass have an equal impact on the amount of momentum. You have more momentum when you are running than when you are walking. While, if a car and bicycle are traveling down the street at the same velocity, the car will have more momentum. Momentum is typically measured in kilograms times meters per second (kg m/s) or newton-second (N s). Because velocity is a vector, momentum is also a vector. This means that in addition to the magnitude of momentum (which is given by p = m * v), momentum also has a direction. The direction of momentum is shown by an arrow or vector. SAMPLE PROBLEMS:

  1. A 50 kilogram boy runs as fast as 4m/s to the north. What is his momentum? given: m= 50 kg v= 4 m/s, north unknown: p formula: p=mv solution: p=(50kg) (4m/s, north) answer: p= 200 kg m/s, north
  2. The momentum of a 100-kilogram cart is 2000 kg m/s, south. How fast is the cart going? given: m= 100 kg p= 2000 ๐‘˜๐‘” ๐‘š/๐‘ , south unknown: v

formula: ๐‘ฃ = ๐‘/๐‘š

solution: ๐‘ฃ = 2000 ๐‘˜๐‘”๐‘š๐‘ ,๐‘ ๐‘œ๐‘ข๐‘กโ„Ž/ 100 ๐‘˜๐‘”

answer: v = 20 m/s, south Impulse Impulse is a term that quantifies the overall effect of force acting over time. It is conventionally given the symbol I, and expressed in Newton-seconds N.s). For a constant force, I = F โ‹… ฮ” t****. Impulse concepts are merely results of Newton's second law- law of acceleration. Newton's second law (Fnet = m โ€ข a) stated that the acceleration of an object is directly proportional to the net force acting upon the object and inversely proportional to the mass of the object. When combined with the definition of acceleration (a = change in velocity / time), the following equalities result.

F โ€ข t = m โ€ข ฮ”v

Impulse = Change in momentum Example: Tiger Woods hits a 0.02 kg golf ball, giving it a speed of 25 m/s. What impulse does he impart to the ball? Given: m = 0.02 kg

ฮ”v = 25 m/s โ€“ 0 = 25 m/s Find: I Solution: Since the golf ball is initially at rest, the initial velocity is equal to zero. Thus, I = ฮ”p = mฮ”v ยฟ( 0.02 kg )( 25 m / s ) ยฟ 0.50 kg โˆ’ m / s โˆจ0.50 Ns

Collisions

When two objects bump into each other, this is called a collision. In physics, a collision doesn't have to involve an accident (like two cars crashing into each other), but can be any event where two or more moving objects exert forces on each other for a short period of time. Types of Collision

  1. Elastic collision - the total kinetic energy of the system does not change and colliding objects bounce off after the collision. An example is the balls in billiard games.
  2. Inelastic collision - the total kinetic energy of the system changes or converted into another form of energy. Objects that stick together after the collision are said to be perfectly inelastic. An example is the collision of two cars.
