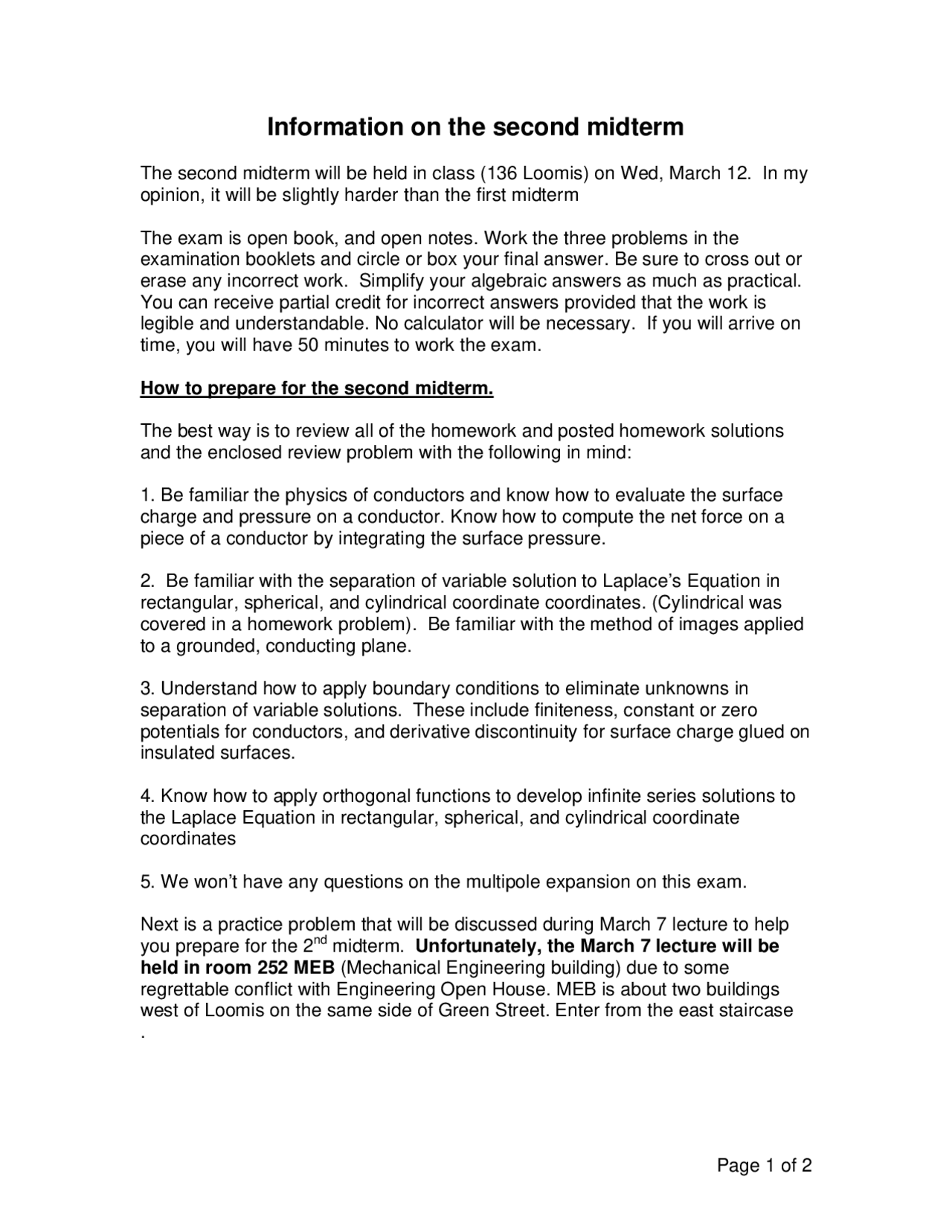

Page 1 of 2
Information on the second midterm
The second midterm will be held in class (136 Loomis) on Wed, March 12. In my
opinion, it will be slightly harder than the first midterm
The exam is open book, and open notes. Work the three problems in the
examination booklets and circle or box your final answer. Be sure to cross out or
erase any incorrect work. Simplify your algebraic answers as much as practical.
You can receive partial credit for incorrect answers provided that the work is
legible and understandable. No calculator will be necessary. If you will arrive on
time, you will have 50 minutes to work the exam.
How to prepare for the second midterm.
The best way is to review all of the homework and posted homework solutions
and the enclosed review problem with the following in mind:
1. Be familiar the physics of conductors and know how to evaluate the surface
charge and pressure on a conductor. Know how to compute the net force on a
piece of a conductor by integrating the surface pressure.
2. Be familiar with the separation of variable solution to Laplace’s Equation in
rectangular, spherical, and cylindrical coordinate coordinates. (Cylindrical was
covered in a homework problem). Be familiar with the method of images applied
to a grounded, conducting plane.
3. Understand how to apply boundary conditions to eliminate unknowns in
separation of variable solutions. These include finiteness, constant or zero
potentials for conductors, and derivative discontinuity for surface charge glued on
insulated surfaces.
4. Know how to apply orthogonal functions to develop infinite series solutions to
the Laplace Equation in rectangular, spherical, and cylindrical coordinate
coordinates
5. We won’t have any questions on the multipole expansion on this exam.
Next is a practice problem that will be discussed during March 7 lecture to help
you prepare for the 2nd midterm. Unfortunately, the March 7 lecture will be
held in room 252 MEB (Mechanical Engineering building) due to some
regrettable conflict with Engineering Open House. MEB is about two buildings
west of Loomis on the same side of Green Street. Enter from the east staircase
.
