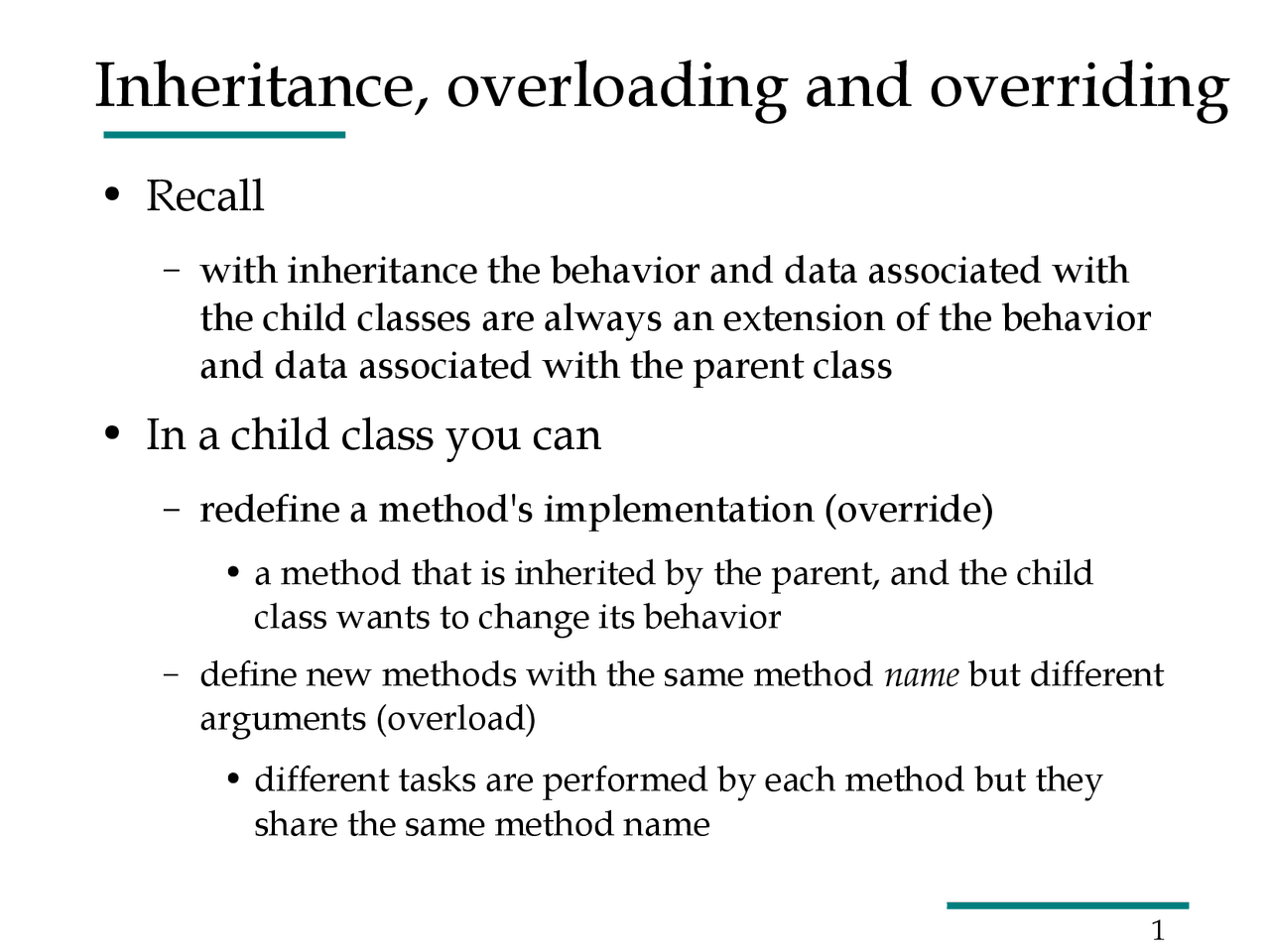

Inheritance, overloading and overriding
●
Recall
– with inheritance the behavior and data associated with
the child classes are always an extension of the behavior
and data associated with the parent class
●
In a child class you can
– redefine a method's implementation (override)
● a method that is inherited by the parent, and the child
class wants to change its behavior
– define new methods with the same method name but different
arguments (overload)
● different tasks are performed by each method but they
share the same method name
The Bank Account example
●
Accounts must have
– current balance
– name of account holder
– a withdraw method
– a deposit method
● Current accounts
– have a maximum withdraw amount
● you cannot withdraw more than $200 in one transaction
● Savings accounts
– have a minimum balance that they need to maintain
at all times.
The Bank Account example
●
Account is a generalized idea
●
What actually exists in the banking model are
savings and checking accounts.
– both are accounts with specialized operations on
them. you can refer to them as accounts but you are
using them according what a savings and/or a
checking account can do.
● Generalized ideas (i.e. Account) can be directly
mapped in java as
– abstract classes
– interfaces.
The Bank Account with abstract classes
Account
double balance
String name
+getBalance():double
+getName():String
+setName(String):void
+setBalance(double):void
+deposit(double):boolean
+withdraw(double):boolean
+display()
abstract class
abstract methods
● Abstract classes cannot be instantiated
– there is no constructor!
●
Abstract methods must be implemented by
subclasses of Account
– there is no body for withdraw and display inside
Account
The Bank Account with abstract classes
Account
double balance
String name
+getBalance():double
+getName():String
+setName(String):void
+setBalance(double):void
+deposit(double):boolean
+withdraw(double):boolean
+display()
abstract public class Account {
double balance;
String name;
public double getBalance(){
return balance;
public void setBalance(double val){
balance = val;
public String getName(){
return name;
public void setName(String aName){
name = aName;
public boolean deposit(double amount){
balance = balance + amount;
return true;
abstract public boolean withdraw(double amount);
abstract public void display();
The Bank Account with abstract classes
Account
double balance
String name
+getBalance():double
+getName():String
+setName(String):void
+setBalance(double):void
+deposit(double):boolean
+withdraw(double):boolean
+display()
public class Checking extends Account{ Checking(String name, double amount){ this.name = name; if (amount > 0){ this.balance = amount; } else { // error reporting code omitted this.balance = 0; } } public boolean withdraw(double amount){ if (amount > 0 && amount <= balance) { balance = balance - amount; return true; } else if ( amount > balance){ // error reporting code omitted return false; } else { // error reporting code omitted return false; } } public void display(){ System.out.println(" ****** Current Account Details ****** "); System.out.println(" Name: "+ this.getName()); System.out.println(" Current Balance: "+ this.getBalance()); System.out.println("\t\t\t\t ****** Current Account Details ****** "); } }
Checking
Overloading the constructor
public class Savings extends Account{ double minimumBalance; Savings(String name, double amount, double minBalance){ this.name = name; if (amount > 0){ this.balance = amount; } else { // error reporting code omitted this.balance = 0; } if (minBalance > 0){ this.minimumBalance = minBalance; } else { // error reporting code omitted this.minimumBalance = 0; } } Savings(String name, double amount){ this.name = name; if (amount > 0){ this.balance = amount; } else { this.balance = 0; } this.minimumBalance = 0; } }
Distinguish the
constructor by number
of arguments and types
for each argument.
Overloading the constructor
public class Main{ public static void main(String[] args){ Savings mySavings = new Savings(“John”,100.00,50.00); Savings anotherSavings = new Savings(“Mary”,200.00); } } public class Savings extends Account{ double minimumBalance; Savings(String name, double amount, double minBalance){ this.name = name; if (amount > 0){ this.balance = amount; } else { // error reporting code omitted this.balance = 0; } if (minBalance > 0){ this.minimumBalance = minBalance; } else { // error reporting code omitted this.minimumBalance = 0; } } Savings(String name, double amount){ this.name = name; if (amount > 0){ this.balance = amount; } else { this.balance = 0; } this.minimumBalance = 0; } }
Bank account with interfaces only!
●
Interfaces in java define sets of operations that the
type must implement.
<< IAccount >>
+getBalance():double
+getName():String
+setName(String):void
+setBalance(double):void
+deposit(double):boolean
+withdraw(double):boolean
+display()
Checking
Savings
double minimumBalance
double balance
String name
+getMinBal():double
+setMinBal(double):void
double balance
String name
Bank account with interfaces only!
<< IAccount >>
+getBalance():double
+getName():String
+setName(String):void
+setBalance(double):void
+deposit(double):boolean
+withdraw(double):boolean
+display()
interface IAccount { public double getBalance(); public String getName(); public void setName(String aName); public void setBalance(double amount); public boolean deposit(double amount); public boolean withdraw(double amount); public void display(); } ●
There is no implementation inside interfaces!
Bank account with interfaces only!
Checking
double balance
String name
public class Checking implements IAccount{ double minimumBalance; double balance; String name; // Same as Slide 7 public double getBalance(){ } public void setBalance(double val){ } public String getName(){ } public void setName(String aName){ } public boolean deposit(double amount){ } // Same as Slide 8 public boolean withdraw(double amount){ } public void display(){ } }
Interfaces or Abstract classes
●
Java allows you to implement as many interfaces as
you like
– you can only extend one abstract class not more!
●
Abstract classes can also contain state (instance
variables) and implemented methods
– interfaces cannot have instance variables (they can have
static variables) and cannot have implementations for
methods
Types Revisited
●
In Java each interface defines a type. Interface
extension and implementation as subtype
relationships
●
A subtype relation in Java is:
– if class C
extends class C
then C
is a subtype of C
– if interface I
extends I then I
is a subtype of I
– if class C implements interface I then C is a subtype of I
– for every interface I, I is a subtype of Object
– for every type T , T[ ] is a subtype of Object
– if T
is a subtype of T
then T
[ ] is a subtype of T
[ ]
Upcasting
●
Operation that changes the runtime type of an
instance to one of its supertypes (i.e. move up the
hierarchy)
– force an instance that is of type Savings Account to be
viewed as of type Account.
public class Main{ public static void main(String[] args){ Savings mySavings = new Savings(“John”,100.00,50.00); Savings anotherSavings = new Savings(“Mary”,200.00); Checking cAccount = new Checking(“Michael”, 89.00); mySavings.display(); mySavings.display(“Today”); Account oneAC = (Account) mySavings; Account secondAC= (Account) cAccount; Account[] allAccounts = new Account[10]; allAccounts[0] = oneAC; allAccounts[1] = secondAC; } }
Force mySavings
to be used as of type
Account
