Home

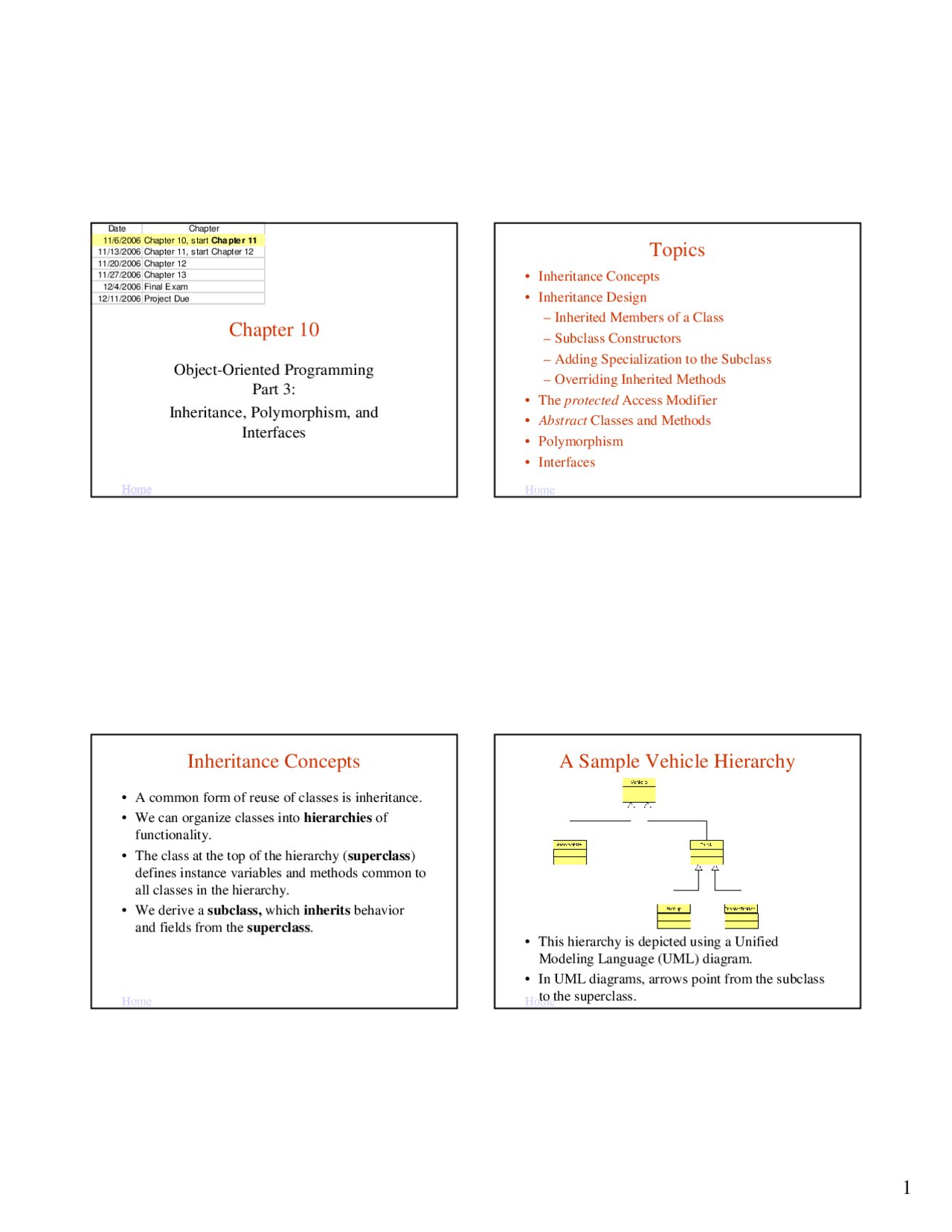

Chapter 10
Object-Oriented Programming
Part 3:
Inheritance, Polymorphism, and
Interfaces
Date Chapter 11/6/2006 Chapter 10, start Chapter 11 11/13/2006 Chapter 11, start Chapter 12 11/20/2006 Chapter 12 11/27/2006 Chapter 13 12/4/2006 Final Exam 12/11/2006 Project Due
Home Home
Topics
- Inheritance Concepts
- Inheritance Design
- Inherited Members of a Class
- Subclass Constructors
- Adding Specialization to the Subclass
- Overriding Inherited Methods
- The protected Access Modifier
- Abstract Classes and Methods
- Polymorphism
- Interfaces
Home
Inheritance Concepts
- A common form of reuse of classes is inheritance.
- We can organize classes into hierarchies of functionality.
- The class at the top of the hierarchy ( superclass ) defines instance variables and methods common to all classes in the hierarchy.
- We derive a subclass, which inherits behavior and fields from the superclass.
Home
A Sample Vehicle Hierarchy
- This hierarchy is depicted using a Unified Modeling Language (UML) diagram.
- In UML diagrams, arrows point from the subclass to the superclass.
Home
Superclasses and Subclasses
- A superclass can have multiple subclasses.
- Subclasses can be superclasses of other subclasses.
- A subclass can inherit directly from only one superclass.
- All classes inherit from the Object class.
Home
Superclasses and Subclasses
- A big advantage of inheritance is that we can write common code once and reuse it in subclasses. - Generalization
- A subclass can define new methods and instance variables, some of which may override (hide) those of a superclass. - Specialization
Home
Specifying Inheritance
- The syntax for defining a subclass is to use the extends keyword in the class header, as in accessModifier class SubclassName extends SuperclassName { // class definition }
- The superclass name specified after the extends keyword is called the direct superclass.
- As mentioned, a subclass can have many superclasses, but only one direct superclass. Home
An Applet Hierarchy
- When we wrote an applet, we defined a subclass.
- We say that inheritance implements an "is a" relationship, in that a subclass object "is a" superclass object as well.
- Thus, RollABall "is a" JApplet (its direct superclass), Applet , Panel, Container, Component , and Object.
- RollABall begins with more than 275 methods and 15 fields inherited from its 6 superclasses.
Home
The CheckingAccount Class
- We derive the CheckingAccount subclass from BankAccount: public class CheckingAccount extends BankAccount { }
- A subclass inherits all the public members of a superclass. Thus, the CheckingAccount class inherits - the MONEY instance variable - The getBalance , deposit , withdraw , and toString methods
- See Example 10.3 CheckingAccountClient.java (next slide) Home
CheckingAccountClient.java
public class CheckingAccountClient { public static void main( String [] args ) { CheckingAccount c1 = new CheckingAccount( ); System.out.println( "New checking account: " + c1 );
c1.deposit( 350.75 ); System.out.println( "\nAfter depositing $350.75: " + c1 );
c1.withdraw( 200.25 ); System.out.println( "\nAfter withdrawing $200.25: " + c1 ); } }
Home
private Members
- Superclass members declared as private are NOT inherited, although they are part of the subclass.
- Thus, the balance instance variable is allocated to all CheckingAccount objects, but methods of the CheckingAccount class cannot directly access balance.
- To set or get the value of balance , the CheckingAccount methods must call the withdraw , deposit, or getBalance methods of the Superclass BankAccount.
- This simplifies maintenance because the BankAccount class enforces the data validation rules for balance.
Home
protected Members
- protected members are inherited by subclasses (like public members), while still being hidden from client classes (like private members).
- Also, any class in the same package as the superclass can directly access a protected field, even if that class is not a subclass.
- Disadvantage:
- Because more than one class can directly access a protected field , protected access compromises encapsulation and complicates maintenance of a program.
- For that reason, we prefer to use private , rather than protected, for our instance variables.
Home
Inheritance Rules
private methodsno no no
no, must call accessors and mutators
no, must call accessors and mutators
private fields no
yes, by calling method no from subclass methods
protected yes methods
no, must call accessors and mutators
yes, by using field name
protected fields yes
yes, by calling method yes from subclass methods
public methods yes
yes, by using field yes name
public fields yes
Directly Accessible by Client of Subclass?
Directly Accessible by Subclass?
Inherited by subclass?
Superclass Members
Home
Subclass Constructors
- Constructors are not inherited.
- However, the subclass can call the constructors of the superclass to initialize inherited fields.
- Implicit invocation
- The default constructor of the subclass automatically calls the default constructor of the superclass
- For explicit invocation, use this syntax: super( argument list );
If used, this statement must be the first statement in the subclass constructor
Home
CheckingAccount Constructors
public CheckingAccount( ) { // optional explicit call // to BankAccount default constructor super( ); } public CheckingAccount( double startBalance ) { // explicit call to BankAccount // overloaded constructor super( startBalance ); }
- See Examples 10.4 (BankingAccount.java V2 & 10.5 CheckingAccount.java V2) Home
BankAccount.java Version 2
import java.text.DecimalFormat; public class BankAccount { public final DecimalFormat MONEY = new DecimalFormat( "$#,##0.00" ); private double balance; public BankAccount ( ) { balance = 0.0; System.out.println( "In BankAccount default constructor" ); } public BankAccount ( double startBalance ) { if ( balance >= 0.0 ) balance = startBalance; else balance = 0.0; System.out.println( "In BankAccount overloaded constructor" ); } public String toString ( ) { return ( "balance is " + MONEY.format( balance ) ); } }
Home
Adding Specialization
- A subclass can define new fields and methods.
- Our CheckingAccount class adds
- these instance variables:
- monthlyFee, a double
- DEFAULT_FEE , a double constant
- these methods:
- setMonthlyFee, the accessor
- getMonthlyFee , the mutator
- applyMonthlyFee , which charges the monthly fee to the account.
Home
The applyMonthlyFee Method
- Because balance is private in the BankAccount class, the applyMonthlyFee method calls the withdraw method to subtract the monthly fee from the balance:
public void applyMonthlyFee( ) { withdraw( monthlyFee ); }
- See Examples 10.7 (CheckoingAccount V3& 10. CheckingAccountCLient V3)
Home
CheckingAccount.java V3 1/
public class CheckingAccount extends BankAccount { public final double DEFAULT_FEE = 5.00; private double monthlyFee ; public CheckingAccount( ) { super( ); // optional monthlyFee = DEFAULT_FEE; } public CheckingAccount( double startBalance, double startMonthlyFee ) { super( startBalance ); // call BankAccount constructor setMonthlyFee( startMonthlyFee ); }
Home
CheckingAccount.java V3 2/
public void applyMonthlyFee( ) { withdraw( monthlyFee ); } public double getMonthlyFee( ) { return monthlyFee; } public void setMonthlyFee( double newMonthlyFee ) { if ( monthlyFee >= 0.0 ) monthlyFee = newMonthlyFee; else System.err.println( "Monthly fee cannot be negative" ); } }
Home
CheckingAccountClient.java V
public class CheckingAccountClient { public static void main ( String [] args ) { CheckingAccount c3 = new CheckingAccount( 100.00, 7.50 ); System.out.println( "New checking account:\n"
- c3.toString( ) + "; monthly fee is "
- c3.getMonthlyFee( ) ); c3.applyMonthlyFee( ); // charge the fee to the account System.out.println( "\nAfter charging monthly fee:\n"
- c3.toString( ) + "; monthly fee is "
- c3.getMonthlyFee( ) ); } } Home
Software Engineering
Tip
The superclasses in a class hierarchy should contain fields and methods common to all subclasses.
The subclasses should add specialized fields and methods.
Home
Overriding Inherited Methods
- A subclass can override (or replace) an inherited method by providing a new version of the method.
- The API of the new version must match the inherited method
- When the client calls the method, it will call the overridden version.
- The overridden method is invisible to the client of the subclass, but the subclass methods can still call the overridden method using this syntax:
super.methodName( argument list ) Home
The toString Method
- The toString method in the CheckingAccount class overrides the toString method in the BankAccount class.
- The subclass version call the superclass version to return balance. public String toString( ) { return super.toString( ) + "; monthly fee is " + MONEY.format( monthlyFee ); }
- See Examples 10.9 & 10.
Home
abstract Classes and Methods
- An abstract class is a class that is not completely implemented.
- Usually, the abstract class contains at least one abstract method. - An abstract method specifies an API but does not provide an implementation. - The abstract method is used as a pattern for a method the subclasses should implement.
Home
More on abstract Classes
- An object reference to an abstract class can be declared. - We use this capability in polymorphism, discussed later.
- An abstract class cannot be used to instantiate objects (because the class is not complete).
- An abstract class can be extended.
- subclasses can complete the implementation and objects of those subclasses can be instantiated.
Home
Defining an abstract class
- To declare a class as abstract , include the abstract keyword in the class header:
accessModifier abstract class ClassName { // class body }
Home
Defining an abstract Method
- To declare a method as abstract, include the abstract keyword in the method header:
accessModifier abstract returnType
methodName( argument list );
- Note:
- The semicolon at the end of the header indicates that the method has no code.
- We do not use open and closing curly braces
Home
Example Hierarchy
- We can define a Figure hierarchy.
- The superclass is Figure , which is abstract. (In the UML diagram, Figure is set in italics to indicate that it is abstract.
- We will derive two subclasses: Circle and Square.
Home
The Figure Class
public abstract class Figure { private int x; private int y; private Color color; // usual constructors, accessors, // and mutators // abstract draw method public abstract void draw( Graphics g ); }
- All classes in the hierarchy will have an (x, y) coordinate and color. Subclasses will implement the draw method.
Home
Subclasses of abstract Classes
- A subclass of an abstract class can implement all, some, or none of the abstract methods.
- If the subclass does not implement all of the abstract methods, it must also be declared as abstract.
- Our Circle subclass adds a radius instance variable and implements the draw method.
- Our Square subclass adds a length instance variable and implements the draw method.
- See Examples 10.15, 10.16, 10.17, & 10.
Home
Restrictions for Defining
abstract Classes
- Classes must be declared abstract if the class contains any abstract methods.
- abstract classes can be extended.
- An object reference to an abstract class can be declared.
- abstract classes cannot be used to instantiate objects.
Home
Polymorphism Conditions
- Example 10.19 shows that we have fulfilled the conditions for polymorphism:
- The Figure , Circle, and Square classes are in the same hierarchy.
- The non-abstract Circle and Square classes implement the draw method.
- We assigned the Circle and Square objects to Figure references.
- We called the draw method using Figure references.
Home
Interfaces
- A class can inherit directly from only one class, that is, a class can extend only one class.
- To allow a class to inherit behavior from multiple sources, Java provides the interface.
- An interface typically specifies behavior that a class will implement. Interface members can be any of the following: - classes - constants - abstract methods - other interfaces
Home
Interface Syntax
- To define an interface, use the following syntax: accessModifier interface InterfaceName { // body of interface }
- All interfaces are abstract ; thus, they cannot be instantiated. The abstract keyword, however, can be omitted in the interface definition.
Home
Finer Points of Interfaces
- An interface's fields are public , static, and final.
- These keywords can be specified or omitted.
- When you define a field in an interface, you must assign a value to the field.
- All methods within an interface must be abstract, so the method definition must consist of only a method header and a semicolon. - The abstract keyword also can be omitted from the method definition.
Home
Inheriting from an Interface
- To inherit from an interface, a class declares that it implements the interface in the class definition, using the following syntax: accessModifier class ClassName extends SuperclassName implements Interface1, Interface2, …
- The extends clause is optional.
- A class can implement 0, 1, or more interfaces.
- When a class implements an interface, the class must provide an implementation for each method in the interface. Home
Example
- Define an abstract class Animal with one abstract method (See Example 10.22): public abstract void draw( Graphics g );
- Define a Moveable interface with one abstract method: public interface Moveable { int FAST = 5; // static constant int SLOW = 1; // static constant void move( ); // abstract method }
Home
Derived Classes
- TortoiseRacer class
- extends Animal class
- implements Moveable interface
- implements draw and move methods
- TortoiseNonRacer class
- extends Animal class
- (does not implement Moveable interface)
- implements draw method only
- See Examples 10.21, 10.22, 10.23, & 10.
Home
Backup
Home
Shape Example: Point Class 1/
public class Point extends Shape { protected int x, y; // coordinates of the Point public Point () { setPoint( 0, 0 ); } public Point ( int xCoordinate, int yCoordinate ) { setPoint( xCoordinate, yCoordinate ); } public void setPoint ( int xCoordinate, int yCoordinate ) { x = xCoordinate; y = yCoordinate; } public int getX () { return x; }
Point inherits (NOT overridden) both volumeand area methods of shape (zero)
Home
Shape Example: Point Class 2/
public int getY () { return y; }
- // convert point into String representation
- public String toString () {
- return "[" + x + ", " + y + "]";
- }
- // return shape name, an implementation of the abstract method
- public String getName () {
- return "Point";
- }
- } // end class Point If getName is not defined here, then point would have been anabstract class and no objects of it can be instantiated
Home
Shape Example: Circle Class 1/
public class Circle extends Point { // inherits from Point protected double radius; public Circle () { // implicit call to superclass constructor here setRadius( 0 ); } public Circle ( double circleRadius, int xCoordinate, int yCoordinate ) { // call superclass constructor super( xCoordinate, yCoordinate ); setRadius( circleRadius ); } public void setRadius ( double circleRadius ) { radius = ( circleRadius >= 0? circleRadius : 0 ); } public double getRadius () { return radius; }
point(zero) and overrides the area method^ Circle inherits the volume method from
Home
Shape Example: Circle Class 2/
- // calculate area of Circle, overrides area of Shape
- public double area () {
- return Math.PI * radius * radius;
- }
- // convert Circle to a String represention
- public String toString () {
- return "Center = " + super.toString() +
- "; Radius = " + radius;
- }
- public String getName () {
- return "Circle";
- }
- } // end class Circle If getName is not defined here, then area() version of Pointclass would be inherited
Home
Shape Example: Cylinder Class 1/
public class Cylinder extends Circle { protected double height; // height of Cylinder public Cylinder () { setHeight( 0 ); } publicxCoordinate, Cylinder int yCoordinate )( double cylinderHeight, double cylinderRadius, int { super( cylinderRadius, xCoordinate, yCoordinate ); setHeight( cylinderHeight ); } public void setHeight ( double cylinderHeight ) { height = ( cylinderHeight >= 0? cylinderHeight : 0 ); } public double getHeight () { return height; }
Cylinder overrides both volume and areamethods
Home
Shape Example: Cylinder Class 2/
- public double area () {
- return 2 * super.area() + 2 * Math.PI * radius * height;
- }
- public double volume () {
- return super.area() * height;
- }
- public String toString () {
- return super.toString() + "; Height = " + height;
- }
- public String getName () {
- return "Cylinder";
- }
- } // end class Cylinder If getName is not defined here, then area() version of class would be inherited^ Circle
Home
Shape Example: Test Class 1/
- import javax.swing.JOptionPane;
- public class Test { // test Shape hierarchy
- public static void main ( String args[] )
- { // create shapes
- Point point = new Point( 7, 11 );
- Circle circle = new Circle( 3.5, 22, 8 );
- Cylinder cylinder = new Cylinder( 10, 3.3, 10, 10 );
- // create Shape array
- Shape arrayOfShapes[] = new Shape[ 3 ];
- // aim arrayOfShapes[ 0 ] at subclass Point object
- arrayOfShapes[ 0 ] = point;
- // aim arrayOfShapes[ 1 ] at subclass Circle object
- arrayOfShapes[ 1 ] = circle;
- // aim arrayOfShapes[ 2 ] at subclass Cylinder object
- arrayOfShapes[ 2 ] = cylinder;
Home
Shape Example: Test Class 2/
- // get name and String representation of each shape
- String output =
- point.getName() + ": " + point.toString() + "\n" +
- circle.getName() + ": " + circle.toString() + "\n" +
- cylinder.getName() + ": " + cylinder.toString();
- // loop through arrayOfShapes and get name,
- // area and volume of each shape in arrayOfShapes
- for ( int i = 0; i < arrayOfShapes.length; i++ ) {
- output += "\n\n" + arrayOfShapes[ i ].getName() +
- ": " + arrayOfShapes[ i ].toString() +
- "\nArea = " +
- precision2.format( arrayOfShapes[ i ].area() ) +
- "\nVolume = " +
- precision2.format( arrayOfShapes[ i ].volume() );
- }
Home
Warning! Interfaces Cannot Grow
- Suppose that you want to add some functionality toinstance, suppose that you want to add a method that reports the current stock StockWatcher. For price, regardless of whether the value changed: - public interface StockWatcher { - final String sunTicker = "SUNW"; - final String oracleTicker = "ORCL"; - final String ciscoTicker = "CSCO"; - void valueChanged(String tickerSymbol, double newValue); - void currentValue(String tickerSymbol, double newValue); - }
Home
Warning! Interfaces Cannot Grow
- However, if you make this change, all classes that implement the old StockWatcher interface will break because - they don’t implement the interface anymore!
