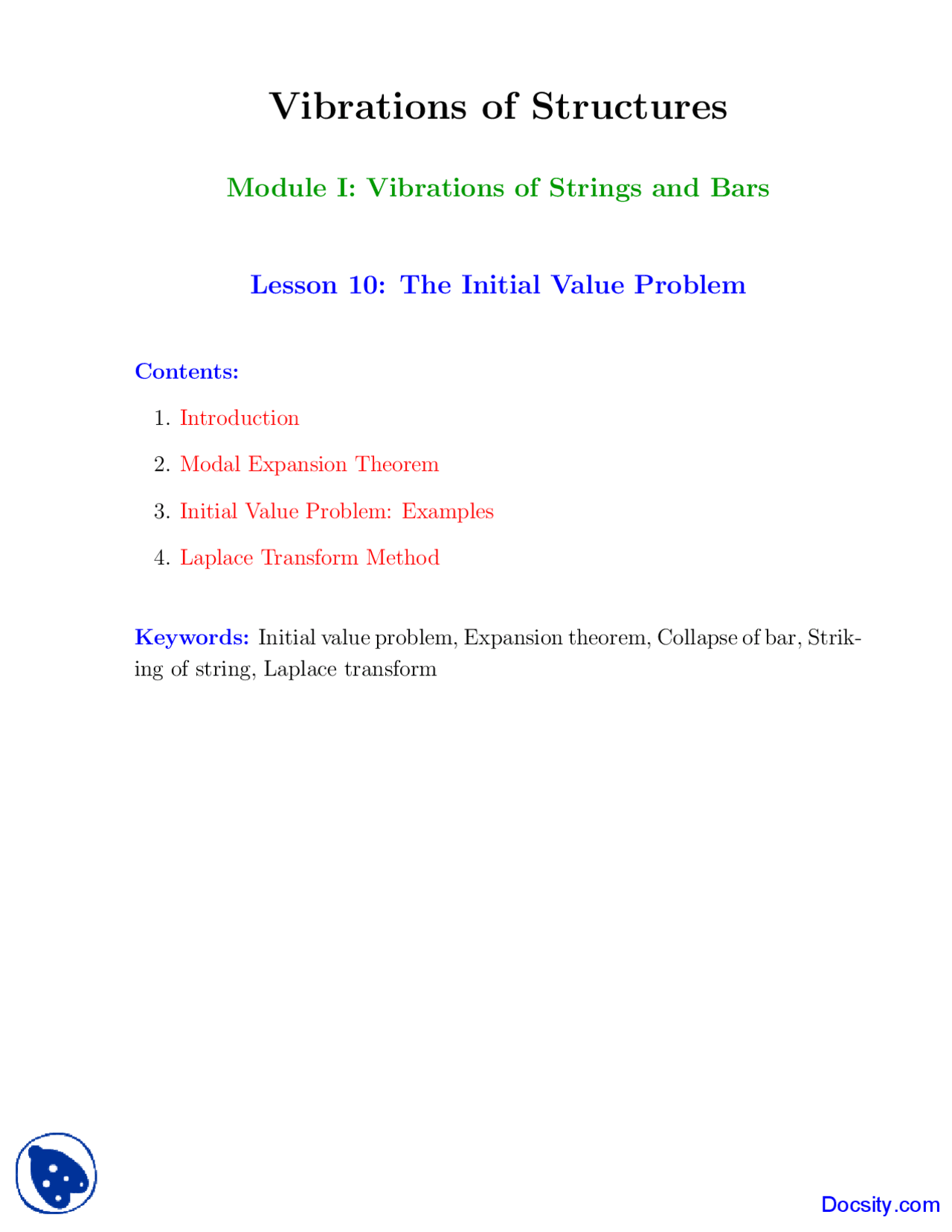

Contents:
Keywords: Initial value problem, Expansion theorem, Collapse of bar, Strik- ing of string, Laplace transform
The initial value problem concerns the determination of the evolution of a system given some initial displacement and velocity conditions. For self- adjoint systems, this problem may be conveniently approached using the modal expansion theorem. Another approach is using the Laplace transfor- mation.
Consider the free axial vibration problem of a bar with varying cross- section given by μ(x)u,tt + K[u] = 0 (1)
where μ(x) = ρA(x) and K = −[EA(x)(·),x],x. Assume a solution as an expansion in terms of the eigenfunctions in the form
u(x, t) =
k∑=∞ k=
pk(t)Uk(x), (2)
where pk(t) is the unknown modal coordinate, and Uk(x) are mutually orthog- onal eigenfunctions satisfying
K[Uk(x)] = ω k^2 μ(x)Uk(x), k = 1, 2 ,... , ∞. (3)
2
l
u(x, t)
x
ρ, A, E T
Figure 1: An axially stretched bar
of the string. The set of all eigenfunctions of the string is indeed a basis of the function space under consideration, and this follows from the self-adjointness of the differential operator K[·]. This statement is referred to as the expan- sion theorem.
Collapse of stretched bar: Consider a uniform bar stretched by a string under a tension T , as shown in Fig. 1. We will study the axial vibrations of the bar when the string suddenly snaps. The initial conditions are given by u(x, 0) = T x/EA and u,t(x, 0) =
Ck sin (2k^ − 2 l1) πx= (^) EAT x, ∑ k
Skωk sin (2k^ − 2 l1) πx= 0. (7)
The velocity condition implies Sk = 0 for all k. The coefficients CK can be determined by taking inner-product with sin(2k − 1)πx/ 2 l on both sides of 4
the displacement condtion. This gives
Ck = (^) (2k −^8 1)T l (^2) π (^2) EA sin (2k^ − 2 1)π
Thus, the complete solution is given by
u(x, t) =
k=
8 T l (2k − 1)^2 π^2 EA(−1)
(k−1) (^) cos ωkt sin (2k^ −^ 1)πx 2 l
The successive configurations of the bar at certain time instants are shown in Fig. 2.
A struck string: Consider a string struck in the middle which gives it an initial velocity profile in its initial equilibrium position (i.e., w(x, 0) = 0) given by
w,t(x, 0) = v 20
1 + cos 10π
(x l −^
, 25 ≤ x l ≤ (^35)
as shown in Fig. 3. Using these initial conditions, the constants of integration are obtained as Ck = 0 for all k, and
Sk = (^) lωv^0 k
∫ (^) l 0 sin^
kπx l
1 + cos 10π
(x l −^
dx
= (^100) πkωvk^0
(cos kπ − 1 k^2 − 100
, k = 1, 2 ,... , ∞.
It may be noted that Sk = 0 for all even values of k. The shapes of the string at certain selected time points are shown in Fig. 4.
5
1
1
w,t(x, 0)/v 0
x/l
Figure 3: Initial velocity profile of a struck string
The Laplace transform method is one of the standard methods of solving initial value problems. Consider the wave equation
w,tt − c^2 w,xx = 0, (8)
with homogeneous boundary conditions w(0, t) ≡ 0 and w(l, t) ≡ 0, and initial conditions w(x, 0) = w 0 (x), and w,t(x, 0) = v 0 (x). Taking the Laplace transform of both sides of (8) and the boundary conditions yields
w˜′′^ − s 2 c^2 w˜^ =^ −^
c^2 [sw^0 (x) +^ v^0 (x)]^ ,^ (9)
w˜(0, s) ≡ 0 , and w˜(l, s) ≡ 0 , (10)
where ˜w(x, s) represents the Laplace transform of w(x, t), and is defined as
w˜(x, s) =
0 w(x, t)e
−st (^) dt. (11) 7
1
1
1
1
1
1
t = 0. 05
t = 0. 25 l/c
t = 0. 5 l/c
t = 0. 75 l/c
t = 0. 95 l/c
t = 1. 05 l/c
πcw/v 0 l
πcw/v 0 l
πcw/v 0 l
πcw/v 0 l
πcw/v 0 l
πcw/v 0 l
x/l
x/l
x/l
x/l
x/l
x/l
Figure 4: Transverse vibrations of a struck string at selected times
