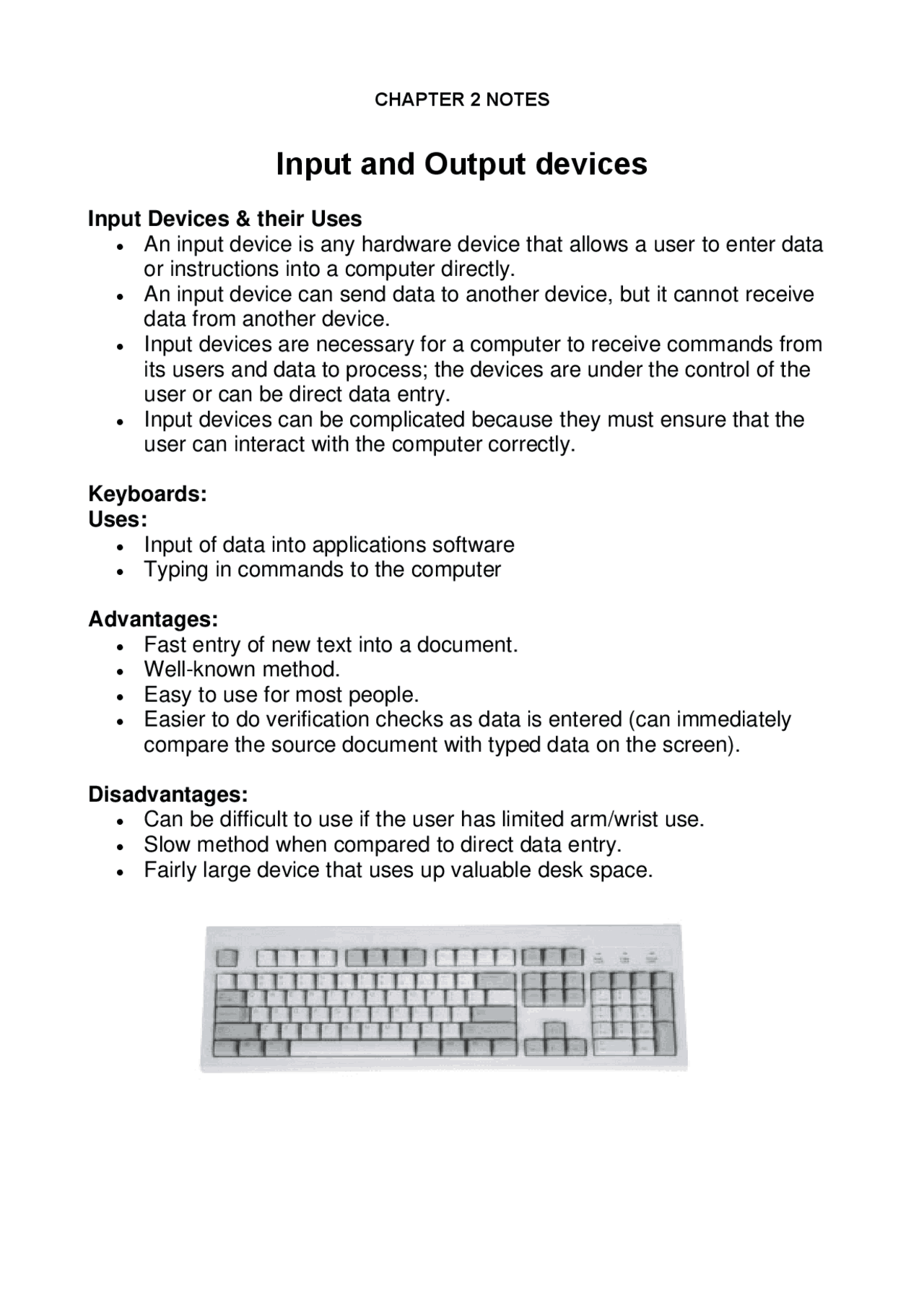

CHAPTER 2 NOTES
Input and Output devices
Input Devices & their Uses
• An input device is any hardware device that allows a user to enter data
or instructions into a computer directly.
• An input device can send data to another device, but it cannot receive
data from another device.
• Input devices are necessary for a computer to receive commands from
its users and data to process; the devices are under the control of the
user or can be direct data entry.
• Input devices can be complicated because they must ensure that the
user can interact with the computer correctly.
Keyboards:
Uses:
• Input of data into applications software
• Typing in commands to the computer
Advantages:
• Fast entry of new text into a document.
• Well-known method.
• Easy to use for most people.
• Easier to do verification checks as data is entered (can immediately
compare the source document with typed data on the screen).
Disadvantages:
• Can be difficult to use if the user has limited arm/wrist use.
• Slow method when compared to direct data entry.
• Fairly large device that uses up valuable desk space.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download Input and Output Devices: A Comprehensive Guide and more Lecture notes Electromechanical Systems and Devices in PDF only on Docsity!

CHAPTER 2 NOTES

Input and Output devices

Input Devices & their Uses

  • An input device is any hardware device that allows a user to enter data or instructions into a computer directly.
  • An input device can send data to another device, but it cannot receive data from another device.
  • Input devices are necessary for a computer to receive commands from its users and data to process; the devices are under the control of the user or can be direct data entry.
  • Input devices can be complicated because they must ensure that the user can interact with the computer correctly. Keyboards: Uses:
  • Input of data into applications software
  • Typing in commands to the computer Advantages:
  • Fast entry of new text into a document.
  • Well-known method.
  • Easy to use for most people.
  • Easier to do verification checks as data is entered (can immediately compare the source document with typed data on the screen). Disadvantages:
  • Can be difficult to use if the user has limited arm/wrist use.
  • Slow method when compared to direct data entry.
  • Fairly large device that uses up valuable desk space.

Numeric keypads: Uses:

  • Automatic teller machines (ATMs), where the customer can key in their PIN, amount of money, etc.
  • Mobile phones to allow phone numbers, etc. to be keyed in.
  • Point of sale terminals (POS) in case the barcode reader fails to read the barcode – the number has to be keyed in manually by the operator.
  • Chip and PIN devices when paying by credit/debit cards.
  • Fast entry of numeric data into a spreadsheet. Advantages:
  • Faster than standard keyboards when entering numeric data.
  • Because many are small devices, they are very easy to carry around. Disadvantages:
  • Sometimes have small keys which can make input more difficult.
  • Sometimes the order of the numbers on the keypad is not intuitive. Mouse: Uses:
  • opening, closing and minimizing software
  • grouping, moving and deleting files.
  • image editing, for example, controlling the size and position of a drawing pasted into a document.
  • controlling the position of a pointer on the screen to allow selection. Advantages:
  • Faster method for choosing an option rather than using a keyboard.
  • Very quick way of navigating through applications and the internet.
  • Does not need a large desk area when compared to a keyboard. Disadvantages:
  • Can be more difficult for people with restricted hand/wrist movement than using a keyboard for data entry.
  • Easy to damage, and the older type of mouse quickly becomes clogged up with dirt.
  • Difficult to use if no flat surface readily available. Touchpad:

Disadvantages:

  • Not supplied with the computer as standard, therefore more costly.
  • Users may need training because it is not standard equipment. Remote control: Uses:
  • Televisions, satellite systems, DVD/Blu-ray players and Hi-Fi systems, to alter controls such as volume, on/off etc.
  • Used to control multimedia systems.
  • Used in industrial applications to remotely control processes. Advantages:
  • Can be operated from any reasonable distance.
  • Safer in some conditions, e.g., in chemically hazardous environments, we can control and measure from safe distances. Disadvantages:
  • Difficult to use for people with limited hand/wrist movements.
  • The signal can easily be blocked by physical obstacles. Joysticks: Uses:
  • Used in video games.
  • Used in simulators, to mimic the actual controls. Advantages:
  • Easier than keyboards for screen navigation.
  • In some applications, the control is more realistic than using a mouse. Disadvantages:
  • The on-screen pointer is more difficult to use.

Driving wheel: Uses:

  • Used in video games, especially car racing games.
  • Used in simulators, to mimic actual vehicle controls. Advantages:
  • More realistic experience than both mouse and joystick.
  • Easier than a keyboard or joystick to control steering movements. Disadvantages:
  • Rather expensive input device as compared to a mouse or joystick.
  • Steering movements tend to be over-sensitive, which gives an unrealistic feel.
  • Unless it is an expensive simulator, feedback to steering wheel is non- existent. Touch screen (as an input device): Uses:
  • Automatic teller machines (ATMs) to choose from on-screen options.
  • Point of sale terminals such as in restaurants.
  • Interactive white boards in education.
  • Computer-based training (CBT) where answers are selected during on- screen testing. Advantages:
  • Faster entry of options than using keyboard or mouse.
  • Very easy method for choosing options.
  • User-friendly method – no training necessary in its use.
  • Option to expand the size of the display if necessary. Disadvantages:
  • Limited number of input options available.
  • Can lead to problems if an operator has to use the system frequently (straining of arm muscles, RSI, etc. are all possible).
  • The screen can get very dirty with constant touching. Scanners: Uses:
  • Scanning in documents and converting into different formats
  • Scanning in old documents to protect them, in case original is lost/damaged.
  • Scanning in photographs for storage
  • Scanning in barcodes at POS terminals.

Advantages:

  • Faster to read in text than it is to type it in.
  • Possible to manipulate sound in real time rather than working on a completed recording.
  • Improves security, if used as an authentication system. Disadvantages:
  • Sound files use up a lot of computer memory.
  • Reading in data is more error prone than typing in. Sensors: Uses:
  • Temperature sensors are used in automatic washing machines, central heating systems, ovens, automatic glasshouses.
  • Pressure sensors are used in intruder alarm systems, washing machines.
  • Light sensors are used in automatic glasshouses, automatic doors, street lighting control.
  • Sound/acoustic sensors are used in intruder alarm systems, monitoring liquid and powder flow in pipes.
  • Humidity/moisture sensors are used in automatic glasshouses, environmental monitoring, in factories where moisture levels are crucial.
  • pH sensors are used in automatic glasshouses, chemical processes and environmental monitoring. Advantages:
  • Readings are more accurate as compared to human operators.
  • Readers are continuous, no breaks in the monitoring.
  • Because it is a continuous process, any action or warnings needed will be initiated immediately.
  • Automatic systems don’t need human intervention. Disadvantages:
  • Faulty sensors can give spurious results.
  • Most sensors are analogue; therefore, they require conversion using Analogue to Digital Convertors. Light pens: Uses:
  • Selecting object on CRT screens
  • Drawing on screens

Advantages:

  • Greater accuracy than touch screens
  • Small, makes them portable as well as capable of being used in small spaces.
  • Easy-to-use technology. Disadvantages:
  • Lagging problems while drawing on screen.
  • Only works with CRT monitors.
  • Rather dated technology.
  • Easy to hack into the signal.
  • RFID is more expensive than a comparable barcode system. Optical Mark Reader/Recognition (OMR): Uses:
  • Used in MCQs checking.
  • Used in reading voting papers. Advantages:
  • Very fast way of inputting survey results.
  • More accurate because there is no human intervention.
  • More accurate than OCR methods. Disadvantages:
  • The designing of the forms can be complicated to make sure the marks are correctly positioned.
  • If there are problems, they need to be manually checked, which can be time-consuming. Optical Character Recognition/Reader: Uses:
  • Processing passports and identity cards.
  • Converting hard copy documents into electronic form.
  • Used in automatic number plate recognition (ANPR) systems.
  • Digitizing historic hard copies for archiving. Advantages:
  • Much faster data entry system than manual typing.
  • No human intervention, its error free. Disadvantages:
  • System has difficulty in reading different handwritings.
  • Still not a very accurate technique. Barcode readers: Uses:
  • Used in supermarkets for stock control.
  • In libraries, to keep track of books.
  • As a safety function to ensure checking of electrical equipment on a daily basis. Advantages:
  • Much faster than manually keying in data.
  • Allow automatic stock control.
  • They are a tried and trusted technology.

Disadvantages:

  • Relatively expensive system to administer.
  • Not fool-proof, barcodes can be swapped between items.
  • Can be more easily damaged than RFID tags or magnetic stripes. Quick response (QR) code scanner: Uses:
  • used in advertising to contain information about the advertising company.
  • Wi-Fi authentication
  • Used in restaurants, you can see the menu by scanning. Advantages:
  • hold much more information than normal barcode.
  • fewer errors than with barcodes.
  • QR codes are easier to read because they can even be read by the cameras on a smartphone.
  • It is possible to encrypt QR codes. Disadvantages:
  • More than one QR format is available.
  • QR codes can be used to transmit malicious data.

Disadvantages:

  • They tend to get dirty with frequent use.
  • Frequent use results in straining of arm muscles, RSI, etc.
  • If large amounts of data are being input/output, they aren’t very accurate, and the interface isn’t very fast. Multimedia projectors: Uses:
  • Training presentations to allow whole audience to see images.
  • Advertising presentations.
  • Home cinema systems. Advantages:
  • More people can watch as they don’t have to crowd around a laptop.
  • Avoids the need for several networked computers. Disadvantages:
  • Images can be fuzzy.
  • Expensive to buy.
  • Set-up can be complicated. Laser printers: Uses:
  • In uses where low noise is required.
  • If fast, high quality, high-volume printing is required. Advantages:
  • Printing is fast.
  • They can handle very large print jobs.
  • Quality is consistently high.
  • Toner cartridges last for a long time. Disadvantages:
  • They are only considerably fast if several copies are being made.
  • Color laser printers are expensive to run.
  • They produce ozone and volatile organic compounds because of their printing method and toner.

Inkjet printers: Uses:

  • Where low-output volumes are required.
  • Where high-quality printing is required for single pages. Advantages:
  • High-quality output
  • Cheaper than laser printers.
  • Very lightweight
  • Don’t produce ozone and volatile organic compounds. Disadvantages:
  • Slow output if many copies are needed.
  • Can’t do large print jobs.
  • Printing can smudge if user isn’t careful.
  • Can be expensive if used a lot. Dot matrix printers: Uses:
  • Used in environments where noise isn’t a major issue.
  • Carbon copies or multi-part outputs can be produced.
  • Widely used in till receipts. Advantages:
  • Can be used in varying environments unlike laser/inkjet printers.
  • Carbon copies or multi-part outputs can be produced.
  • Very cheap to run and maintain.
  • Good for continuous printing. Disadvantages:
  • Very noisy
  • Initial cost is more than an inkjet printer.
  • Very slow, poor-quality printing.

Speaker: Uses:

  • Used in all phones and most computers.
  • Helps visually impaired people.
  • Plays downloaded sound files. Advantages:
  • Amplified sounds can be much louder than the original sound.
  • Amplified sounds can be enough to be heard by a huge crowd.
  • Very simple technology.
  • They are especially useful for blind people, for instance, reading e-books. Disadvantages:
  • Speaker output can be disturbing to irrelevant people present in the same area, e.g., an office.
  • Sound quality is high only in expensive speakers.
  • They take up a lot of desk space. Actuators: Uses:
  • Used to turn on motors, buzzer, switches.
  • Allow a computer to control physical devices, Advantages:
  • Allow remote operation of many devices.
  • Relatively inexpensive devices. Disadvantages:
  • They are an addition device in the system that could go wrong.
  • As they are analogue devices, signals need to be converted using a DAC.
