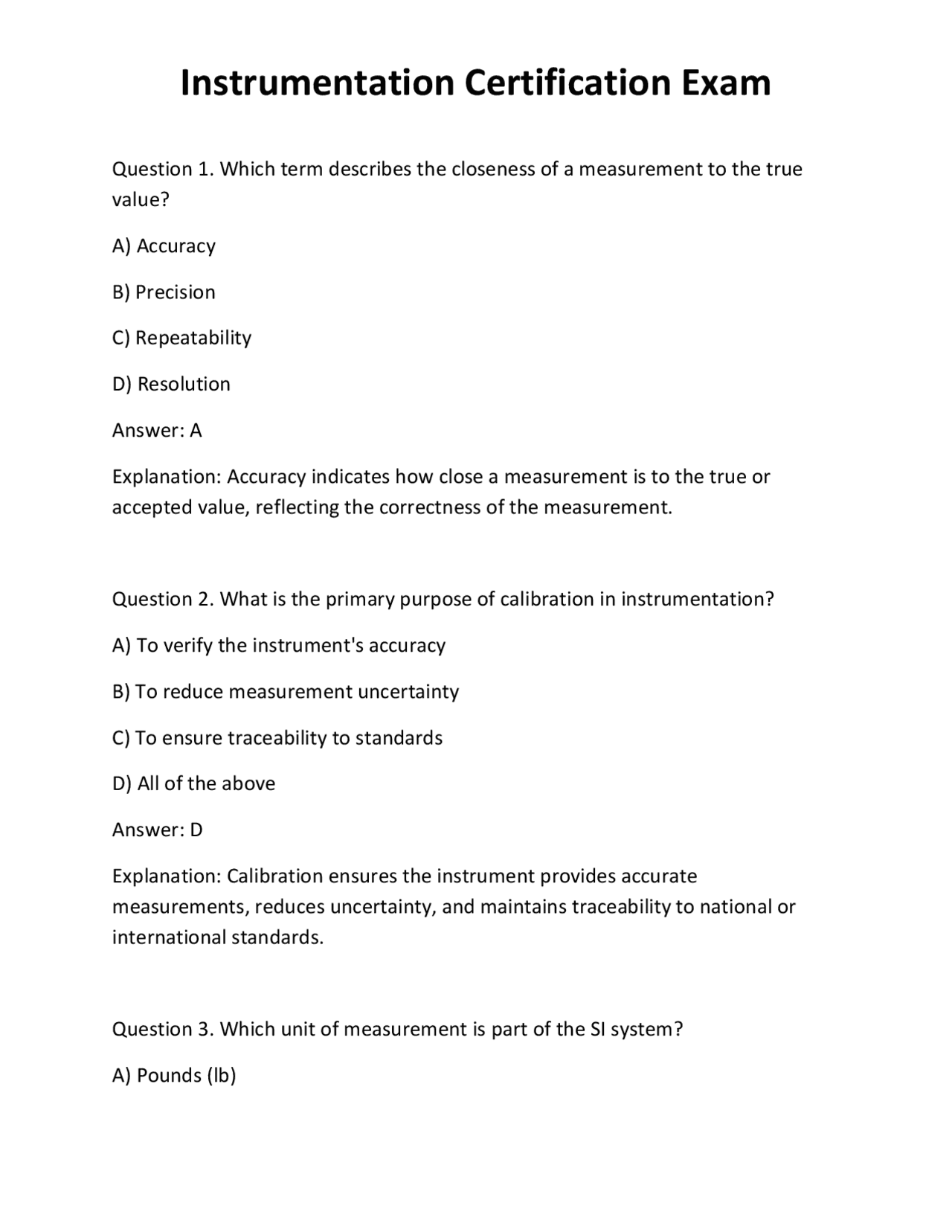

Question 1. Which term describes the closeness of a measurement to the true value? A) Accuracy B) Precision C) Repeatability D) Resolution Answer: A Explanation: Accuracy indicates how close a measurement is to the true or accepted value, reflecting the correctness of the measurement. Question 2. What is the primary purpose of calibration in instrumentation? A) To verify the instrument's accuracy B) To reduce measurement uncertainty C) To ensure traceability to standards D) All of the above Answer: D Explanation: Calibration ensures the instrument provides accurate measurements, reduces uncertainty, and maintains traceability to national or international standards. Question 3. Which unit of measurement is part of the SI system? A) Pounds (lb)
B) Kilogram (kg) C) Inches D) Fahrenheit (°F) Answer: B Explanation: The kilogram (kg) is the SI base unit for mass, whereas pounds and inches are imperial units, and Fahrenheit is a temperature scale outside SI. Question 4. Which type of error is characterized by a consistent deviation from the true value? A) Random error B) Systematic error C) Gross error D) Measurement noise Answer: B Explanation: Systematic errors cause consistent, repeatable deviations from the true value, often due to calibration issues or instrument bias. Question 5. Why is traceability important in calibration? A) It links measurements to recognized standards B) It ensures measurement consistency across different laboratories C) It provides confidence in measurement results D) All of the above
Question 8. Which type of signal conversion involves changing an analog signal to a digital signal? A) D/A conversion B) A/D conversion C) Amplification D) Filtering Answer: B Explanation: Analog-to-digital (A/D) conversion transforms an analog voltage or current into a digital signal suitable for digital processing. Question 9. Which temperature sensor type is most suitable for rapid response and high accuracy in industrial applications? A) Thermocouples B) RTDs C) Thermistors D) Bimetallic thermometers Answer: B Explanation: RTDs (Resistance Temperature Detectors) are known for high accuracy and stability, making them suitable for precise industrial temperature measurements.
Question 10. Which pressure measurement device uses a deformable element that changes shape under pressure? A) Bourdon tube B) Strain gauge C) Capacitive sensor D) Piezoelectric sensor Answer: A Explanation: Bourdon tubes deform elastically under pressure, and this deformation is used to measure pressure. Question 11. Which is an example of absolute pressure measurement? A) Measuring atmospheric pressure with a gauge B) Measuring vacuum pressure in a chamber C) Measuring differential pressure across a filter D) Measuring pressure relative to atmospheric pressure Answer: B Explanation: Absolute pressure is measured relative to a perfect vacuum, such as in a vacuum chamber. Question 12. Which principle underlies level measurement using a buoyant device? A) Hydrostatic pressure
Answer: D Explanation: Nuclear level sensors use radiation absorption to measure the level of materials, especially in hazardous or corrosive environments. Question 15. Which of the following is a key consideration when installing a temperature sensor in a process? A) Thermowell material compatibility B) Adequate immersion length C) Minimizing thermal gradients D) All of the above Answer: D Explanation: Proper installation involves thermowell material compatibility, correct immersion length, and minimizing thermal gradients to ensure accurate readings. Question 16. Which type of pressure sensor is most suitable for measuring very low pressures? A) Strain gauge B) Capacitive sensor C) Bourdon tube D) Diaphragm Answer: B
Explanation: Capacitive pressure sensors are highly sensitive and suitable for measuring low pressures with high accuracy. Question 17. Which sensor characteristic describes its ability to produce the same output under identical conditions over multiple measurements? A) Repeatability B) Reproducibility C) Sensitivity D) Linearity Answer: A Explanation: Repeatability refers to the sensor's ability to produce consistent results under the same conditions over multiple measurements. Question 18. Which type of control loop uses the current process output to adjust the control input? A) Open-loop B) Closed-loop C) Feedforward D) Override Answer: B Explanation: Closed-loop control uses feedback from the process output to adjust the control input, maintaining the desired process variable.
B) I/O module C) Power supply D) Programming port Answer: B Explanation: I/O modules interface with field devices, converting analog or digital signals into data processed by the PLC. Question 22. What is the primary function of a DCS in an industrial plant? A) Sequential control of individual devices B) Distributed data acquisition and process control C) Manual operation of control valves D) Data storage for laboratory experiments Answer: B Explanation: A DCS provides distributed control and data acquisition across multiple process areas, enabling centralized management. Question 23. Which component of a SCADA system is responsible for collecting data from field devices? A) RTU (Remote Terminal Unit) B) HMI (Human-Machine Interface) C) Master terminal unit (MTU) D) PLC (Programmable Logic Controller)
Answer: A Explanation: RTUs gather data from sensors and field devices and transmit it to the SCADA master system. Question 24. Which type of control valve component modulates flow based on the position of the valve plug or disc? A) Body B) Trim C) Actuator D) Positioner Answer: B Explanation: The trim includes the plug or disc that physically modulates flow within the valve body. Question 25. Which characteristic of a control valve describes the relation between valve opening and flow rate? A) Linearity B) Flow characteristic C) Hysteresis D) Dead band Answer: B Explanation: The flow characteristic describes how flow rate varies with valve opening, such as linear or equal percentage.
A) Frequency converter B) Actuator C) Thermostat D) Relay Answer: A Explanation: VSDs, or variable frequency drives, modulate the power frequency supplied to the motor, controlling speed and flow. Question 29. Which is a common type of damper used for airflow regulation? A) Butterfly damper B) Globe valve C) Diaphragm valve D) Ball valve Answer: A Explanation: Butterfly dampers are widely used for modulating airflow due to their simple design and quick response. Question 30. Which instrument is used to heat or cool a process fluid in industry? A) Control valve B) Heater or cooler element C) Solenoid valve D) Variable speed drive
Answer: B Explanation: Heaters and cooling elements regulate temperature by adding or removing heat from the process fluid. Question 31. Which protocol is commonly used for serial communication in industrial control systems? A) Ethernet B) RS- 232 C) Wi-Fi D) Bluetooth Answer: B Explanation: RS-232 is a standard serial communication protocol widely used for point-to-point communication in industrial systems. Question 32. Which network topology connects all devices to a single shared communication line? A) Star B) Bus C) Ring D) Mesh Answer: B Explanation: The bus topology connects all devices to a common communication line, sharing bandwidth among them.
A) Thermocouple B) RTD C) Infrared pyrometer D) Thermistor Answer: C Explanation: Infrared pyrometers measure temperature by detecting the thermal radiation emitted by an object. Question 36. Which term describes the maximum and minimum values a measurement instrument can accurately measure? A) Range B) Span C) Resolution D) Uncertainty Answer: B Explanation: The span of an instrument is the difference between its maximum and minimum measurable values. Question 37. Which is a common method for reducing electrical noise in signal conditioning? A) Amplification B) Filtering
C) Impedance matching D) Signal conversion Answer: B Explanation: Filtering removes unwanted noise components from signals, improving measurement accuracy. Question 38. Which temperature sensor is based on changes in electrical resistance with temperature? A) Thermocouple B) RTD C) Thermistor D) Infrared sensor Answer: B Explanation: RTDs operate on the principle that resistance changes predictably with temperature, allowing precise measurement. Question 39. Which type of pressure sensor uses a diaphragm that deflects under pressure and changes capacitance? A) Strain gauge sensor B) Capacitive sensor C) Piezoelectric sensor D) Bourdon tube
Question 42. Which analytical parameter is measured with a Clark-type electrode? A) pH B) Dissolved oxygen C) Conductivity D) Turbidity Answer: B Explanation: Clark electrodes are used for dissolved oxygen measurement in water and biological samples. Question 43. Which sensor characteristic indicates the ability to detect small changes but may be influenced by hysteresis? A) Sensitivity B) Resolution C) Linearity D) Hysteresis Answer: D Explanation: Hysteresis refers to the difference in output when a variable is increasing versus decreasing, affecting repeatability. Question 44. Which control mode maintains a process variable at a setpoint by adjusting the control input proportionally?
A) On-Off B) Proportional (P) C) Integral (I) D) Derivative (D) Answer: B Explanation: The proportional mode adjusts the control output proportionally to the current error, providing continuous control. Question 45. Which tuning method involves setting the controller gain and reset time based on process reaction curves? A) Trial and error B) Ziegler-Nichols C) Cohen-Coon method D) Process reaction curve method Answer: D Explanation: The Cohen-Coon method uses process reaction curves to determine tuning parameters systematically. Question 46. Which component in a PLC ladder diagram represents a logical AND operation? A) Coil B) Contact
