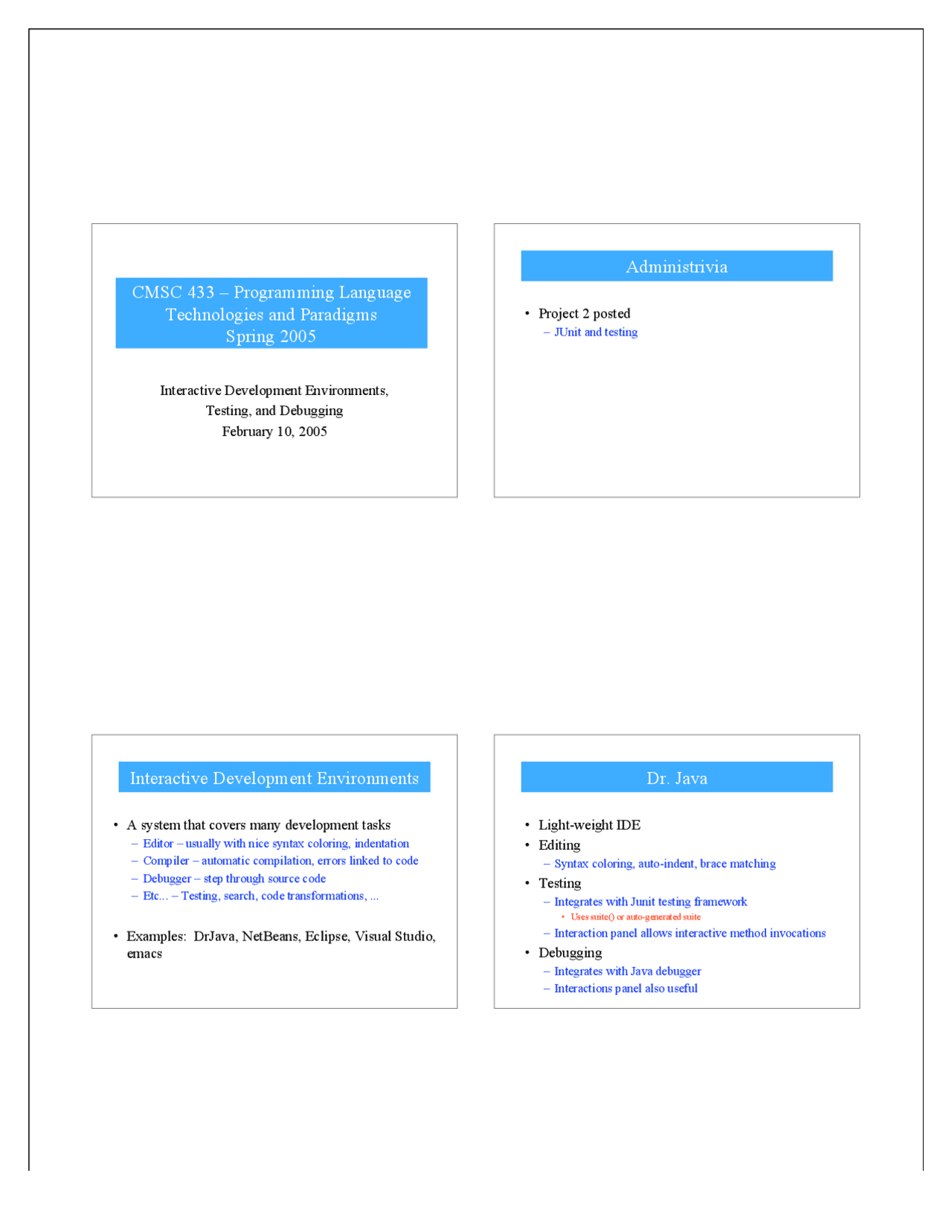

bg1
CMSC 433 – Programming Language
Technologies and Paradigms
Spring 2005
Interactive Development Environments,
Testing, and Debugging
February 10, 2005
Administrivia
• Project 2 posted
– JUnit and testing
Interactive Development Environments
• A system that covers many development tasks
– Editor – usually with nice syntax coloring, indentation
– Compiler – automatic compilation, errors linked to code
– Debugger – step through source code
– Etc... – Testing, search, code transformations, ...
• Examples: DrJava, NetBeans, Eclipse, Visual Studio,
emacs
Dr. Java
• Light-weight IDE
• Editing
– Syntax coloring, auto-indent, brace matching
• Testing
– Integrates with Junit testing framework
• Uses suite() or auto-generated suite
– Interaction panel allows interactive method invocations
• Debugging
– Integrates with Java debugger
– Interactions panel also useful
pf3
pf4
pf5
pf8
pf9

Partial preview of the text

Download Interactive Programming: Language Technologies and Paradigms for Testing and Debugging and more Study Guides, Projects, Research Programming Languages in PDF only on Docsity!

CMSC 433 – Programming Language

Technologies and Paradigms

Spring 2005

Interactive Development Environments,

Testing, and Debugging

February 10, 2005

Administrivia

• Project 2 posted

– JUnit and testing

Interactive Development Environments

• A system that covers many development tasks

– Editor – usually with nice syntax coloring, indentation

– Compiler – automatic compilation, errors linked to code

– Debugger – step through source code

– Etc... – Testing, search, code transformations, ...

• Examples: DrJava, NetBeans, Eclipse, Visual Studio,

emacs

Dr. Java

• Light-weight IDE

• Editing

– Syntax coloring, auto-indent, brace matching

• Testing

– Integrates with Junit testing framework

  • Uses suite() or auto-generated suite

– Interaction panel allows interactive method invocations

• Debugging

– Integrates with Java debugger

– Interactions panel also useful

Debugging

• My program doesn’t work: why?

• Use the scientific method:

– Study the data

  • Some tests work, some don’t

– Hypothesize what could be wrong

– Run experiments to check your hypotheses

  • Testing!

– Iterate

Starting to Debug

• What are the symptoms of the misbehavior?

– Input/output

– Stack trace (from thrown exception)

• Where did the program fail?

• What could have led to this failure?

• Test possible causes, narrow down the problem

Checking that Properties Hold

• Print statements

– Check whether values are correct

  • E.g., look at value of i to check if i > 0

– Check whether control-flow is correct

  • E.g., see if f() is called after g()

• Automatic debugger

– Allows you to step through the program interactively

– Verify expected properties

  • Don’t need to put in print statements and recompile

– Use as part of testing

Eclipse’s Automatic Debugger

• Set execution breakpoints

• Step through execution

– into , over , and out of method calls

• Examine the stack

• Examine variable contents

• Set watchpoints

– Notified when variable contents change

CMSC 433 – Programming Language

Technologies and Paradigms

Spring 2005

Abstraction and Parametric Polymorphism

February 10, 2005

Data Abstraction

• Data abstraction = objects + operations

– List + { addFirst, addLast, removeFirst, ... }

– Set + { add, contains, ...}

• Categories of operations

– Constructors (creators/producers)

– Mutators

– Observers

Abstraction Function

• Specification for data structure is abstract

• Implementation of data structure is concrete

• How do you know if implementation meets the

spec?

• Abstraction function : concrete abstract

– Relates implementation to abstraction

Example

class IntSet { int[] elts; ... }

– AF(s) = { s.elts[i] | 0 <= i <= elts.length }

• You always need an abstraction function when

you build a data abstraction

– Often it’s implicit

Representation Invariant(s)

• Properties of data structure that must always hold

– After the constructor has finished

– Before and after each operation

class IntSet { // rep inv: elts contains no duplicates int[] elts; ... }

• Part of the (internal) specification

Implementing the Rep Invariant

• Interesting idea: Write a function to check the rep

public boolean repOK() { ...check for duplicates in elts... }

• Where can you use this?

– Can add wherever you expect rep to hold

– Can call during unit testing

• Cost?

Exposing the Rep

• Be careful of exposing the representation

class IntSet { int[] elts; int[] getElements () { return elts; } }

• What’s the problem?

– Other people may rely on implementation details

– Clients may violate the rep invariant

Polymorphism

• Recall that B is a subtype of A if, everywhere you

expect an A, you can accept a B

– Subtypes come from subclassing with extends

– Subtypes come from interfaces with implements

• This is a kind of type polymorphism

– Methods can accept objects of many types, not just one

– This is usually called subtype polymorphism

General Problem

• When we move from an X container to an Object

container

– Methods that take X’s as input parameters are OK

  • If you’re allowed to pass Object in, you can pass any X in

– Methods that return X’s as results require downcasts

  • You only get Objects out, which you need to cast down to X

• This is a general feature of subtype polymorphism

Parametric Polymorphism (for Classes)

• Idea: We can parameterize the Stack class by its

element type

• Syntax:

– Class declaration: class A { ... }

  • A is the class name, as before
  • T is a type variable , can be used in body of class (...)

– Client usage declaration: A x;

  • We instantiate A with the Integer type

Parametric Polymorphism for Stack

class Stack { class Entry { Element elt; Entry next; Entry(Element i, Entry n) { elt = i; next = n; } } Entry theStack; void push(Element i) { theStack = new Entry(i, theStack); } Element pop() throws EmptyStackException { if (theStack == null) throw new EmptyStackException(); else { Element i = theStack.elt; theStack = theStack.next; return i; }}}

Stack Client

Stack is = new Stack(); Integer i; is.push(new Integer(3)); is.push(new Integer(4)); i = is.pop();

• No downcasts

• Type-checked at compile time

• No need to duplicate Stack code for every usage

Parametric Polymorphism for Procedures

• String is a subtype of Object

1. static Object id(Object x) { return x; }

2. static Object id(String x) { return x; }

3. static String id(Object x) { return x; }

4. static String id(String x) { return x; }

• Can’t pass an Object to 2 or 4

• 3 doesn’t type check

• Can pass a String to 1 but you get an Object out

Parametric Polymorphism, Again

• Observation: id() doesn’t care about the type of x

– It works for any type

• So parameterize the static method :

static T id(T x) { return x; }

Integer i = id(new Integer(3)); // Notice no need to

// instantiate id; compiler

// figures it out

Summary: Kinds of Polymorphism

• Subtype polymorphism

– Use subtype wherever supertype allowed

• Parametric polymorphism

– When classes/methods work for any type; uses type

variables

• Ad-hoc polymorphism

– Overloading in Java

Parametric Polymorphism in Java

• Part of Java 1.5 (called “generics”)

– Available now

– Comes with replacement for java.util.*

  • class LinkedList { ...}
  • class HashMap { ... }
  • interface Collection { ... }

• Available on linuxlab

– In directory /usr/local/j2sdk1.5.

  • Run /usr/local/j2sdk1.5.0/bin/javac to compile
  • Run /usr/local/j2sdk1.5.0/bin/java to execute
  • API at http://java.sun.com/j2se/1.5.0/docs/api
