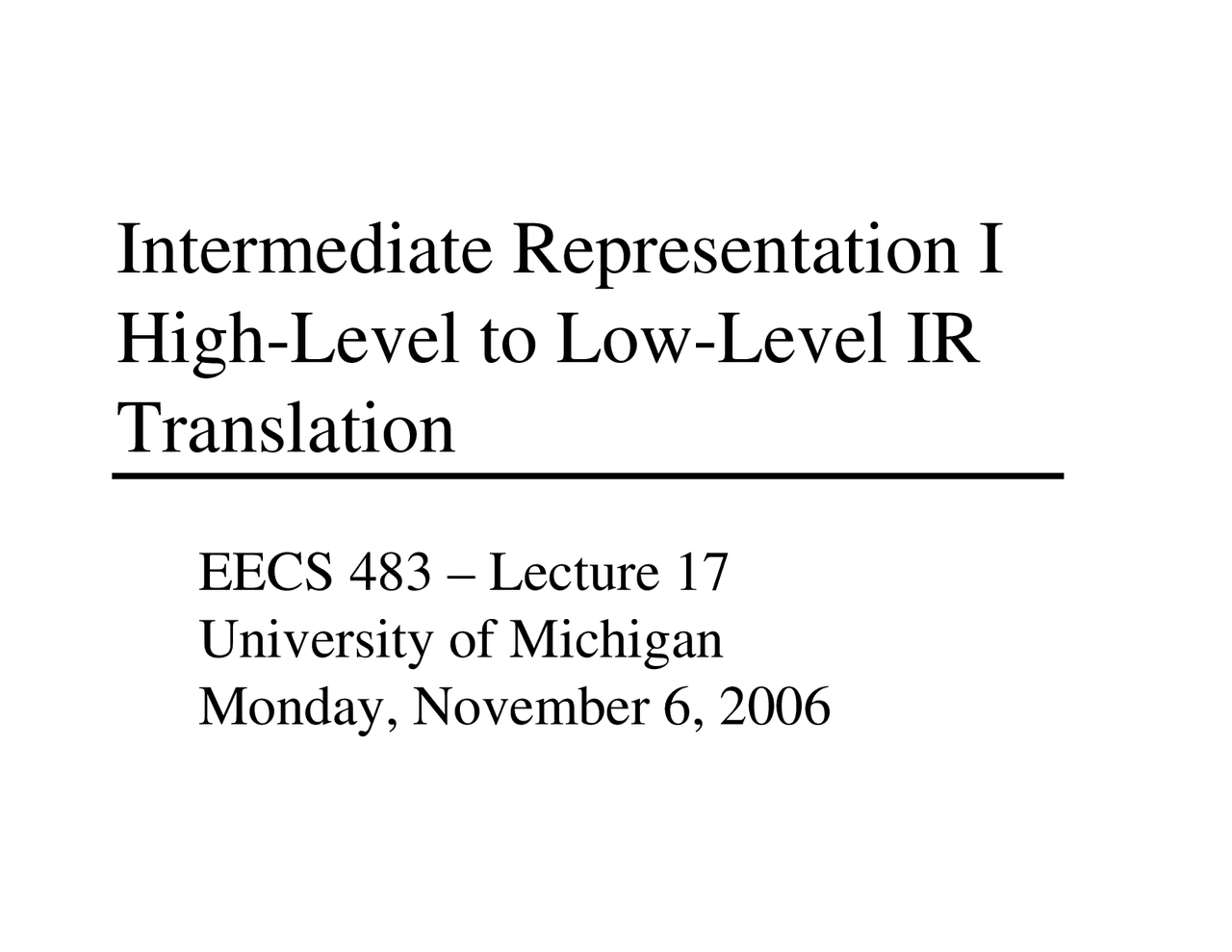

Intermediate Representation I High-Level to Low-Level IR Translation

EECS 483 – Lecture 17 University of Michigan Monday, November 6, 2006

• 1 -

Where We Are...

Lexical Analysis^ Syntax Analysis Semantic Analysis Intermediate Code Gen

Source code(character stream)

token stream abstract syntax

tree

abstract syntax^ tree + symbol

tables, types

Intermediate code

regular expressions grammars static semantics

• 3 -

What Makes a Good IR?

Captures high-level language constructs

» Easy to translate from AST » Supports high-level optimizations

Captures low-level machine features

» Easy to translate to assembly » Supports machine-dependent optimizations

Narrow interface: small number of nodetypes (instructions)

» Easy to optimize » Easy to retarget

• 4 -

Multiple IRs

™

Most compilers use 2 IRs:

» High-level IR (HIR): Language independent but closer

to the language » Low-level IR (LIR): Machine independent but closer

to the machine » A significant part of the compiler is both language and

machine independent!

AST

HIR

Pentium Java bytecode Itanium TI C5x ARM

optimize

LIR

optimize

optimize

C++C

Fortran

• 6 -

Low-Level IR

A set of instructions which emulates anabstract machine (typically RISC)

Has low-level constructs

» Unstructured jumps, registers, memory

locations

Types of instructions

» Arithmetic/logic (a = b OP c), unary

operations, data movement (move, load,store), function call/return, branches

• 7 -

Alternatives for LIR

3 general alternatives

» Three-address code or quadruples

y^

a = b OP c y^

Advantage: Makes compiler analysis/opti easier

» Tree representation

y^

Was popular for CISC architectures y^

Advantage: Easier to generate machine code

» Stack machine

y^

Like Java bytecode y^

Advantage: Easier to generate from AST

• 9 -

IR Instructions

™

Assignment instructions^ »

a = b OP C (binary op)^ y

arithmetic: ADD, SUB,MUL, DIV, MOD y logic: AND, OR, XOR y comparisons: EQ, NEQ,LT, GT, LEQ, GEQ

»^

a = OP b (unary op)^ y

arithmetic MINUS,logical NEG

»^

a = b : copy instruction »^

a = [b] : load instruction »^

[a] = b : store instruction »^

a = addr b: symbolicaddress

™

Flow of control^ »

label L: label instruction »^

jump L: unconditional jump »^

cjump a L : conditional jump

™

Function call^ »

call f(a1, ..., an) »^

a = call f(a1, ..., an)

™

IR describes the instructionset of an abstract machine

• 10 -

IR Operands

The operands in 3-address code can be:

» Program variables » Constants or literals » Temporary variables

Temporary variables = new locations

» Used to store intermediate values » Needed because 3-address code not as

expressive as high-level languages

• 12 -

Translating High IR to Low IR

May have nested language constructs

» E.g., while nested within an if statement

Need an algorithmic way to translate

» Strategy for each high IR construct » High IR construct

Æ

sequence of low IR

instructions

Solution

» Start from the high IR (AST like) representation » Define translation for each node in high IR » Recursively translate nodes

• 13 -

Notation

™

Use the following notation:

» [[e]] = the low IR representation of high IR construct e

™

[[e]] is a sequence of low IR instructions

™

If e is an expression (or statement expression), itrepresents a value

» Denoted as: t = [[e]] » Low IR representation of e whose result value is

stored in t

™

For variable v: t = [[v]] is the copy instruction

» t = v

• 15 -

Translating Array Accesses

Array access: t = [[ v[e] ]]

» (type of e is array [T] and S = size of T)

t1 = addr v t2 = [[e]] t3 = t2 * S t4 = t1 + t3 t = [t4]

/* ie load */

array v

e

• 16 -

Translating Structure Accesses

Structure access: t = [[ v.f ]]

» (v is of type T, S = offset of f in T)

t1 = addr v t2 = t1 + S t = [t2]

/* ie load */

struct v

f

• 18 -

Class Problem

Short-circuit AND: t = [[e1 SC-AND e2]]

» e.g., && operator in C/C++

Semantics:

1. Evaluate e1 2. if e1 is true,

then evaluate e

3. else done

• 19 -

Translating Statements

Statement sequence: [[s1; s2; ...; sN]]

IR instructions of a statement sequence =concatenation of IR instructions ofstatements

[[ s1 ]] [[ s2 ]] ... [[ sN ]]

seq

s

s

sN
