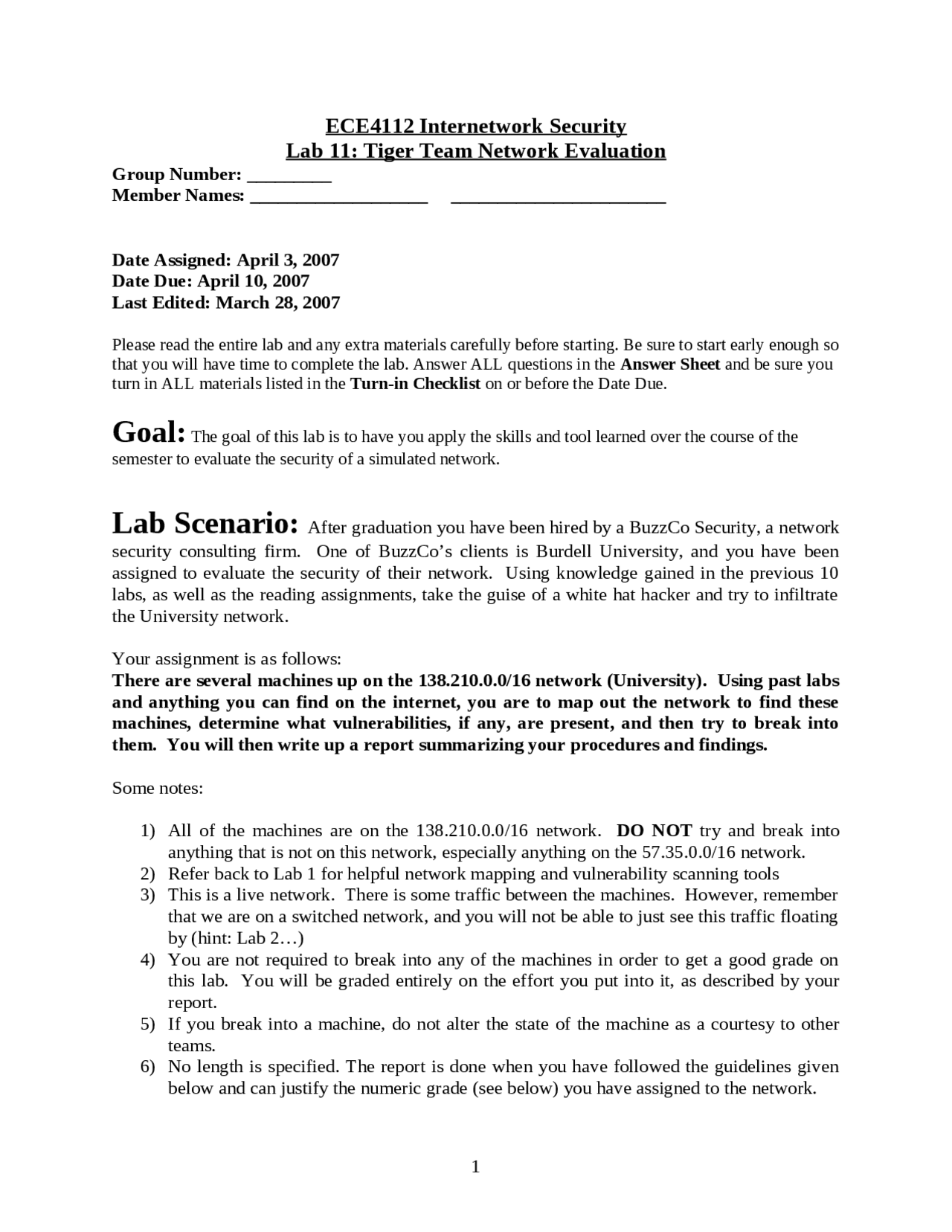

ECE4112 Internetwork Security
Lab 11: Tiger Team Network Evaluation
Group Number: _________
Member Names: ___________________ _______________________
Date Assigned: April 3, 2007
Date Due: April 10, 2007
Last Edited: March 28, 2007
Please read the entire lab and any extra materials carefully before starting. Be sure to start early enough so
that you will have time to complete the lab. Answer ALL questions in the Answer Sheet and be sure you
turn in ALL materials listed in the Turn-in Checklist on or before the Date Due.
Goal: The goal of this lab is to have you apply the skills and tool learned over the course of the
semester to evaluate the security of a simulated network.
Lab Scenario: After graduation you have been hired by a BuzzCo Security, a network
security consulting firm. One of BuzzCo’s clients is Burdell University, and you have been
assigned to evaluate the security of their network. Using knowledge gained in the previous 10
labs, as well as the reading assignments, take the guise of a white hat hacker and try to infiltrate
the University network.
Your assignment is as follows:
There are several machines up on the 138.210.0.0/16 network (University). Using past labs
and anything you can find on the internet, you are to map out the network to find these
machines, determine what vulnerabilities, if any, are present, and then try to break into
them. You will then write up a report summarizing your procedures and findings.
Some notes:
1) All of the machines are on the 138.210.0.0/16 network. DO NOT try and break into
anything that is not on this network, especially anything on the 57.35.0.0/16 network.
2) Refer back to Lab 1 for helpful network mapping and vulnerability scanning tools
3) This is a live network. There is some traffic between the machines. However, remember
that we are on a switched network, and you will not be able to just see this traffic floating
by (hint: Lab 2…)
4) You are not required to break into any of the machines in order to get a good grade on
this lab. You will be graded entirely on the effort you put into it, as described by your
report.
5) If you break into a machine, do not alter the state of the machine as a courtesy to other
teams.
6) No length is specified. The report is done when you have followed the guidelines given
below and can justify the numeric grade (see below) you have assigned to the network.
