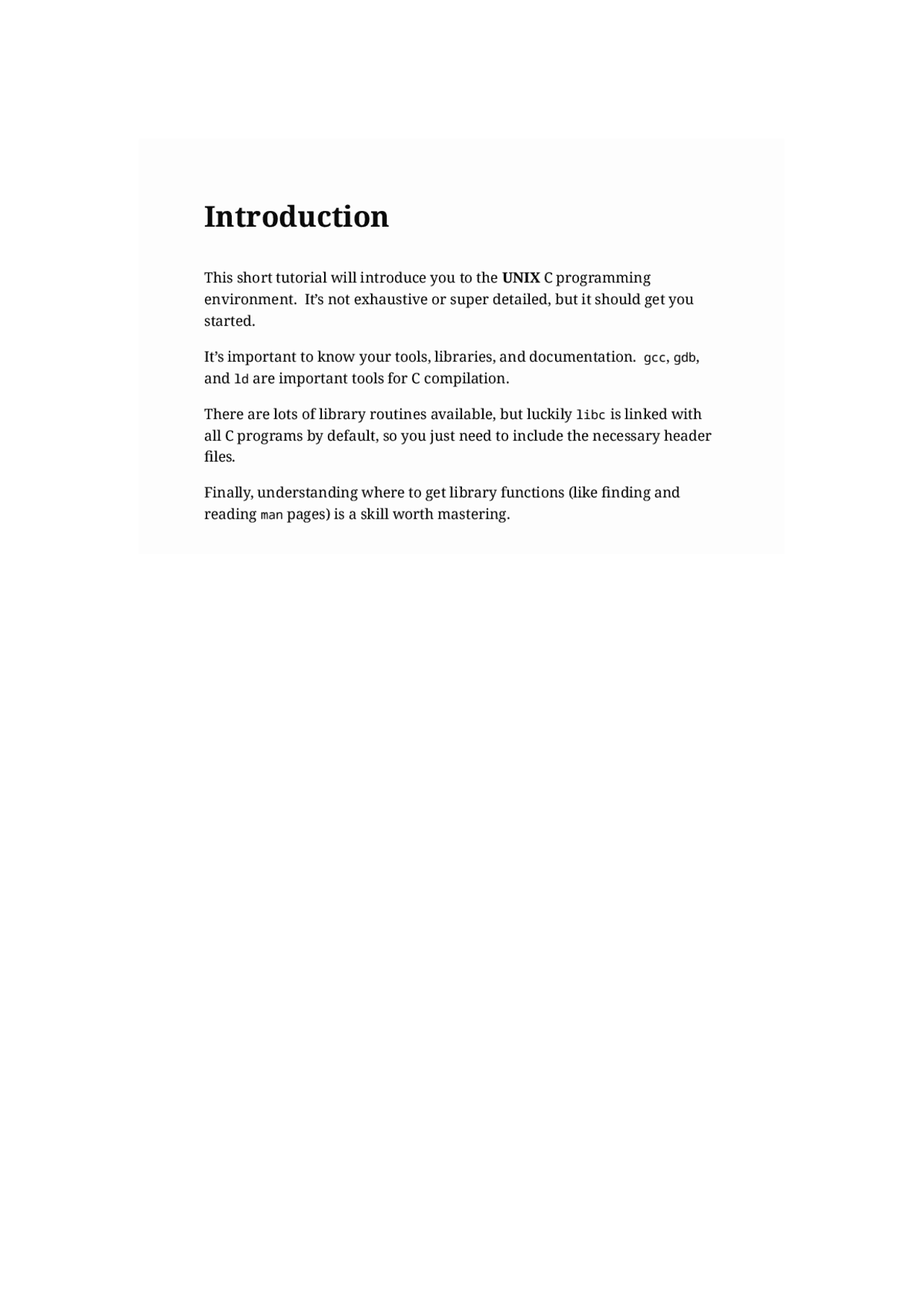

Introduction
This short tutorial will introduce you to the UNIX C programming environment. It’s not exhaustive or super detailed, but it should get you started. It’s important to know your tools, libraries, and documentation. gcc, gdb, and ld are important tools for C compilation. There are lots of library routines available, but luckily libc is linked with all C programs by default, so you just need to include the necessary header files. Finally, understanding where to get library functions (like finding and reading man pages) is a skill worth mastering.
A Simple C Program
Let’s start with a simple C program (hw.c). Unlike in Java, there is no connection between the file name and the file content, so use common sense when naming files. The first line specifies an included file, in this case stdio.h, which “prototypes” many common input/output methods, including printf(). Using the #include directive tells the C preprocessor (cpp) to look for a certain file (e.g., stdio.h) and insert it straight into your code. By default, cpp searches your current directory for the file.Type pwd in the terminal to show your current directory position. The next section specifies the main() routine’s signature, notably that it returns an integer (int) and that it will be called with two arguments.
- argc is an integer representing the number of arguments on the command line
- argv is an array of character pointers containing words from the command line, the last of which is null. It then writes “hello, world” and advances the output stream to the next line, thanks to the backslash followed by a “n” after the printf() call. The program then returns a value to the shell that ran it. In the csh and tcsh shells, this value is saved in the status variable to see if the program exited cleanly or with an error.
Useful Flags
Before going on to C, let’s review some useful gcc compilation settings. gcc -o hw hw.c # -o: to specify the executable name gcc -Wall hw.c # -Wall: gives much better warnings gcc -g hw.c # -g: to enable debugging with gdb gcc -O hw.c # -O: to turn on optimization You can mix and match these flags (e.g., gcc -o hw -g -Wall hw.c). Use -Wall, which provides you a lot more warnings about possible problems. Don’t ignore the warnings! Instead, correct them and let them go.
Linking with Libraries
Your program may need to use a library routine. Because the C library contains so many routines, finding the proper #include file is usually easy. The manual pages (or man pages) are the best way to do this. Assume you want to use the fork() system call. At the shell prompt, type man fork to see a text description of fork(). A little code snippet at the top will tell you which files to #include in your application to make it compile. For fork(), you must #include the file unistd.h as follows: #include Some library routines aren’t in the C library, so you’ll have to do some extra work. For example, the math library provides handy sine, cosine, and tangent routines. If you wish to use tan() in your code, read the man page first. The top of the Linux man page for tan reads: #include ... Link with -lm. The first line says — you need to #include the math library (/usr/include/math.h). The next line, however, tells you how to “link” your software with the math library. Many useful libraries reside in /usr/lib, including the math library.
Separate Compilation
If a program becomes large enough, it may be split into different files, compiled individually, and linked together. For example, you want to compile hw.c and helper.c separately, then link them together.
we are using -Wall for warnings, -O for optimization
> gcc -Wall -O -c hw.c > gcc -Wall -O -c helper.c > gcc -o hw hw.o helper.o -lm The -c flag tells the compiler to produce object files, in this case, hw.o and helper.o. Each of these files is a machine-level version of the code contained in a source file. To make an executable, you have to “link” the object files. We’ve done this on the last command above (gcc -o hw hw.o helper.o). Because the input files are object files (.o), gcc skips the last step and uses the link-editor ld to link them together into a single executable. This line is often referred to as the “link line” because it is where link-specific instructions like -lm are specified. Similarly, build-only flags like -Wall and -O need only be put on compile lines, not link lines. You could specify all the C source files in a single line (gcc -Wall -O -o hw hw.c helper.c), but this needs the system to recompile each file, which takes a lot of time. Compiling each one separately saves time and increases productivity by just re-compiling files that have changed during editing. This process is best managed by another program, make.
Makefiles
Make is a powerful tool that automates most of the build process. Let’s examine a simple example saved in a Makefile file.
Building with make
To build your program, type make on the command line. make This will default to looking for Makefile or makefile as input. Most of these notes are from the gmake info page; check the Documentation section to see how to find them. gmake and make are identical on Linux systems. Makefiles use rules to decide what needs to be done. A rule’s general form: target: prerequisite1 prerequisite ... command command ... Target - The name of a command-generated file, such as an executable or object file. A target can also be an action name, like “clean” in our example. Prerequisite - This file is used to create the target. A target often requires multiple files. To generate the executable hw, we need to build two object files first: hw.o and helper.o. Command - An action that make carries out. A rule may include several commands on separate lines. Every command line must start with a tab character! If you merely put spaces, make will terminate with an unclear error message.
How it works
When make is run, it goes like this:
- When it gets to the target hw, it finds it needs two prerequisites, hw.o and helper.o, to create it. hw relies on those two object files.
- Then, Make will evaluate each target. Examining hw.o reveals it depends on hw.c.
Why Makefiles?
makefiles may seem cumbersome but fortunately, there are many shortcuts that make it easier to use. For example, the makefile to the left does the same thing but is more user friendly. This makefile can make your life a little easier.
- The SRCS variable at the top of the makefile, for example, allows you to easily add additional source files to your build.
- Change the TARG line to change the executable name, compiler, flags, and library specifications.
- Finally, figuring out a target’s prerequisites isn’t always easy, especially in large programs. Another program called makedepend helps with this.
Debugging
Even with a strong build environment and a correctly compiled program, your program may be buggy. Fortunately, gdb, the GNU debugger, can help. Let’s take the following buggy code, saved in buggy.c, and compiled into the executable buggy. In this case, the main program dereferences the NULL variable p, causing a segmentation fault. This problem may be easy to find, but in a more complex application, it may not be. Recompile your software with the -g flag on each compile line to prepare for debugging. This adds extra debugging information to your executable for debugging. Also, don’t use optimization (-O). It may work, but it may also cause issues when debugging. You can use the debugger after recompiling with -g. Run gdb as follows: gdb buggy This launches an interactive debugger session. Once inside, you may see something like: GNU gdb ... Copyright 2008 Free Software Foundation, Inc. (gdb) The first step is to run the program. Simply type run at the gdb command prompt. You might see something similar to: Starting program: buggy Program received signal SIGSEGV, Segmentation fault. 0x8048433 in main (argc=1, argv=0xbffff844) at buggy.c: 19 printf("%d\n", p->x); A “segmentation fault” was generated at the line where we tried to dereference p, according to gdb. This just means we accessed memory we shouldn’t have. If you weren’t sure what was going on, you may look into some variables. gdb lets you to do this interactively during the debug session. Type print p in the gdb command line.
