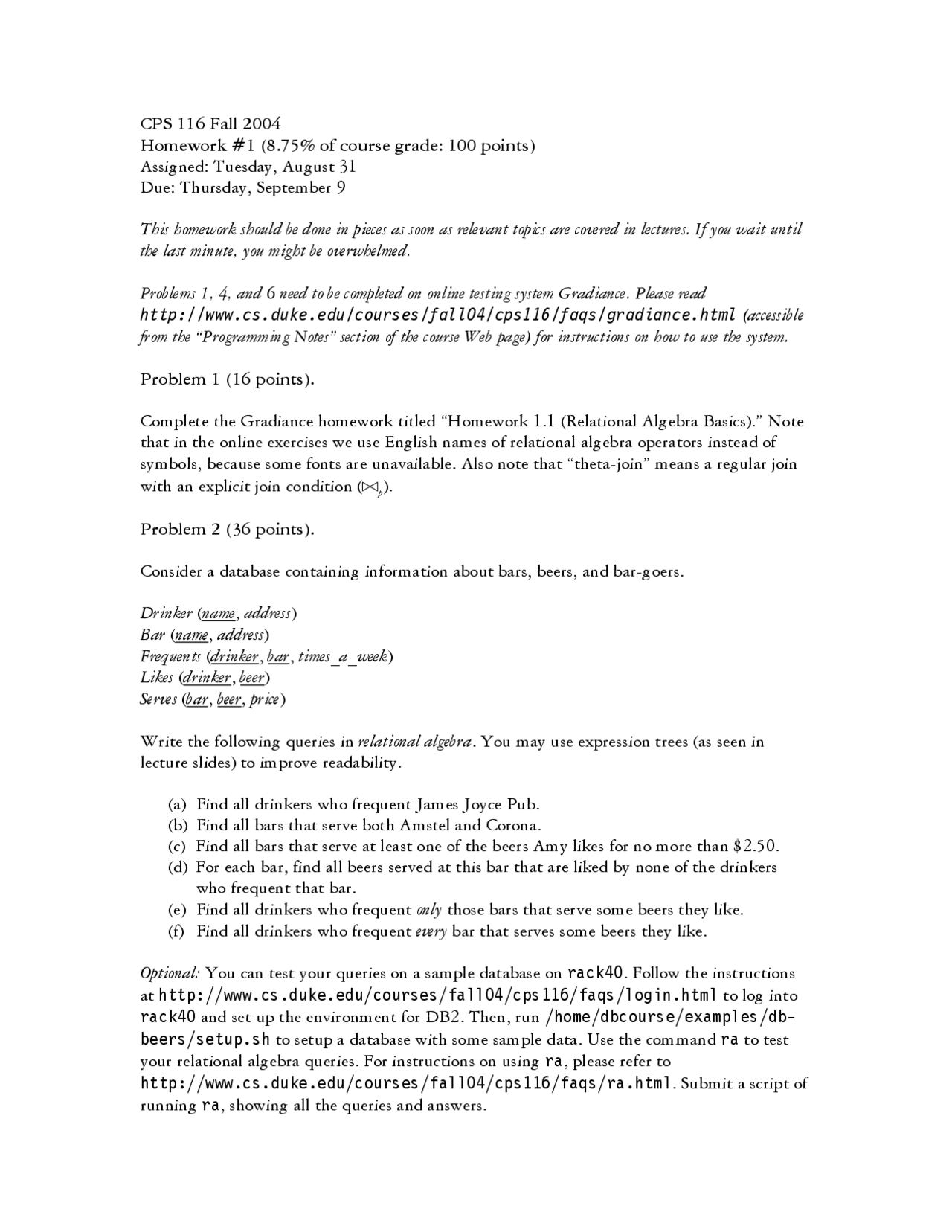

CPS 116 Fall 2004
Homework #1 (8.75% of course grade: 100 points)
Assigned: Tuesday, August 31
Due: Thursday, September 9
This homework should be done in pieces as soon as relevant topics are covered in lectures. If you wait until
the last minute, you might be overwhelmed.
Problems 1, 4, and 6 need to be completed on online testing system Gradiance. Please read
http://www.cs.duke.edu/courses/fall04/cps116/faqs/gradiance.html (accessible
from the “Programming Notes” section of the course Web page) for instructions on how to use the system.
Problem 1 (16 points).
Complete the Gradiance homework titled “Homework 1.1 (Relational Algebra Basics).” Note
that in the online exercises we use English names of relational algebra operators instead of
symbols, because some fonts are unavailable. Also note that “theta-join” means a regular join
with an explicit join condition (p).
Problem 2 (36 points).
Consider a database containing information about bars, beers, and bar-goers.
Drinker (name, address)
Bar (name, address)
Frequents (drinker, bar, times_a_week)
Likes (drinker, beer)
Serves (bar, beer, price)
Write the following queries in relational algebra. You may use expression trees (as seen in
lecture slides) to improve readability.
(a) Find all drinkers who frequent James Joyce Pub.
(b) Find all bars that serve both Amstel and Corona.
(c) Find all bars that serve at least one of the beers Amy likes for no more than $2.50.
(d) For each bar, find all beers served at this bar that are liked by none of the drinkers
who frequent that bar.
(e) Find all drinkers who frequent only those bars that serve some beers they like.
(f) Find all drinkers who frequent every bar that serves some beers they like.
Optional: You can test your queries on a sample database on rack40. Follow the instructions
at http://www.cs.duke.edu/courses/fall04/cps116/faqs/login.html to log into
rack40 and set up the environment for DB2. Then, run /home/dbcourse/examples/db-
beers/setup.sh to setup a database with some sample data. Use the command ra to test
your relational algebra queries. For instructions on using ra, please refer to
http://www.cs.duke.edu/courses/fall04/cps116/faqs/ra.html. Submit a script of
running ra, showing all the queries and answers.
