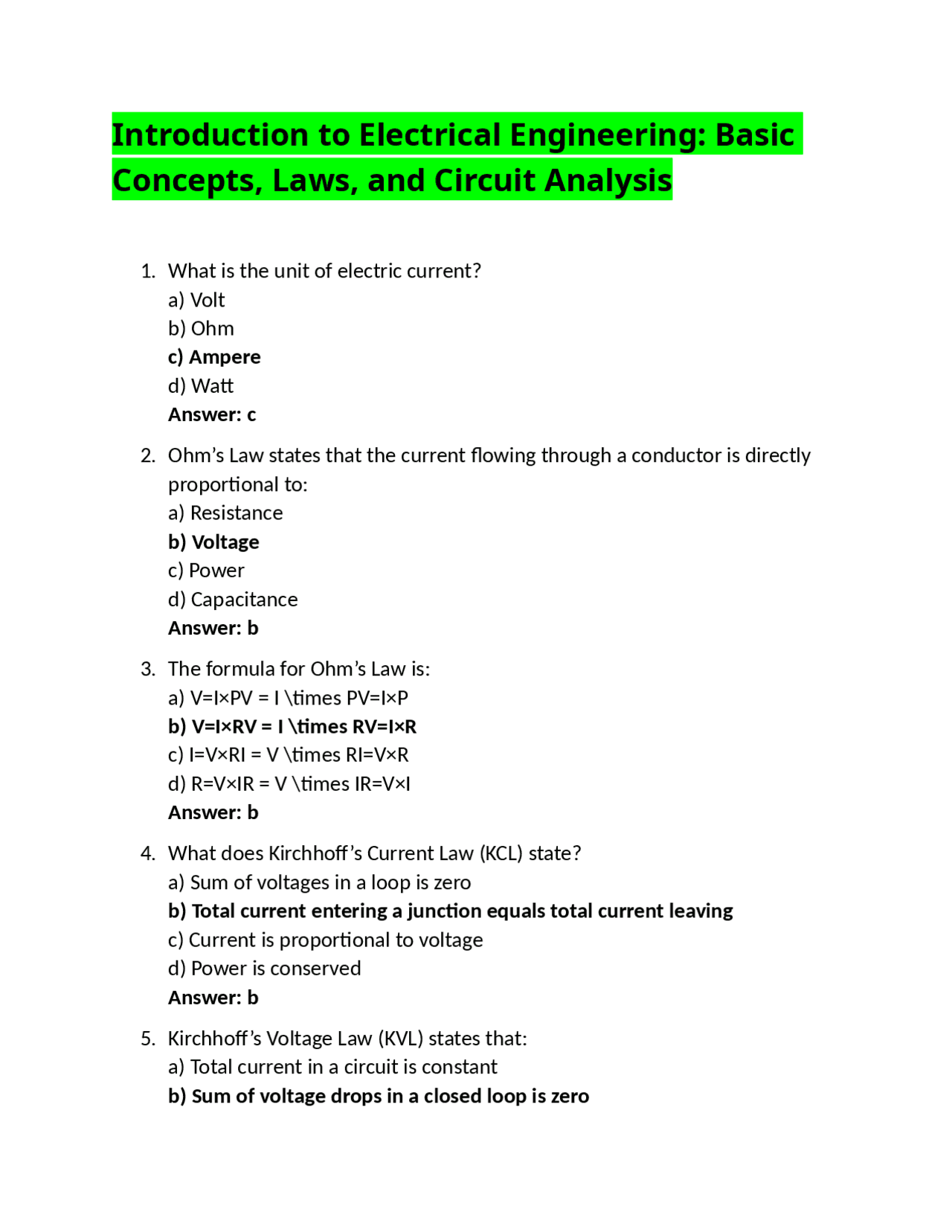

Introduction to Electrical Engineering: Basic
Concepts, Laws, and Circuit Analysis
1. What is the unit of electric current?
a) Volt
b) Ohm
c) Ampere
d) Watt
Answer: c
2. Ohm’s Law states that the current flowing through a conductor is directly
proportional to:
a) Resistance
b) Voltage
c) Power
d) Capacitance
Answer: b
3. The formula for Ohm’s Law is:
a) V=I×PV = I \times PV=I×P
b) V=I×RV = I \times RV=I×R
c) I=V×RI = V \times RI=V×R
d) R=V×IR = V \times IR=V×I
Answer: b
4. What does Kirchhoff’s Current Law (KCL) state?
a) Sum of voltages in a loop is zero
b) Total current entering a junction equals total current leaving
c) Current is proportional to voltage
d) Power is conserved
Answer: b
5. Kirchhoff’s Voltage Law (KVL) states that:
a) Total current in a circuit is constant
b) Sum of voltage drops in a closed loop is zero
