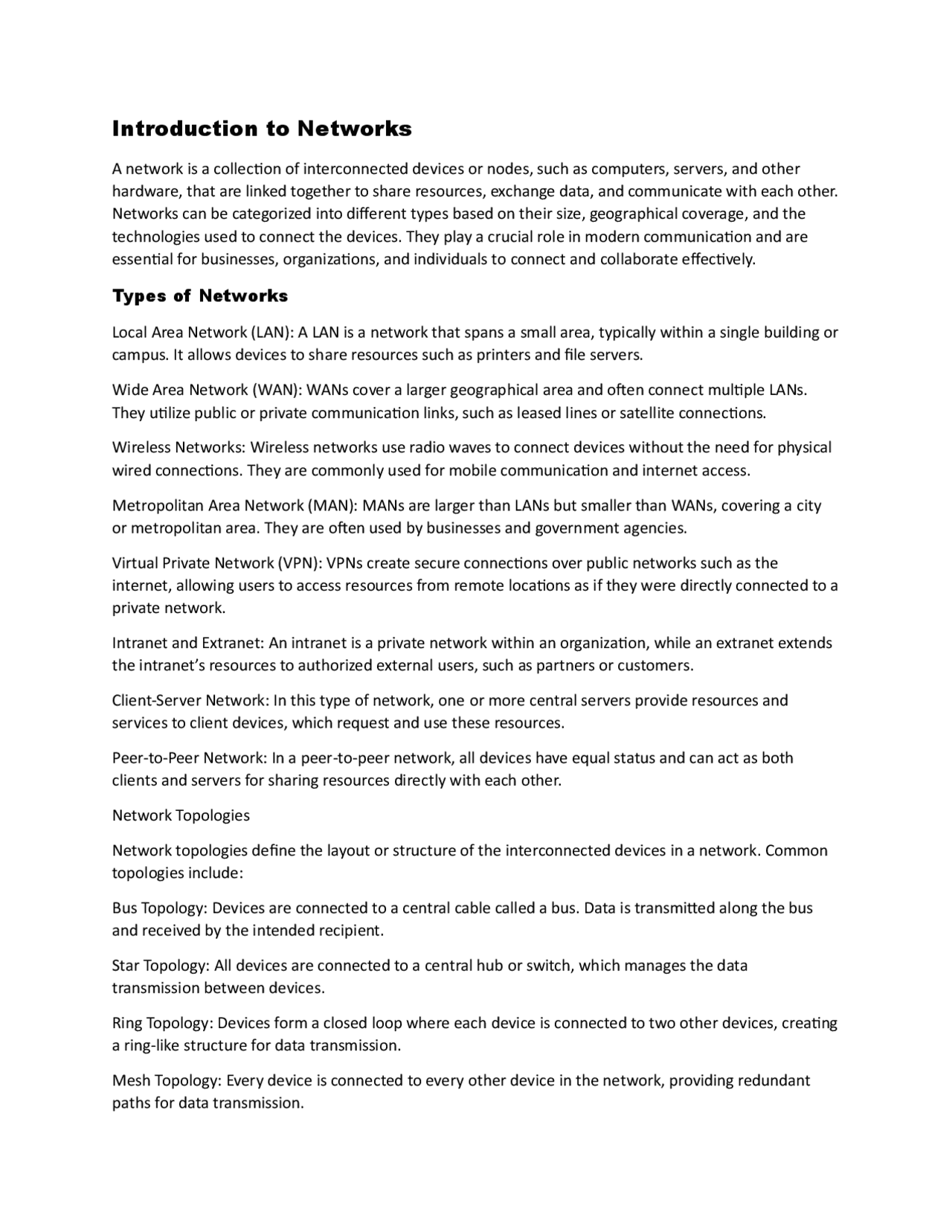

Introduction to Networks
A network is a collection of interconnected devices or nodes, such as computers, servers, and other
hardware, that are linked together to share resources, exchange data, and communicate with each other.
Networks can be categorized into different types based on their size, geographical coverage, and the
technologies used to connect the devices. They play a crucial role in modern communication and are
essential for businesses, organizations, and individuals to connect and collaborate effectively.
Types of Networks
Local Area Network (LAN): A LAN is a network that spans a small area, typically within a single building or
campus. It allows devices to share resources such as printers and file servers.
Wide Area Network (WAN): WANs cover a larger geographical area and often connect multiple LANs.
They utilize public or private communication links, such as leased lines or satellite connections.
Wireless Networks: Wireless networks use radio waves to connect devices without the need for physical
wired connections. They are commonly used for mobile communication and internet access.
Metropolitan Area Network (MAN): MANs are larger than LANs but smaller than WANs, covering a city
or metropolitan area. They are often used by businesses and government agencies.
Virtual Private Network (VPN): VPNs create secure connections over public networks such as the
internet, allowing users to access resources from remote locations as if they were directly connected to a
private network.
Intranet and Extranet: An intranet is a private network within an organization, while an extranet extends
the intranet’s resources to authorized external users, such as partners or customers.
Client-Server Network: In this type of network, one or more central servers provide resources and
services to client devices, which request and use these resources.
Peer-to-Peer Network: In a peer-to-peer network, all devices have equal status and can act as both
clients and servers for sharing resources directly with each other.
Network Topologies
Network topologies define the layout or structure of the interconnected devices in a network. Common
topologies include:
Bus Topology: Devices are connected to a central cable called a bus. Data is transmitted along the bus
and received by the intended recipient.
Star Topology: All devices are connected to a central hub or switch, which manages the data
transmission between devices.
Ring Topology: Devices form a closed loop where each device is connected to two other devices, creating
a ring-like structure for data transmission.
Mesh Topology: Every device is connected to every other device in the network, providing redundant
paths for data transmission.
