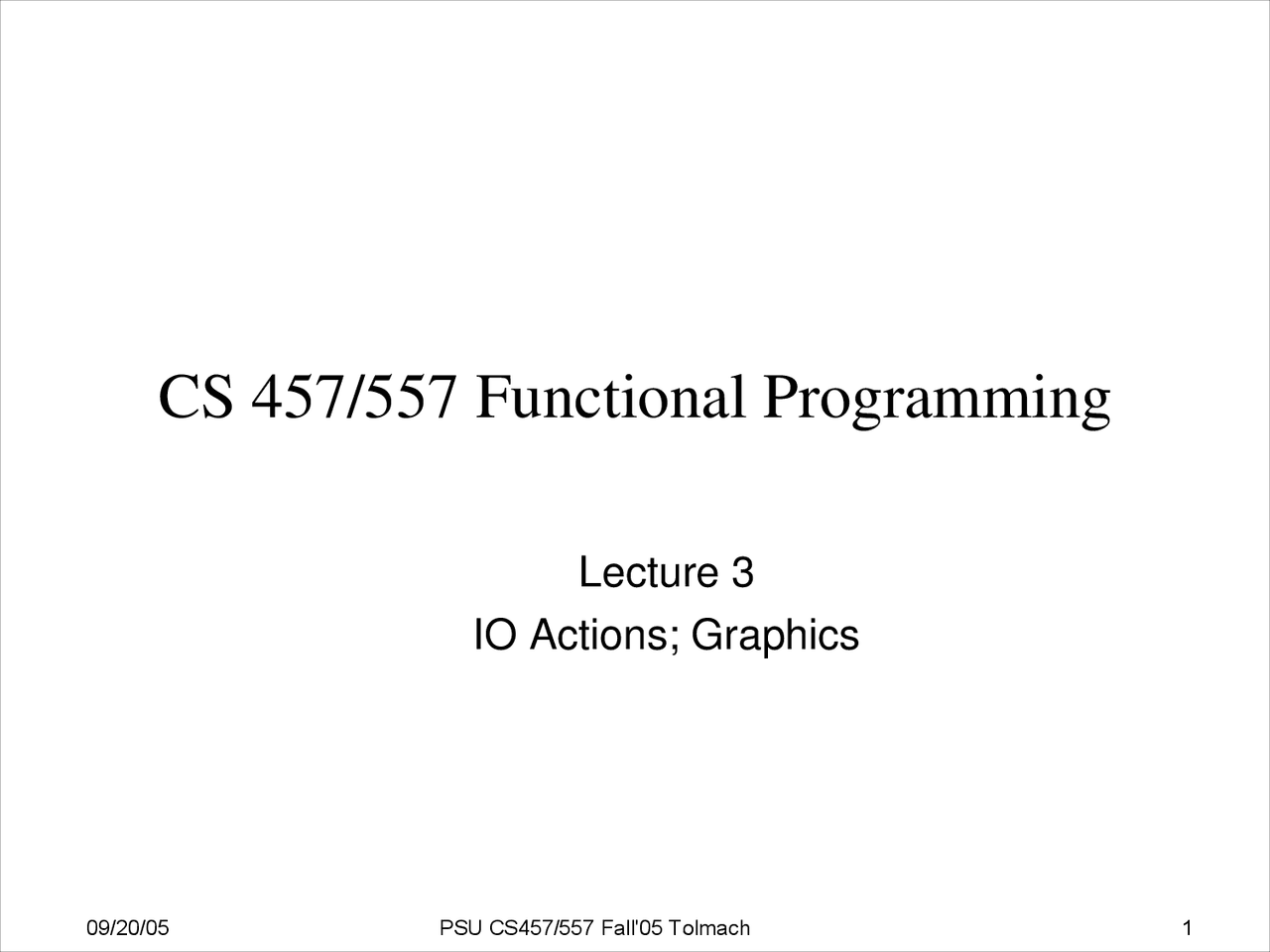

CS 457/557 Functional Programming

Lecture 3

IO Actions; Graphics

Can we be imperative?

• All the programs we have seen so far have no “sideeffects.” That is, programs are executed only for their values.
• But sometimes we want our programs to affect the real world (reading, printing, drawing a picture, controlling a robot, etc).
• (^) Yet, IO operations (and other “effectful” operations) don't mix well with Haskell's lazy evaluation, because evaluation order is very complicated and hard to predict. - How can we reconcile purity and utility?

IO Actions

• In Haskell, “pure values” are separated from “worldly actions”, in two ways: - Types : An expression with type IO a has possible actions associated with its execution, while returning a value of type a. - Syntax : The do syntax performs an action, and (using layout) allows one to sequence several actions.
• (^) Example: code to read a character, echo it, and return Boolean value indicating if it was a newline do c <- getChar putChar c return (c == '\n')

Some Predefined IO Actions

-- get one character from keyboard getChar :: IO Char -- write one character to terminal putChar :: Char -> IO() -- get a whole line from keyboard getLine :: IO String -- read a file as a String readFile :: FilePath -> IO String -- write a String to a file writeFile :: FilePath -> String -> IO ()

do Typing Details

:: IO Bool (the type of the last action also determines the type of the entire do expression) :: Char do c <- getChar putChar c return (c == '\n') :: IO Char

:: IO ()

(actions without “v <- …” usually have this type)

When are IO Actions Performed?

• A value of type IO a is an action, but it is still a value: it

will only have an effect when it is performed.

• (^) In Haskell, a program’s value is the value of the variable

main in the module Main. That value must have type IO

a. The associated action will be performed when the

whole program is run.

• In Hugs, however, you can type any expression to the

Hugs prompt. If the expression has type IO a it will be

performed; otherwise its value will be printed on the

display.

• There is^ no^ other way to perform an action (well, almost).

Actions are just values

• Actions are just like other (firstclass) values: they can

be passed, returned, stored, etc.

• For example, it can be handy to build lists of actions, e.g. putCharList :: String -> [IO ()] putCharList cs = [putChar c | c <- cs]
• There's a library function to convert this to a single

action

sequence_ :: [IO a] -> IO () putStr :: String -> IO () putStr s = sequence_ (putCharList s)

• (^) Remember, actions are only executed at top level, e.g. main = putStr “abc”

Example: Unix wc Command

• (^) The unix wc (word count) program reads a file and

then prints out counts of characters, words, and

lines.

• (^) Reading the file is an action, but computing the

information is a pure computation.

• Strategy:
  • Define a pure function that counts the number of

characters, words, and lines in a string.

» number of lines = number of ‘\n’

» number of words ~= number of ‘ ’ plus

number of ‘\t’

• Define an action that reads a file into a string,

applies the above function, and then prints out

the result.

Example Run

Main> wc

elegantProse.txt

The file: elegantProse.txt has

2970 characters

1249 words

141 lines

Main>

I typed this.

Graphics Actions

• Graphics windows are traditionally programmed

using commands; i.e. actions.

• Some graphics actions relate to opening up a graphics

window, closing it, etc.

• Others are associated with drawing lines, circles, text,

etc.

Graphics Operators

• openWindow :: String -> Point -> IO Window
  • (^) Opens a titled window of a particular size.
• drawInWindow :: Window -> Graphic -> IO ()
  • Displays a Draw () value in a given window.
  • (^) Note that the return type is IO ().
• getKey :: Window -> IO Char
  • Waits until a key is pressed and then returns the character associated with the key.
• closeWindow :: Window -> IO ()
  • Closes the window.
• runGraphics :: IO () -> IO ()
  • Required “wrapper” around graphics operations to init/close graphics system.

Mixing Graphics IO

with Terminal IO

spaceClose :: Window -> IO () spaceClose w = do k <- getKey w if k == ' ' then closeWindow w else spaceClose w main1 = runGraphics ( do w <- openWindow "Second Program" (300,300) drawInWindow w (text (100,200) “Hello Again") spaceClose w )

Coordinate System

Increasing x-axis Increasing y-axis

Example Program

main2 = runGraphics ( do w <- openWindow "Draw some shapes" (300,300) drawInWindow w (ellipse (0,0) (50,50)) drawInWindow w (shearEllipse (0,60) (100,120) (150,200)) drawInWindow w (withColor Red (line (200,200) (299,275))) drawInWindow w (polygon [(100,100),(150,100),(160,200)]) drawInWindow w (withColor Green (polyline [(100,200),(150,200), (160,299),(100,200)])) spaceClose w )
