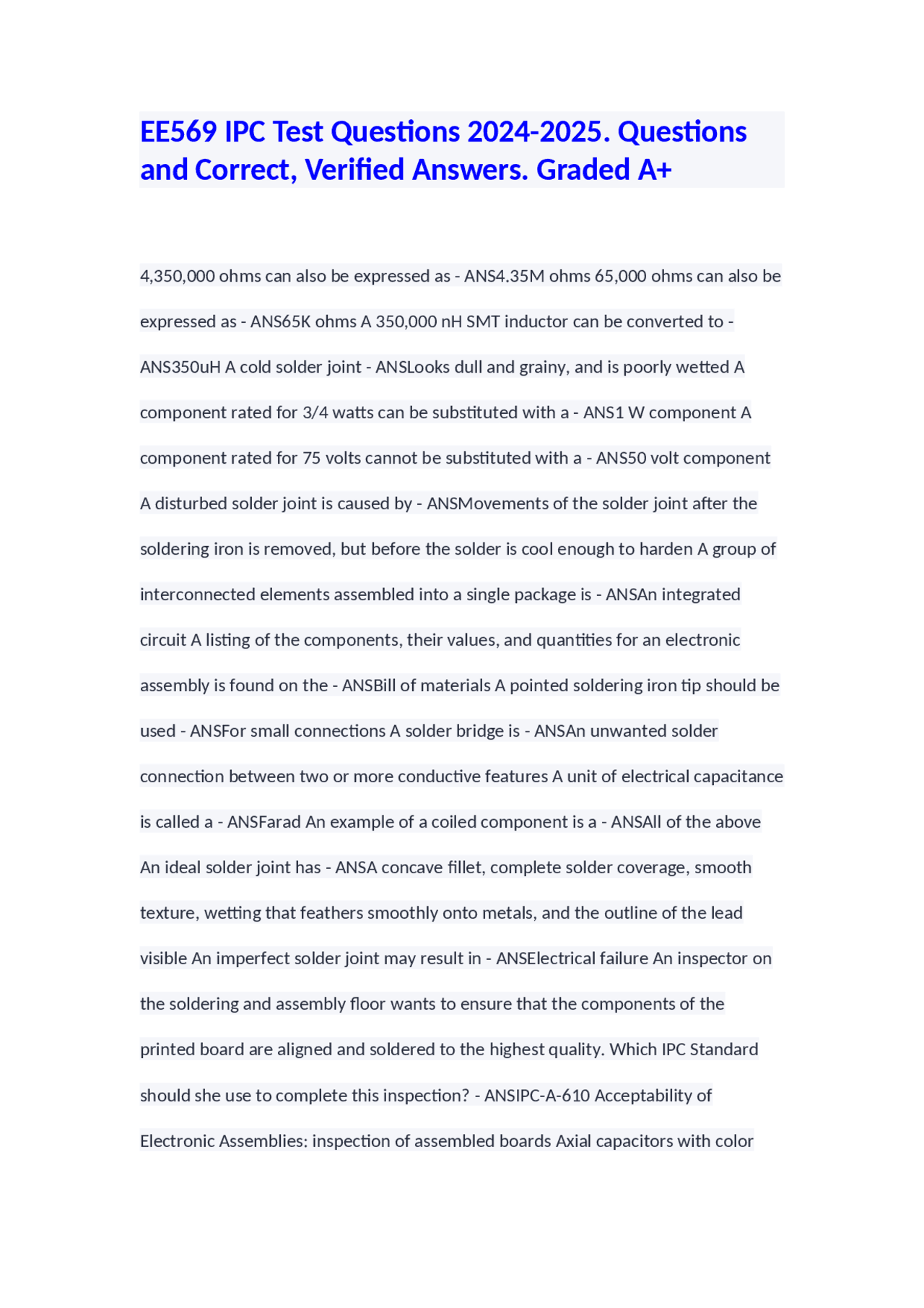

EE569 IPC Test Questions 2024-2025. Questions
and Correct, Verified Answers. Graded A+
4,350,000 ohms can also be expressed as - ANS4.35M ohms 65,000 ohms can also be
expressed as - ANS65K ohms A 350,000 nH SMT inductor can be converted to -
ANS350uH A cold solder joint - ANSLooks dull and grainy, and is poorly wetted A
component rated for 3/4 watts can be substituted with a - ANS1 W component A
component rated for 75 volts cannot be substituted with a - ANS50 volt component
A disturbed solder joint is caused by - ANSMovements of the solder joint after the
soldering iron is removed, but before the solder is cool enough to harden A group of
interconnected elements assembled into a single package is - ANSAn integrated
circuit A listing of the components, their values, and quantities for an electronic
assembly is found on the - ANSBill of materials A pointed soldering iron tip should be
used - ANSFor small connections A solder bridge is - ANSAn unwanted solder
connection between two or more conductive features A unit of electrical capacitance
is called a - ANSFarad An example of a coiled component is a - ANSAll of the above
An ideal solder joint has - ANSA concave fillet, complete solder coverage, smooth
texture, wetting that feathers smoothly onto metals, and the outline of the lead
visible An imperfect solder joint may result in - ANSElectrical failure An inspector on
the soldering and assembly floor wants to ensure that the components of the
printed board are aligned and soldered to the highest quality. Which IPC Standard
should she use to complete this inspection? - ANSIPC-A-610 Acceptability of
Electronic Assemblies: inspection of assembled boards Axial capacitors with color
pf3
pf4
pf5

Partial preview of the text

Download IPC Test Questions and Answers for Electronics Assembly and more Exams Electronics in PDF only on Docsity!

EE569 IPC Test Questions 2024-2025. Questions

and Correct, Verified Answers. Graded A+

4,350,000 ohms can also be expressed as - ANS4.35M ohms 65,000 ohms can also be expressed as - ANS65K ohms A 350,000 nH SMT inductor can be converted to - ANS350uH A cold solder joint - ANSLooks dull and grainy, and is poorly wetted A component rated for 3/4 watts can be substituted with a - ANS1 W component A component rated for 75 volts cannot be substituted with a - ANS50 volt component A disturbed solder joint is caused by - ANSMovements of the solder joint after the soldering iron is removed, but before the solder is cool enough to harden A group of interconnected elements assembled into a single package is - ANSAn integrated circuit A listing of the components, their values, and quantities for an electronic assembly is found on the - ANSBill of materials A pointed soldering iron tip should be used - ANSFor small connections A solder bridge is - ANSAn unwanted solder connection between two or more conductive features A unit of electrical capacitance is called a - ANSFarad An example of a coiled component is a - ANSAll of the above An ideal solder joint has - ANSA concave fillet, complete solder coverage, smooth texture, wetting that feathers smoothly onto metals, and the outline of the lead visible An imperfect solder joint may result in - ANSElectrical failure An inspector on the soldering and assembly floor wants to ensure that the components of the printed board are aligned and soldered to the highest quality. Which IPC Standard should she use to complete this inspection? - ANSIPC-A-610 Acceptability of Electronic Assemblies: inspection of assembled boards Axial capacitors with color

bands are always measured in - ANSpicofarads Axial inductors with color bands are always measured in - ANSMicrohenries Capacitors with color bands always have - ANS4 bands Class 3 requirements in the J-Standard 001 are for - ANSHigh reliability electronics - where failure is not an option Components requiring negative and positive connections have - ANSPolarity Components that can amplify or interpret a signal are called - ANSActive components Convert 450,000 pF to nF - ANS450 nF Crystals are measured in - ANSHertz DPAKs house - ANSHigher powered transistors or diodes ESD damage can be controlled by - ANSProper grounding Identify the acceptable tolerance substitution for a device with +5% tolerance - ANSAll of the above If you think components may be sensitive to cleaning fluids, you should - ANSAsk about your company specific policy if you have any questions It is important to control static electricity at your workstation in order to - ANSAvoid damage to components It's important to remove certain types of fluxes after hand soldering because - ANSSticky residues can hold electrically conductive contaminants and cause metal corrosion It's important to remove the flux residue right after the soldering operation because - ANSIt can harden and become difficult to remove Keeping your workstation clean means you can - ANSAvoid contamination of the assembly Kilo-ohm, or K, is an abbreviation for how many ohms? - ANS Lead pitch is the - ANSDistance between the center of one lead to the center of the next lead Meg-ohm, or M, is an abbreviation for how many ohms? - ANS1,000,000 Melting a little solder on the tip - before moving the solder wire to the other side - results in - ANSThe formation of a heat bridge to transfer heat faster Part numbers for chip components are usually marked on the - ANSTape reel Preheating - ANSSpeeds up the soldering process to help prevent heat damage to the assembly Proper

locations on the circuit board The band that tells your how many zeros to add to the value is called the - ANSMultiplier band The bill of Materials (BOM) calls for a 3. ohm +- 1% resistor. What are the color bands (left to right)? - ANSOrange, yellow, gold, brown The BOM calls for a .45uH +- 2% inductor. What are the colors? - ANSYellow, violet, silver, red The BOM calls for a 62,000 pF +- 5% capacitor. What are the colors? - ANSBlue, red, orange, green The color band for tolerance is - ANSAll of the above The letters and numbers used to identify components on circuit boards are called - ANSReference designators The main advantages of 63/37 eutectic solder are - ANSIt melts at lower temperature and solidifies faster The maximum preferred solder contact angle is - ANS90 degrees or less The most common reference designator for an IC is the letter - ANSU The positive lead of a component is called the - ANSAnode The primary reason not to eat or drink at your workstation is to avoid - ANSIngesting lead The reason for tinning the soldering iron tip is to - ANSTransfer heat rapidly The reason it is important to use the correct solder wire diameter is - ANSFor control of speed and amount of solder The solder connections on a leadless chip carrier are called - ANSCastellations The two functions of a solder connection are - ANSMechanical and electrical connection The value of a resistor is measured in - ANSOhms Through-hole components - ANSHave leads that are inserted through mounting holes in the circuit board Tolerance is a measurement of

  • ANSHow close a component must perform to its actual value Using excessive pressure when soldering can cause - ANSAll of the above We solder on the termination side of the board - away from the components - ANSTo prevent heat damage to the components We use solder flux to - ANSAll of the above What is an IPC standard? - ANSAn evolving set of rules that the electronics industry follows to

develop safe, reliable and quality products When a solder joint is heated for more than 3 seconds - ANSThere may be heat damage to the base material and plated barrel When the soldering iron contacts the cleaning sponge for too long - ANSThe tip may cool down too much and may affect the formation of a proper solder joint When you expect your soldering iron to sit (or idle) for a while, it is important to - ANSTin the tip with solder to prevent oxidation You should tin the tip of your soldering iron - ANSBoth "A and "C"
