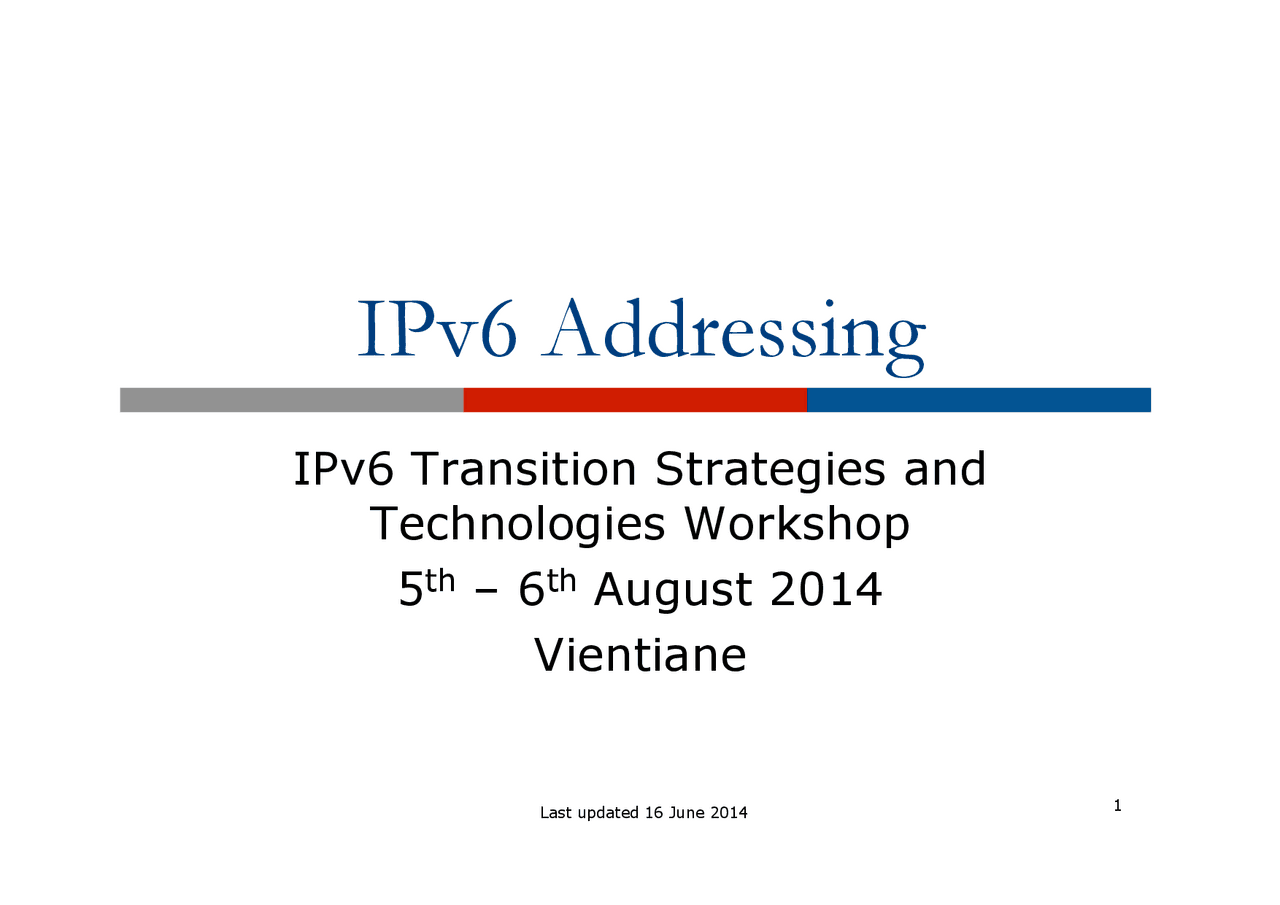

IPv6 Addressing

IPv6 Transition Strategies and

Technologies Workshop

th

th

August 2014

Vientiane

Last updated 16 June 2014^1

Agenda

p Recap: how it worked with IPv

p Getting IPv6 address space

p Constructing a scalable IPv6 address plan

p IPv6 addressing on LANs

p IPv6 address plan example

How did it work for IPv4?

p Up until 1994:

n Operators applied to InterNIC for address space p 1993 onwards: included RIPE NCC and APNIC n Class A: Big organisations n Class B: Medium organisations p From 1992 onwards, multiple class Cs often handed out instead of single class Bs n Class C: Small organisations

p From 1994 onwards (classless Internet)

n Address space distributed by InterNIC (replaced by ARIN in 1998) and the other RIRs n Distribution according to demonstrated need (not organisation size or want)

IPv4 address plans (pre 1994)?

p Prior to 1994, doing an address plan in IPv4 was

very simple

p Class C was used for one LAN

n If entity had more than one LAN, they’d normally get a class B

p An organisation with a class B had 256 possible

LANs

n And that was more than most networks had in those days

p Organisations with more than 256 LANs tended to

be Universities, big IT companies, etc

n They either had multiple class Bs, or even a class A

IPv4 address plans (post 1994)?

p In the classful Internet days, IP address planning

didn’t really exist

n The address space was big enough for most needs, as the number of devices and LANs were small

p With the arrival of classless Internet, and IPv

runout in the early 90s

n IP address planning was needed n Organisations got address space according to demonstrated need p A previous class B might now only get a / p LANs no longer were automatically /24s p etc

IPv4 address plans (post 1994)?

p Advent of NAT assisted with delaying IPv4 runout

n End-user got single public address, and NATed on to that address p (End-users could get lazy again)

p Operators became more careful:

n RIR policy required “demonstrated need” p Further allocations made only when existing allocations were proven to be mostly used up n Started assigning address space across backbone according to the needs of the infrastucture p No gaps, but still no real plan p /30s for point-to-point links etc p Although the “plans” often separated infrastructure address space from what went to customers

IPv4 address plans (today)

p More serious issues – because of the lack of

structure, lack of planning:

n Infrastructure security filters become very hard to manage p Adding yet another small block of IPv4 addresses to perimeter and control plane filters n Traffic engineering is more challenging p Lots of small blocks of address space to manage and manipulate p With impacts on size of the global routing table too! n Infrastructure addressing is difficult to manage p Loopbacks and backbone point-to-point links no longer out of one contiguous block n Access address pool resizing p Broadband access pools renumbering, reassigning, etc 10

IPv

p IPv6 changes all this

p Address space delegations are generous

n Reminders of the “old days” of classful IPv

p No NAT

p Address planning is very possible

p Address planning is very necessary

p Documentation is very necessary

p Operators accustomed to handling IPv4 in the

1980s and early 1990s might be able to use

those old skills for IPv6!

Where to get IPv6 addresses

p Your upstream ISP

p Africa

n AfriNIC – http://www.afrinic.net

p Asia and the Pacific

n APNIC – http://www.apnic.net

p North America

n ARIN – http://www.arin.net

p Latin America and the Caribbean

n LACNIC – http://www.lacnic.net

p Europe and Middle East

n RIPE NCC – http://www.ripe.net/info/ncc

Internet Registry Regions

Getting IPv6 address space (2)

p From your upstream ISP

n Receive a /48 from upstream ISP’s IPv

address block

n Receive more than one /48 if you have more

than 65k subnets

p If you need to multihome:

n Apply for a /48 assignment from your RIR

n Multihoming with provider’s /48 will be

operationally challenging

p Provider policies, filters, etc

Using 6to4 for IPv6 address space

p Some entities still use 6to

n Not recommended due to operational problems n Read http://datatracker.ietf.org/doc/draft-ietf- v6ops-6to4-to-historic for some of the reasoning why

p FYI: 6to4 operation:

n Take a single public IPv4 /32 address n 2002:<ipv4 /32 address>::/48 becomes your IPv address block, giving 65k subnets n Requires a 6to4 gateway n 6to4 is a means of connecting IPv6 islands across the IPv4 Internet

Nibble Boundaries – example

p Consider the address block 2001:db8:0:10::/

n The range of addresses in this block are: n Note that this subnet only runs from 0010 to 0017. n The adjacent block is 2001:db8:0:18::/ n The address blocks don’t use the entire nibble range 2001:0db8:0000: 0010 :0000:0000:0000: to 2001:0db8:0000: 0017 :ffff:ffff:ffff:ffff 2001:0db8:0000: 0018 :0000:0000:0000: to 2001:0db8:0000:001f:ffff:ffff:ffff:ffff

Nibble Boundaries – example

p Now consider the address block
