Simulation of the Metropolis Algorithm for a 2D Ising Model, Exercises of Computational Physics

A matlab code implementation of the metropolis algorithm for a two-dimensional ising model. The algorithm simulates the thermal equilibrium of a magnetic system by iteratively proposing and accepting or rejecting spin flips based on the metropolis criterion. The code initializes the spin configuration, sets the boundary conditions, and performs the spin flip updates. The energy changes before and after each flip are calculated and compared to determine whether to accept or reject the flip. The algorithm runs for a specified number of monte carlo steps and outputs the final energy and magnetization of the system. This document can be useful for students and researchers studying statistical physics, magnetism, and monte carlo simulations.

Typology: Exercises

2011/2012

Uploaded on 08/12/2012

laniban
laniban 🇮🇳

4

(1)

78 documents

1 / 2

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

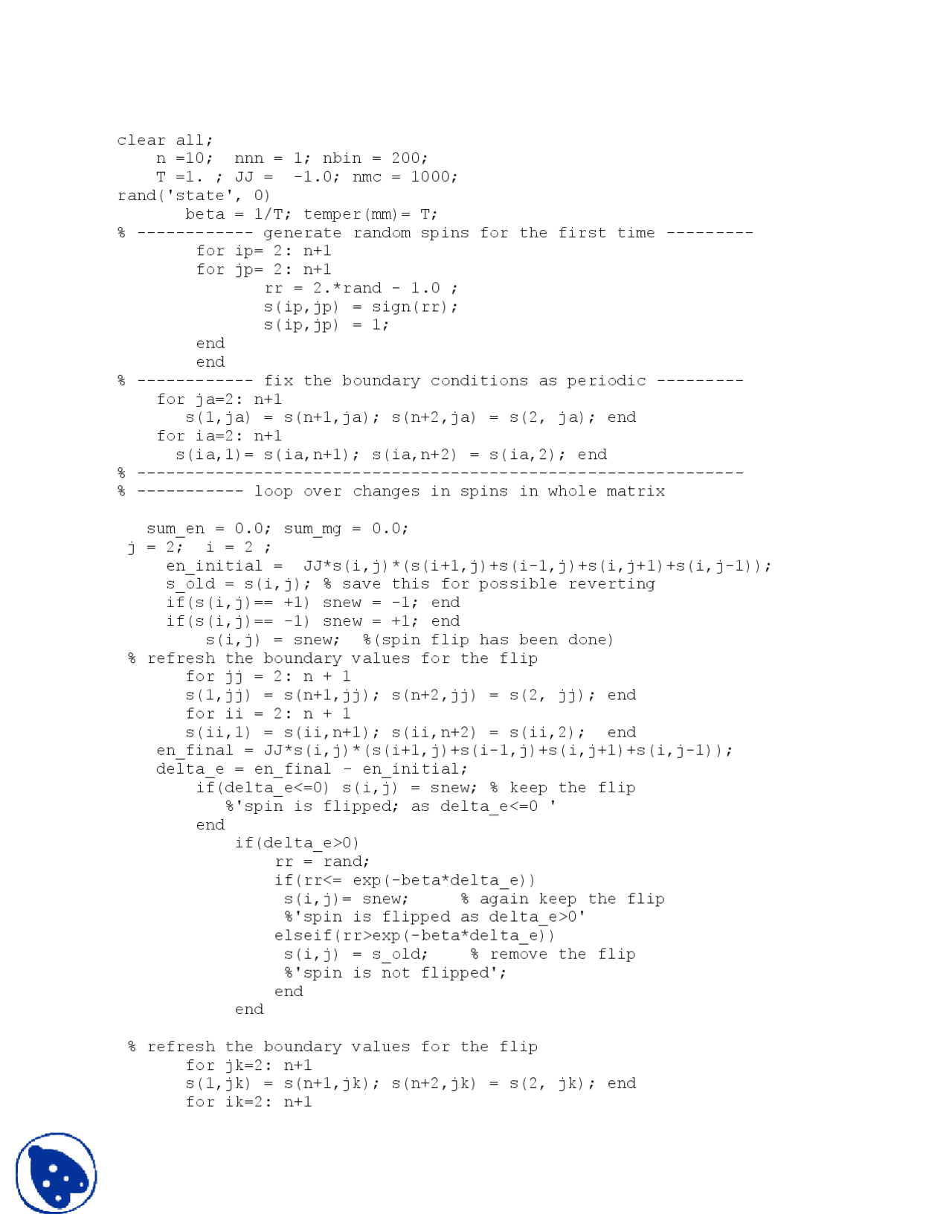

clear all;
n =10; nnn = 1; nbin = 200;
T =1. ; JJ = -1.0; nmc = 1000;
rand('state', 0)
beta = 1/T; temper(mm)= T;
% ------------ generate random spins for the first time ---------
for ip= 2: n+1
for jp= 2: n+1
rr = 2.*rand - 1.0 ;
s(ip,jp) = sign(rr);
s(ip,jp) = 1;
end
end
% ------------ fix the boundary conditions as periodic ---------
for ja=2: n+1
s(1,ja) = s(n+1,ja); s(n+2,ja) = s(2, ja); end
for ia=2: n+1
s(ia,1)= s(ia,n+1); s(ia,n+2) = s(ia,2); end
% --------------------------------------------------------------
% ----------- loop over changes in spins in whole matrix
sum_en = 0.0; sum_mg = 0.0;
j = 2; i = 2 ;
en_initial = JJ*s(i,j)*(s(i+1,j)+s(i-1,j)+s(i,j+1)+s(i,j-1));
s_old = s(i,j); % save this for possible reverting
if(s(i,j)== +1) snew = -1; end
if(s(i,j)== -1) snew = +1; end
s(i,j) = snew; %(spin flip has been done)
% refresh the boundary values for the flip
for jj = 2: n + 1
s(1,jj) = s(n+1,jj); s(n+2,jj) = s(2, jj); end
for ii = 2: n + 1
s(ii,1) = s(ii,n+1); s(ii,n+2) = s(ii,2); end
en_final = JJ*s(i,j)*(s(i+1,j)+s(i-1,j)+s(i,j+1)+s(i,j-1));
delta_e = en_final - en_initial;
if(delta_e<=0) s(i,j) = snew; % keep the flip
%'spin is flipped; as delta_e<=0 '
end
if(delta_e>0)
rr = rand;
if(rr<= exp(-beta*delta_e))
s(i,j)= snew; % again keep the flip
%'spin is flipped as delta_e>0'
elseif(rr>exp(-beta*delta_e))
s(i,j) = s_old; % remove the flip
%'spin is not flipped';
end
end
% refresh the boundary values for the flip
for jk=2: n+1
s(1,jk) = s(n+1,jk); s(n+2,jk) = s(2, jk); end
for ik=2: n+1
pf2

Partial preview of the text

Download Simulation of the Metropolis Algorithm for a 2D Ising Model and more Exercises Computational Physics in PDF only on Docsity!

clear all; n =10; nnn = 1; nbin = 200; T =1. ; JJ = -1.0; nmc = 1000; rand('state', 0) beta = 1/T; temper(mm)= T; % ------------ generate random spins for the first time --------- for ip= 2: n+ for jp= 2: n+ rr = 2.rand - 1.0 ; s(ip,jp) = sign(rr); s(ip,jp) = 1; end end % ------------ fix the boundary conditions as periodic --------- for ja=2: n+ s(1,ja) = s(n+1,ja); s(n+2,ja) = s(2, ja); end for ia=2: n+ s(ia,1)= s(ia,n+1); s(ia,n+2) = s(ia,2); end % -------------------------------------------------------------- % ----------- loop over changes in spins in whole matrix sum_en = 0.0; sum_mg = 0.0; j = 2; i = 2 ; en_initial = JJs(i,j)(s(i+1,j)+s(i-1,j)+s(i,j+1)+s(i,j-1)); s_old = s(i,j); % save this for possible reverting if(s(i,j)== +1) snew = -1; end if(s(i,j)== -1) snew = +1; end s(i,j) = snew; %(spin flip has been done) % refresh the boundary values for the flip for jj = 2: n + 1 s(1,jj) = s(n+1,jj); s(n+2,jj) = s(2, jj); end for ii = 2: n + 1 s(ii,1) = s(ii,n+1); s(ii,n+2) = s(ii,2); end en_final = JJs(i,j)(s(i+1,j)+s(i-1,j)+s(i,j+1)+s(i,j-1)); delta_e = en_final - en_initial; if(delta_e<=0) s(i,j) = snew; % keep the flip %'spin is flipped; as delta_e<=0 ' end if(delta_e>0) rr = rand; if(rr<= exp(-betadelta_e)) s(i,j)= snew; % again keep the flip %'spin is flipped as delta_e>0' elseif(rr>exp(-beta*delta_e)) s(i,j) = s_old; % remove the flip %'spin is not flipped'; end end % refresh the boundary values for the flip for jk=2: n+ s(1,jk) = s(n+1,jk); s(n+2,jk) = s(2, jk); end for ik=2: n+

s(ik,1) = s(ik,n+1); s(ik,n+2) = s(ik,2); end % end of the Matropolis algo ....................
