Syed Uzair Ahmed

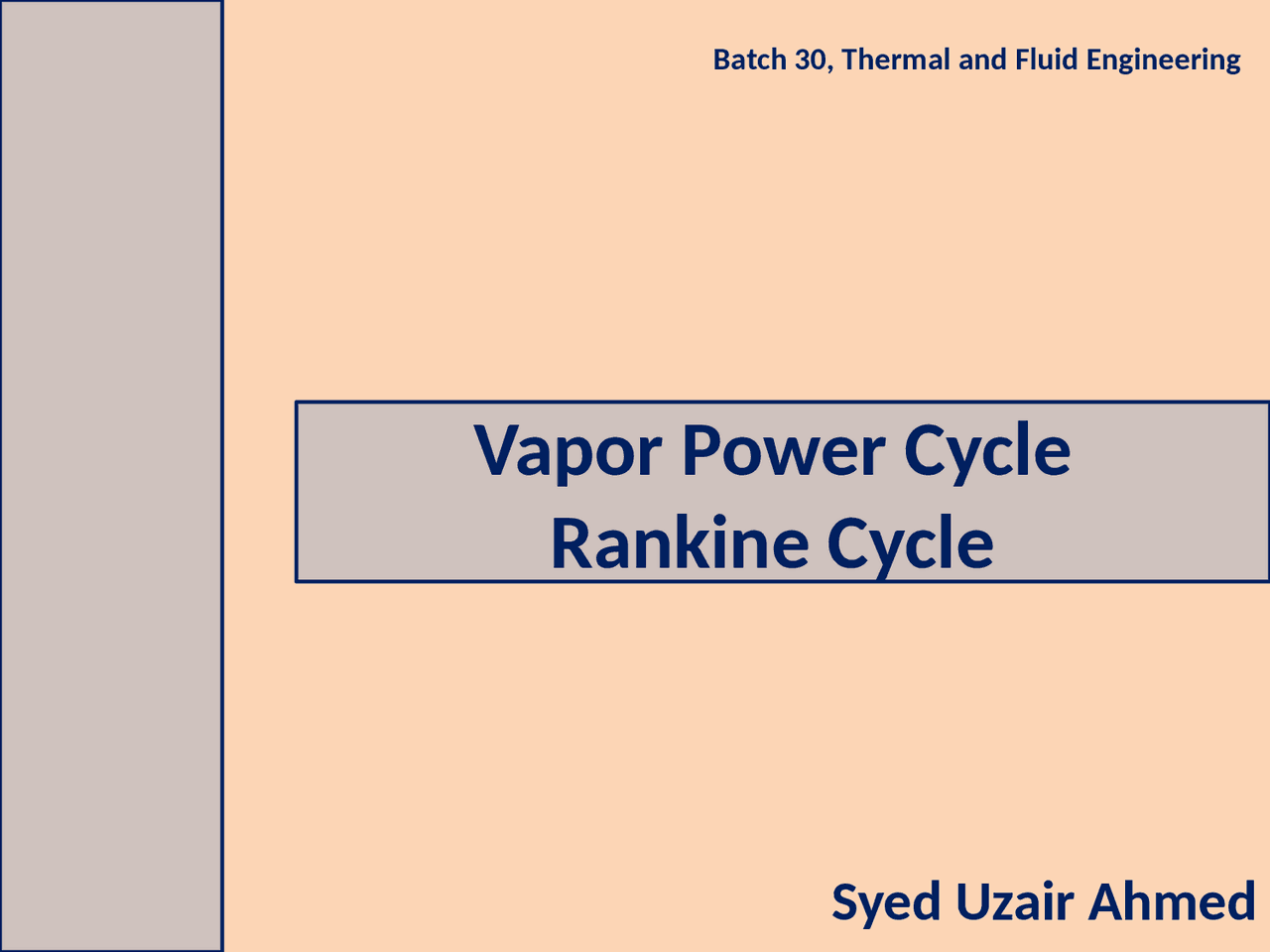

Vapor Power Cycle Rankine Cycle Batch 30, Thermal and Fluid Engineering
VAPOR AND COMBINED POWER CYCLES
- (^) Gas Power Cycles
- (^) Vapor Power Cycles
RANKINE CYCLE
- (^) Process 1-2 Isentropic compression in a pump
- (^) Process 2-3 Constant pressure heat addition in a boiler
- (^) Process 3-4 Isentropic expansion in a turbine
- (^) Process 4-1 Constant pressure heat rejection in a condenser
ENERGY ANALYSIS OF THE IDEAL RANKINE CYCLE
- (^) Steady-Flow Energy Equation
DEVIATION OF ACTUAL VAPOR POWER CYCLES FROM IDEALIZED ONES
