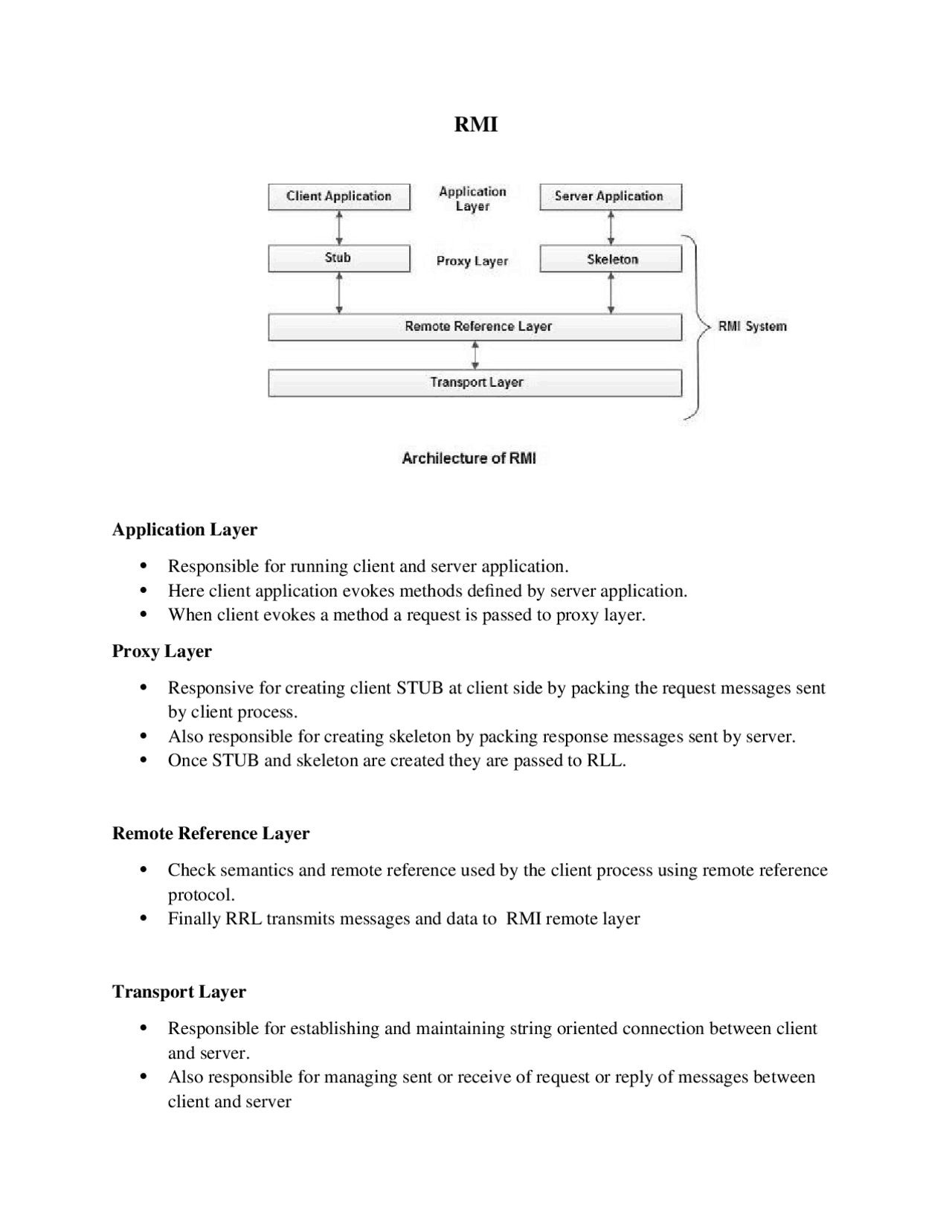

RMI
Application Layer
Responsible for running client and server application.
Here client application evokes methods defined by server application.
When client evokes a method a request is passed to proxy layer.
Proxy Layer
Responsive for creating client STUB at client side by packing the request messages sent
by client process.
Also responsible for creating skeleton by packing response messages sent by server.
Once STUB and skeleton are created they are passed to RLL.
Remote Reference Layer
Check semantics and remote reference used by the client process using remote reference
protocol.
Finally RRL transmits messages and data to RMI remote layer
Transport Layer
Responsible for establishing and maintaining string oriented connection between client
and server.
Also responsible for managing sent or receive of request or reply of messages between
client and server
