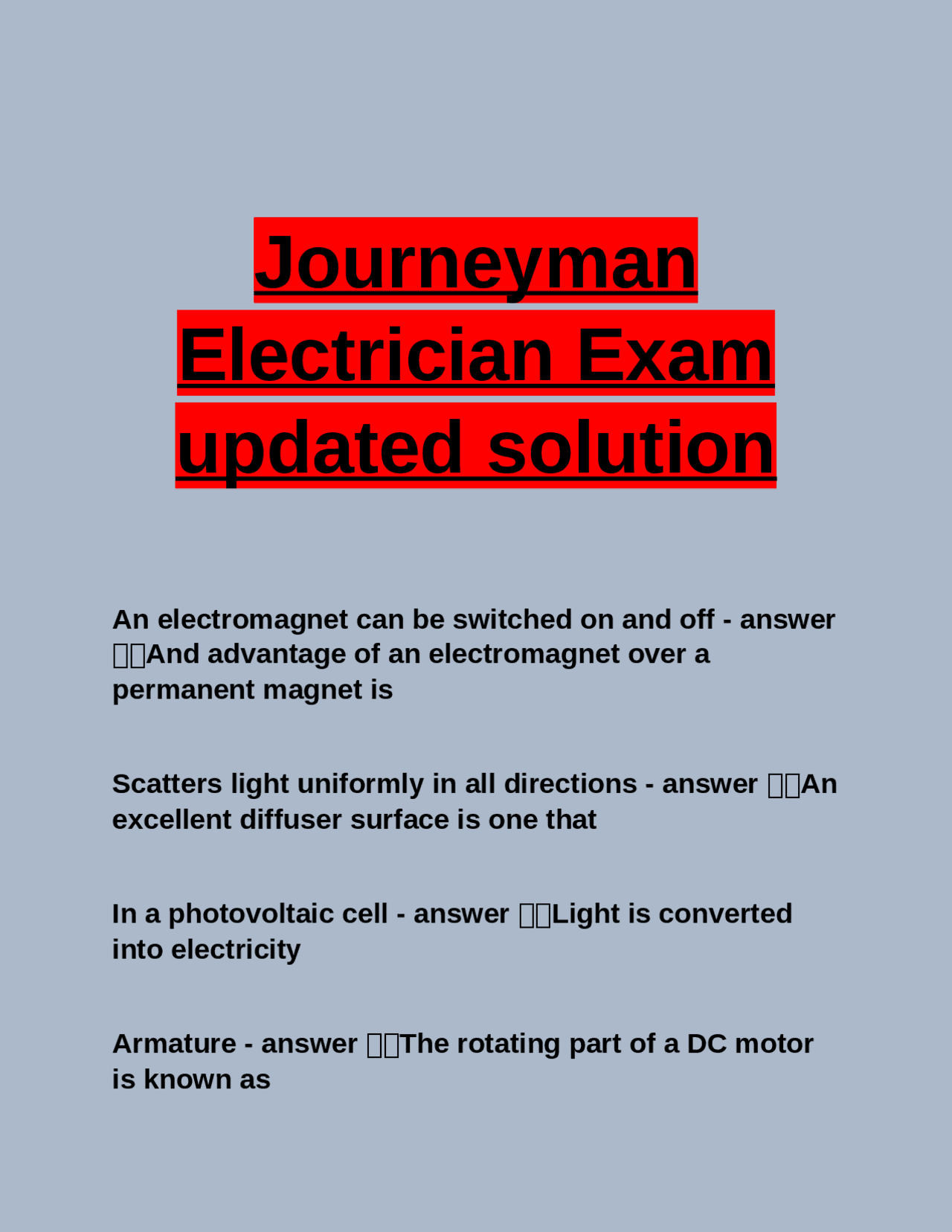

An electromagnet can be switched on and off - answer โ โ And advantage of an electromagnet over a permanent magnet is Scatters light uniformly in all directions - answer โ โ An excellent diffuser surface is one that In a photovoltaic cell - answer โ โ Light is converted into electricity Armature - answer โ โ The rotating part of a DC motor is known as
Fish tape - answer โ โ A device used to pull wires through a conduit is called Approximately zero - answer โ โ In making a resistance test, remember that the resistance of a short circuit is Parallel - answer โ โ To increase current capacity, battery cells are connected in 10 - answer โ โ The hot resistance of an incandescent lamp is approximately how many times it's cold resistance Start measuring at the highest range - answer โ โ The proper way of measuring and unknown voltage with a multi-tester is to A charge - answer โ โ A capacitor stores what? Paper - answer โ โ What has the lowest dielectric strength
Moisture resistant and thermoplastic - answer โ โ Type TW conductor is what type? Low permeability - answer โ โ Steel is hard to magnetize because of its Commutator - answer โ โ A repulsion motor is equipped with a increase - answer โ โ When the temperature of a copper wire is raised, the resistance will Starting - answer โ โ The capacitor in a capacitor-start induction-run AC motor is connected in series with what winding? Cover - answer โ โ Defined as the shortest distance measured between a point on the top surface of any direct buried conductor, cable, conduit and a top surface of finish grade A battery - answer โ โ An ohmmeter consists of a meter movement in series with what?
Oil and soap - answer โ โ Greece is a lubricant that is basically a combination of what? Open - answer โ โ The continuity of a coil of winding may be determined by measuring the resistance of the coil. If the resistance measured is infinite, the coil winding is what? SPDT - answer โ โ A three-way switch is equivalent to what kind of switch? It makes the operation of each appliance independent with each other - answer โ โ The main reason that electrical appliances are connected in parallel rather than series is? Voltage - answer โ โ A step up transformer increases what? Inductive - answer โ โ A circuit with a lagging current means the circuit is what?
Dial indicator - answer โ โ An instrument used to check the motor shaft alignment is called what? Power - answer โ โ In AC circuits, the ratio of KW/kVA represents what factor? Larger plate area and smaller distance between plates
Insulator - answer โ โ What is a material with atoms in which the electrons tend to stay in their orbits? high frequency alternating current in a coil with an iron core - answer โ โ Hysteresis losses are caused by? Current - answer โ โ In magnetic and electric circuit analogy, magnetic flux is the analog of what? Commutator - answer โ โ A device that reverses the magnetic field polarity to keep a DC motor rotating Length - answer โ โ The resistance of a wire is directly proportional to the what and inversely proportional to the cross-sectional area? It's physical size - answer โ โ The energy in a battery cell depends mainly on what? Preevent the connection from loosening under vibration - answer โ โ Locknuts are sometimes used in making electrical connections on studs. In these cases the purpose of the locknut is to what
Copper - answer โ โ Where the conductor material is not specified in the code, the conductors are assumed to be what? Voltage drop - answer โ โ The voltage lost across a portion of a circuit is called the Current - answer โ โ In a series circuit this is common Direct - answer โ โ Battery supply what kind of current Piezoelectricity - answer โ โ Electron flow produced by means of applying pressure to a material is called what? Expansion joints - answer โ โ Raceways shall be provided with this to compensate for thermal expansion and contraction One-half cycle - answer โ โ An alternation is what?
Determines if the circuit is alive, determines polarity of DC circuits, and determines if circuit is AC or DC - answer โ โ What is the function of a neon glow tester? Chapter 5 - answer โ โ What chapter in the code is mobile homes referred to? Are sure the power is turned off - answer โ โ Never approach a victim of an electrical injury until you Real power - answer โ โ A wattmeter indicates what? Accessible - answer โ โ The connection of a ground clamp to a grounding electrode shall be Capacitive reactance exceeds the inductive reactance in the circuit - answer โ โ The current will lead the voltage when this happens Shall - answer โ โ Mandatory rules of the code are identified by the use of what word
