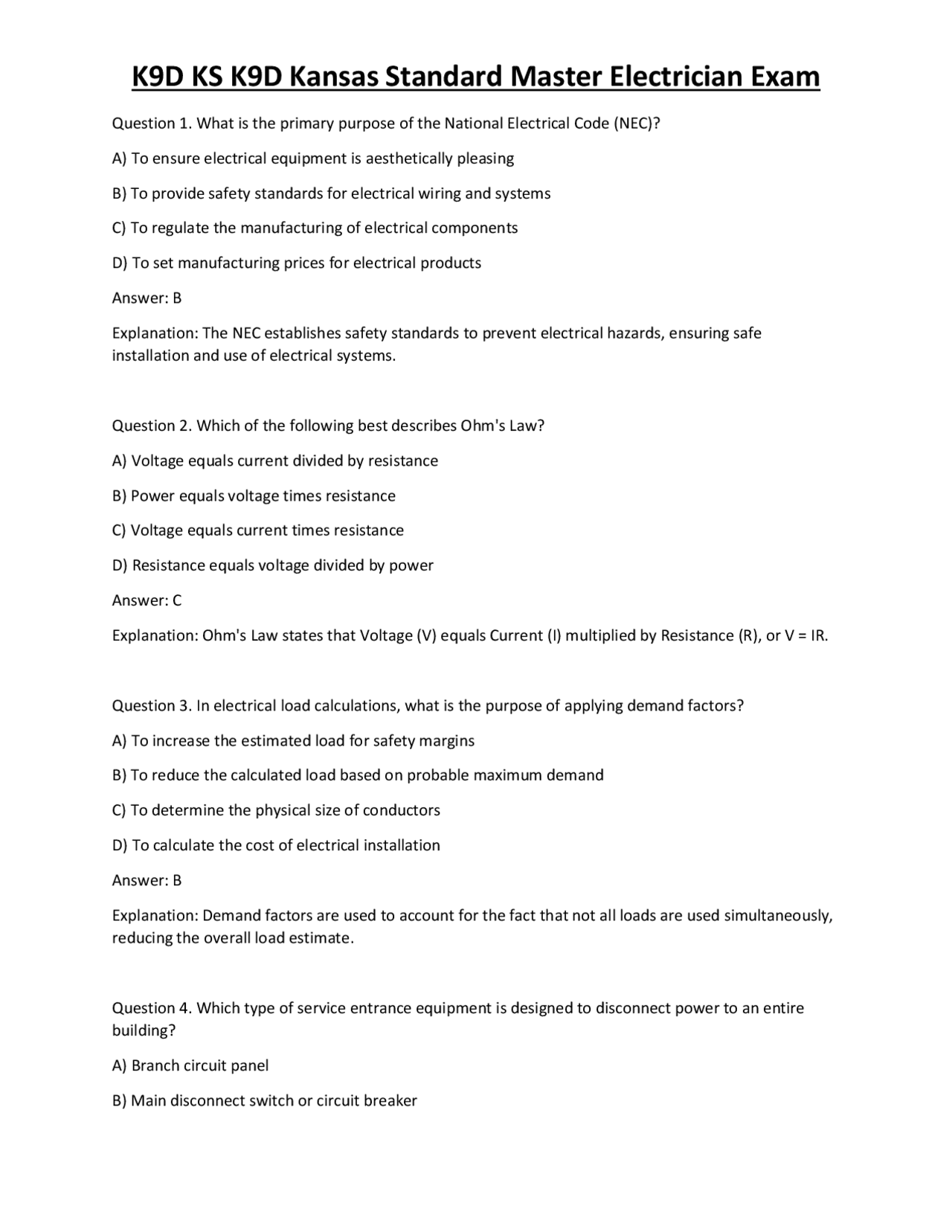

Question 1. What is the primary purpose of the National Electrical Code (NEC)? A) To ensure electrical equipment is aesthetically pleasing B) To provide safety standards for electrical wiring and systems C) To regulate the manufacturing of electrical components D) To set manufacturing prices for electrical products Answer: B Explanation: The NEC establishes safety standards to prevent electrical hazards, ensuring safe installation and use of electrical systems. Question 2. Which of the following best describes Ohm's Law? A) Voltage equals current divided by resistance B) Power equals voltage times resistance C) Voltage equals current times resistance D) Resistance equals voltage divided by power Answer: C Explanation: Ohm's Law states that Voltage (V) equals Current (I) multiplied by Resistance (R), or V = IR. Question 3. In electrical load calculations, what is the purpose of applying demand factors? A) To increase the estimated load for safety margins B) To reduce the calculated load based on probable maximum demand C) To determine the physical size of conductors D) To calculate the cost of electrical installation Answer: B Explanation: Demand factors are used to account for the fact that not all loads are used simultaneously, reducing the overall load estimate. Question 4. Which type of service entrance equipment is designed to disconnect power to an entire building? A) Branch circuit panel B) Main disconnect switch or circuit breaker
C) Grounding electrode conductor D) Subpanel Answer: B Explanation: The main disconnect switch or breaker controls power to all circuits in a building, serving as the primary disconnection point. Question 5. What is the purpose of system grounding in electrical systems? A) To prevent electrical shock hazards B) To increase electrical resistance C) To eliminate the need for overcurrent protection D) To increase system voltage Answer: A Explanation: System grounding provides a path for fault currents, helping to protect people from electric shock and prevent equipment damage. Question 6. When calculating service load, which of the following is typically included? A) Only lighting loads B) Only receptacle loads C) All connected electrical loads including lighting, receptacles, and appliances D) Only motor loads Answer: C Explanation: Service load calculations include all connected loads such as lighting, receptacles, appliances, and fixed equipment. Question 7. How are feeders different from branch circuits? A) Feeders supply power from the service to distribution points, while branch circuits supply individual loads B) Feeders are smaller conductors than branch circuits C) Feeders are only used in industrial buildings D) Feeders are designed for low-voltage systems only
Explanation: GFCI devices are most effective within a limited reach, typically up to 6 feet, but the length of conductors can vary based on code and application. Question 11. Which type of conduit is most suitable for outdoor, wet location wiring? A) Steel EMT B) PVC conduit C) Flexible cord D) Non-metallic tubing Answer: B Explanation: PVC conduit is corrosion-resistant and suitable for outdoor, wet locations. Question 12. Which of the following is a required feature of an electrical panelboard? A) Enclosed with a lockable cover B) Able to be opened without tools C) Constructed of non-conductive material only D) Must be painted bright yellow Answer: A Explanation: Electrical panelboards must be enclosed with a lockable cover to prevent unauthorized access and protect against accidental contact. Question 13. What is the purpose of AFCI (Arc-Fault Circuit Interrupter) protection? A) To prevent overloads B) To prevent electrical fires caused by arc faults C) To protect against ground faults only D) To reduce voltage fluctuations Answer: B Explanation: AFCIs detect dangerous arc faults that can cause electrical fires and disconnect power when such faults are detected. Question 14. Which type of switch is used to control a light from two different locations?
A) Single-pole switch B) Three-way switch C) Dimmer switch D) Ground fault switch Answer: B Explanation: A three-way switch allows control of a single light from two different locations. Question 15. When selecting a motor for a specific application, which factor is most important? A) The motor's color B) The motor's horsepower and voltage requirements C) The motor's weight D) The motor's brand name only Answer: B Explanation: The motor's horsepower and voltage requirements determine if it is suitable for the intended application and load. Question 16. What is the typical function of a disconnect switch in an electrical system? A) To turn on and off individual appliances B) To disconnect power from a circuit for maintenance or emergency C) To regulate voltage levels D) To convert AC to DC power Answer: B Explanation: Disconnection switches are used to safely disconnect power for maintenance or emergency purposes. Question 17. Which of the following is a common method for grounding a portable generator? A) Connecting to a building's grounding system B) Floating without grounding C) Connecting directly to the neutral conductor only
Explanation: Contactors are used to remotely control high-current devices such as motors and lighting loads. Question 21. Which component is used to convert electrical energy into mechanical motion in a motor? A) Rotor B) Stator C) Armature D) Commutator Answer: A Explanation: The rotor is the rotating part of a motor that converts electrical energy into mechanical motion. Question 22. What is the typical voltage rating for residential branch circuits in the United States? A) 120/240 volts B) 480 volts C) 277 volts only D) 12 volts DC Answer: A Explanation: Residential branch circuits in the U.S. are typically rated at 120/240 volts. Question 23. Which of the following is an approved method for grounding an outdoor metal conduit system? A) Connecting the conduit directly to a grounding electrode B) Using insulated connectors only C) Connecting the conduit to the building’s grounding system with grounding bushings D) No grounding is required for conduit systems Answer: C Explanation: Grounding bushings and connectors are used to connect conduit systems to the building’s grounding system as per code.
Question 24. What is the main purpose of a circuit breaker? A) To increase electrical load capacity B) To automatically disconnect power during overload or short circuit C) To regulate voltage fluctuations D) To convert AC to DC current Answer: B Explanation: Circuit breakers protect electrical circuits by disconnecting power during overloads or short circuits. Question 25. How does a GFCI device detect a ground fault? A) By measuring voltage between hot and neutral B) By detecting imbalance in current between hot and neutral conductors C) By sensing temperature changes in the wiring D) By monitoring the resistance of the grounding system Answer: B Explanation: GFCIs detect imbalances in current between hot and neutral conductors, which indicates leakage to ground. Question 26. What is the minimum clearance required for a walkway in front of an electrical panel according to NEC? A) 12 inches B) 30 inches C) 36 inches D) 48 inches Answer: C Explanation: NEC requires a minimum clearance of 36 inches in front of electrical panels to ensure safe access. Question 27. Which type of lighting fixture is most suitable for damp locations? A) Incandescent bulb in a standard fixture
C) The conductor’s length only D) The conductor’s brand name only Answer: B Explanation: Conductors must be selected based on their ampacity and insulation suited to the application and environment. Question 31. Which device is used to automatically disconnect power if a fault is detected in a circuit? A) Overcurrent relay B) Circuit breaker C) Thermostat D) Power supply transformer Answer: B Explanation: Circuit breakers automatically disconnect power during overloads or faults to prevent damage and hazards. Question 32. How is a three-phase motor typically connected for efficient operation? A) Delta or Wye (Star) connection B) Series connection only C) Parallel connection only D) Single-phase connection Answer: A Explanation: Three-phase motors are connected in delta or wye configurations to optimize efficiency and performance. Question 33. Which of the following best describes a luminance (light fixture) that is suitable for outdoor use? A) UL-listed for wet locations B) Standard indoor fixture C) Any fixture with a bulb socket D) Unsealed fixture exposed to the elements
Answer: A Explanation: Outdoor fixtures for wet locations must be UL-listed or equivalent for wet or damp environments to ensure safety and durability. Question 34. When wiring a switch loop, what is the typical configuration? A) Hot wire from power source to switch, then to fixture B) Neutral wire from power source to switch C) Ground wire only D) Hot wire directly to fixture without switch Answer: A Explanation: In a switch loop, the hot wire runs from the power source to the switch, then from the switch to the fixture. Question 35. Which of the following is a typical characteristic of a Class 2 power supply? A) Limited to 60 volts or less and low power output B) Designed for high-voltage transmission C) Used only for industrial machinery D) Capable of supplying unlimited current Answer: A Explanation: Class 2 power supplies are low voltage, low power sources used for control circuits, communication, and signaling. Question 36. What is the purpose of a thermal overload relay in motor circuits? A) To prevent the motor from overheating by disconnecting power when excessive current is detected B) To increase motor speed during startup C) To reduce voltage to the motor D) To protect against short circuits only Answer: A Explanation: Thermal overload relays protect motors from overheating by disconnecting power when current exceeds safe limits for a specified time.
B) To store electrical energy temporarily C) To provide direct current power D) To increase the frequency of AC power Answer: A Explanation: Transformers change AC voltage levels, stepping voltage up or down as needed in the system. Question 41. Which type of conduit is most suitable for underground installation in a direct burial application? A) Rigid metal conduit (RMC) B) Flexible metal conduit (FMC) C) Non-metallic conduit (PVC) D) Liquid-tight flexible conduit Answer: C Explanation: PVC conduit is commonly used for underground direct burial wiring due to its corrosion resistance and ease of installation. Question 42. Which of the following best describes the function of a control transformer? A) To reduce voltage for control circuits, typically to 24V or 120V B) To increase voltage for high-power applications C) To convert DC to AC power D) To provide surge protection Answer: A Explanation: Control transformers step down voltage to safer, lower levels for control and signaling circuits. Question 43. How should conductors be supported in a raceway installation? A) Every 4.5 feet and at each box or conduit bend B) Only at the ends of the raceway C) Every 10 feet only
D) Support is not necessary if the conductors are insulated Answer: A Explanation: NEC requires conductors to be supported within 4.5 feet of each box, connection, or bend to prevent sagging. Question 44. Which device is used to disconnect power to an appliance or circuit in an emergency? A) Emergency stop switch B) Overcurrent device C) Isolating transformer D) Surge protector Answer: A Explanation: Emergency stop switches are designed for quick disconnection of power during emergencies. Question 45. Which of the following is true about flexible cords used in permanent wiring? A) They are not permitted for permanent wiring unless rated for such use B) They can be used anywhere without restrictions C) They should always be buried underground D) They are only used for low-voltage applications Answer: A Explanation: Flexible cords are generally intended for temporary or portable use and are not suitable for permanent wiring unless specifically rated. Question 46. What is the main function of a motor control relay? A) To switch motors on and off automatically based on control signals B) To convert AC to DC power C) To protect against overcurrent D) To regulate voltage output Answer: A
Question 50. Which of the following is a characteristic of a high-impedance ground system? A) Limits ground-fault current to reduce arcing hazards B) Provides a low-resistance path to ground for fault current C) Is used only in industrial facilities D) Eliminates the need for grounding electrodes Answer: A Explanation: High-impedance ground systems limit fault current, reducing arcing and fire hazards during ground faults. Question 51. For a 120-volt, 15-amp circuit, what is the minimum size copper conductor required? A) 14 AWG B) 12 AWG C) 10 AWG D) 16 AWG Answer: A Explanation: The NEC specifies a minimum of 14 AWG copper conductors for 15-amp circuits. Question 52. Which component is used to protect against overvoltage conditions in an electrical system? A) Surge arrester or surge protector B) Circuit breaker C) Transformer D) Contactor Answer: A Explanation: Surge arresters or protectors are used to prevent damage from voltage spikes. Question 53. What is an example of a Class 1 circuit? A) Power circuits supplying appliances and lighting B) Control circuits for signaling systems only
C) Low-voltage communication circuits D) Battery-powered emergency circuits Answer: A Explanation: Class 1 circuits supply power for general use, such as outlets, lighting, and appliances. Question 54. Which of the following best describes a transformer’s core? A) A magnetic material that concentrates magnetic flux B) An insulated wire coil that carries current C) A metal enclosure for protection D) A semiconductor device for rectification Answer: A Explanation: The core is a magnetic material that enhances the efficiency of flux transfer between the primary and secondary windings. Question 55. When installing conduit underground, what is the typical minimum burial depth for non- metallic conduit in residential areas? A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: The NEC typically requires a minimum burial depth of 24 inches for non-metallic conduit in residential settings. Question 56. Which device is used to regulate the voltage supplied to a load? A) Voltage regulator or stabilizer B) Circuit breaker C) Contactor D) Grounding rod Answer: A
A) Using approved grounding lugs or clamps B) Tied together mechanically without connectors C) Tied to the neutral bus only D) Connected with non-metallic straps only Answer: A Explanation: Conductors must be securely attached to the grounding bus using approved connectors to ensure a reliable ground path. Question 61. What is the typical maximum distance for a receptacle from a wall in a residential living room? A) 6 feet B) 12 feet C) 3 feet D) 10 feet Answer: B Explanation: Receptacles are generally spaced so that no point along the wall is more than 6 feet from a receptacle, resulting in a maximum of 12 feet between receptacles. Question 62. Which of the following is an example of a Class 2 power supply? A) A low-voltage power supply for control circuits B) A high-voltage transmission line C) A power supply for industrial machinery exceeding 600 volts D) A solar panel array Answer: A Explanation: Class 2 power supplies provide low-voltage, low-current power suitable for control and signaling circuits. Question 63. What is the main function of a disconnect switch in a motor circuit? A) To isolate the motor for maintenance and emergency shutdown B) To increase the motor’s speed during operation
C) To convert AC to DC D) To regulate the motor’s voltage Answer: A Explanation: The disconnect switch allows safe disconnection of power for maintenance or emergencies. Question 64. When wiring a 240-volt circuit for a dryer, what is the typical configuration? A) Two hot conductors and a neutral B) Two hot conductors only C) One hot conductor and a neutral D) Two neutral conductors only Answer: A Explanation: A standard dryer circuit uses two hot conductors and a neutral for proper operation. Question 65. Which of the following best describes the function of a relay? A) An electrically operated switch used to control a circuit by a low-power signal B) A device that converts AC to DC C) A device that measures current flow D) A fuse that protects against overloads Answer: A Explanation: Relays use an electromagnet to open or close contacts, controlling circuits with low-power signals. Question 66. How should conductors be sized for a circuit that supplies a motor with a starting current significantly higher than its running current? A) Based on the motor's full load ampacity, with consideration for starting current B) Using the smallest conductor possible for cost savings C) Based only on the circuit length D) Using the same size as the branch circuit wiring for lighting Answer: A
