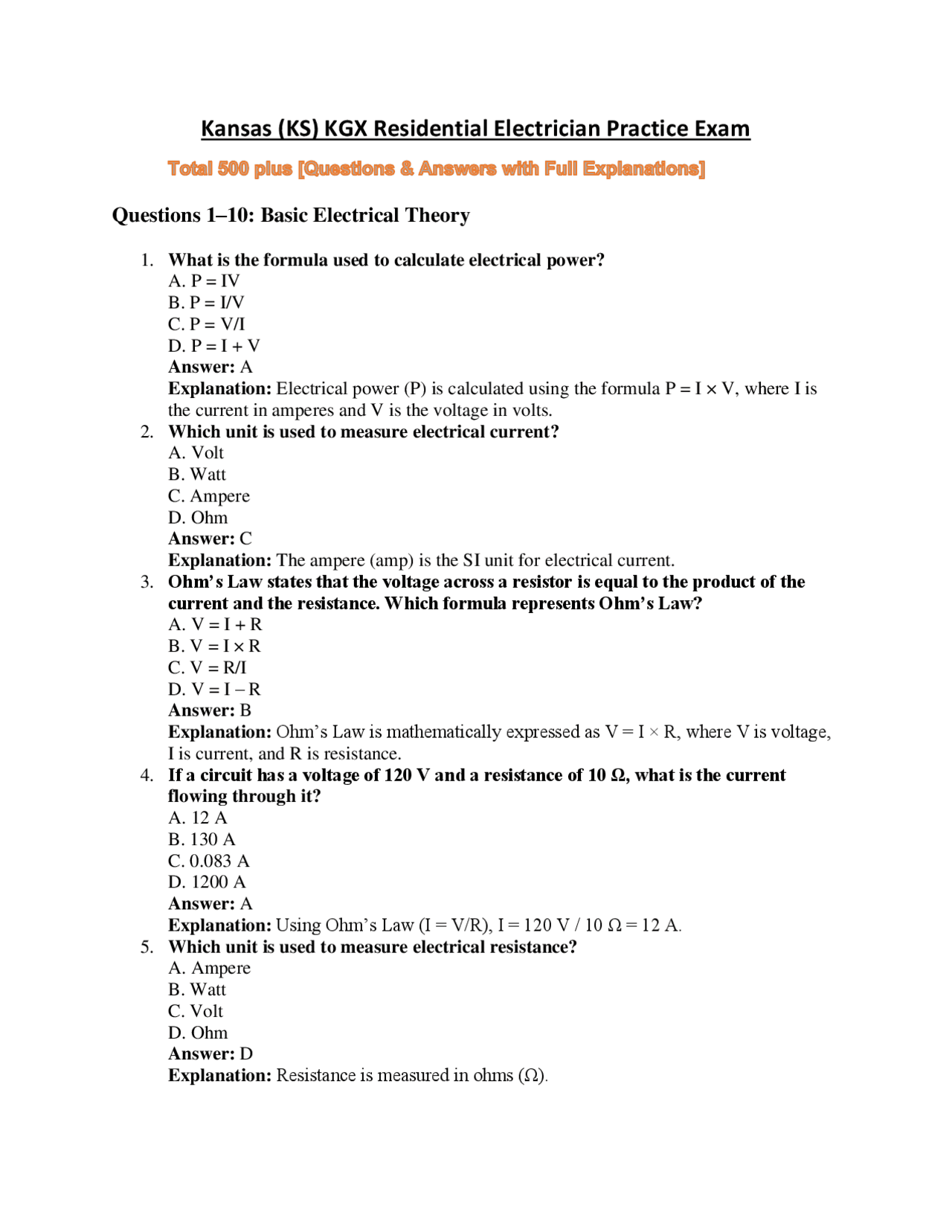

Kansas (KS) KGX Residential Electrician Practice Exam
Questions 1–10: Basic Electrical Theory
- What is the formula used to calculate electrical power? A. P = IV B. P = I/V C. P = V/I D. P = I + V Answer: A Explanation: Electrical power (P) is calculated using the formula P = I × V, where I is the current in amperes and V is the voltage in volts.
- Which unit is used to measure electrical current? A. Volt B. Watt C. Ampere D. Ohm Answer: C Explanation: The ampere (amp) is the SI unit for electrical current.
- Ohm’s Law states that the voltage across a resistor is equal to the product of the current and the resistance. Which formula represents Ohm’s Law? A. V = I + R B. V = I × R C. V = R/I D. V = I – R Answer: B Explanation: Ohm’s Law is mathematically expressed as V = I × R, where V is voltage, I is current, and R is resistance.
- If a circuit has a voltage of 120 V and a resistance of 10 Ω, what is the current flowing through it? A. 12 A B. 130 A C. 0.083 A D. 1200 A Answer: A Explanation: Using Ohm’s Law (I = V/R), I = 120 V / 10 Ω = 12 A.
- Which unit is used to measure electrical resistance? A. Ampere B. Watt C. Volt D. Ohm Answer: D Explanation: Resistance is measured in ohms (Ω).
- What does a circuit breaker do in an electrical circuit? A. Measures the current B. Provides a continuous source of power C. Interrupts power flow in the event of an overload D. Regulates voltage levels Answer: C Explanation: Circuit breakers protect circuits by interrupting power flow during overload or short-circuit conditions.
- Which of the following best describes alternating current (AC)? A. Current that flows only in one direction B. Current that reverses direction periodically C. Direct current with a constant amplitude D. A type of current used only in batteries Answer: B Explanation: Alternating current (AC) reverses its direction periodically, which is standard in residential power systems.
- What is the primary function of a transformer in an electrical system? A. Convert AC to DC B. Step voltage levels up or down C. Increase current levels only D. Regulate frequency Answer: B Explanation: A transformer is used to change (step up or step down) the voltage levels in AC systems.
- Which of the following is a passive electrical component? A. Transistor B. Integrated Circuit C. Resistor D. Microprocessor Answer: C Explanation: A resistor is a passive component because it does not require external power to operate and only resists current flow.
- In a DC circuit, if you double the resistance while keeping the voltage constant, what happens to the current? A. It doubles B. It is halved C. It remains the same D. It becomes zero Answer: B Explanation: According to Ohm’s Law (I = V/R), doubling the resistance will halve the current when voltage is constant.
Questions 11–25: Electrical Load Calculations
A. A 100% load factor for lighting circuits B. A reduced load factor for general lighting C. An increased load factor for receptacles D. A separate circuit for each outlet Answer: B Explanation: The NEC provides reduced load factors for lighting loads because not all lights are on at once, which helps in sizing circuits appropriately.
- If you have a load of 1500 W on a 120 V circuit, what is the current draw? A. 12.5 A B. 10 A C. 15 A D. 20 A Answer: A Explanation: I = 1500 W / 120 V = 12.5 A.
- Which factor is NOT typically considered when calculating the electrical load for a residential system? A. The wattage of the device B. The length of the circuit run C. The voltage supply D. The duty cycle of the appliance Answer: B Explanation: While conductor size may be influenced by circuit length (due to voltage drop), the basic load calculation focuses on wattage, voltage, and duty cycle.
- When calculating branch-circuit loads, the NEC requires you to apply a correction factor if: A. The circuit is used for motors B. The load is considered continuous C. The circuit is outdoors D. The voltage exceeds 240 V Answer: B Explanation: For continuous loads (operating for 3 hours or more), the NEC requires you to apply a 125% multiplier to ensure safety and prevent overheating.
- A continuous load of 16 A is calculated for a circuit. According to NEC guidelines, what should the circuit breaker be rated at minimum? A. 16 A B. 20 A C. 25 A D. 30 A Answer: B Explanation: For continuous loads, the breaker should be sized at 125% of the load: 16 A × 1.25 = 20 A, so a 20 A breaker is required.
- Which of the following is the correct method for calculating the wattage of an electrical device? A. Divide the current by the voltage B. Multiply the current by the voltage C. Multiply the resistance by the current D. Divide the voltage by the resistance
Answer: B Explanation: Wattage is calculated by multiplying the current (I) by the voltage (V): W = I × V.
- In a scenario where multiple appliances are connected to one circuit, why is it important to consider the diversity factor? A. To ensure all devices can operate simultaneously B. To accurately predict the maximum possible load C. To account for the likelihood that not all appliances run at the same time D. To reduce the wiring cost Answer: C Explanation: The diversity factor recognizes that not all appliances operate at their maximum load simultaneously, allowing for a more efficient circuit design.
- A circuit designed to supply lighting in a home is calculated at 1800 W on a 120 V system. What is the calculated current? A. 15 A B. 10 A C. 20 A D. 25 A Answer: A Explanation: I = 1800 W / 120 V = 15 A.
- Which NEC article typically covers load calculations and demand factors for branch circuits? A. Article 210 B. Article 250 C. Article 110 D. Article 300 Answer: A Explanation: NEC Article 210 deals with branch circuits and load calculations, including applying demand factors.
- For an electric dryer rated at 5000 W on a 240 V circuit, what is the current draw? A. 10.4 A B. 20.8 A C. 25 A D. 12.5 A Answer: B Explanation: I = 5000 W / 240 V ≈ 20.8 A.
Questions 26–45: NEC Code Definitions and Terms
- What does NEC stand for? A. National Electrical Commission B. National Energy Code C. National Electrical Code D. National Engineering Code
B. A conductor that connects noncurrent-carrying metal parts of equipment to the grounding system C. A conductor that carries load current during normal operation D. A conductor used exclusively for surge protection Answer: B Explanation: The equipment grounding conductor connects noncurrent-carrying metal parts of equipment to the grounding electrode system to help clear faults.
- The term “listed” in the NEC means that an electrical component has been: A. Evaluated and approved by the local building inspector B. Manufactured in the United States C. Included in a directory of components for residential use D. Tested and approved by a recognized testing laboratory Answer: D Explanation: “Listed” means the component has been tested and certified by a recognized laboratory for safety and performance.
- Which of the following best describes “service equipment”? A. The final overcurrent device protecting a branch circuit B. The combination of conductors, devices, and equipment for distributing electricity in a structure C. A portable generator used during outages D. The wiring within a single appliance Answer: B Explanation: Service equipment includes all components that distribute power from the utility to the branch circuits within a building.
- What is the purpose of a “disconnecting means” as defined in the NEC? A. To permanently remove power from a circuit B. To temporarily stop the flow of current for maintenance C. To isolate a portion of a circuit for safety D. To provide surge protection Answer: C Explanation: A disconnecting means is used to isolate a circuit or equipment from its power source for maintenance or emergency purposes.
- According to the NEC, a “continuous load” is one that: A. Operates only intermittently B. Operates for 3 hours or more continuously C. Has a high starting current D. Only runs during peak hours Answer: B Explanation: A continuous load is defined as one that is expected to run at maximum current for three hours or more.
- In the NEC, what is meant by “listed and labeled”? A. The equipment has been approved by the manufacturer B. The equipment has been included in a building directory C. The equipment has been evaluated, tested, and marked with its listing status D. The equipment is available for purchase from authorized dealers Answer: C
Explanation: “Listed and labeled” indicates that the equipment has been tested and approved by a recognized testing laboratory and bears a label indicating its compliance.
- What does the term “ground-fault circuit-interrupter (GFCI)” mean? A. A device that limits voltage surges B. A device that automatically disconnects power when a ground fault is detected C. A device that stabilizes current fluctuations D. A component that regulates AC frequency Answer: B Explanation: A GFCI protects against electric shock by quickly disconnecting power when it detects an imbalance between the incoming and outgoing current.
- Which NEC term describes conductors that are insulated and installed in a raceway or cable assembly? A. Equipment grounding conductors B. Service conductors C. Nonmetallic-sheathed cable D. Circuit conductors Answer: D Explanation: Circuit conductors refer to the insulated wires that are installed to carry current to various devices and outlets.
- What is the significance of “ampacity” in conductor selection? A. It determines the color of the wire insulation B. It dictates the maximum current the conductor can safely carry C. It defines the voltage rating of a conductor D. It indicates the lifespan of the conductor Answer: B Explanation: Ampacity is critical in conductor selection because it ensures that the wire can handle the expected current without overheating.
- In NEC terminology, what does “accessible” mean when referring to equipment? A. Equipment that is easily visible B. Equipment that is open to public inspection C. Equipment that can be reached without using ladders or tools D. Equipment that is behind locked panels Answer: C Explanation: “Accessible” means the equipment can be reached without the need for special tools or climbing, ensuring maintenance and emergency access.
- What is the purpose of the “grounding electrode system” as defined by the NEC? A. To provide a path for stray voltage B. To ensure proper operation of circuit breakers C. To establish a reference to earth potential and dissipate fault currents D. To increase the efficiency of electrical appliances Answer: C Explanation: The grounding electrode system connects parts of the electrical installation to earth, helping to dissipate fault currents and stabilize voltage.
- Which of the following NEC terms refers to a conductor that is used to connect non- current-carrying metal parts of equipment? A. Hot conductor
- A residential circuit is expected to have a maximum load of 24 A continuously. What should be the minimum rating of the circuit breaker? A. 24 A B. 30 A C. 20 A D. 28 A Answer: B Explanation: For continuous loads, multiply 24 A by 1.25 = 30 A. Therefore, a 30 A breaker is required.
- Which calculation is most important when sizing conductors for long circuit runs in residential installations? A. Short-circuit current B. Voltage drop C. Ambient temperature D. Equipment grounding Answer: B Explanation: Voltage drop becomes a significant concern over long runs, requiring calculation to ensure proper voltage at the load.
- How does the NEC recommend treating motor loads when calculating the feeder or branch circuit sizing? A. As continuous loads B. With no adjustment C. With a reduction factor D. With an inrush current factor Answer: D Explanation: Motors often have a high inrush (starting) current, so the calculation must account for these factors even though they may not be considered continuous loads.
- If a residential lighting circuit is calculated at 800 W on a 120 V system, what is the current? A. 6.67 A B. 8 A C. 9.6 A D. 10 A Answer: A Explanation: I = 800 W / 120 V ≈ 6.67 A.
- When calculating the load for a kitchen countertop receptacle circuit, the NEC often requires a calculation based on: A. The total area of the countertop B. A minimum of 180 VA per receptacle C. The number of appliances present D. A standard 1500 W load Answer: B Explanation: The NEC requires that countertop receptacle loads be calculated on a per receptacle basis, typically 180 VA each, to account for small appliances.
- For calculating the total load of a multi-room residential lighting system, which approach is most appropriate?
A. Summing the wattage of all fixtures and applying the diversity factor B. Using the highest single fixture wattage C. Multiplying the number of fixtures by 100 W D. Only considering fixtures in the main living area Answer: A Explanation: You add the wattage of all fixtures and then apply an appropriate diversity factor to account for the fact that not all lights are on simultaneously.
- A circuit is designed for a 120 V system. If an appliance rated at 720 W is connected, which wire size consideration is most influenced by the current drawn? A. The insulation type B. The conductor ampacity C. The wire color D. The installation environment Answer: B Explanation: The conductor ampacity must be sufficient to safely carry the calculated current (720 W / 120 V = 6 A in this case).
- When calculating loads for a residential feeder, which of the following is typically included? A. Only the largest branch circuit load B. The sum of all branch circuit loads, adjusted by demand factors C. Only the lighting loads D. Only the receptacle loads Answer: B Explanation: The feeder load calculation involves summing all branch circuit loads and then applying NEC demand factors as applicable.
- Which NEC table is commonly referenced for applying demand factors to household appliances and lighting loads? A. Table 310.15(B)(16) B. Table 220. C. Table 250. D. Table 404. Answer: B Explanation: Table 220.42 in the NEC provides demand factors for household appliances and lighting loads.
- A central air conditioner rated at 3600 W is connected to a 240 V circuit. What is the nominal current draw? A. 10 A B. 15 A C. 20 A D. 25 A Answer: B Explanation: I = 3600 W / 240 V = 15 A.
- In residential load calculations, which of the following is a primary benefit of using demand factors? A. Reducing installation costs by oversizing conductors B. Providing a conservative estimate that guarantees no overload
B. A demand factor as specified in the NEC tables C. No adjustment is necessary D. A reduction based on the number of burners Answer: B Explanation: NEC tables specify demand factors for cooking appliances, which are applied to calculate the appropriate load.
- For a circuit supplying both general lighting (calculated at 1200 W) and receptacles (calculated at 600 W) on a 120 V system, what is the total current before applying any diversity factors? A. 15 A B. 10 A C. 20 A D. 5 A Answer: A Explanation: Total wattage is 1200 W + 600 W = 1800 W; current = 1800 W / 120 V = 15 A.
- When considering the wiring for a residential feeder, which load calculation factor helps reduce the overall calculated load? A. The derating factor for conductor temperature B. The diversity or demand factor C. The multiplication factor for continuous loads D. The inrush factor for motors Answer: B Explanation: The diversity or demand factor reduces the calculated load by recognizing that not all circuits will operate at full capacity simultaneously.
Questions 66–100: NEC Interpretations, Definitions, and Practical Applications
- According to the NEC, what is the primary purpose of bonding? A. To ensure electrical continuity and minimize voltage differences B. To provide additional insulation for conductors C. To reduce the length of conductors needed D. To increase the resistance of the grounding system Answer: A Explanation: Bonding ensures electrical continuity and helps minimize voltage differences between metal parts, enhancing safety.
- What does the term “separation of conductors” imply in the context of residential wiring? A. Keeping conductors of different circuits apart to prevent interference B. Using different colors for hot and neutral wires C. Physically separating conductors with cable ties D. Ensuring that conductors are installed in separate conduits Answer: A
Explanation: Separation of conductors often means keeping circuits separate to reduce interference and potential fault propagation.
- Which NEC article primarily deals with wiring methods and materials? A. Article 210 B. Article 300 C. Article 250 D. Article 110 Answer: B Explanation: Article 300 of the NEC covers wiring methods, including installation practices for cables and raceways.
- What does the term “ampacity” ensure when selecting a conductor for a residential circuit? A. That the conductor color meets code B. That the conductor can carry the expected current without overheating C. That the conductor is the correct length D. That the conductor voltage rating is exceeded Answer: B Explanation: Ampacity ensures that the conductor can safely carry the designed current load without the risk of overheating.
- Which of the following best describes “equipment grounding”? A. Providing a path for current during normal operation B. Protecting against voltage surges during lightning strikes C. Connecting noncurrent-carrying metal parts of equipment to earth for safety D. Regulating the voltage in a residential electrical system Answer: C Explanation: Equipment grounding connects metal parts that do not normally carry current to the grounding system to protect against electrical shock.
- The term “conductors” in the NEC refers to: A. Only the wires that carry current B. All wires and cables regardless of function C. Only insulated wires D. Cables that are installed in conduit Answer: B Explanation: “Conductors” includes all wires and cables, whether insulated or not, that are used to carry electrical current.
- What is the purpose of “listing” in the context of electrical equipment? A. To verify that the equipment meets prescribed safety standards B. To catalog the equipment in the manufacturer’s manual C. To indicate that the equipment is expensive D. To ensure that the equipment is installed by a licensed electrician Answer: A Explanation: Listing confirms that the equipment has been tested by a recognized laboratory and meets established safety standards.
- Which of the following statements about the NEC is true? A. It is a federal law enforced by the U.S. government B. It is a consensus standard that is often adopted by states and local jurisdictions
Explanation: A bonding jumper is used to connect metal parts (such as enclosures or equipment) to ensure a continuous electrical path and safety.
- What does “service conductors” refer to? A. Conductors that distribute power from the service equipment to the building B. Conductors that branch off from a feeder C. Conductors exclusively used for lighting circuits D. Conductors used in emergency backup systems Answer: A Explanation: Service conductors carry power from the utility’s service point (or meter) to the building’s service equipment.
- The NEC requires that the connection of the grounded (neutral) conductor to the grounding system at the service equipment must be: A. Optional for safety B. Performed by the electrician on-site C. Made at one point only D. Repeated at every junction box Answer: C Explanation: The NEC mandates that the neutral is bonded to ground at a single point (typically at the service equipment) to avoid parallel paths and potential shock hazards.
- Which term describes the protection provided by the NEC against electrical shock hazards? A. Overcurrent protection B. Ground-fault protection C. Insulation coordination D. Safety grounding and bonding Answer: D Explanation: Safety grounding and bonding are critical concepts in the NEC designed to protect against electrical shock by ensuring proper current paths during fault conditions.
- The term “equipment” in the NEC includes: A. Only appliances B. Devices that require connection to the electrical supply for operation C. Only permanently installed items D. Tools used by electricians Answer: B Explanation: “Equipment” encompasses all items that operate on electricity and are connected to the electrical supply, whether permanently installed or not.
- In NEC language, “conduit” refers to: A. Any cable assembly B. A protective tubing or channel for wiring C. An electrical panel D. A ground rod Answer: B Explanation: Conduit is a tubing or channel system used to protect and route electrical wiring.
- What does “voltage drop” mean in electrical circuits? A. The increase in voltage over distance
B. The reduction in voltage along a conductor due to its resistance C. The loss of power in the transformer D. The surge in voltage during startup Answer: B Explanation: Voltage drop is the reduction in voltage as electric current flows through a conductor with inherent resistance.
- Which of the following is a requirement for conductors in raceways according to the NEC? A. They must always be insulated with metallic sheathing B. They must be rated for the maximum ambient temperature C. They must be installed in underground vaults D. They must be painted red Answer: B Explanation: Conductors must be rated to handle the maximum ambient temperature they will be exposed to, ensuring safe operation in raceways.
- What is the primary purpose of applying derating factors to conductors? A. To reduce installation costs B. To compensate for environmental factors like ambient temperature and conduit fill C. To increase the conductor length D. To modify the color coding system Answer: B Explanation: Derating factors account for environmental influences (such as higher ambient temperatures or multiple conductors in a conduit) that affect the conductor’s ability to dissipate heat.
- A circuit is designed with a calculated load of 40 A. If this load is continuous, what is the adjusted current for breaker sizing? A. 40 A B. 50 A C. 45 A D. 55 A Answer: B Explanation: For continuous loads, multiply by 1.25: 40 A × 1.25 = 50 A.
- Which of the following best describes “service equipment enclosure”? A. The metal box that contains all branch circuits B. The structure that houses the service disconnects, meters, and overcurrent devices C. The conduit used for service conductors D. The wiring method for interior circuits Answer: B Explanation: The service equipment enclosure houses the service disconnect, meters, and overcurrent protective devices, serving as the central point for power distribution.
- In terms of NEC requirements, which statement is true regarding the installation of receptacles in a dwelling unit? A. They must be installed only in visible areas B. They must be grounded and have tamper-resistant features in new installations C. They are exempt from grounding if located in a kitchen D. They must be installed only in dedicated circuits
- When calculating the load for a dwelling unit, which of the following is typically excluded from the demand load calculation? A. Lighting circuits B. Receptacle circuits C. Motor loads with high inrush currents D. Cooking appliances in the kitchen Answer: C Explanation: Motor loads with high inrush currents are often treated separately and not included in the general demand load calculation.
- Which term describes the physical path through which electricity flows from the source to the load? A. Circuit B. Voltage drop C. Ampacity D. Bonding Answer: A Explanation: A circuit is the complete path through which electric current flows from the source to the load and back.
- What does the NEC specify regarding the installation of luminaires (light fixtures) in damp locations? A. They must be rated for damp locations B. They require a separate circuit C. They are not permitted D. They must use nonmetallic conductors Answer: A Explanation: The NEC requires that luminaires installed in damp or wet locations be specifically rated for those conditions to ensure safe operation.
- Which of the following best explains “cable assembly” in the NEC? A. A bundle of conductors that are not insulated B. A preassembled unit of conductors with an overall protective sheath C. A single conductor installed in conduit D. A set of conductors installed loosely Answer: B Explanation: A cable assembly is a preassembled grouping of conductors that includes an overall protective covering or sheath, designed for a specific application.
- When reviewing an electrical installation for compliance, the NEC requires that all wiring methods be installed in accordance with which document? A. The manufacturer’s installation instructions only B. The local building code only C. Both the NEC and the manufacturer’s instructions D. A separate standard published by the state Answer: C Explanation: The NEC mandates that wiring methods must conform both to its requirements and to the manufacturer’s installation instructions.
- What is the primary role of overcurrent protection devices in a residential electrical system?
A. To regulate voltage B. To provide a safe means to disconnect power during fault conditions C. To ensure the continuity of power D. To limit the length of circuits Answer: B Explanation: Overcurrent protection devices, such as fuses and circuit breakers, are designed to disconnect power when excessive current is detected, thereby protecting the wiring and reducing the risk of fire.
Service Load Calculations
- When calculating the service load for a residential structure, which of the following is considered the “general lighting load” per NEC guidelines? A. 3 VA per square foot B. 5 VA per square foot C. 10 VA per square foot D. 15 VA per square foot Answer: B Explanation: NEC guidelines typically assume a general lighting load of 5 volt-amperes (VA) per square foot in residential load calculations.
- A 2,000 square foot home would have what minimum calculated general lighting load using the NEC standard? A. 5,000 VA B. 8,000 VA C. 10,000 VA D. 12,000 VA Answer: C Explanation: Using 5 VA/sq. ft. × 2,000 sq. ft. = 10,000 VA.
- For service load calculations, what factor is applied for demand when multiple circuits are involved in a residential setting? A. 80% B. 100% C. Demand factor as per NEC Table 220. D. 50% Answer: C Explanation: NEC Table 220.42 provides the demand factors to be applied when calculating service loads in residential occupancies with multiple circuits.
- Which of the following is NOT typically included in the load calculation for a residential service? A. General lighting B. Small appliance circuits
