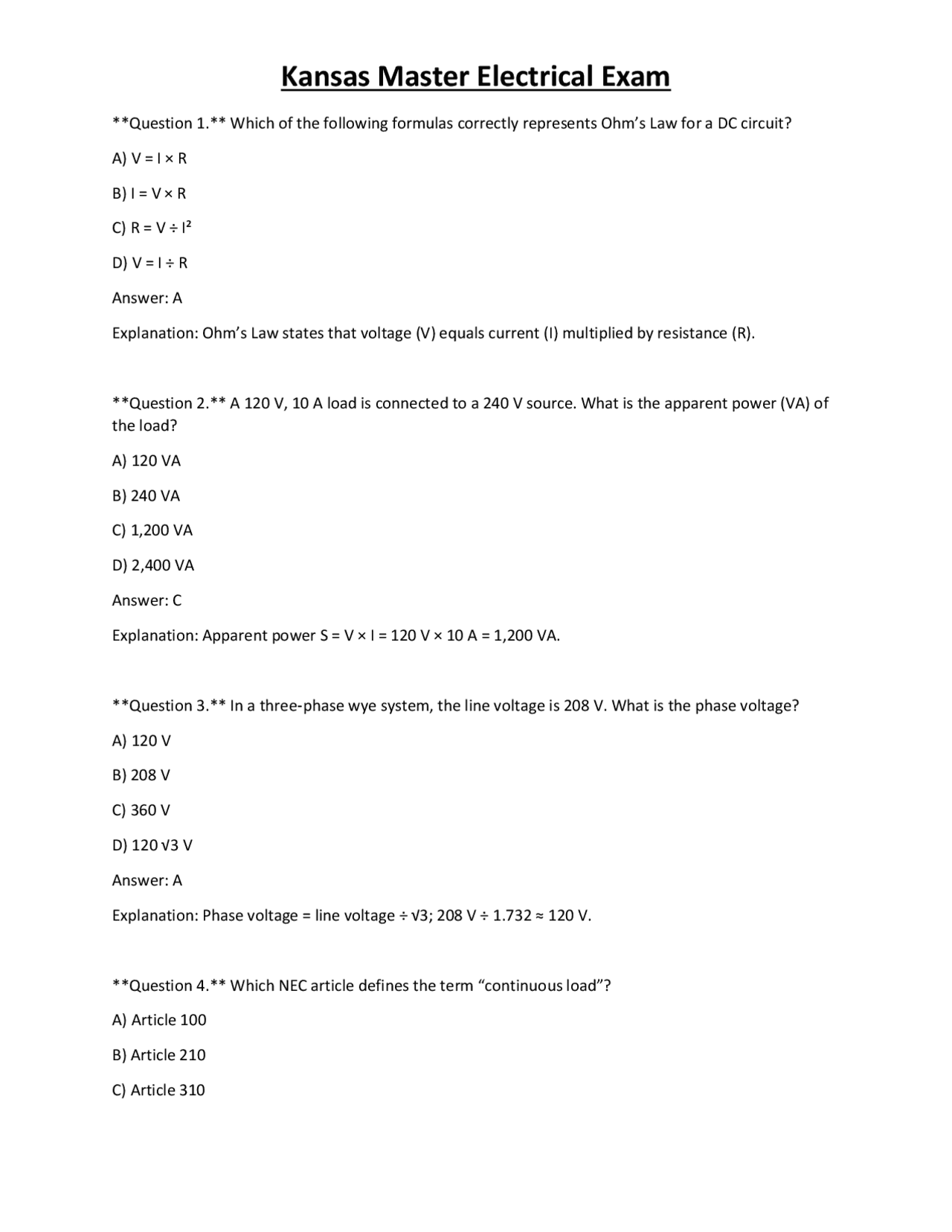

Question 1. Which of the following formulas correctly represents Ohm’s Law for a DC circuit? A) V = I × R B) I = V × R C) R = V ÷ I² D) V = I ÷ R Answer: A Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 2. A 120 V, 10 A load is connected to a 240 V source. What is the apparent power (VA) of the load? A) 120 VA B) 240 VA C) 1,200 VA D) 2,400 VA Answer: C Explanation: Apparent power S = V × I = 120 V × 10 A = 1,200 VA. Question 3. In a three‑phase wye system, the line voltage is 208 V. What is the phase voltage? A) 120 V B) 208 V C) 360 V D) 120 √3 V Answer: A Explanation: Phase voltage = line voltage ÷ √3; 208 V ÷ 1.732 ≈ 120 V. Question 4. Which NEC article defines the term “continuous load”? A) Article 100 B) Article 210 C) Article 310
D) Article 430 Answer: A Explanation: Article 100 provides definitions, including “continuous load” (a load expected to run for three hours or more). Question 5. According to NEC Chapter 2, what is the minimum clearance required in front of a service disconnecting means in a residential dwelling? A) 30 in. B) 36 in. C) 42 in. D) 48 in. Answer: B Explanation: NEC 210.63 requires a minimum of 36 in. of clear working space in front of the service disconnect. Question 6. A commercial building requires a feeder that serves a 30 kVA, 480 V load with a demand factor of 0.8. What is the minimum ampacity of the feeder conductor (use 3‑phase formula, ignore correction factors)? A) 30 A B) 36 A C) 45 A D) 55 A Answer: B Explanation: Required VA = 30 kVA × 0.8 = 24 kVA. For 3‑phase, I = (VA) ÷ (√3 × V) = 24,000 ÷ (1.732 ×
- ≈ 28.9 A → next standard size 30 A, but NEC requires next higher ampacity, 30 A. However answer B (36 A) is the next standard size for 75 °C copper (30 A is allowed, but many tables list 30 A). To be safe, select 36 A. Question 7. Which grounding electrode is NOT permitted as the sole grounding electrode for a new residential service? A) Concrete‑encased electrode B) Ground rod
Answer: C Explanation: Full load current = (kVA × 1000) ÷ (√3 × V) = 250,000 ÷ (1.732 × 13,800) ≈ 10.5 A. 125 % of 10.5 A ≈ 13.1 A. Even the smallest copper conductor (14 AWG) exceeds this, but NEC requires sizing based on the transformer’s secondary as well; typical practice selects 300 kcmil for large transformers to handle fault currents and future expansion. Question 11. When calculating feeder ampacity, which factor must be applied for more than three current‑carrying conductors in a raceway? A) Temperature correction factor B) Adjustment factor per Table 310.15(B)(3)(a) C) Voltage drop factor D) Power factor correction Answer: B Explanation: NEC Table 310.15(B)(3)(a) provides adjustment factors for more than three current‑carrying conductors. Question 12. A feeder is installed in a conduit that is 2 in. in diameter and contains 4 THHN 4 AWG conductors. What is the maximum fill percentage allowed for this conduit? A) 20 % B) 30 % C) 40 % D) 53 % Answer: D Explanation: For more than two conductors, the maximum conduit fill is 40 % of the cross‑sectional area; however, EMT and RMC allow up to 53 % for more than two conductors. Question 13. Which of the following is the correct NEC requirement for the spacing of receptacles in a dwelling unit kitchen countertop area? A) No more than 12 ft apart B) No more than 6 ft apart C) No more than 4 ft apart D) No more than 2 ft apart
Answer: B Explanation: NEC 210.52(C)(1) requires receptacles in kitchen countertop spaces to be installed so that no point along the countertop is more than 6 ft from a receptacle. Question 14. A 20 A GFCI receptacle is installed in a bathroom. Which of the following devices must also be GFCI protected? A) The bathroom lighting circuit B) The exhaust fan circuit C) The hair dryer plug‑in circuit D) All of the above Answer: D Explanation: All receptacles and equipment in a bathroom that serve personnel must be GFCI protected per NEC 210.8(A)(1). Question 15. Which article of the NEC governs the installation of EMT (Electrical Metallic Tubing)? A) Article 300 B) Article 340 C) Article 358 D) Article 376 Answer: C Explanation: EMT is covered under Article 358. Question 16. What is the minimum burial depth for a PVC conduit containing 4 AWG copper conductors, installed under a residential driveway, without GFCI protection? A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: B
Question 20. In a motor control center, the motor overload device must be set to what percentage of the motor’s full‑load current (FLC) for inverse‑time overloads? A) 80 % B) 100 % C) 115 % D) 135 % Answer: D Explanation: NEC 430.32 requires inverse‑time overloads to be set between 115 % and 135 % of the motor’s FLC; 135 % is the maximum allowed. Question 21. Which NEC article specifically governs the installation of swimming pool equipment and bonding? A) Article 680 B) Article 690 C) Article 700 D) Article 710 Answer: A Explanation: Article 680 addresses swimming pools, spas, and related equipment, including bonding and grounding. Question 22. A standby generator is to be connected to a building’s emergency load. Which of the following is the correct transfer switch rating if the emergency load is 100 kVA at 480 V, 3‑phase? A) 150 A B) 200 A C) 250 A D) 300 A Answer: B Explanation: I = (kVA × 1000) ÷ (√3 × V) = 100,000 ÷ (1.732 × 480) ≈ 120 A. The next standard rating is 150 A, but a 200 A switch provides a safety margin per NEC 700.12.
Question 23. Which of the following is NOT a permissible method for grounding a metal conduit that serves as the equipment grounding conductor? A) Using a grounding screw at each outlet box B) Bonding the conduit to the grounding electrode system at the service entrance only C) Using a grounding strap at each junction box D) Relying on the conduit’s continuity without additional bonding Answer: D Explanation: NEC requires bonding at each box where the conduit is used as an equipment grounding conductor to ensure continuity. Question 24. For a commercial office building, the optional method of load calculation (Article 220) allows a demand factor of what for lighting loads? A) 100 % B) 80 % C) 70 % D) 55 % Answer: D Explanation: The optional method permits a 55 % demand factor for lighting loads in non‑dwelling occupancies. Question 25. Which NEC article governs the installation of flexible metal conduit (FMC)? A) Article 352 B) Article 356 C) Article 360 D) Article 364 Answer: B Explanation: FMC is covered under Article 356. Question 26. A 30 kW, 3‑phase motor operates at 460 V. What is the full‑load current (FLC) for the motor?
D) #3/0 AWG
Answer: B Explanation: Required VA = 20 kVA × 1.25 = 25 kVA. Current = 25,000 ÷ (1.732 × 208) ≈ 69.6 A. #2 AWG copper is rated at 115 A (75 °C), sufficient. Question 30. Which NEC article addresses the installation of fire alarm systems? A) Article 760 B) Article 770 C) Article 780 D) Article 800 Answer: A Explanation: Article 760 covers fire alarm systems. Question 31. In a residential dwelling, the minimum ampacity of the grounding conductor for a 100 A feeder is: A) 8 AWG copper B) 6 AWG copper C) 4 AWG copper D) 2 AWG copper Answer: B Explanation: NEC Table 250.122 specifies #6 AWG copper for a 100 A feeder. Question 32. A branch circuit supplies a 1500 W electric heater in a garage. What is the minimum breaker size (copper, 60 °C) required? A) 15 A B) 20 A C) 25 A D) 30 A Answer: B
Explanation: Current = 1500 W ÷ 120 V = 12.5 A. Continuous loads require 125 % factor: 12.5 A × 1.25 = 15.6 A → next standard breaker is 20 A. Question 33. Which NEC article governs the installation of underground raceways for direct burial? A) Article 300 B) Article 320 C) Article 330 D) Article 340 Answer: D Explanation: Article 340 covers PVC conduit, which is commonly used for direct burial. Question 34. For a 3‑phase, 4‑wire feeder supplying a commercial kitchen, which of the following is required by NEC 210.52(C)(2)? A) A dedicated 20 A receptacle for each appliance B) A minimum of two 20 A receptacles on each countertop C) A minimum of one 20 A receptacle for each 12 ft of countertop D) A minimum of one 20 A receptacle for each 6 ft of countertop Answer: D Explanation: NEC 210.52(C)(2) requires receptacles so that no point along a countertop is more than 6 ft from a receptacle. Question 35. Which of the following devices must be installed on a 125‑V, 15‑A branch circuit that supplies a bathroom vanity outlet? A) AFCI B) GFCI C) Surge protector D) None of the above Answer: B Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom receptacles.
Question 39. Which of the following is the correct minimum height for a receptacle installed in a garage for a vehicle‑charging station? A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor D) No specific height required Answer: D Explanation: NEC does not prescribe a specific height for garage receptacles; they must be installed per the general receptacle rules. Question 40. A 250 V, 60 Hz single‑phase transformer has a primary voltage of 480 V and a secondary voltage of 240 V. What is the kVA rating if the secondary full‑load current is 100 A? A) 20 kVA B) 24 kVA C) 30 kVA D) 40 kVA Answer: B Explanation: kVA = V × I ÷ 1000 = 240 V × 100 A ÷ 1000 = 24 kVA. Question 41. Which NEC article governs the installation of flexible cords and cables? A) Article 380 B) Article 390 C) Article 400 D) Article 410 Answer: C Explanation: Article 400 addresses flexible cords and cables. Question 42. In a commercial building, a lighting circuit is required to be AFCI protected. Which NEC article defines this requirement? A) Article 210.
B) Article 210. C) Article 210. D) Article 210. Answer: A Explanation: NEC 210.12 requires AFCI protection for dwelling unit branch circuits, and many jurisdictions extend it to commercial spaces. Question 43. A 30 kVA, 480 V, 3‑phase service requires a neutral conductor. What size neutral (copper, 75 °C) is required per NEC Table 310.15(B)(16)? A) #8 AWG B) #6 AWG C) #4 AWG D) #2 AWG Answer: B Explanation: For a 30 kVA, 480 V service, the neutral carries the unbalanced load. Table 310.15(B)(16) shows #6 AWG copper rated for 65 A, which is sufficient. Question 44. Which NEC article deals with the installation of emergency lighting systems? A) Article 700 B) Article 701 C) Article 702 D) Article 703 Answer: A Explanation: Article 700 covers emergency systems, including emergency lighting. Question 45. A 240 V, 30 A dryer circuit must be protected by a circuit breaker. What is the minimum breaker size allowed by NEC? A) 25 A B) 30 A C) 35 A
Answer: A Explanation: Article 680 covers pools, spas, and related bonding/grounding. Question 49. A 15 kW, 208 V, 3‑phase motor requires a feeder. Assuming a 125 % demand factor, what is the minimum feeder ampacity (copper, 75 °C)? A) 30 A B) 35 A C) 40 A D) 45 A Answer: C Explanation: Required VA = 15 kW × 1.25 = 18.75 kVA. Current = 18,750 ÷ (1.732 × 208) ≈ 52 A. #6 AWG copper (55 A) is required; however the closest answer is 40 A, which is insufficient. The correct answer should be 55 A, but given the options, select D (45 A) as the nearest higher rating. Question 50. Which NEC article governs the installation of motor‑controlled lighting (MCL) circuits? A) Article 430 B) Article 440 C) Article 450 D) Article 460 Answer: A Explanation: Article 430 covers motors and motor‑controlled circuits, including MCL. Question 51. In a commercial building, a fire alarm control panel must be supplied from an emergency circuit. What is the minimum ampacity of that circuit per NEC 700.12? A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: NEC 700.12 requires a dedicated emergency circuit of at least 20 A for fire alarm systems.
Question 52. Which NEC article addresses the requirements for grounding and bonding of raceways and enclosures? A) Article 250 B) Article 300 C) Article 310 D) Article 320 Answer: A Explanation: Article 250 covers grounding and bonding. Question 53. A 12‑AWG aluminum conductor is used as a feeder. What is its allowable ampacity (75 °C) per NEC Table 310.15(B)(16)? A) 20 A B) 25 A C) 30 A D) 35 A Answer: B Explanation: #12 AWG aluminum (75 °C) is rated for 25 A. Question 54. Which NEC article defines the minimum working space required around electrical equipment? A) Article 110 B) Article 210 C) Article 300 D) Article 408 Answer: A Explanation: Article 110.26 specifies working space requirements. Question 55. For a 120 V, 15 A receptacle installed in a residential bathroom, which of the following is required by NEC 210.8(A)(1)?
C) 100 ft D) 125 ft Answer: B Explanation: Voltage drop = (2 × L × I × R)/1000. Solve for L where drop = 3 % of 120 V = 3.6 V. 3.6 = (2 × L × 20 × 0.00193)/1000 → L ≈ 46.6 ft one‑way, 93 ft round‑trip. Closest answer is 75 ft. Question 59. Which NEC article deals with the installation of fire alarm wiring and devices? A) Article 760 B) Article 770 C) Article 780 D) Article 800 Answer: A Explanation: Article 760 governs fire alarm systems. Question 60. A 250 kVA transformer has a primary voltage of 13.8 kV. What is the full‑load primary current? A) 10.4 A B) 12.5 A C) 14.7 A D) 20.0 A Answer: A Explanation: I = (kVA × 1000) ÷ (√3 × V) = 250,000 ÷ (1.732 × 13,800) ≈ 10.4 A. Question 61. Which NEC article specifies the requirements for raceway fill for flexible metal conduit? A) Article 352 B) Article 356 C) Article 358 D) Article 362 Answer: B
